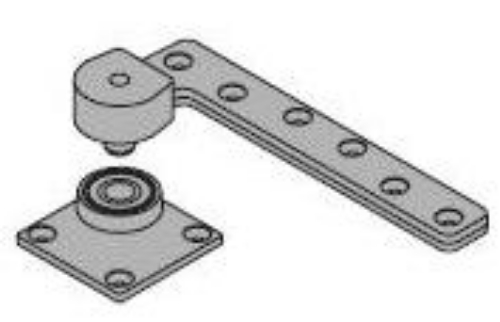

Ives 7226F-BTM, 3/4" Offset Fire Rated Bottom Pivot

Ives 7226F BTM, 3/4" Offset Fire Rated Bottom Pivot

**7226F - UL Listed 3 hour fire doors

**Non-handed

Base plate mount

Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

Maximum door load 600 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7226F-BTM, 7226FBTM, 7226FBTMSP28, 7226FBTMSP313, 7226FBTMSPBLK, 7226FBTMSP28RH, 7226FBTMSP313RH, 7226FBTMSP28LH, 7226FBTMSP313LH, 7226FBTMUS32D, 7226FBTMUS3, RH, LH. 7226F BTM SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, SPBLK - Black Painted, US32D - Satin Stainless Steel, US3 - Bright Brass, RH, LH. Right or Left hand
