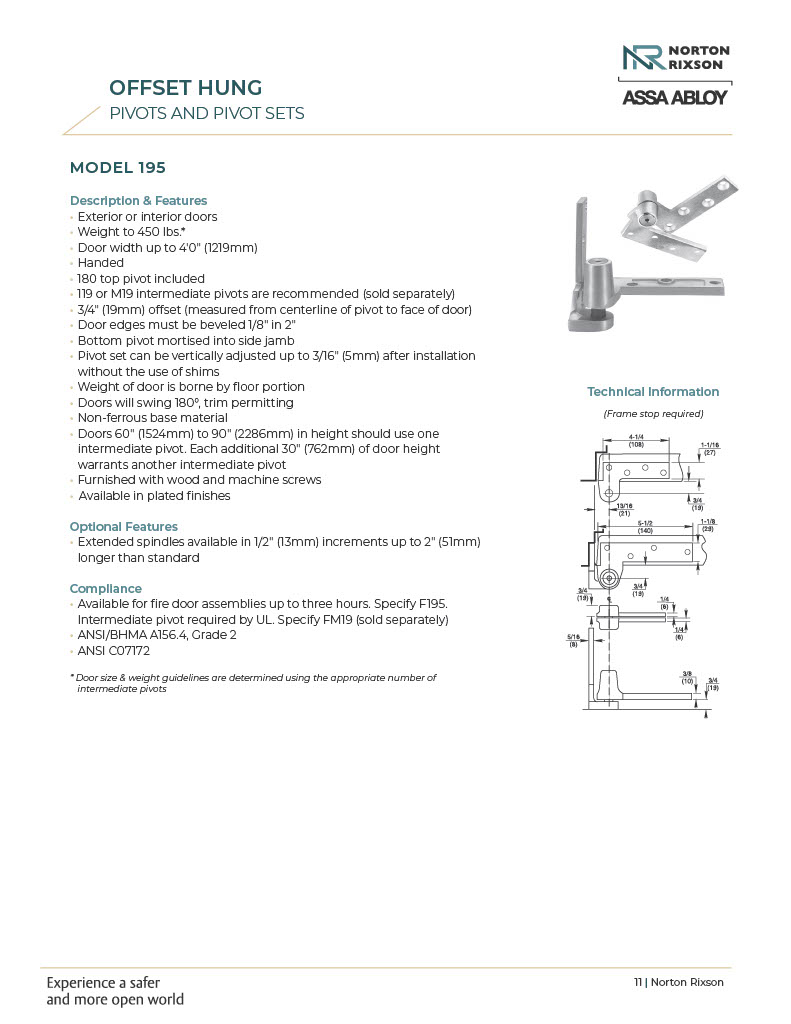

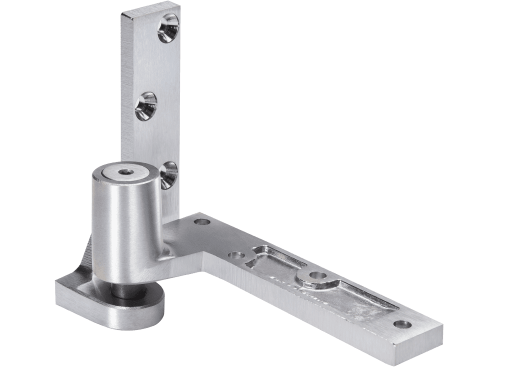

Rixon 195 LTP Pivot Hinge, Less Top Pivot, 3/4 Offset

Rixon 195 LTP Pivot Hinge Less Top Pivot, 3/4 Offset

Application:

? Exterior or Interior Doors

? Weight to 450 lbs.*

? Door Width up to 4'0" (1219mm)

? Handed

? Jamb Attached Pivot Set

• Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

? 119 or M19 intermediate pivots are recommended (order separately)

? Bottom pivot mortised into side jamb

? Pivot hinge can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims

? Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot

? Non-ferrous base material

? 3/4" (19mm) offset (measured from centerline of pivot to face of door)

? Door edges must be beveled 1/8" in 2"

? Weight of door is borne by floor portion

? Furnished with wood and machine screws

? Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard

? Doors will swing 180?, trim permitting

Model: Rixon 195 LTP RH 613, 195 LTP RH 619, 195 LTP RH 626, 195LTPRH-613, 195-LTP-RH-619, 195-LTP-RH-626, 195LTPRH 195 LTP LH 613, 195 LTP LH 619, 195 LTP LH 626, 195LTPLH-613, 195-LTP-LH-619, 195 LTP LH-626
