Ives 7253-BTM Center Hung Bottom Pivot

Ives 7253-BTM Center Hung Bottom Pivot

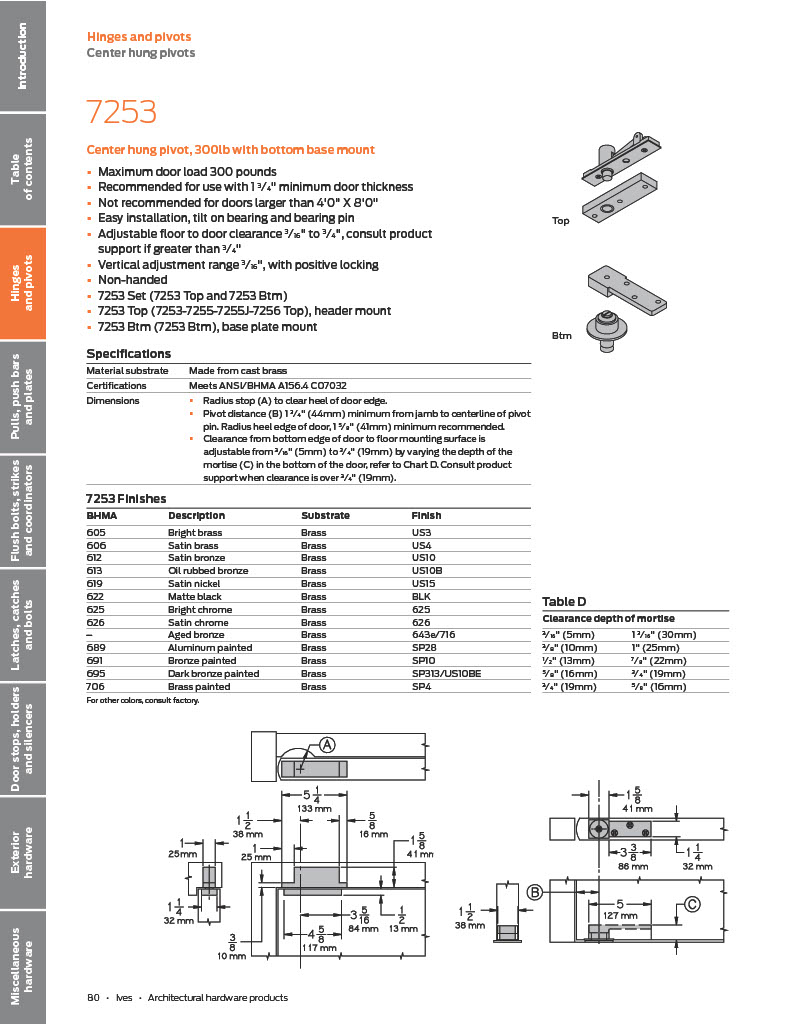

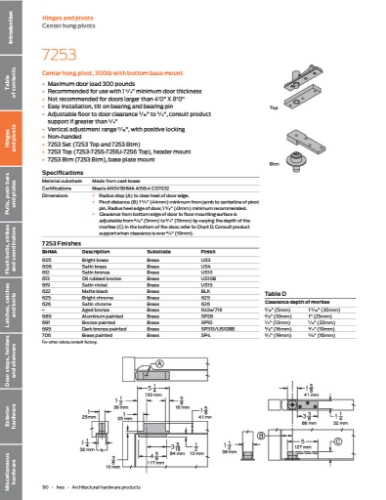

1-Page80-IVES-ARC

1-Page1-FINISHESCHART

Product Details

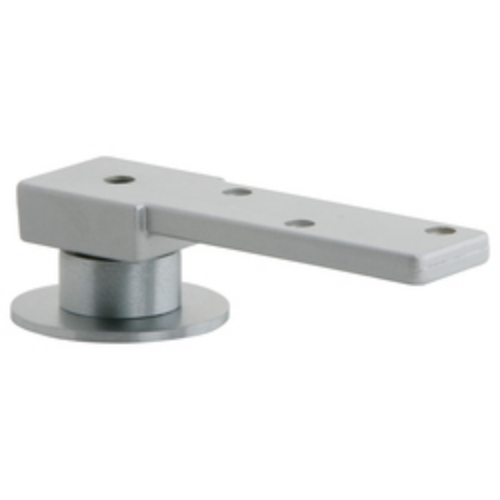

Ives 7253-BTM Center Hung Bottom Pivot

Non-Handed

Base plate mount

Easy installation tilt on bearing and bearing pin.

Use with 1-3/4" minimum door thickness.

Adjustable floor to door clearance 3/16" to 3/4".

Maximum door load 300 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7253-BTM, 7253BTM, 7253BTMSP28, 7253BTMSP313, 7253BTMUS26D, 7253 BTM SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US26D - Satin Chrome

Ives 7253-BTM Center Hung Bottom Pivot

SKU: 7253-BTM

In Stock

$122.55

About this item

Meets ANSI/BHMA A156.4 C07032

Resources

IVES Full Catalog

Ives 7253-BTM Center Hung Bottom Pivot

Non-Handed

Base plate mount

Easy installation tilt on bearing and bearing pin.

Use with 1-3/4" minimum door thickness.

Adjustable floor to door clearance 3/16" to 3/4".

Maximum door load 300 pounds

Vertical adjustment range 3/16", with positive locking

Model:Ives 7253-BTM, 7253BTM, 7253BTMSP28, 7253BTMSP313, 7253BTMUS26D, 7253 BTM SP28 - Aluminum Painted, SP313 - Dark Bronze Painted, US26D - Satin Chrome

7253BTMUS26D

Ives 7253-BTM Center Hung Bottom Pivot

Product code: 7253-BTM

In Stock

$122.55

$122.55

7253BTMUS26D

Ives 7253-BTM Center Hung Bottom Pivot

Product code: 7253-BTM

In Stock

$122.55

$122.55
