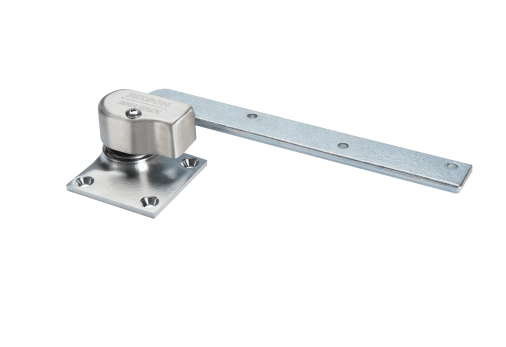

Rixon 147 LTP Pivot Hinge Less Top Pivot, 3/4 Offset

Rixon 147 LTP Pivot Hinge Less Top Pivot, 3/4 Offset

Application:

? Exterior or Interior Doors

? Weight to 600 lbs.*

? Door Width up to 4'0" (1219mm)

? Handed

? Standard-Duty Pivot

• Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

? M19 intermediate pivot required (order separately)

? Bottom pivot mounts directly to floor

? Uses same arm and cap as 27 floor closer

? Non-ferrous base material

? Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot

? 3/4" (19mm) offset (measured from centerline of pivot to face of door)

? Door edges must be beveled 1/8" in 2"

? Furnished with wood and machine screws

? Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard

? Doors will swing 180?, trim permitting

Model: Rixon 147 LTP RH 605, 147 LTP RH 606, 147 LTP RH 613, 147 LTP RH 625, 147 LTP RH 626, 147LTP RH, 147 LTP-RH-605, 147LTPRH606, 147-LTPRH-613, 147LTP-RH-625, 147LTP RH-626, 147LTPRH, Lixon 147LTPLH605, 147 LTP LH 606, 147 LTP LH 613, 147 LTP LH 625, 147 LTP LH 626, 147 LTP LH,147-LTP-LH-605, 147LTPLH606, 147-LTPLH-613, 147-LTP-LH-625, 147-LTP LH-626, 147LTPLH
