Ives 7245F-SET SPBLK, 1-1/2" Offset Fire Rated Pivot Set, Sprayed Black

Ives 7245F-SET SPBLK, 1-1/2" Offset Fire Rated Pivot Set, Sprayed Black

7245F 1 1/2" Offset pivot, 500lb with top header mount and bottom base mount, fire rated**

Maximum door load 500 pounds

-Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"

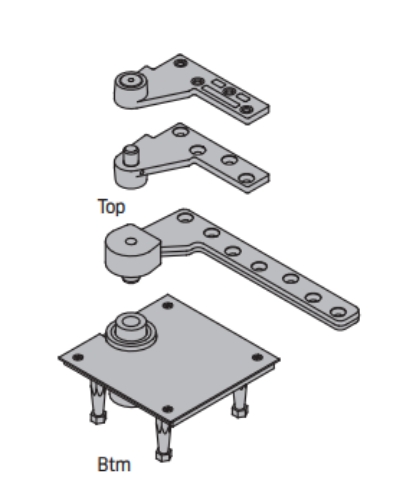

-7245F Set (7245F Top and 7245F Btm)

-7245F Top (7244F-7245F Top), header mount

-7245F Btm (7245F Btm), mortised cement case mount

Certifications:

• Meets ANSI/BHMA A156.4 C07121

• UL Listed, 3 hour fire doors

Material substrate:

• Made from 304 series stainless steel
