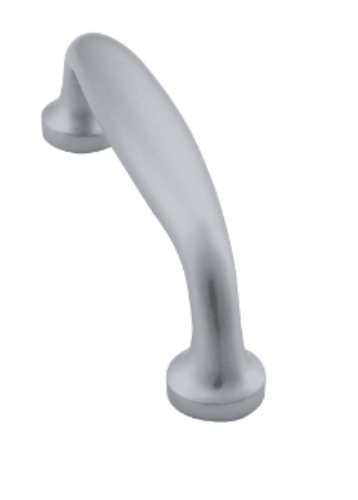

Ives 8111-5 Door Pull, 5" CTC, 1-3/16" Projection

**Ives 8111-5 - 5" Door Pull

**

Dimensions

Projection "A" - 1-13/16"

Center to Center "B" - 5-1/4"

Overall Length "C" - 6-1/4"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B15 (US15) Satin Nickel, Clear Coat (619) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626) S32D (US32D) Satin Stainless Steel (630) PA28 (US28) Satin Alumimum, Clear Anodized (628)

Model: 81115 8111-5, 81115US3, 81115US4, 81115US10, 81115US10B, 81115US15, 81115US26, 81115US26D, 81115US32D, 81115US28, 81115B3, 81115B4, 81115B10, 81115B10B, 81115B15, 81115B26, 81115B26D, 81115S32D, 81115PA28**
