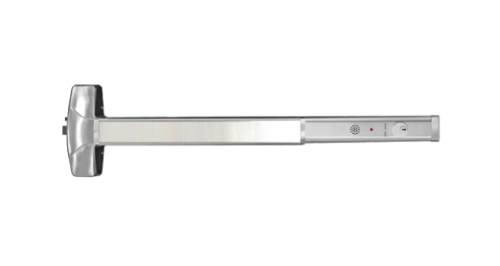

Cal-Royal DE7700EO Delayed Egress, Rim Exit Panic Device

**Cal-Royal DE7700EO Delayed Egress, Rim Exit Panic Device

Fits same hole pattern as Von Duprin 99 & 98

***Features & Construction:*For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

ANSI A156.3, Grade 1 heavy duty exit device

Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.

Trims are thru bolted for additional security.

Conforms & Meets ADA Regulations.

UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. 3 hours. (A) label rating on pairs of doors up to 8'0"x 8'0" swinging in same or opposite directions.

Uncompromising security and safety in single and double fire exit doors.

Chassis mounted unit construction.

Non-handed and easily reversible.

Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out. (See Below)

For Doors: 1-3/4thick standard optional 2-1/4thick. 4-1/2minimum stile width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.

Chassis: Non-ferrous alloy (Panic Grade), steel (Fire Grade). Cover: Brass, bronze or stainless steel. Covers stock hollow metal doors with 161 cut out.

Mounting: Furnished with wood and machine screws. Available thrubolts on request. Thru bolts are included and standard packaging on fire rated devices.

End Cap: Brass, bronze or stainless steel construction.

Hand: Non-handed, center hub.

Latch Bolt:Stainless steel 3/4throw with anti-pick feature.

Spring: Stainless steel throughout.

Strike: 938 packed standard

Dogging Feature: Allen-type key furnished standard on non-fire labeled devices.

Egress Delay:All in One Device

15 or 30 second exit delay (Factory set to 15 secs)

1 or 2 second nuisance delay

Alarm and Lock reset

1 to 30 second momentary bypass

Sustained bypass

Bulit-in Annunciation:

Armed mode

Nuisance mode

Irreversible egress mode

Release mode

Code Compliance:

IFC International Fire Code

IBC International Building Code

NFPA 101 Life Safety Code

NFPA 1 Uniform Fire Code

California Building Code

Field selectable automatic or manual power up after emergency release or power loss

Control Inputs:

1 to 30 second request-to-exit and bypass input with anti-tailgate and jumper selectable door prop alarm

Reset

Trigger Modes:

Egress Alarm triggered by Push Bar

Trigger input from external device field selectable (N/O or N/C)

Monitoring Outputs:

Armed mode

Nuisance mode

Release status

Dimensions: Touchbar height to finished floor 41" (1034mm) at center

Touchbar projection: neutral 3-3/8" (92mm), depressed 2-7/8" (73mm)

Center case: 8-1/16x 2 3/4x 2 1/2" (205mm x 68mm x 62mm)

Model:DE7700EO and DEF7700EO36 Actual lenght: 32" Max cut down: 6" Door size: 30" to 36" door width

Model:DE7700EO48 and DEF7700EO48 Actual lenght: 44 Max cut down: 12" Door size: 36 to 48 door width

Model: DE7700EO36, DE7700EO48, DEF7700EO36, DEF7700EO48, US32D, US10B, US3

Suggested Architects Specifications All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the doors clear opening width.

All exit devices must be listed under Panic Hardware in the Accident Equipment List of Underwriters Laboratories, Inc.

Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC-7-2-1777 codes.

All springs shall be of stainless steel throughout. All exit devices shall be of chassis mounted unit construction.

All exit devices shall be ANSI A1563.3, Grade 1.
