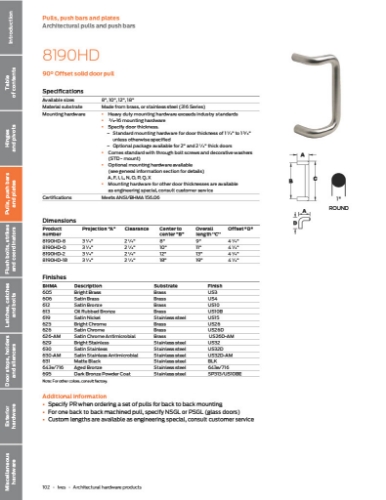

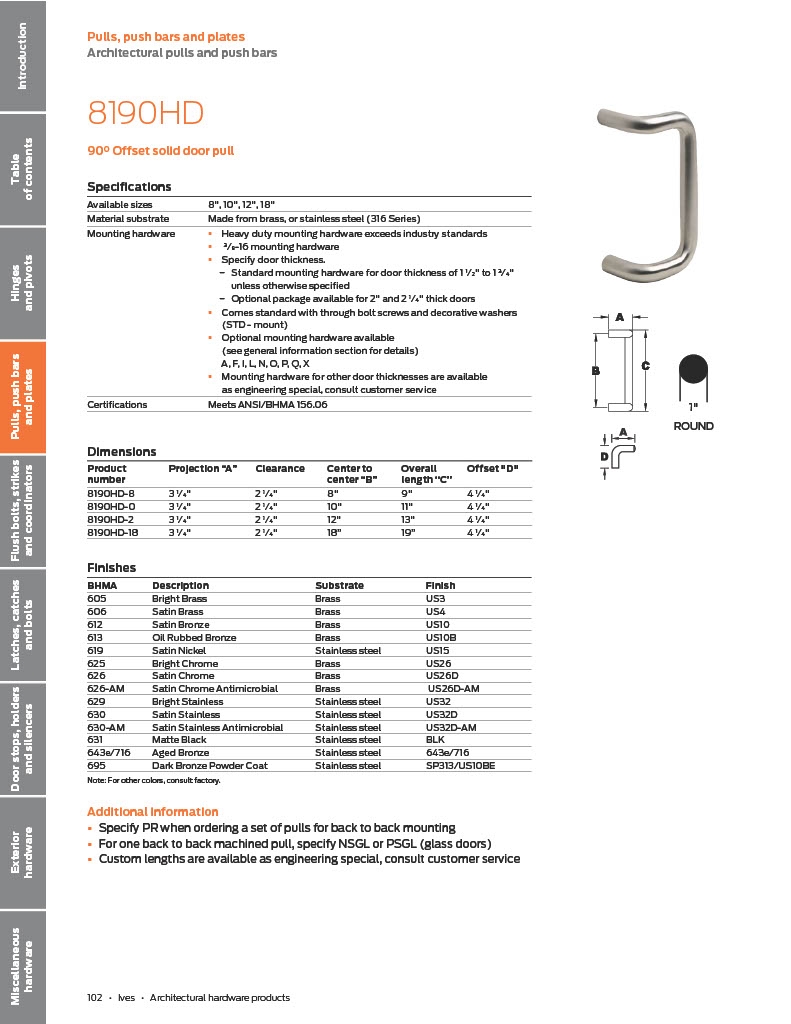

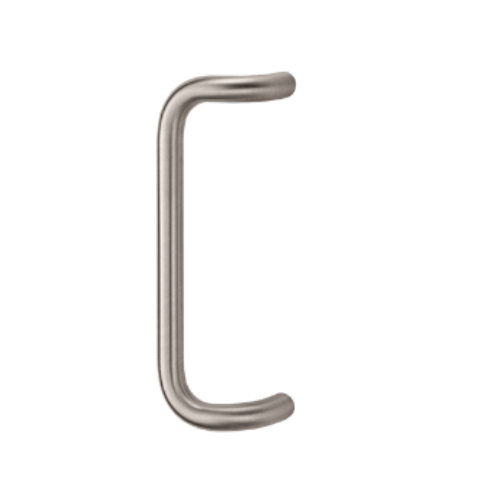

Ives 8190HD-8 Offset Door Pull, 90 Deg., 8" CTC, 1" Diameter, 2-1/2" Clearance

Ives 8190HD-8 - 90 Degree Offset Door Pull - 8" -1"Round, 2-1/4"Clearance

Dimensions

Projection "A" - 3-1/4"

Clearance - 2-1/4

Center to Center "B" - 8"

Overall Length "C" - 9"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626) S32 (US32D) Bright Stainless Steel (629) S32D (US32D) Satin Stainless Steel (630)

Model: 819018, 8190-8, 819018US3, 819018US4, 819018US10, 819018US10B, 819018US26, 819018US26D, 819018US32, 819018US32D, 819018B3, 819018B4, 819018B10, 819018B10B, 819018B26, 819018B26D, 819018B32, 819018B32D
