Ives CL12 Invisible Cabinet Latch

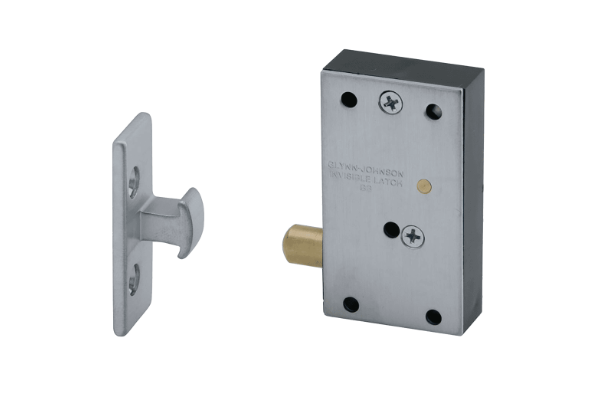

**Ives CL12 Invisible Latch

**Invisible latch is ideal for installations where no visible latch is desired.

Unit can be installed at the top, bottom or side of the door.

Can be mortised into the stop or surface mounted to the stop.

Recommended for use on larger panels or regular size doors.

Operation is simple, latching is accomplished by a slight push. To unlatch the door, a harder push releases the door and pushes the door out.

Brass and plastic construction.

Applies 27 pounds to open the door.

**Dimensions

**Body: 1-1/4" Wide x 2-1/4" High x 9/16" Thick

Strike: 5/8" Wide x 1-13/16" High x 9/16" Projection

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B26D (US26D) Satin Chrome (626)

Model:CL12B3, CL12B4, CL12B10, CL12B26D, CL12US3, CL12US4, CL12US10, CL12US26D
