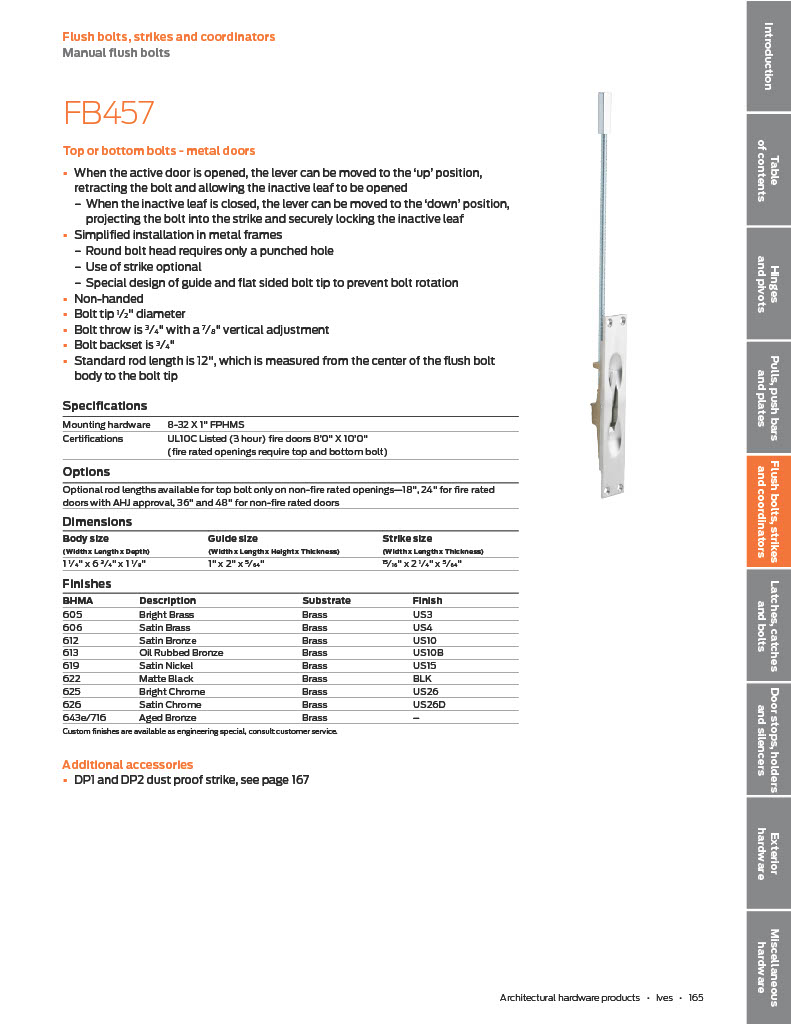

Ives FB457 Manual Flush Bolt for Metal Doors

Ives FB457 Manual Flush Bolt Metal Doors

ToporBottom Bolts

When the active door is opened, the lever can be moved to theupposition, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to thedownposition, projecting the bolt into the strike and securely locking the inactive leaf.

Simplified installation in metal frames. Round bolt head requires only a punched hole. Use of strike optional. Special design of guide and flat sided bolt tip to prevent bolt rotation.

Non-handed.

Bolt tip is 1/2" Diameter.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip. Optional rod lengths available - 6", 9", 18" and 24" for fire rated doors. Optional rod lengths available - 6", 9", 18", 24", 30", 36" and 48" for non-fire rated doors.

**Dimensions

**Body Size: 1-1/4" Wide x 6-3/4" Long x 1-1/8" Deep

Guide Size: 1" Wide x 2" Long x 5/64" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 5/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) B15 (US15) Satin Nickel, Clear Coat (619) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626)

Model: FB457, FB457,FB457US3, FB457US4, FB457US10, FB457US10B, FB457US15, FB457US26, FB457US26D, FB457B3, FB457B4, FB457B10, FB457B10B, FB457B15, FB457B26, FB457B26D, FB45712US3, FB45712US4, FB45712US10, FB45712US10B, FB45712US15, FB45712US26, FB45712US26D
