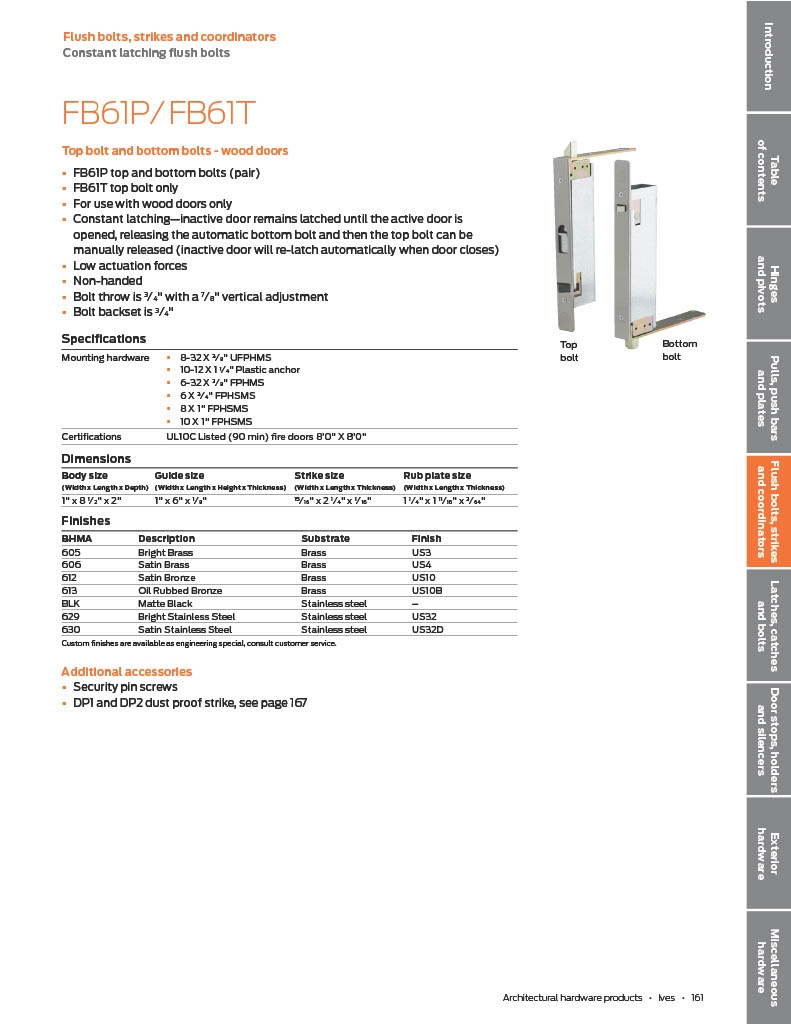

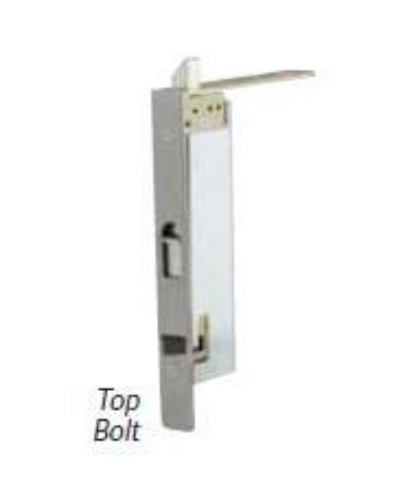

Ives FB61T Constant Latching Flush Bolt - Wood Doors - Top Only

Ives FB61T Constant Latching Flush Bolt Wood Doors - Top Bolt Only

Constant Latching - inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when door closes.

Low Actuation Forces.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

Dimensions

Body Size: 1" Wide x 8-1/2" Long x 2" Deep

Guide Size: 1" Wide x 6" Long x 1/8" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB61T, FB61TWD,FB61TUS3, FB61TUS4, FB61TUS10, FB61TUS10B, FB61TUS32, FB61TUS32D, FB61TB3, FB61TB4, FB61TB10, FB61TB10B, FB61TS32, FB61TS32D, FB61TWDUS3, FB61TWDUS4, FB61TWDUS10, FB61TWDUS10B, FB61TWDUS32, FB61TWDUS32D
