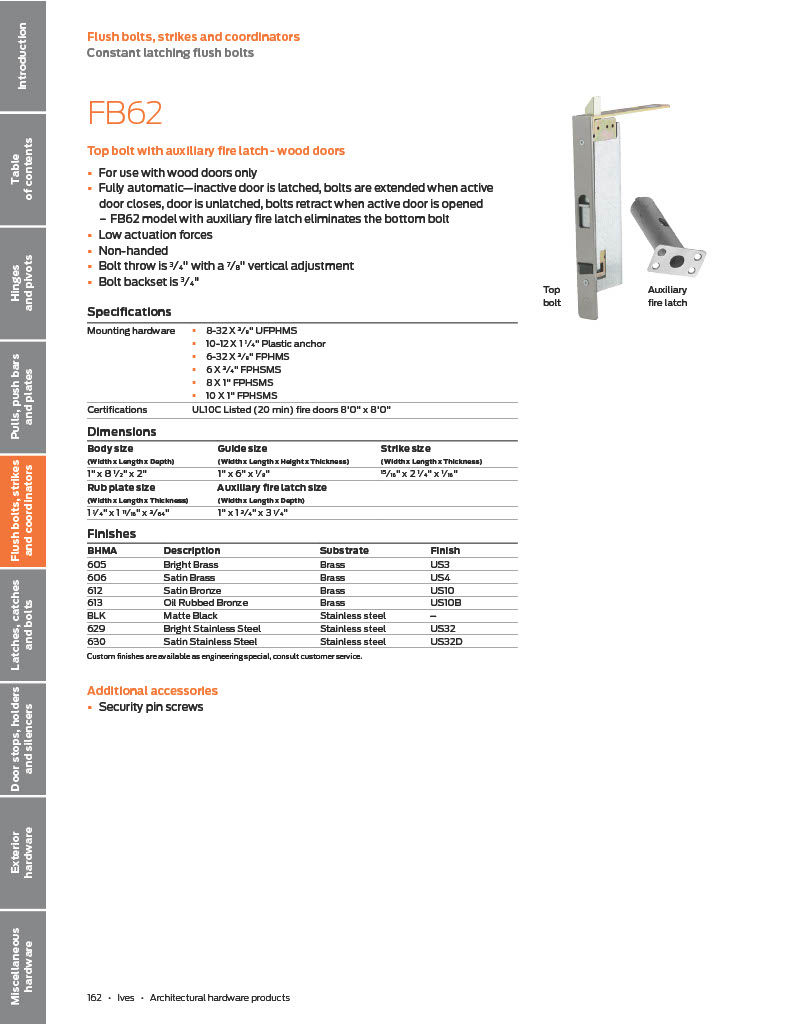

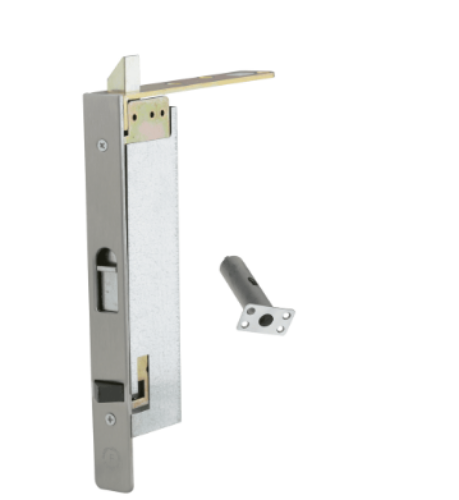

Ives FB62 (WD) Constant Latching Flush Top Bolt w/ Fire Latch

Ives FB62 Constant Latching Flush Bolt Wood Doors -  *Top Bolt with Auxiliary Fire Latch*

FB62 Model with Auxiliary Fire Latch eliminates the bottom bolt and is UL Listed for Fire Doors..

Constant Latching inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when door closes.

Low Actuation Forces.

Non-handed.

Bolt throw is 3/4" with a 7/8" vertical adjustment.

Bolt backset is 3/4"

**Dimensions

**Body Size: 1" Wide x 8-1/2" Long x 2" Deep

Guide Size: 1" Wide x 6" Long x 1/8" Thick

Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick

Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick

Auxiliary Fire Latch Size: 1" Wide x 1-3/4" Long x 3-1/4" Deep

Finish: B3 (US3) Bright Brass, Clear Coat (605) B4 (US4) Satin Brass, Clear Coat (606) B10 (US10) Satin Bronze, Clear Coat (612) B10B (US10B) Dark Bronze, Oil Rubbed (613) US32 (US32) Bright Stainless Steel (629) US32D (US32D) Satin Stainless Steel (630)

Model: FB62, FB62WD,FB62US3, FB62US4, FB62US10, FB62US10B, FB62US32, FB62US32D, FB62B3, FB62B4, FB62B10, FB62B10B, FB62S32, FB62S32D, FB62WDUS3, FB62WDUS4, FB62WDUS10, FB62WDUS10B, FB62WDUS32, FB62WDUS32D
