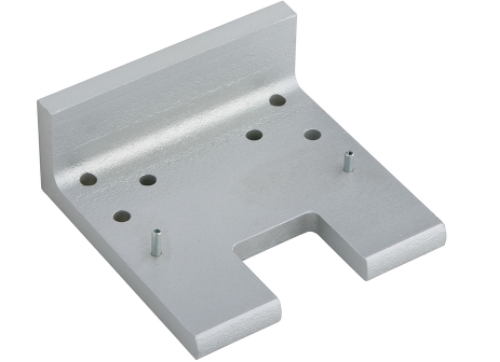

Ives MB2F Mounting Bracket, Stop Widths 2-7/8" - 3-1/4"

Screenshot 2024-05-15 131830
1-Page172-IVES-ARCH
1-Page1-FINISHESCHART
Screenshot 2024-05-15 131830
1-Page172-IVES-ARCH
1-Page1-FINISHESCHART
naxt
prev

Product Details

Ives MB2F Mounting Bracket, Stop Widths 2-7/8" - 3-1/4"

Allows for fire-rated stop mounted hardware to be properly installed without damaging the COR Coordinators, such as fire-rated surface vertical rod exit device strikes.

Latch will need to be lowered to compensate for the height of the coordinator and mounting bracket.

Mounting brackets are made of steel.

Jamb Depth: 5-7/8" Min.

Stop Width: 2-3/8"- 3-1/4"

Dimensions: 4" W x 4" D x 1-5/8" T

Finish: USP Prime Coat (600) SP28 - Aluminum Painted (689) SPBLK - Black Painted (622)

Model: MB2F, MB2FUSP, MB2FSP28, MB2FSPBLK



Ives MB2F Mounting Bracket, Stop Widths 2-7/8" - 3-1/4"

SKU: MB2F

In Stock

$51.34

Finish *

About this item

Fire Rated Mounting Bracket

Resources

Ives MB2F Mounting Bracket, Stop Widths 2-7/8" - 3-1/4"

Allows for fire-rated stop mounted hardware to be properly installed without damaging the COR Coordinators, such as fire-rated surface vertical rod exit device strikes.

Latch will need to be lowered to compensate for the height of the coordinator and mounting bracket.

Mounting brackets are made of steel.

Jamb Depth: 5-7/8" Min.

Stop Width: 2-3/8"- 3-1/4"

Dimensions: 4" W x 4" D x 1-5/8" T

Finish: USP Prime Coat (600) SP28 - Aluminum Painted (689) SPBLK - Black Painted (622)

Model: MB2F, MB2FUSP, MB2FSP28, MB2FSPBLK
