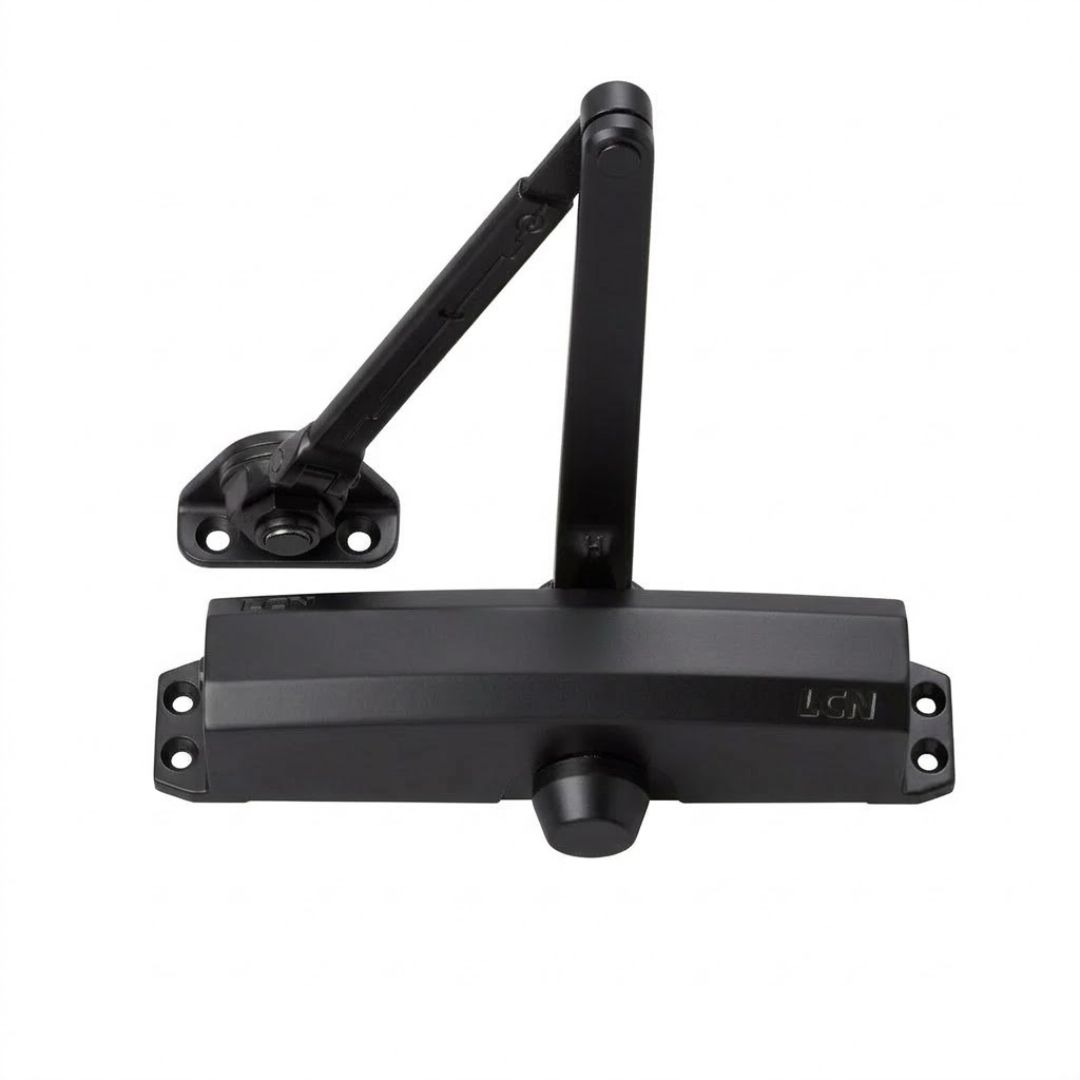

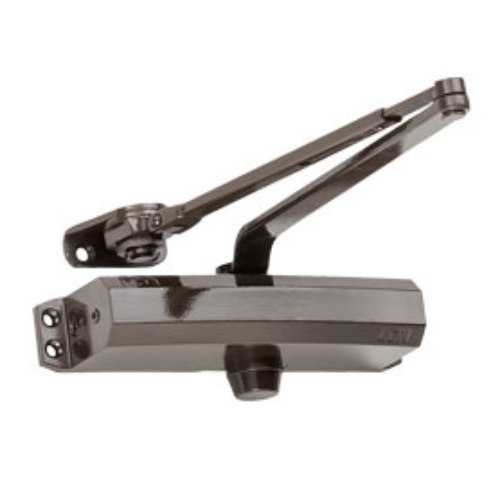

LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
1-Page6-LCN1000
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
1-Page6-LCN1000
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
naxt
prev

Product Details

LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

Fasteners: Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Arms: Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting

Fluid: All Weather

Handing: Non-Handed

Templating: Peel-n-Stick Templates - 3/4" x 9 1/16" Mounting Hole Pattern

Size: Adjustable Spring Size 1-5

Body Construction: Cast Aluminum Body  Full Complement Bearing  1 3/8" Piston Diameter  5/8" Diameter Heat Treated Pinion Journal

Certifications: Grade 1 - ANSI A156.4, UL/cUL, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 15 Years

Applications:

1250 Series: Light Duty

Designed for low-frequency and low-abusive traffic areas

Ideal for aluminum storefronts and interior offices for aluminum, hollow metal, or wood swinging doors and frames

Can be used with hinge or pivot mounted door

Mounts on a 1 3/4" transom without adapter plates

Model: LCN 1250, P1250, 1250 HW/PA, 1250HWPA, 1250AL, P1250AL, 1250DKBRZ, P1250DKBRZ, 689, 695

LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

SKU: 1250-HW/PA

In Stock
Picture for manufacturer LCN
icon Chat

$207.23

Finish *

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

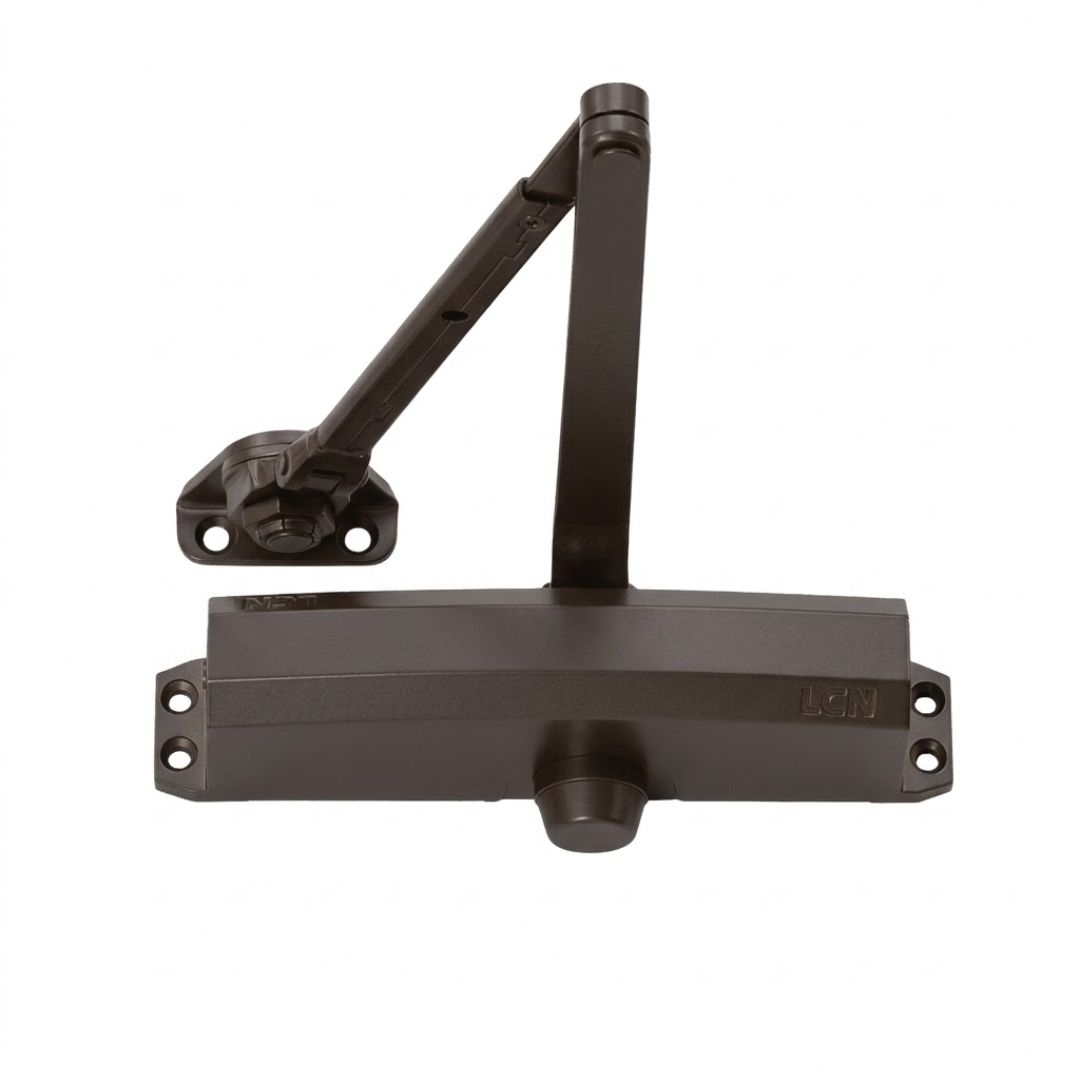

695 - Dark Bronze Painted
695 - Dark Bronze Painted

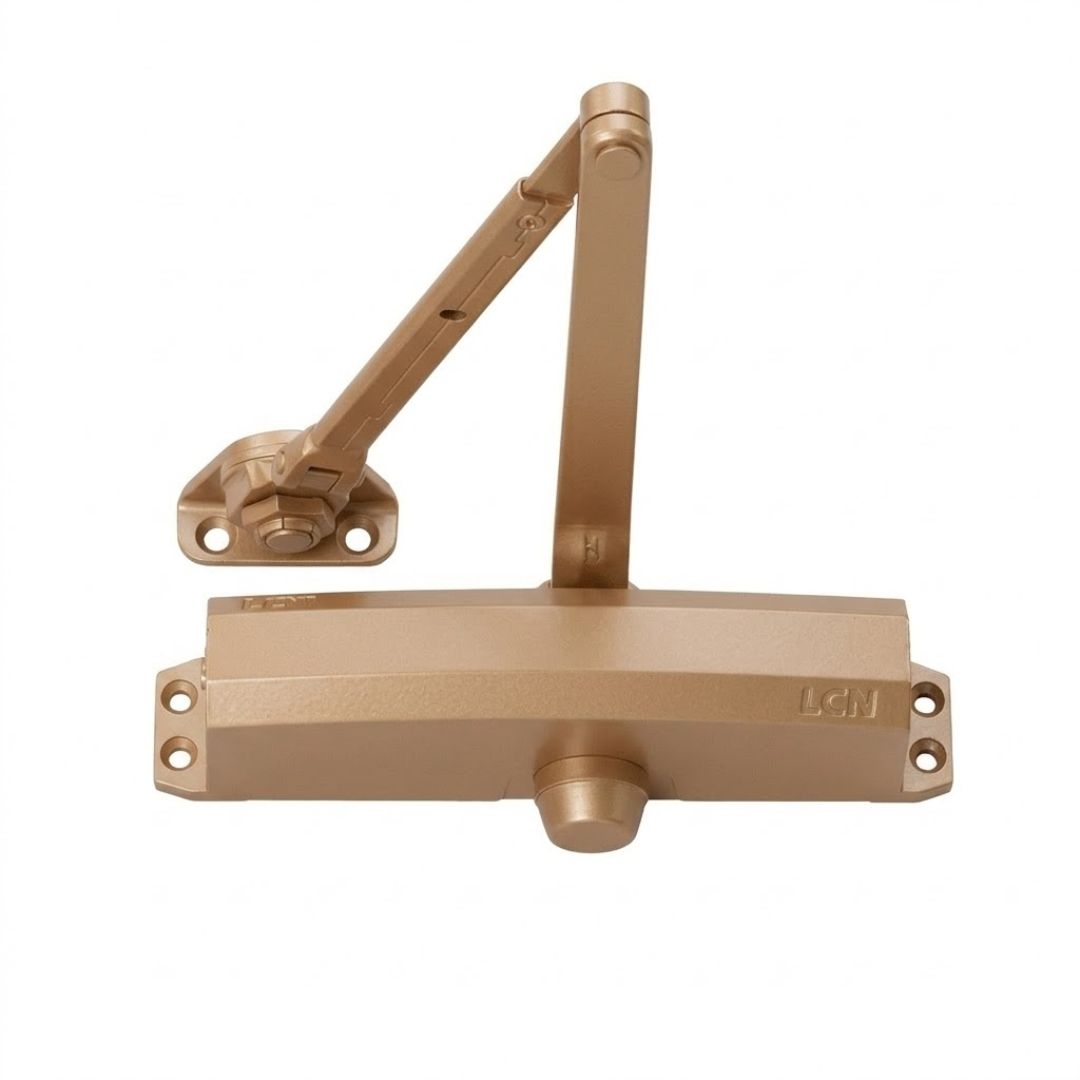

691 - Light Bronze Painted
691 - Light Bronze Painted

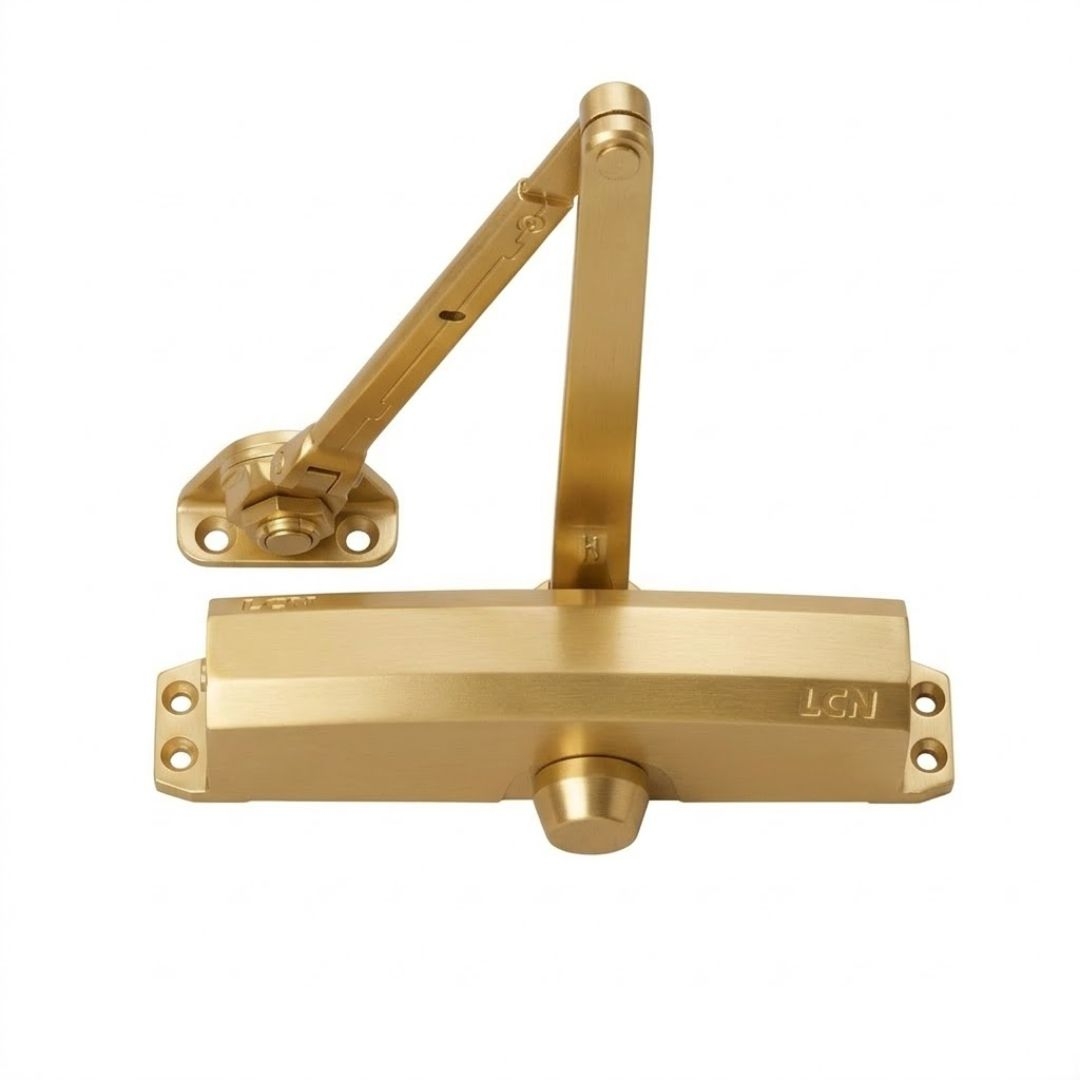

696 - Satin Brass Painted
696 - Satin Brass Painted
693 - Black Painted
693 - Black Painted

Cover *

About this item

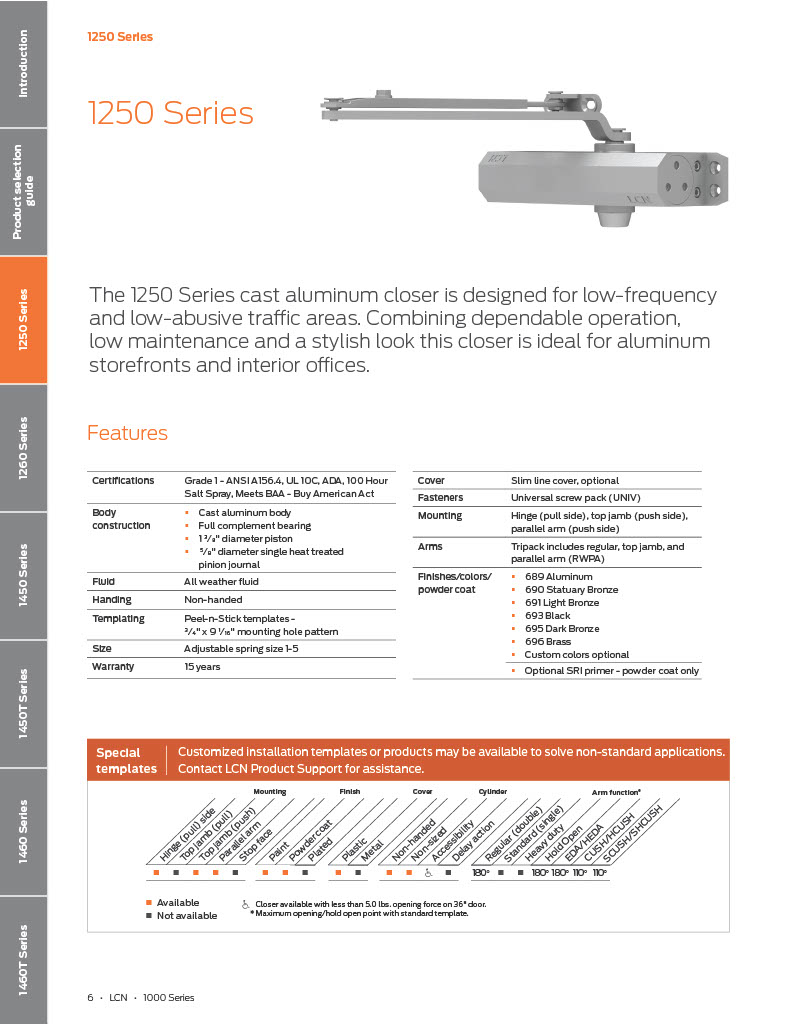

The new 1000 Series cast aluminum door closers offer high-quality, cost effective solutions.  All based on the LCN engineering, design, quality, reliability and service, the new cast aluminum offer the alternative solutions and competitive prices our customers have been asking for, with the most common hole patterns in the industry.

Resources

LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

Fasteners: Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Arms: Standard Tri-Pack includes arms for Regular Pull Side, Top Jamb or Parallel Arm Mounting

Fluid: All Weather

Handing: Non-Handed

Templating: Peel-n-Stick Templates - 3/4" x 9 1/16" Mounting Hole Pattern

Size: Adjustable Spring Size 1-5

Body Construction: Cast Aluminum Body  Full Complement Bearing  1 3/8" Piston Diameter  5/8" Diameter Heat Treated Pinion Journal

Certifications: Grade 1 - ANSI A156.4, UL/cUL, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 15 Years

Applications:

1250 Series: Light Duty

Designed for low-frequency and low-abusive traffic areas

Ideal for aluminum storefronts and interior offices for aluminum, hollow metal, or wood swinging doors and frames

Can be used with hinge or pivot mounted door

Mounts on a 1 3/4" transom without adapter plates

Model: LCN 1250, P1250, 1250 HW/PA, 1250HWPA, 1250AL, P1250AL, 1250DKBRZ, P1250DKBRZ, 689, 695

Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

Product code: 1250-HW/PA

In Stock

$207.23

$207.23

Picture of LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm
LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

Product code: 1250-HW/PA

In Stock

$207.23

$207.23

LCN 1250 HW/PA Cast Aluminum Door Closer - Hold-Open Arm

SKU: 1250-HW/PA
