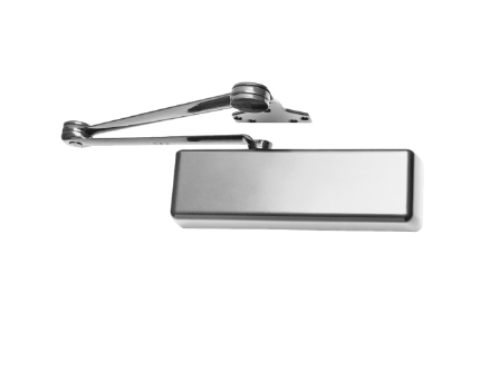

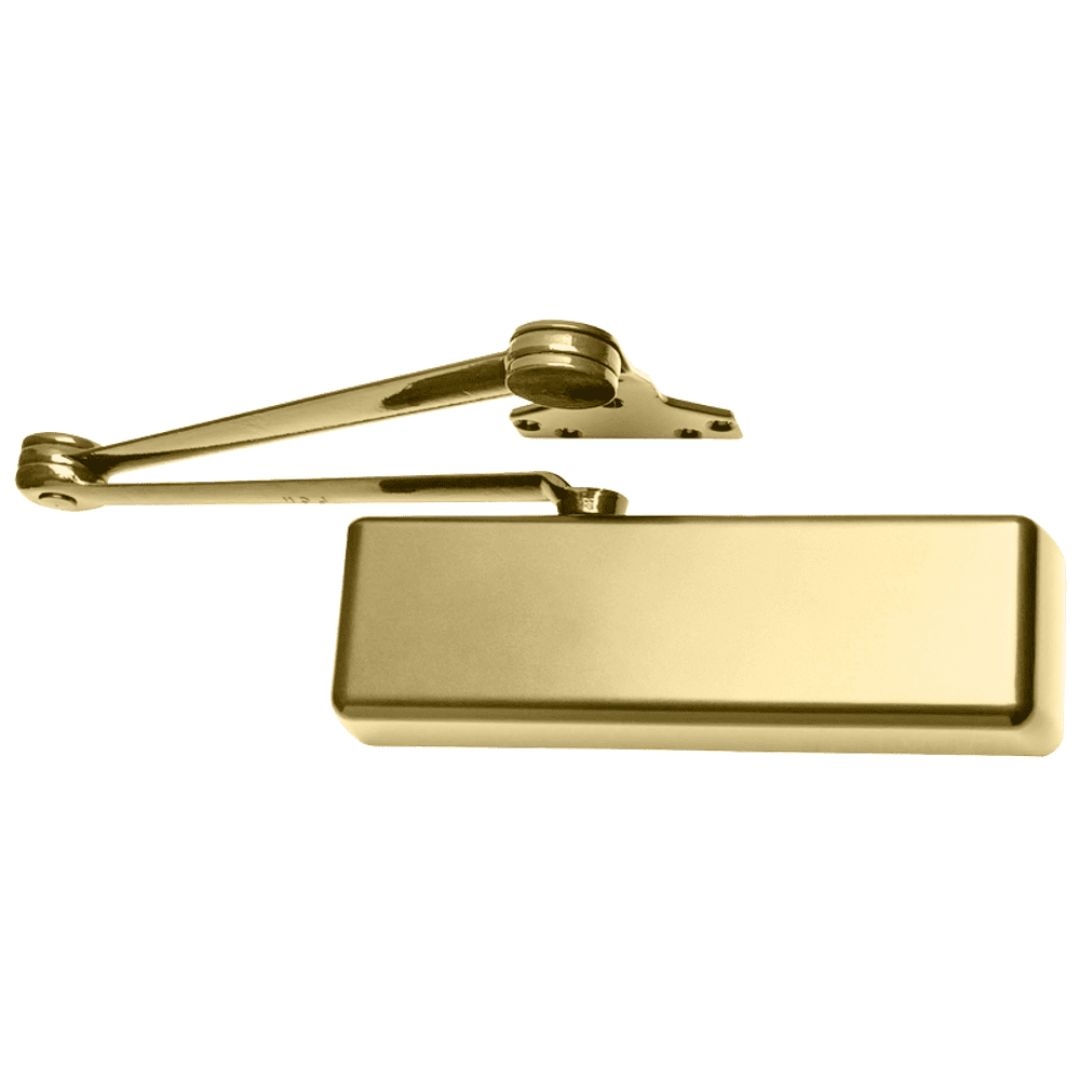

LCN 4040XP HEDA, Door Closer - Extra Duty Hold Open Arm

LCN 4040XP HEDA- Heavy Duty Door Closer, Extra Duty Hold Open Arm

Finish:Powder Coat

**Closer Mounting:Parallel Arm (PUSH SIDE) mounting.

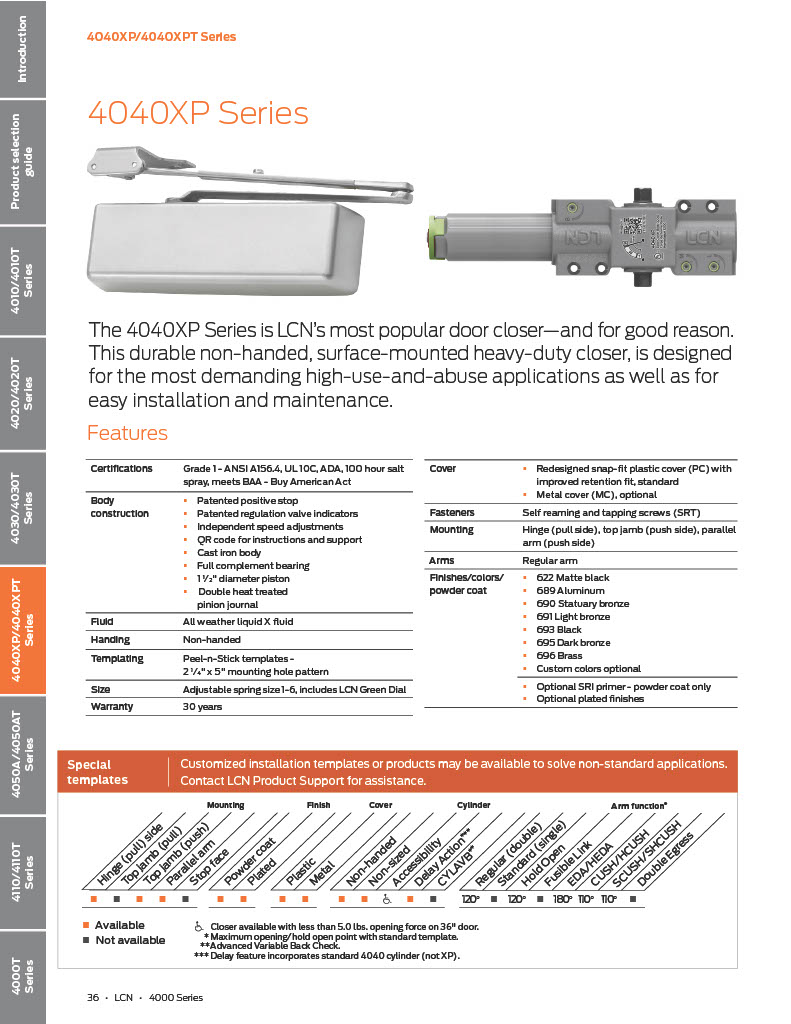

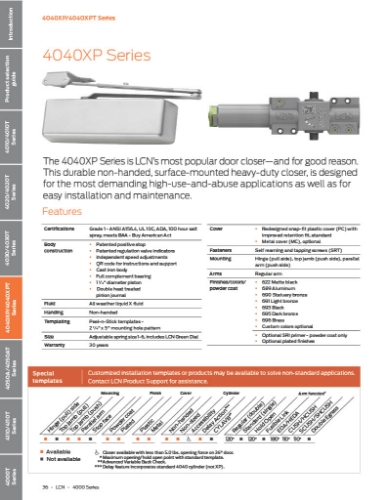

LCN 4040XP:44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter  - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size:4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.

Handing:Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

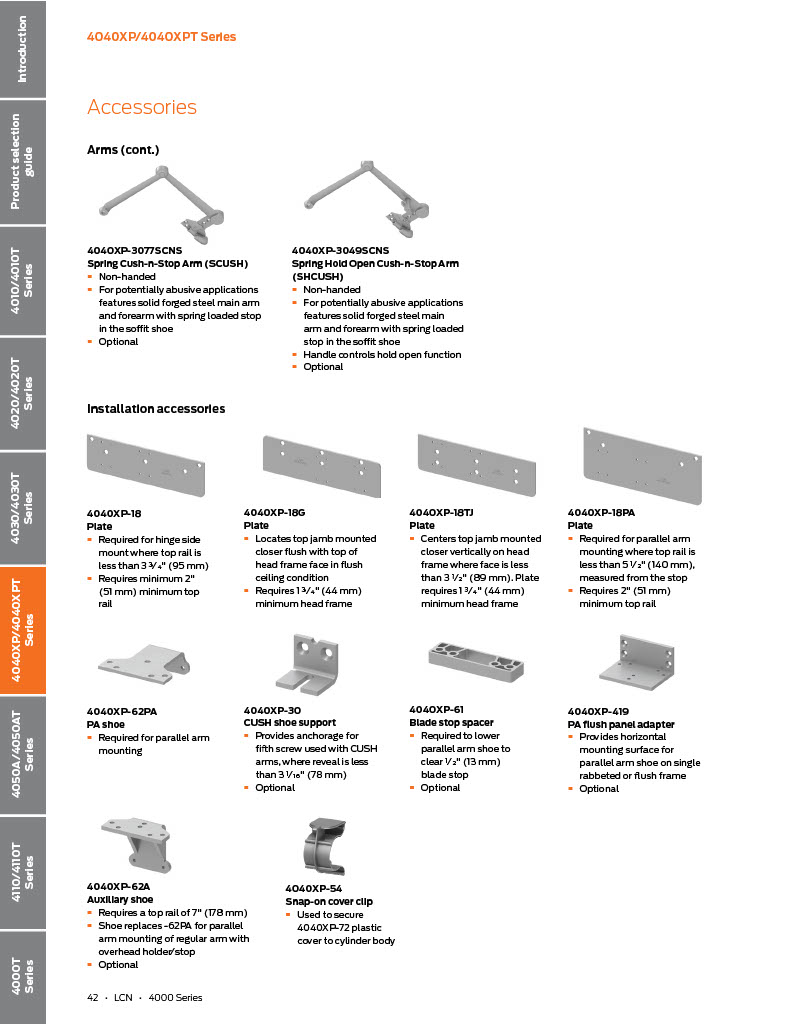

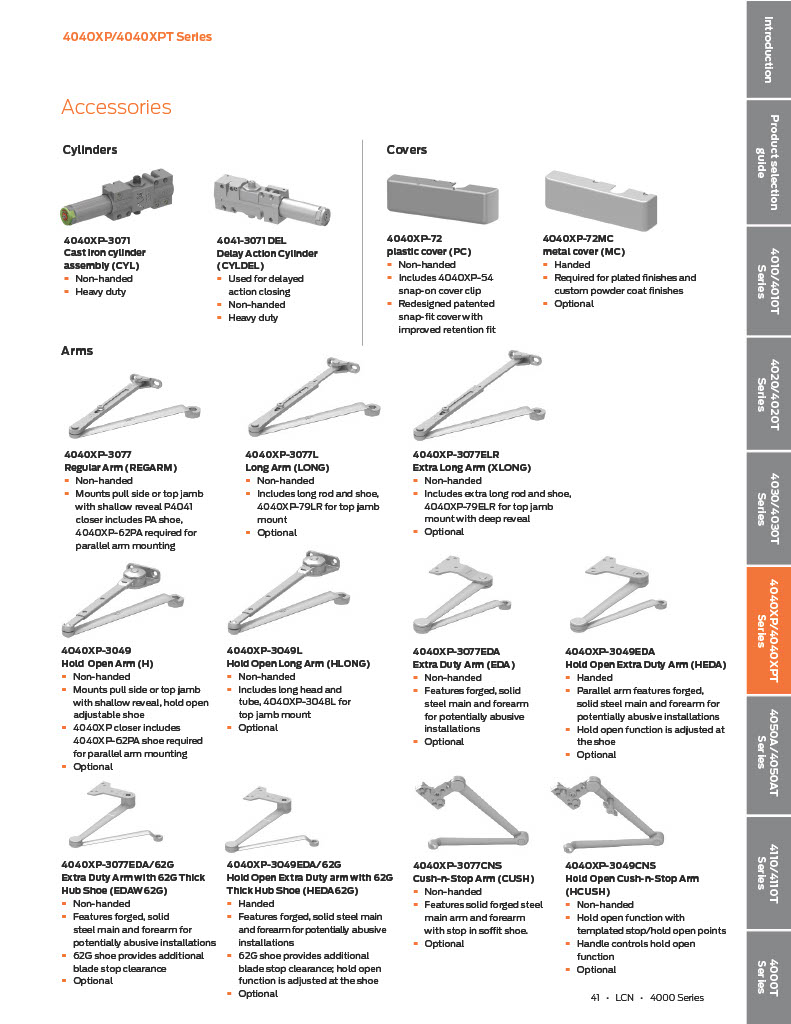

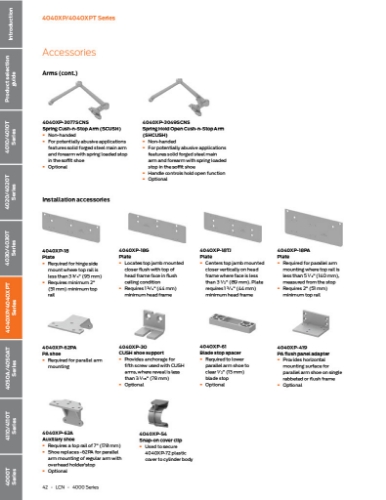

Arm:HOLD-OPEN EXTRA DUTY ARM, 4040-3049EDA Optional handed arm provides hold-open function, adjustable at the shoe.

Cover:4040-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

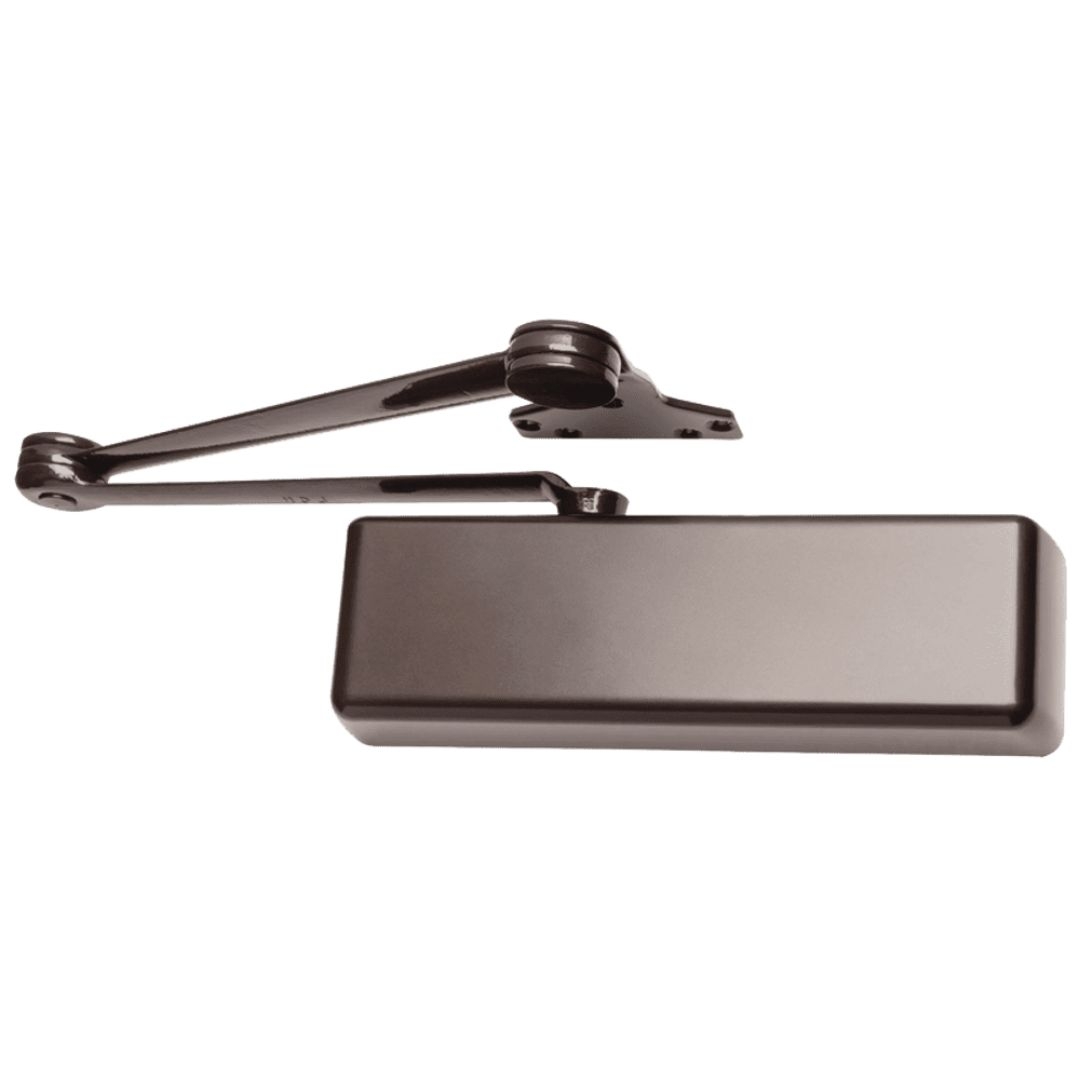

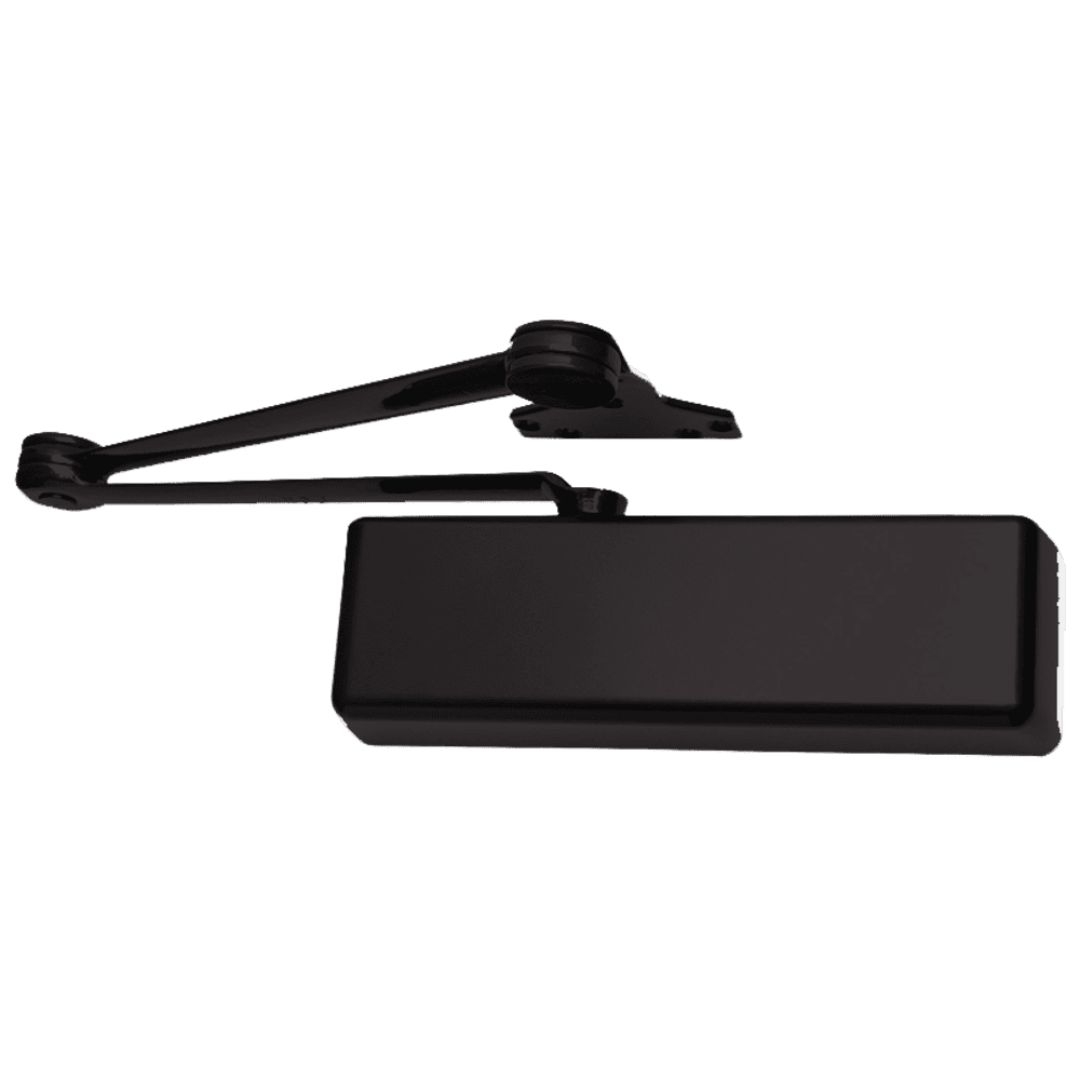

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), TAN - TAN (BHMA 692), STAT - STATUARY BRONZE (BHMA 690), LTBRZ - LIGHT BRONZE (BHMA 691), BLK-  BLACK (BHMA 693), BRASS - BRASS (BHMA 696)

Model:LCN,4040XPHEDA, 4040XPHEDAALUM, 4040XPHEDAAL, 4040XPHEDA689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPHEDADKBRZ, 4040XPHEDA695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPHEDATAN, 4040XPHEDA692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPHEDASTAT, 4040XPHEDA690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPHEDALTBRZ , 4040XPHEDA691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPHEDABLK , 4040XPHEDA693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPHEDABRASS , 4040XPHEDA696, BRASS, 696
