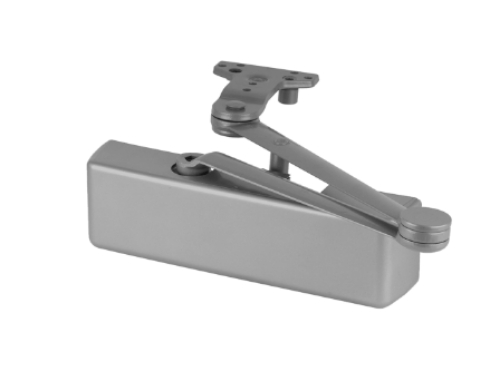

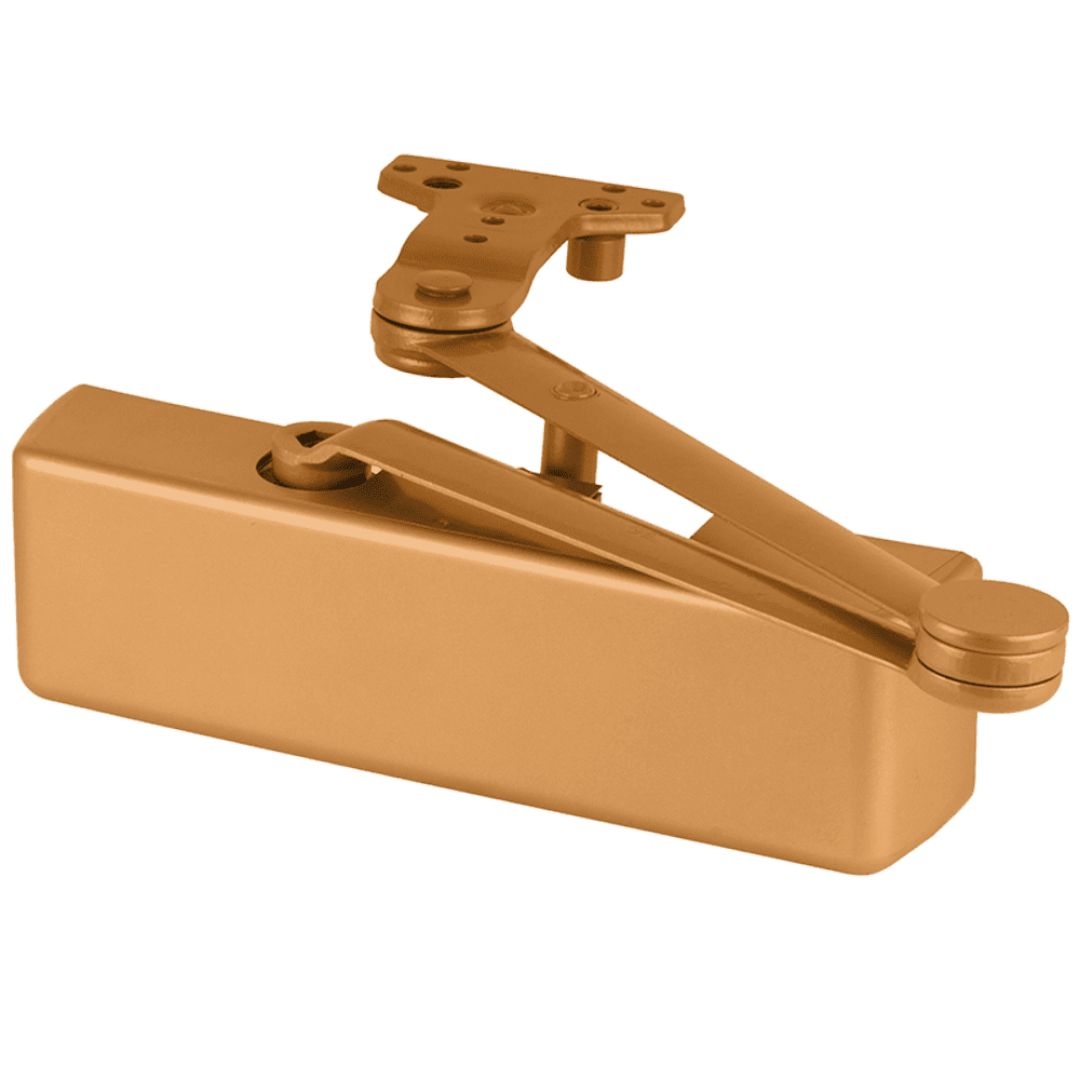

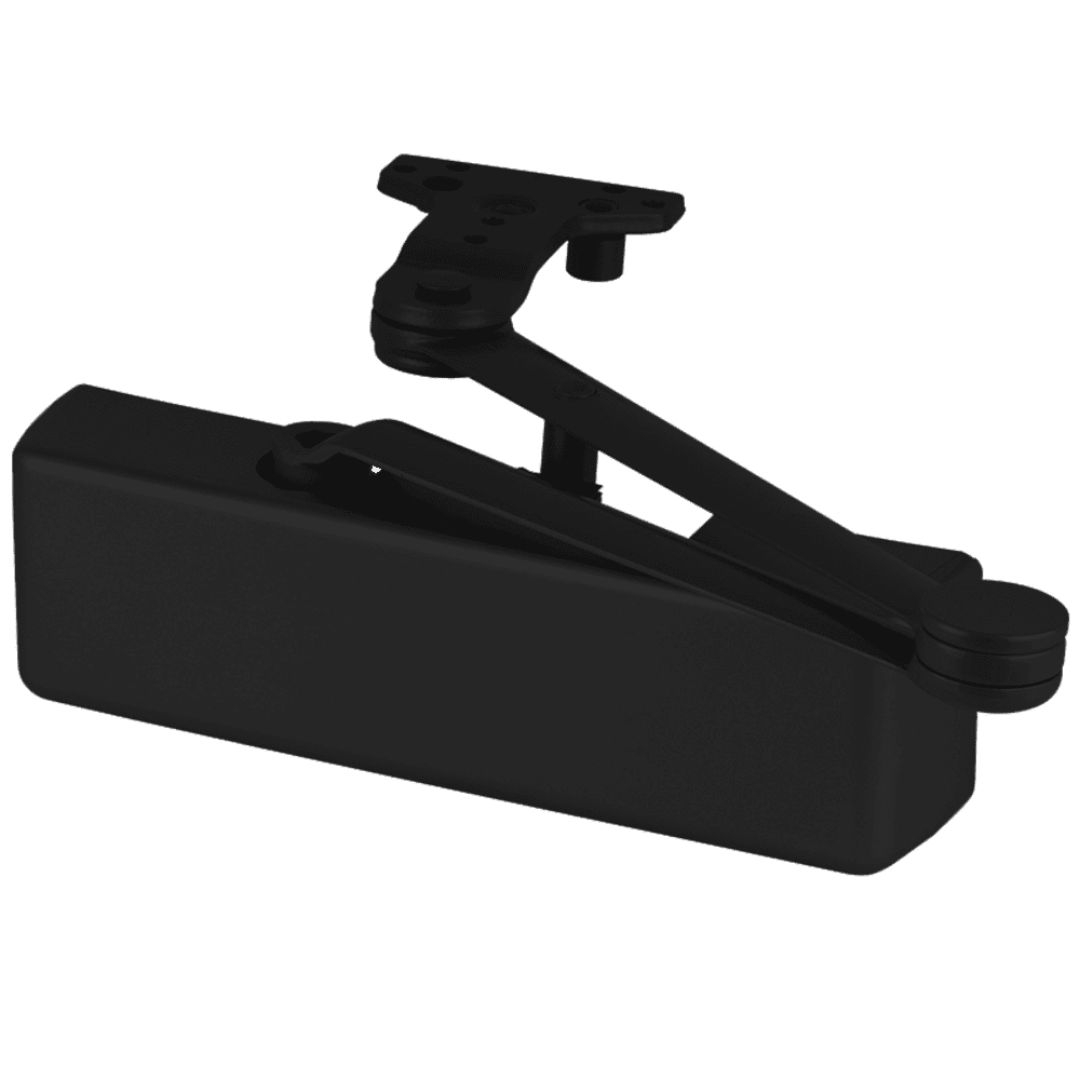

LCN 4040XP HCUSH, Closer - CUSH-N-STOP Hold Open Arm

LCN 4040XP HCUSH, Closer - CUSH-N-STOP Hold Open Arm

Product Details

LCN 4040XP HCUSH,- Heavy Duty Door Closer, CUSH-N-STOP Hold Open Arm

Finish:Powder Coat

**Closer Mounting:Parallel Arm (PUSH SIDE) mounting.

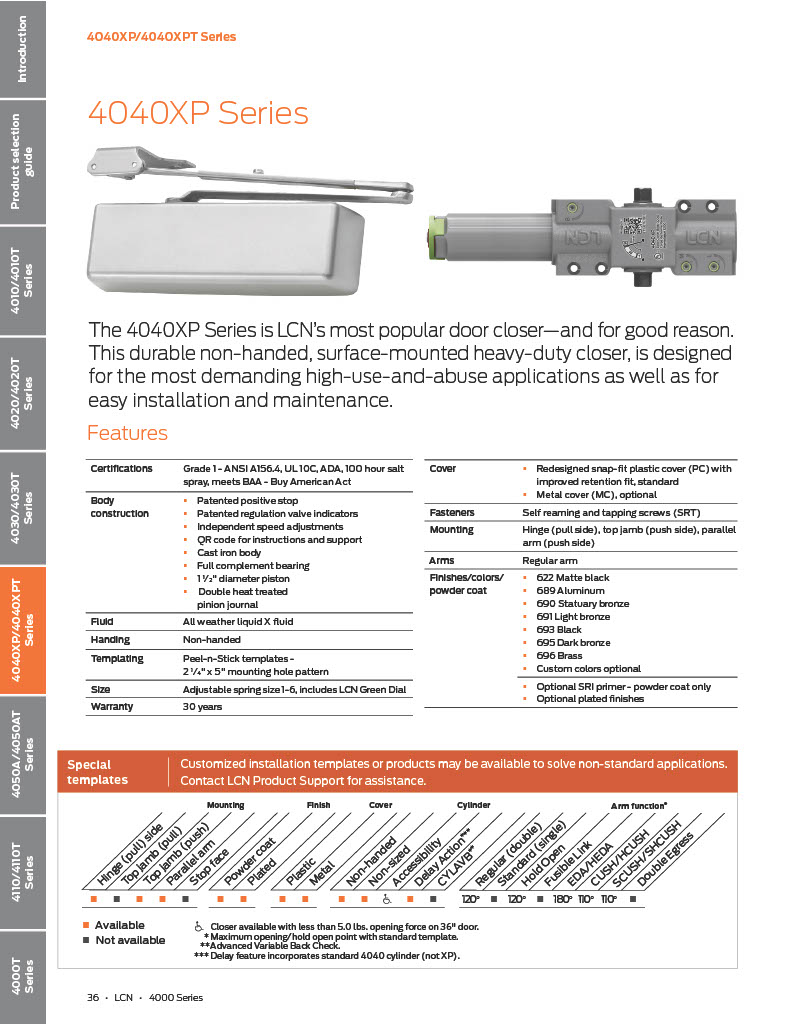

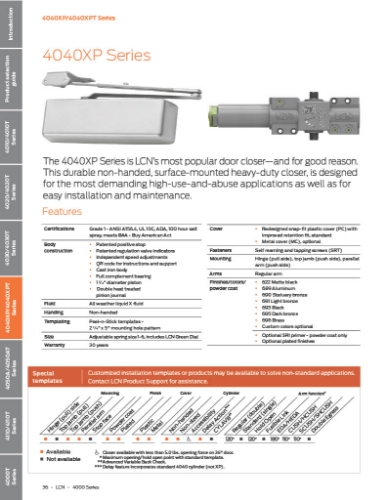

LCN 4040XP:44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size:4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.

Handing:Non-Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

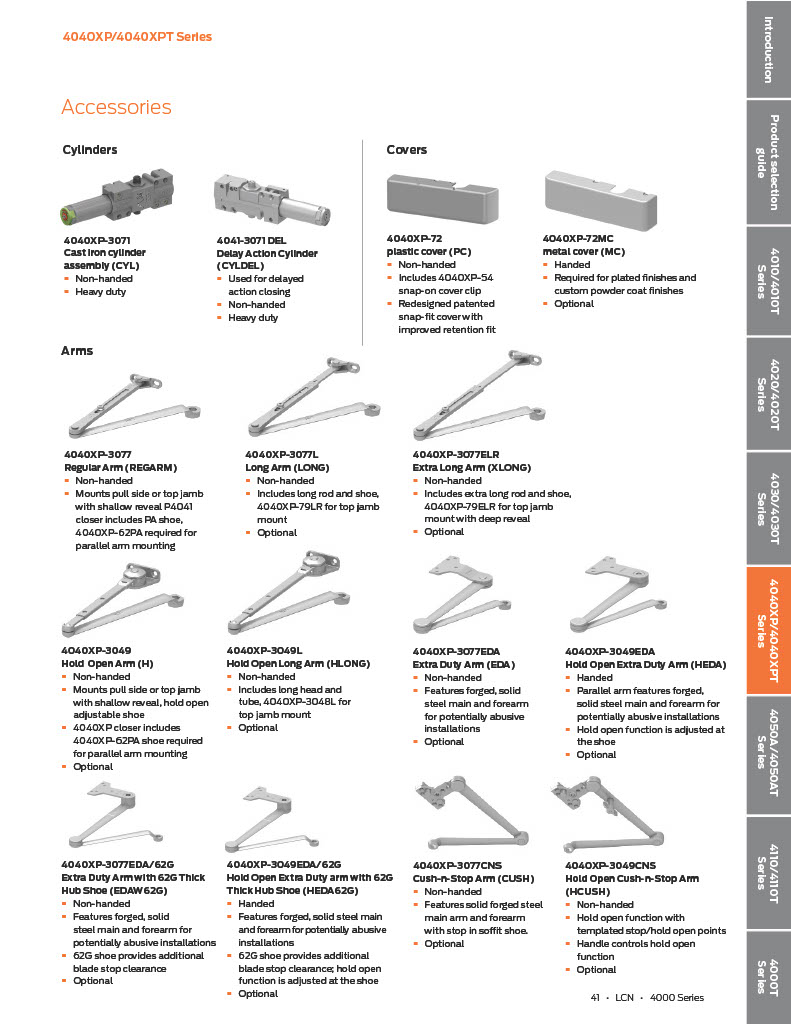

Arm:HCUSH ARM, 4040-3049CNS Provides hold-open function with templated stop/hold-open points. Handle controls hold-open function.

Cover:4040-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

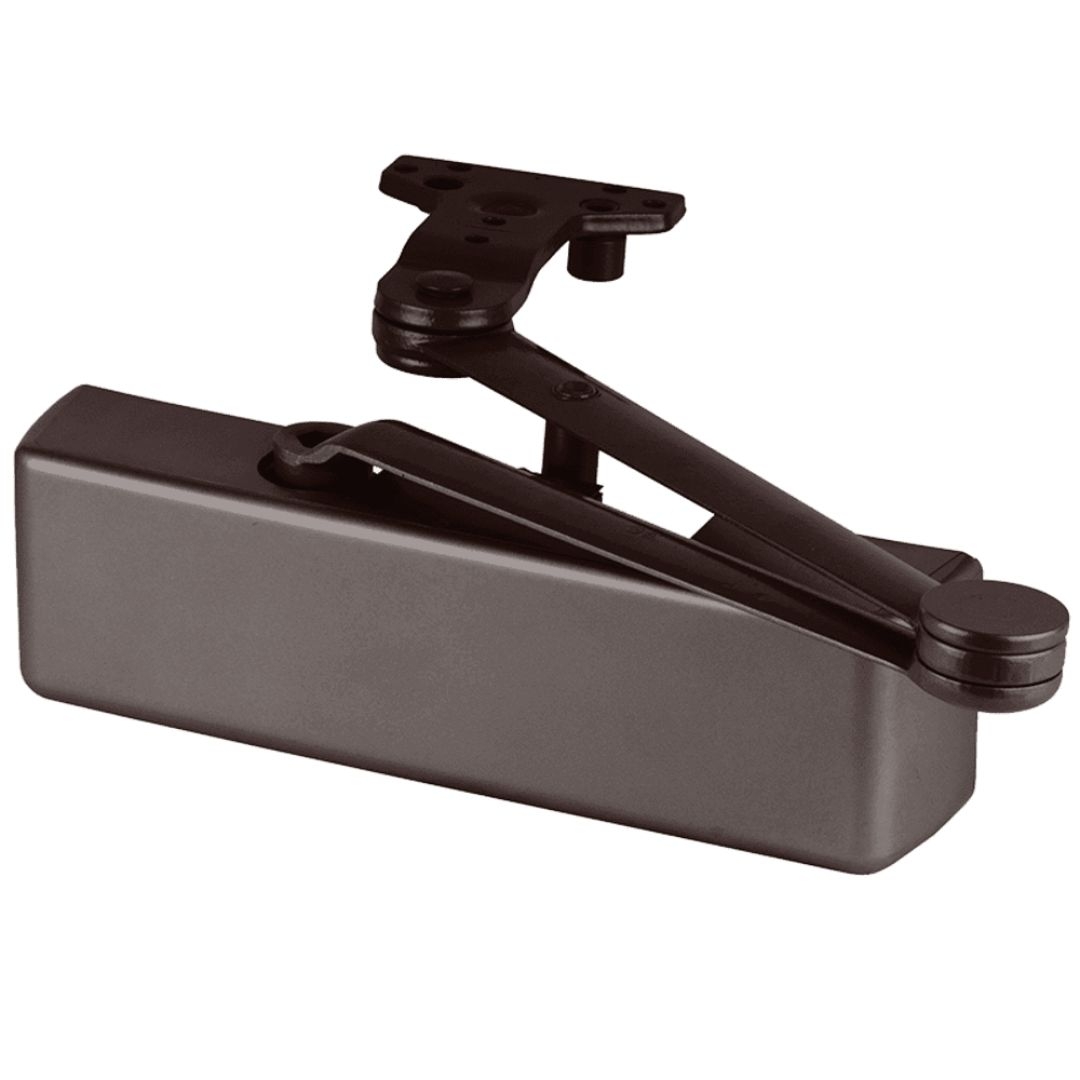

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), TAN - TAN (BHMA 692), STAT - STATUARY BRONZE (BHMA 690), LTBRZ - LIGHT BRONZE (BHMA 691), BLK- BLACK (BHMA 693), BRASS - BRASS (BHMA 696)

Model:LCN,4040XPHCUSH, 4040XPHCUSHALUM, 4040XPHCUSHAL, 4040XPHCUSH689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPHCUSHDKBRZ, 4040XPHCUSH695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPHCUSHTAN, 4040XPHCUSH692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPHCUSHSTAT, 4040XPHCUSH690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPHCUSHLTBRZ , 4040XPHCUSH691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPHCUSHBLK , 4040XPHCUSH693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPHCUSHBRASS , 4040XPHCUSH696, BRASS, 696
