Product Details

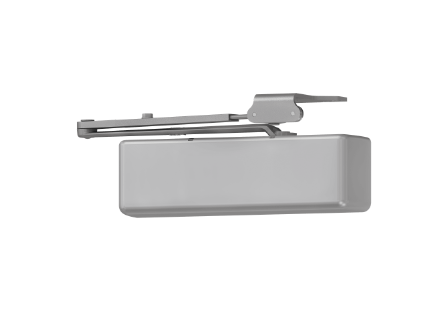

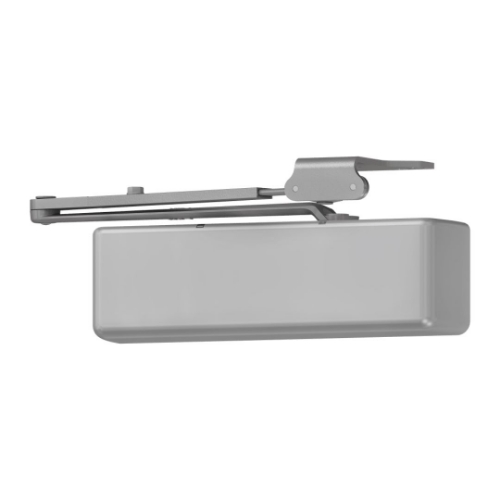

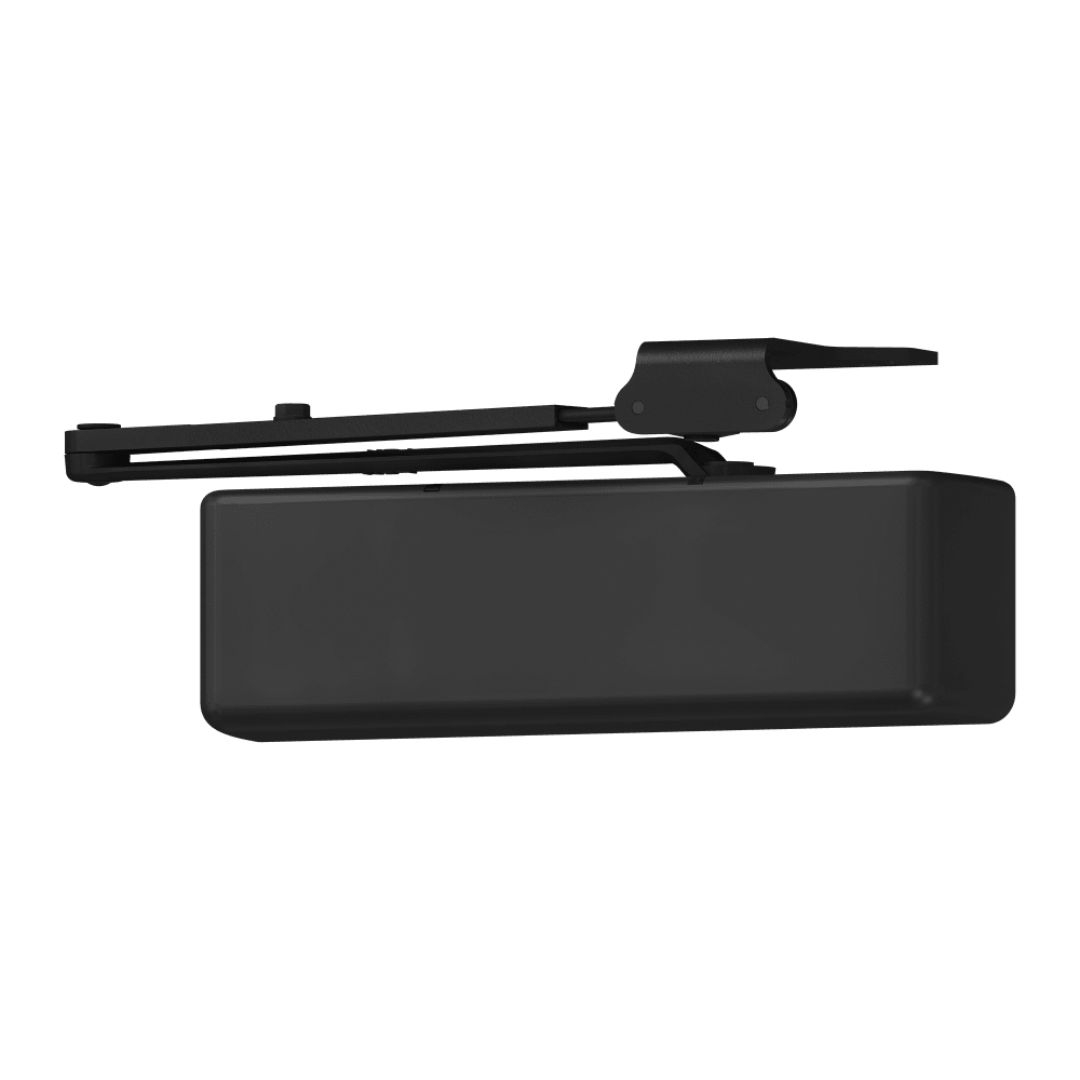

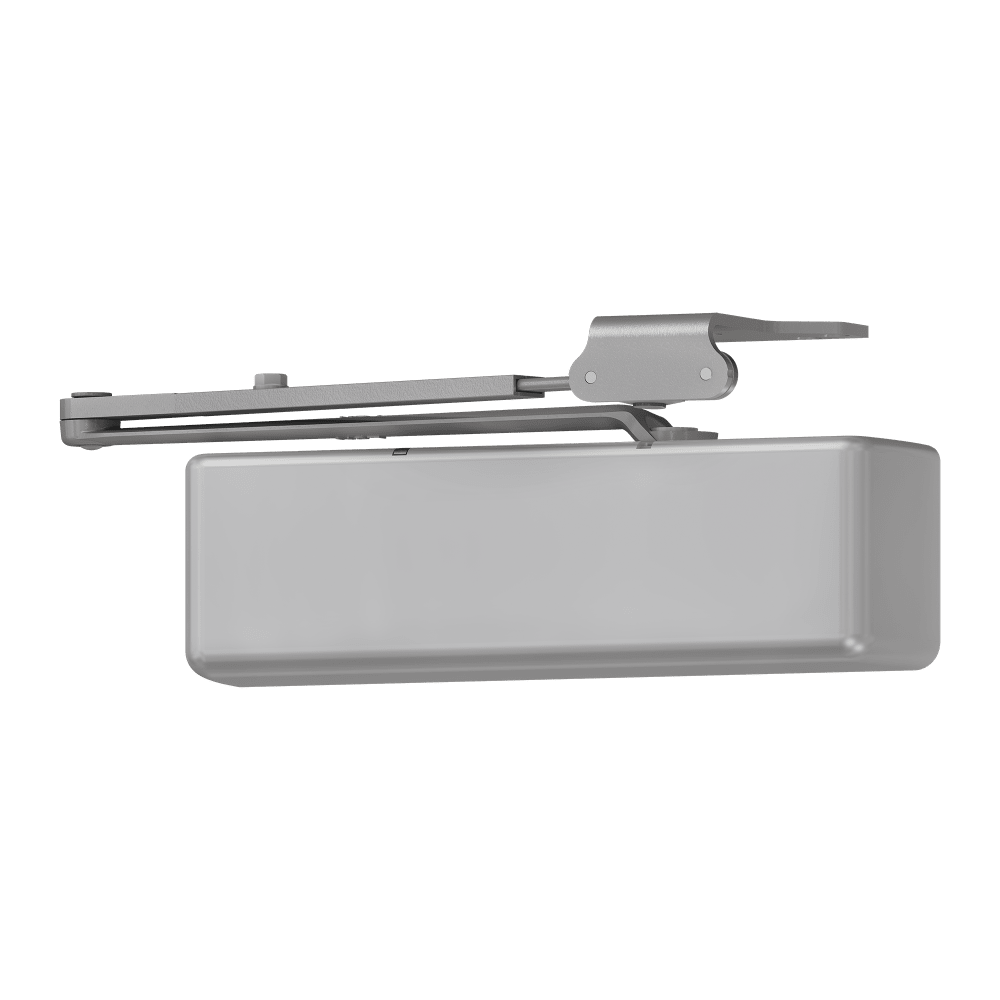

LCN 4040XP Rw/PA- Heavy Duty Door Closer, regular arm with PA bracket
Finish:Powder Coat
**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

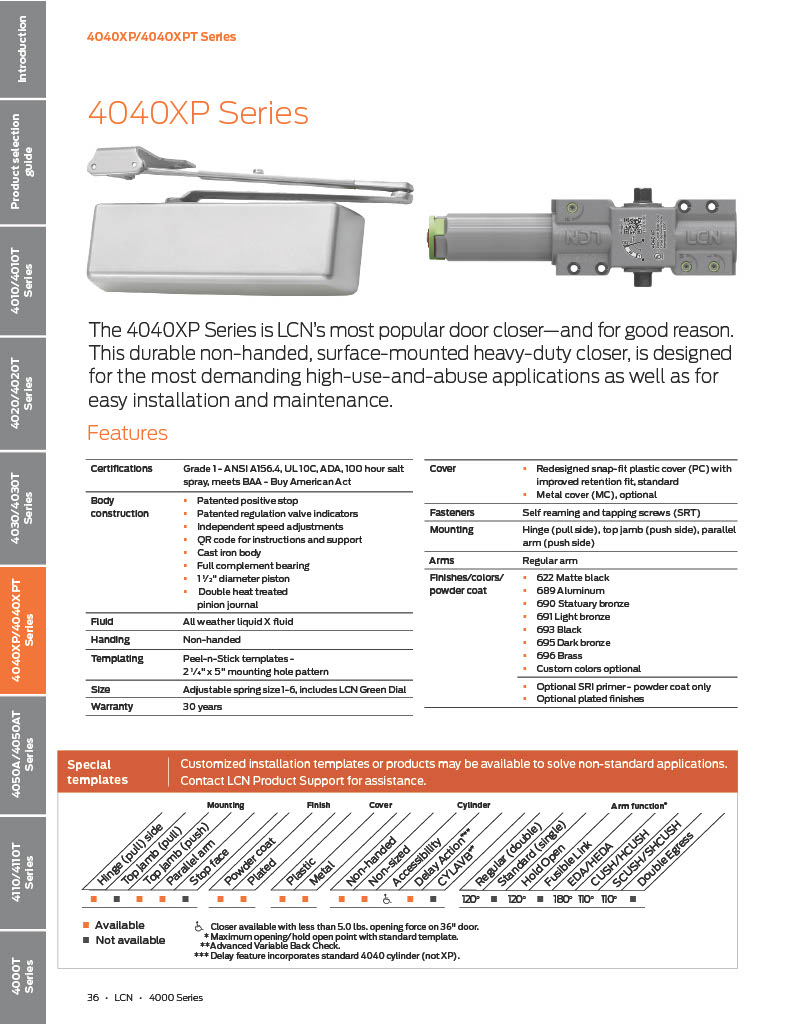

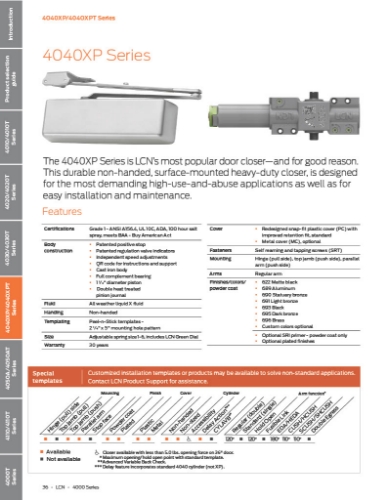

LCN 4040XP:44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.
Power size:4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.
Handing:Non-Handed
UL:UL & cUL Listed
ANSI:Tested and certified under ANSI Standard A156.4,
grade 1

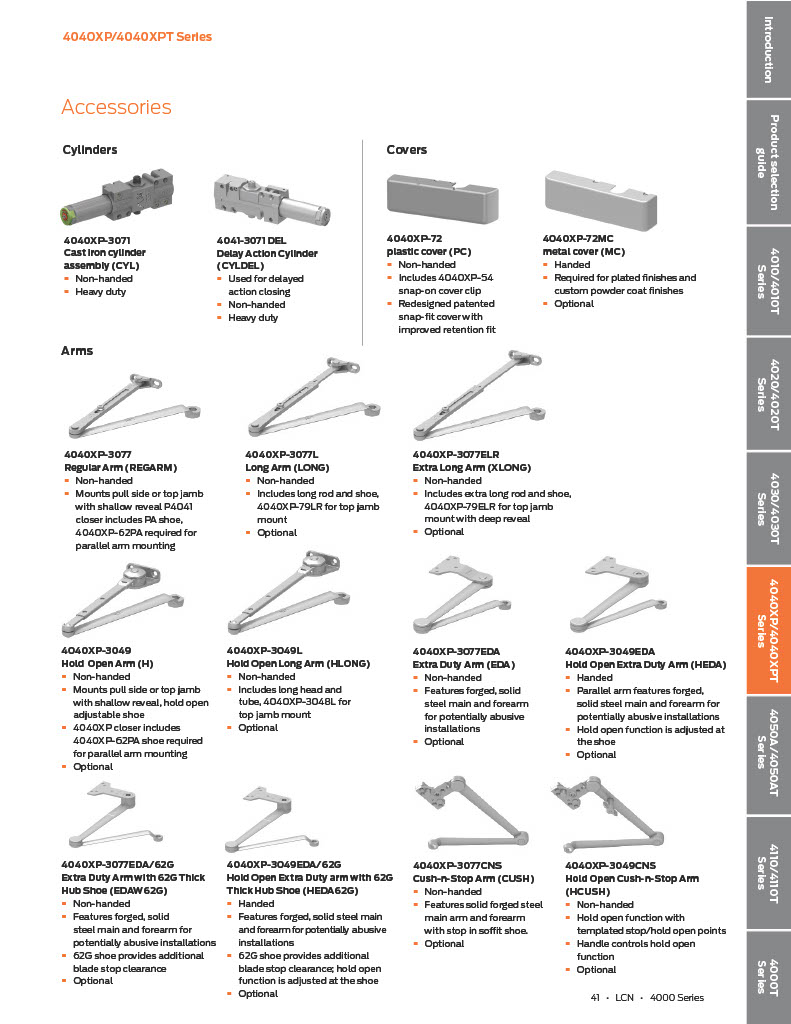

Arm:4040-3077 Regular arm, Non-handed arm mounts pull side or top jamb with shallow reveal.

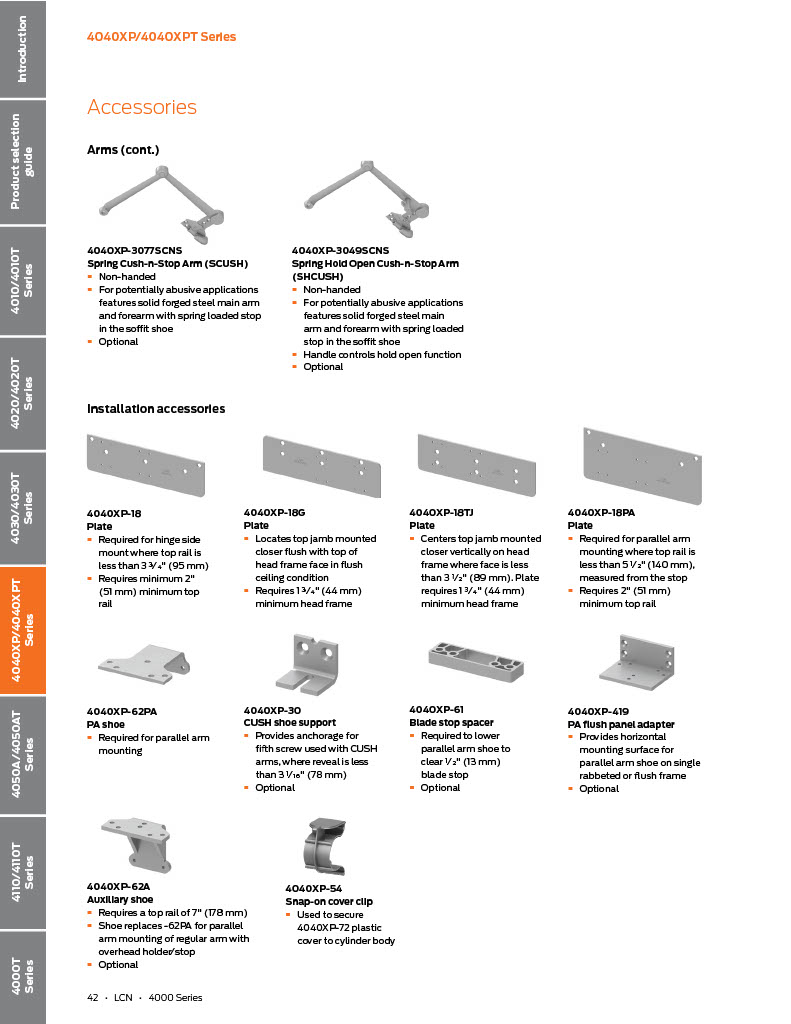

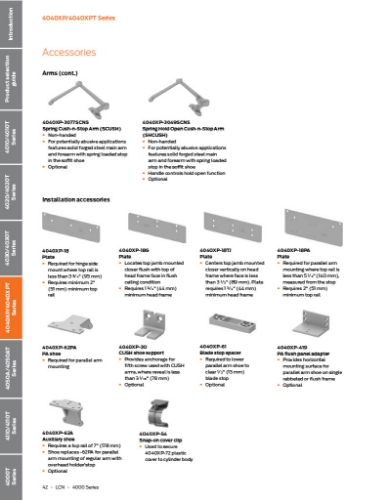

PA shoe:4040-62PA shoe for parallel arm mounting.
Cover:4040-72 Standard, non-handed plastic cover.
Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)
Finishes:

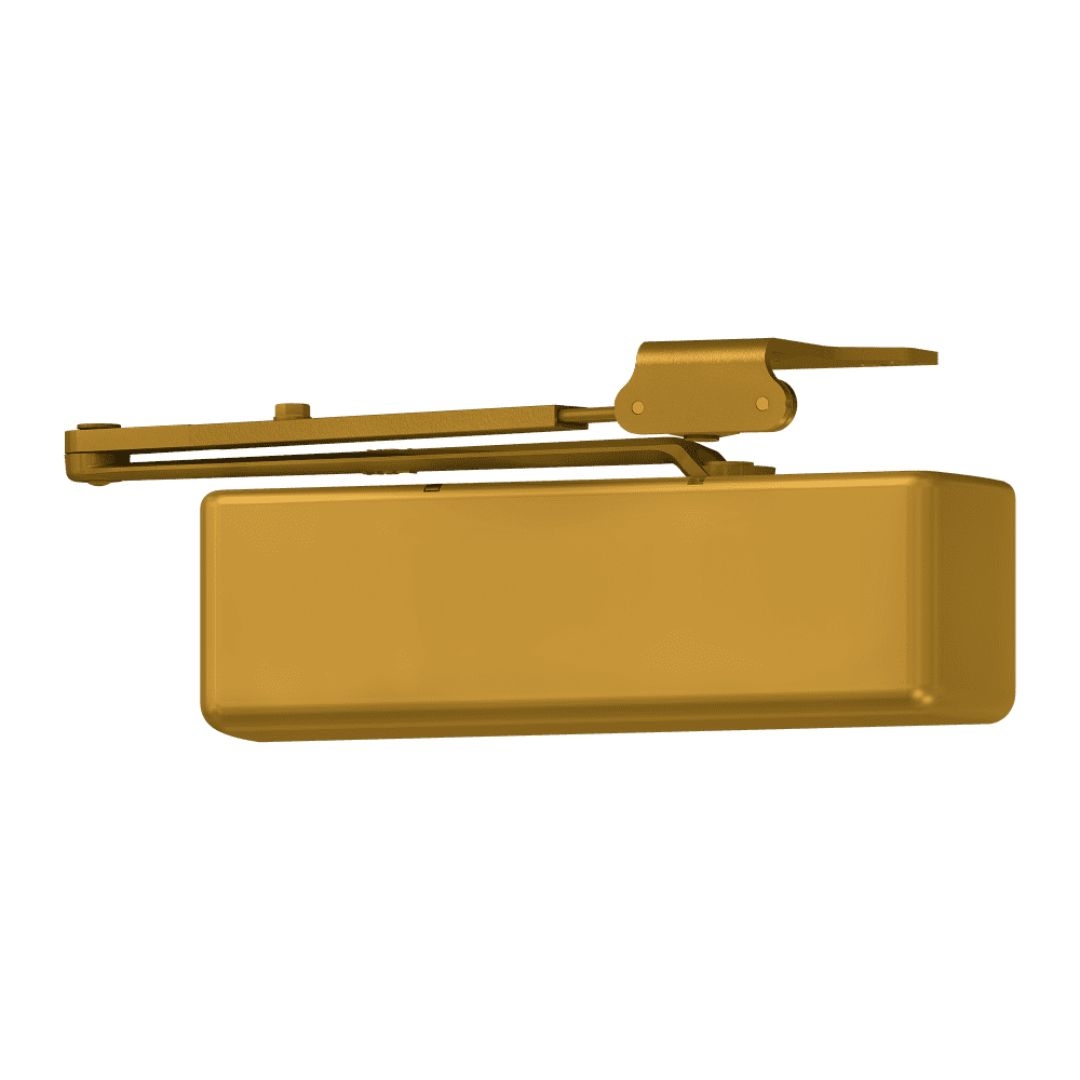

ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), TAN - TAN (BHMA 692), STAT - STATUARY BRONZE (BHMA 690), LTBRZ - LIGHT BRONZE (BHMA 691), BLK- BLACK (BHMA 693), BRASS - BRASS (BHMA 696)
Model:LCN, 4040, 4040XPRWPA, 4040XP, 4040XPALUM, 4040XPAL, 4040XP689, 4040XPRw/PA, 4040XPRw/PAALUM, 4040XPRw/PAAL, 4040XPRw/PA689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPRw/PADKBRZ, 4040XPRw/PA695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPRw/PATAN, 4040XPRw/PA692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPRw/PASTAT, 4040XPRw/PA690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPRw/PALTBRZ , 4040XPRw/PA691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPRw/PABLK , 4040XPRw/PA693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPRw/PABRASS , 4040XPRw/PA696, BRASS, 696
