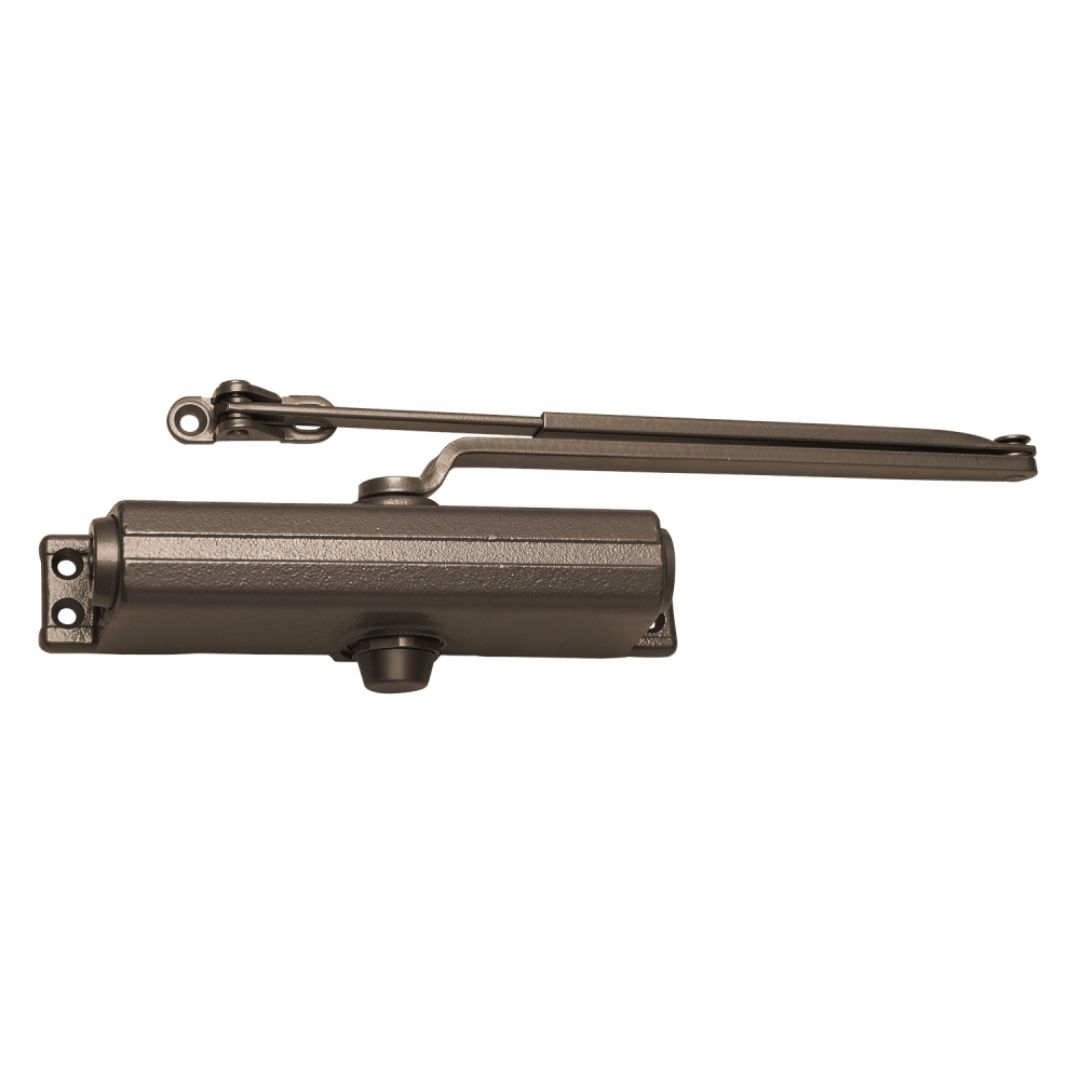

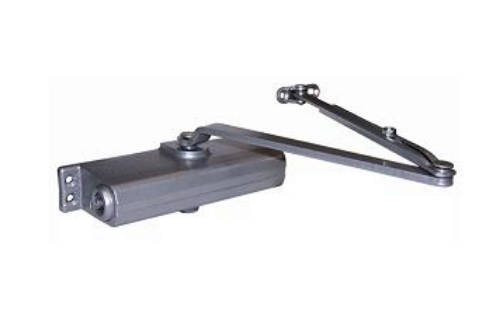

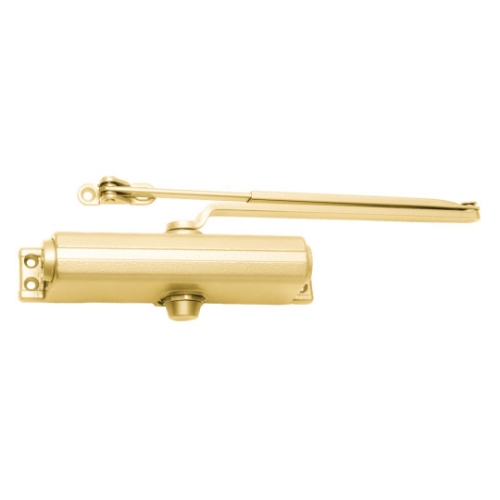

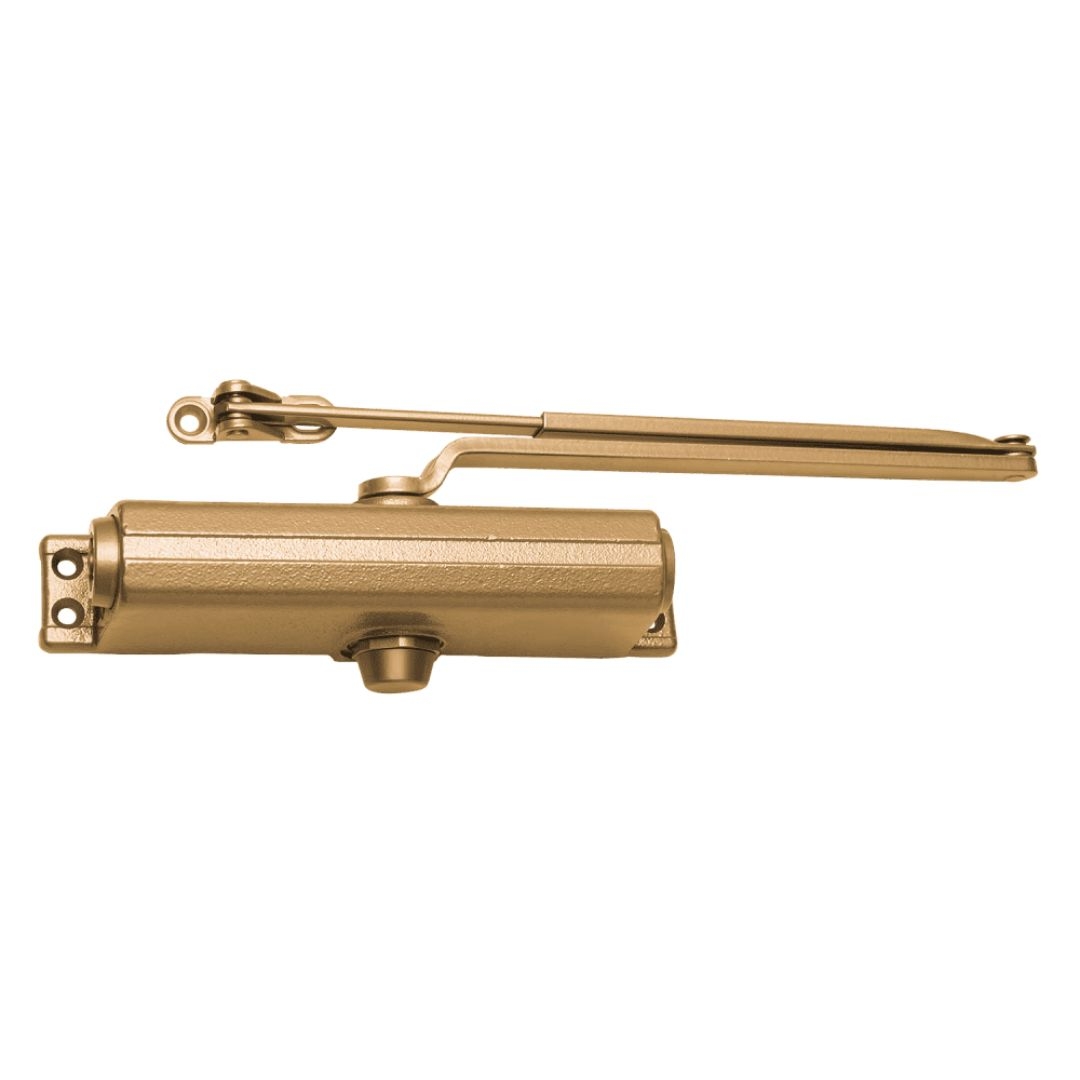

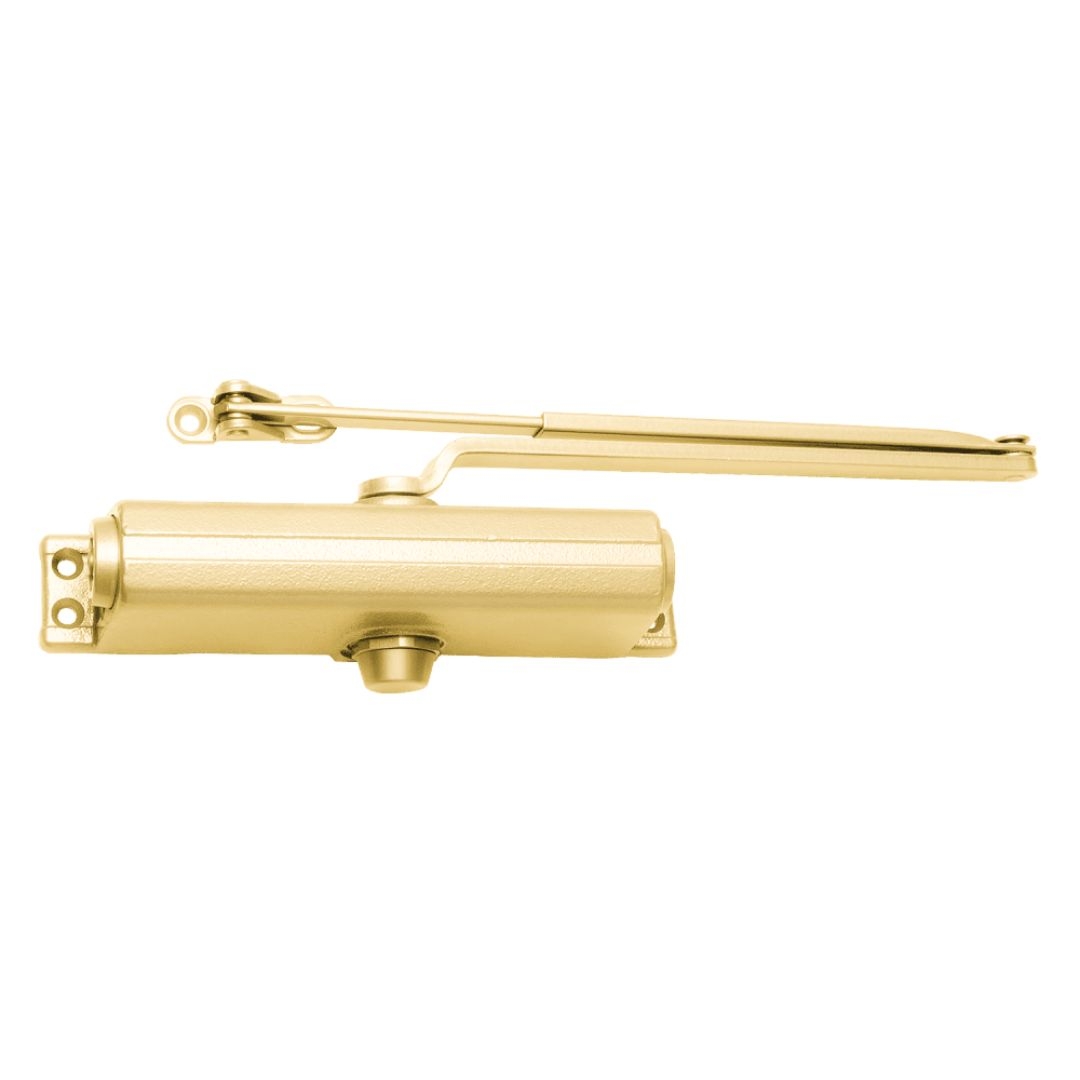

LCN 1261 Rw/PA Door Closer - Regular Arm

LCN 1261 Rw/PA- Door Closer, regular arm with PA bracket

Finish: Powder Coat

**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

Mounts to most common commercial footprint (3/4x 9 1/16).

LCN 1261:Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Power size:Non-sized (1-5) cylinder is adjustable for interior doors to 4 6and exterior doors to 3 6.

Handing:Non-Handed, Closer mounts on either right or left swinging doors.

UL:UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Arm:1260-3077 Regular arm, Non-handed arm mounts pull side or top jamb .

PA shoe:1260-62PA shoe for parallel arm mounting.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model:LCN, 1261, 1261ALUM, 1261AL, 1261689, 1261Rw/PA, 1261Rw/PAALUM, 1261Rw/PAAL, 1261Rw/PA689, AL, ALUM, 689, Aluminum, 1261DKBRZ, 1261695, 1261Rw/PADKBRZ, 1261Rw/PA695, DKBRZ - DARK BRONZE, 695, 1261LTBRZ , 1261691, 1261Rw/PALTBRZ , 1261Rw/PA691, LTBRZ , LIGHT BRONZE, 691, 1261BRASS , 1261696, 1261Rw/PABRASS , 1261Rw/PA696, BRASS, 696
