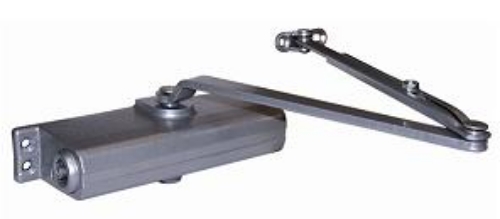

LCN 1261 HW/PA Door Closer - Hold Open Arm

Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm

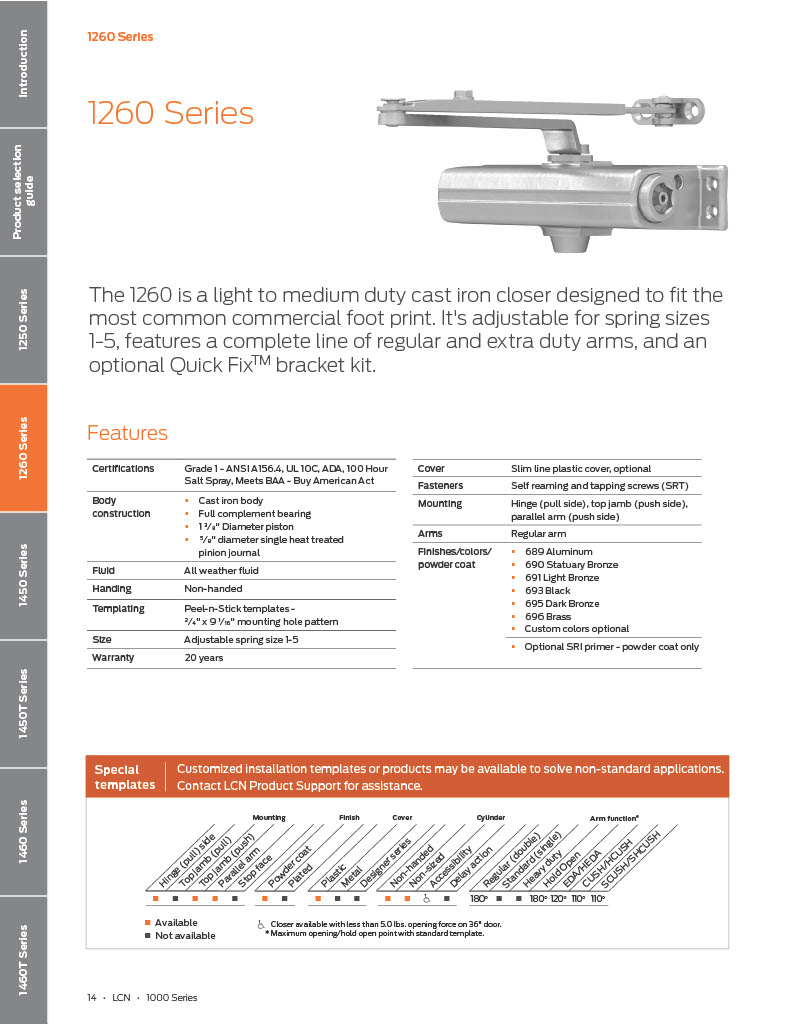

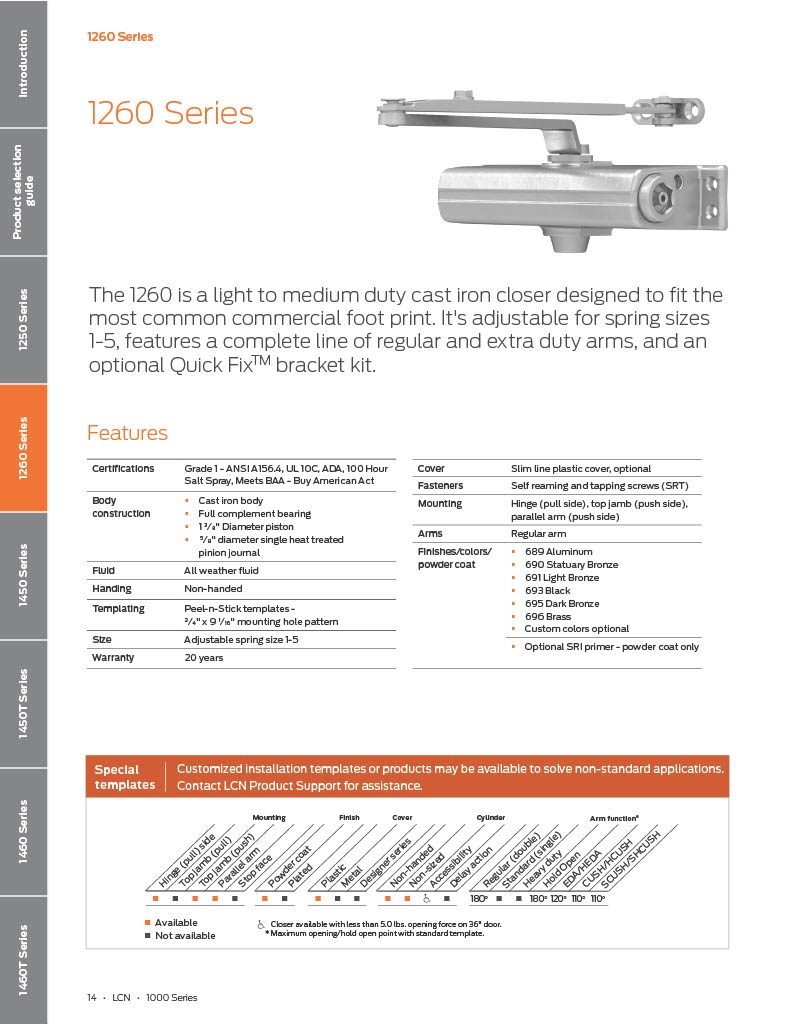

1-Page14-LCN1000
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
1-Page14-LCN1000
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
naxt
prev

Product Details

LCN 1261 Hw/PA- Door Closer, Hold Open arm with PA bracket

Tri-Mount Closer: Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

Mounts to most common commercial footprint (3/4x 9 1/16).

LCN 1261: Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Power size: Non-sized (1-5) cylinder is adjustable for interior doors to 46and exterior doors to 36.

Handing: Non-Handed, Closer mounts on either right or left swinging doors.

UL: UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Arm:1260-3049 non-handed Hold Open arm mounts hinge side, top jamb or parallel arm, Hold-open adjustable at shoe.

PA shoe:1260-62PA shoe for parallel arm mounting.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 1261HW/PA, 1261HW/PAALUM, 1261HW/PAAL, 1261HW/PA689, AL, ALUM, 689, Aluminum, 1261DKBRZ, 1261695, 1261HW/PADKBRZ, 1261HW/PA695, DKBRZ - DARK BRONZE, 695, 1261LTBRZ , 1261691, 1261HW/PALTBRZ , 1261HW/PA691, LTBRZ , LIGHT BRONZE, 691, 1261BRASS , 1261696, 1261HW/PABRASS , 1261HW/PA696, BRASS, 696

LCN 1261 HW/PA Door Closer - Hold Open Arm

SKU: 1261-HW/PA

In Stock
Picture for manufacturer LCN
icon Chat

$264.18

Finish *

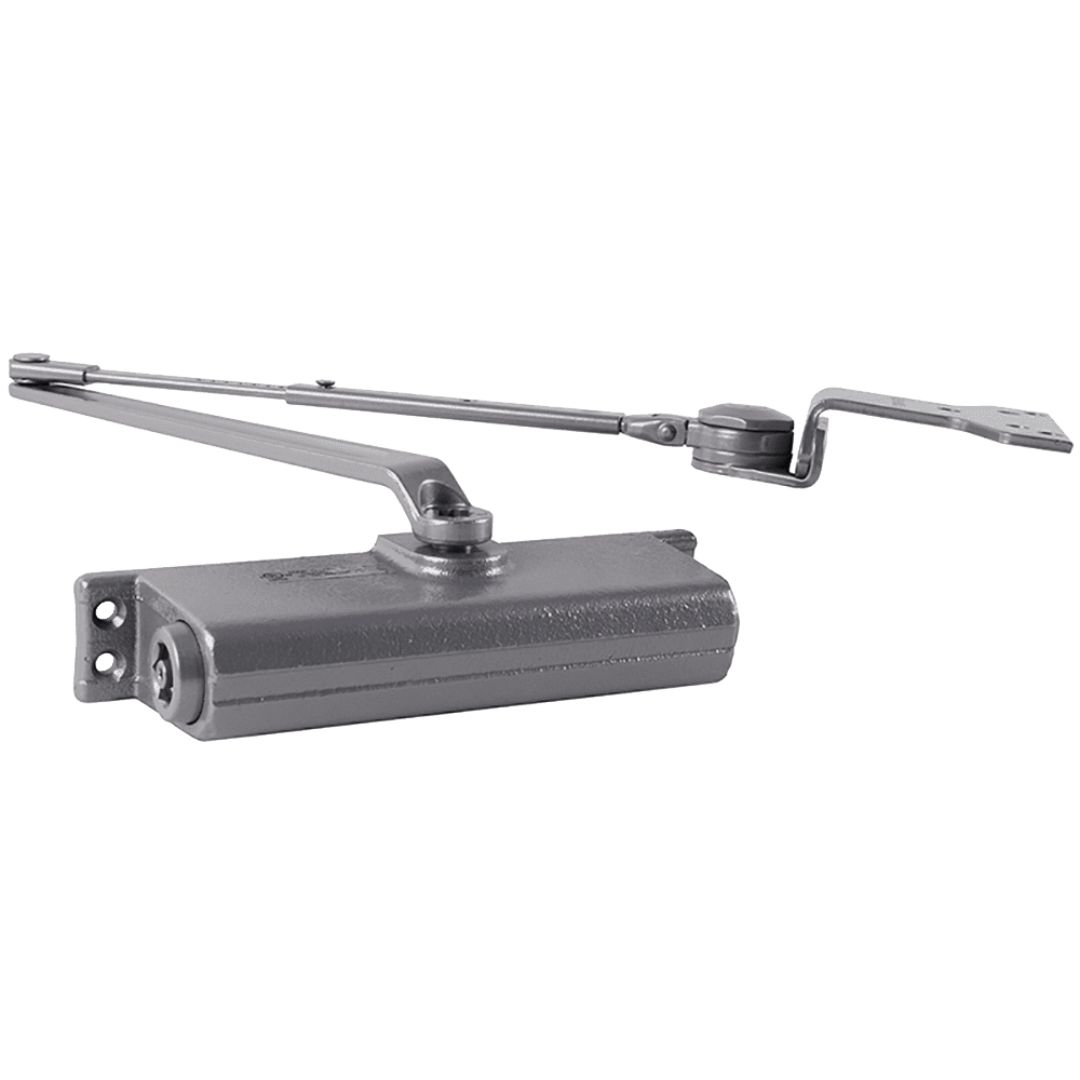

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted
695 - Dark Bronze Painted
695 - Dark Bronze Painted
691 - Light Bronze Painted
691 - Light Bronze Painted
696 - Satin Brass Painted
696 - Satin Brass Painted
693 - Black Painted
693 - Black Painted

Option *

About this item

The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms and LCNs peel-n-stick installation templates.

Resources

LCN 1261 Hw/PA- Door Closer, Hold Open arm with PA bracket

Tri-Mount Closer: Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

Mounts to most common commercial footprint (3/4x 9 1/16).

LCN 1261: Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Power size: Non-sized (1-5) cylinder is adjustable for interior doors to 46and exterior doors to 36.

Handing: Non-Handed, Closer mounts on either right or left swinging doors.

UL: UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Arm:1260-3049 non-handed Hold Open arm mounts hinge side, top jamb or parallel arm, Hold-open adjustable at shoe.

PA shoe:1260-62PA shoe for parallel arm mounting.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 1261HW/PA, 1261HW/PAALUM, 1261HW/PAAL, 1261HW/PA689, AL, ALUM, 689, Aluminum, 1261DKBRZ, 1261695, 1261HW/PADKBRZ, 1261HW/PA695, DKBRZ - DARK BRONZE, 695, 1261LTBRZ , 1261691, 1261HW/PALTBRZ , 1261HW/PA691, LTBRZ , LIGHT BRONZE, 691, 1261BRASS , 1261696, 1261HW/PABRASS , 1261HW/PA696, BRASS, 696

Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
LCN 1261 HW/PA Door Closer - Hold Open Arm

Product code: 1261-HW/PA

In Stock

$264.18

$264.18

Picture of LCN 1261 HW/PA Door Closer - Hold Open Arm
LCN 1261 HW/PA Door Closer - Hold Open Arm

Product code: 1261-HW/PA

In Stock

$264.18

$264.18

LCN 1261 HW/PA Door Closer - Hold Open Arm

SKU: 1261-HW/PA

Related products

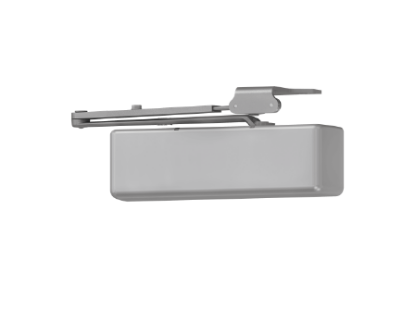

Picture of LCN 4040XP RW/PA Door Closer - Regular Arm
LCN 4040XP RW/PA Door Closer - Regular Arm

Product code: W561BD

In Stock
$838.00

$486.04

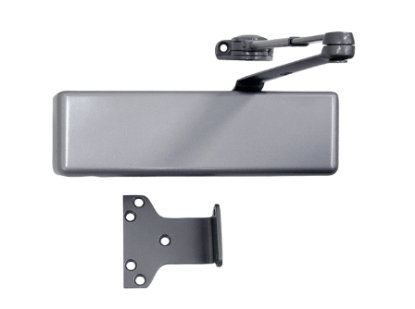

Picture of LCN 4040XP HW/PA Door Closer - Hold Open Arm
LCN 4040XP HW/PA Door Closer - Hold Open Arm

Product code: W561BD

In Stock
$942.00

$546.36

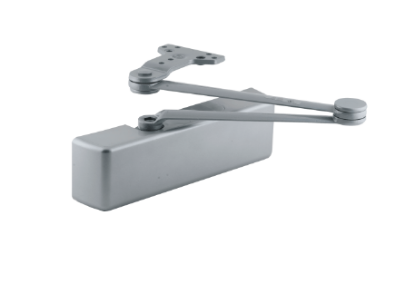

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm
LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Product code: W561BD

In Stock
$949.00

$550.42

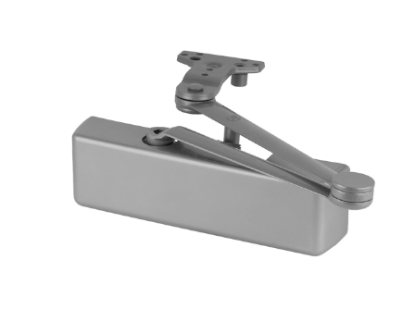

Picture of LCN 4040XP HCUSH, Closer - CUSH-N-STOP Hold Open Arm
LCN 4040XP HCUSH, Closer - CUSH-N-STOP Hold Open Arm

Product code: W561BD

In Stock
$1,061.00

$615.38

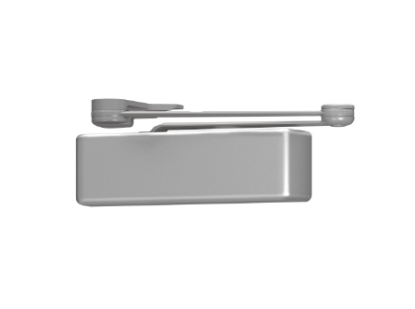

Picture of LCN 4040XP SCUSH Door Closer - Spring CUSH-N-STOP Arm
LCN 4040XP SCUSH Door Closer - Spring CUSH-N-STOP Arm

Product code: W561BD

In Stock
$976.00

$566.08

Picture of LCN 4040XP SHCUSH Closer - Spring CUSH-N-STOP, Hold Arm
LCN 4040XP SHCUSH Closer - Spring CUSH-N-STOP, Hold Arm

Product code: W561BD

In Stock
$1,151.00

$667.58

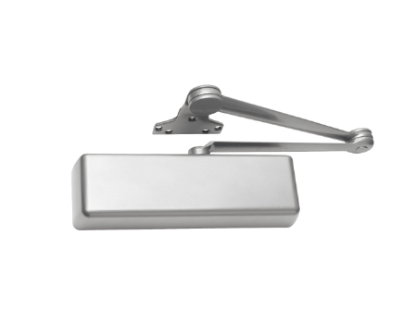

Picture of LCN 4040XP EDA, Door Closer - Extra Duty Arm
LCN 4040XP EDA, Door Closer - Extra Duty Arm

Product code: W561BD

In Stock
$902.00

$523.16

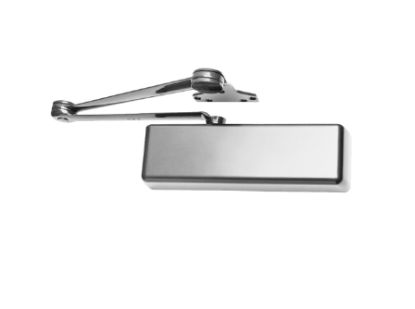

Picture of LCN 4040XP HEDA, Door Closer - Extra Duty Hold Open Arm
