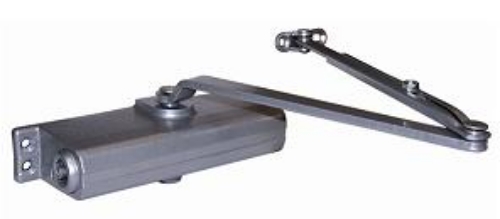

LCN 1261 CUSH Door Closer - CUSH-N-STOP Arm

LCN 1261 CUSH- Door Closer, with CUSH-N-STOP Arm

Finish: Powder Coat

**Closer Mounting:Parallel Arm (PUSH SIDE) mounting.

Mounts to most common commercial footprint (3/4x 9 1/16).

LCN 1261:Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Power size:Non-sized (1-5) cylinder is adjustable for interior doors to 46and exterior doors to 36.

Handing:Non-Handed, Closer mounts on either right or left swinging doors.

UL:UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Arm:CUSH-N-STOPARM, 1260-3077CNS non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689

Model:LCN, 1261CUSHALUM, 1261CUSHAL, 1261CUSH689
