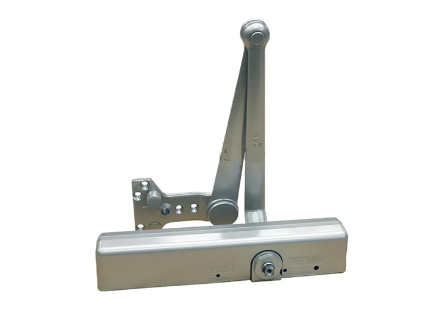

LCN 1461 CUSH Door Closer - CUSH-N-STOP Arm

LCN 1461 CUSH Door Closer - CUSH-N-STOP Arm

Finish: Powder Coat

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

Power Size: The spring power of a 1461 cylinder is field adjustable from size 1 through size 6and is shipped adjusted to size 3.

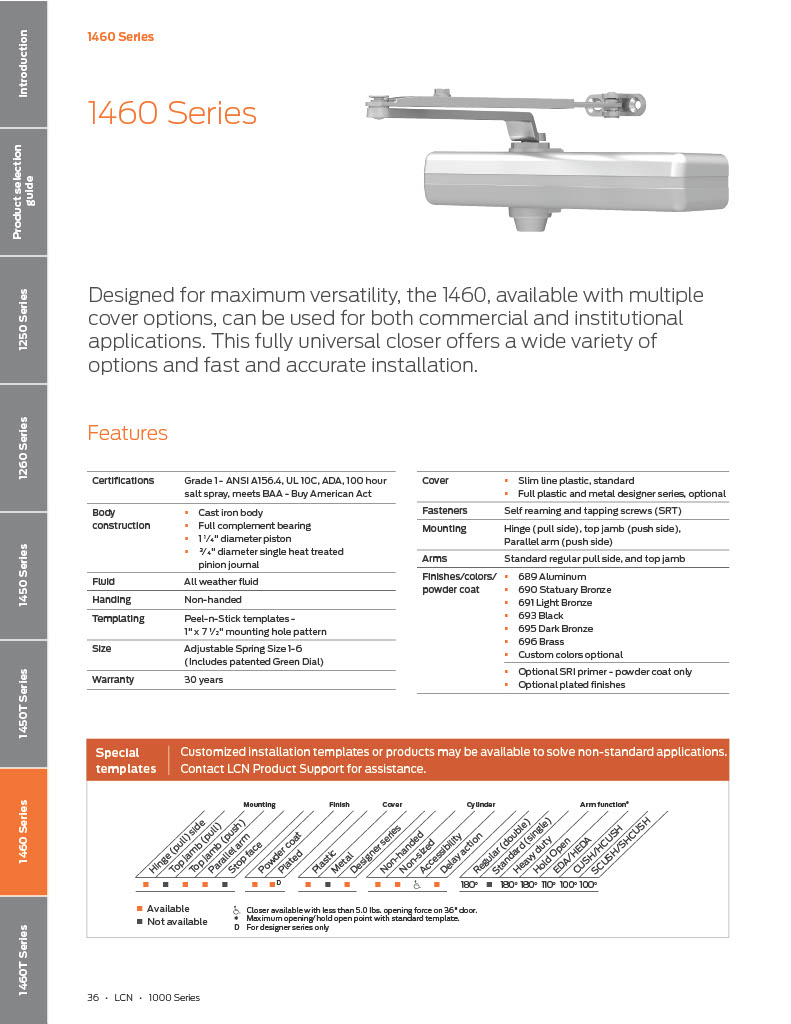

LCN 1461: Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Handing: Non-Handed, Closer mounts on either right or left swinging doors.

UL: UL and cUL listed for self-closing doors without hold-open.

ANSI: Tested and certified under ANSI Standard A156.4, grade one.

Warranty:10 year limited warranty.

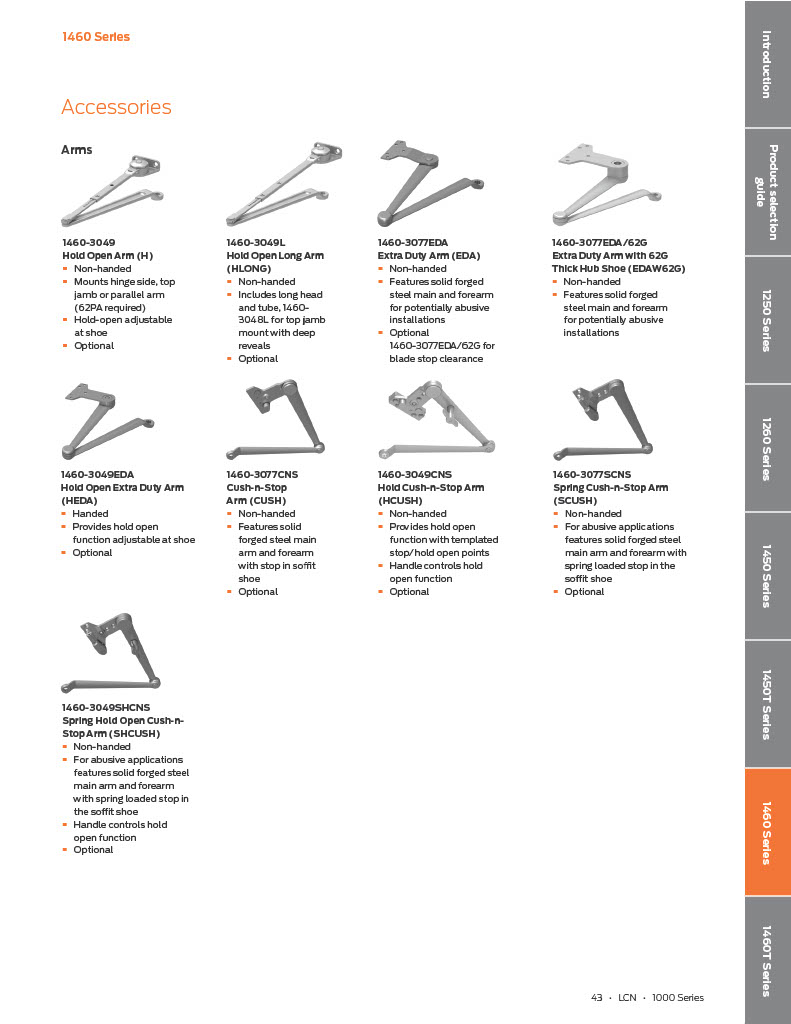

Arm: CUSH-N-STOPARM, 1460-3077CNS non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

PA shoe:1460-62PA shoe for parallel arm mounting.

Cover:1460-72Standard, non-handed, slim line plastic cover with feature strip.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

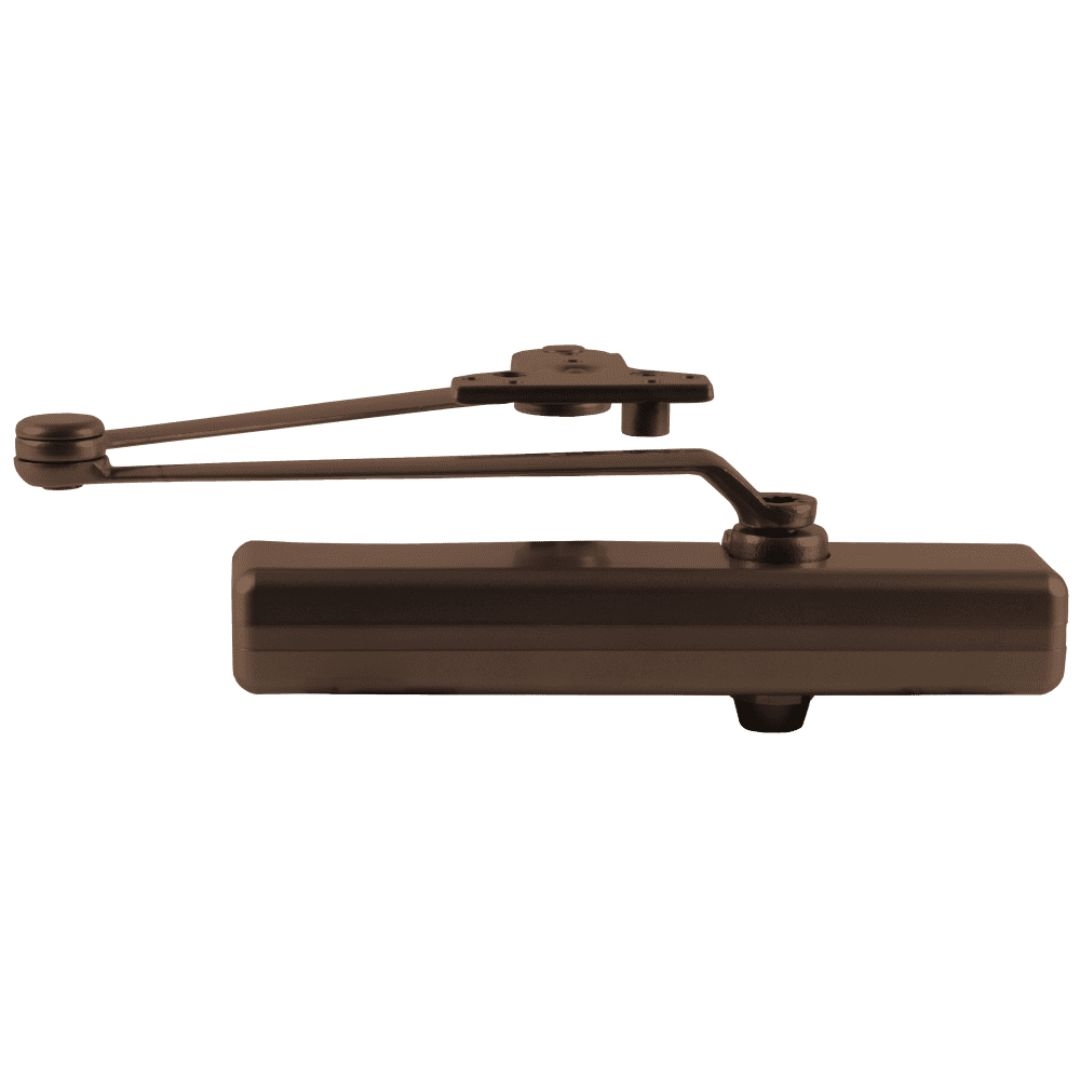

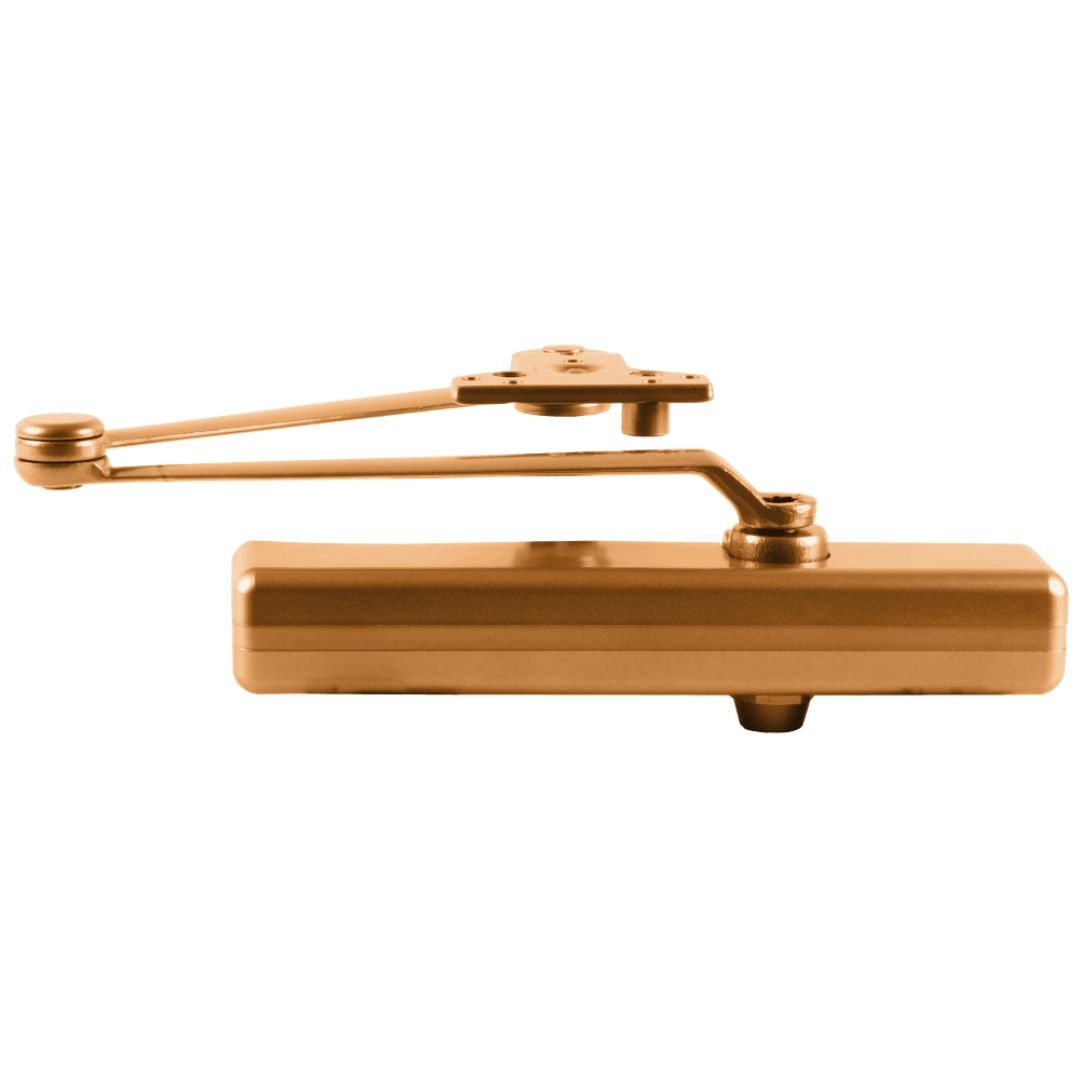

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691)

Model: LCN, 1461CUSHALUM, 1461CUSHAL, 1461CUSH689, 1461CUSHDKBRZ, 1461CUSH695, 1461CUSHLTBRZ, 1461CUSH691
