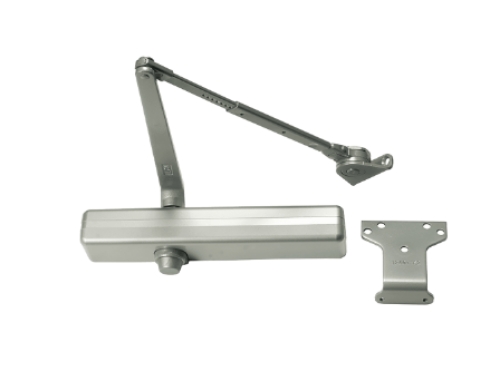

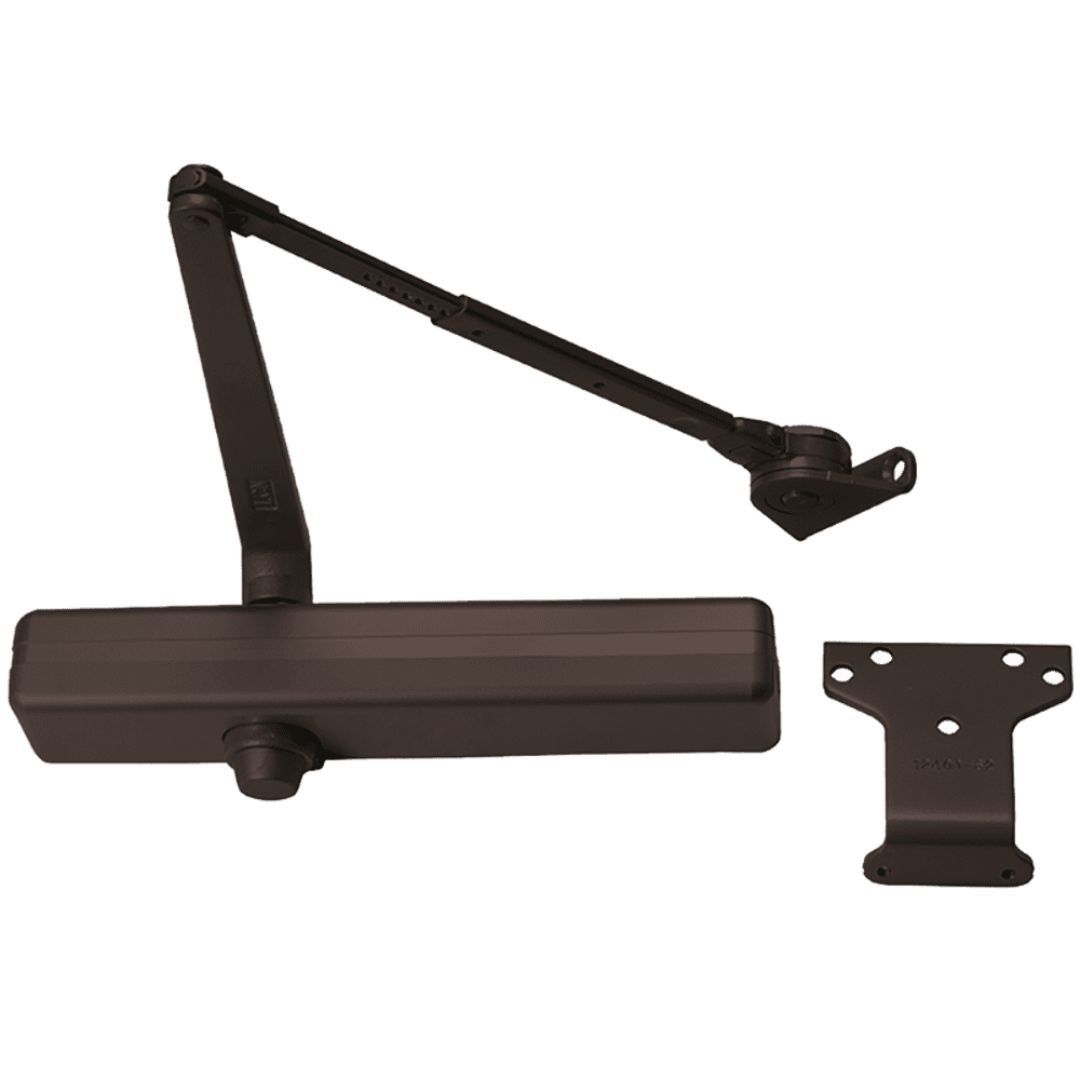

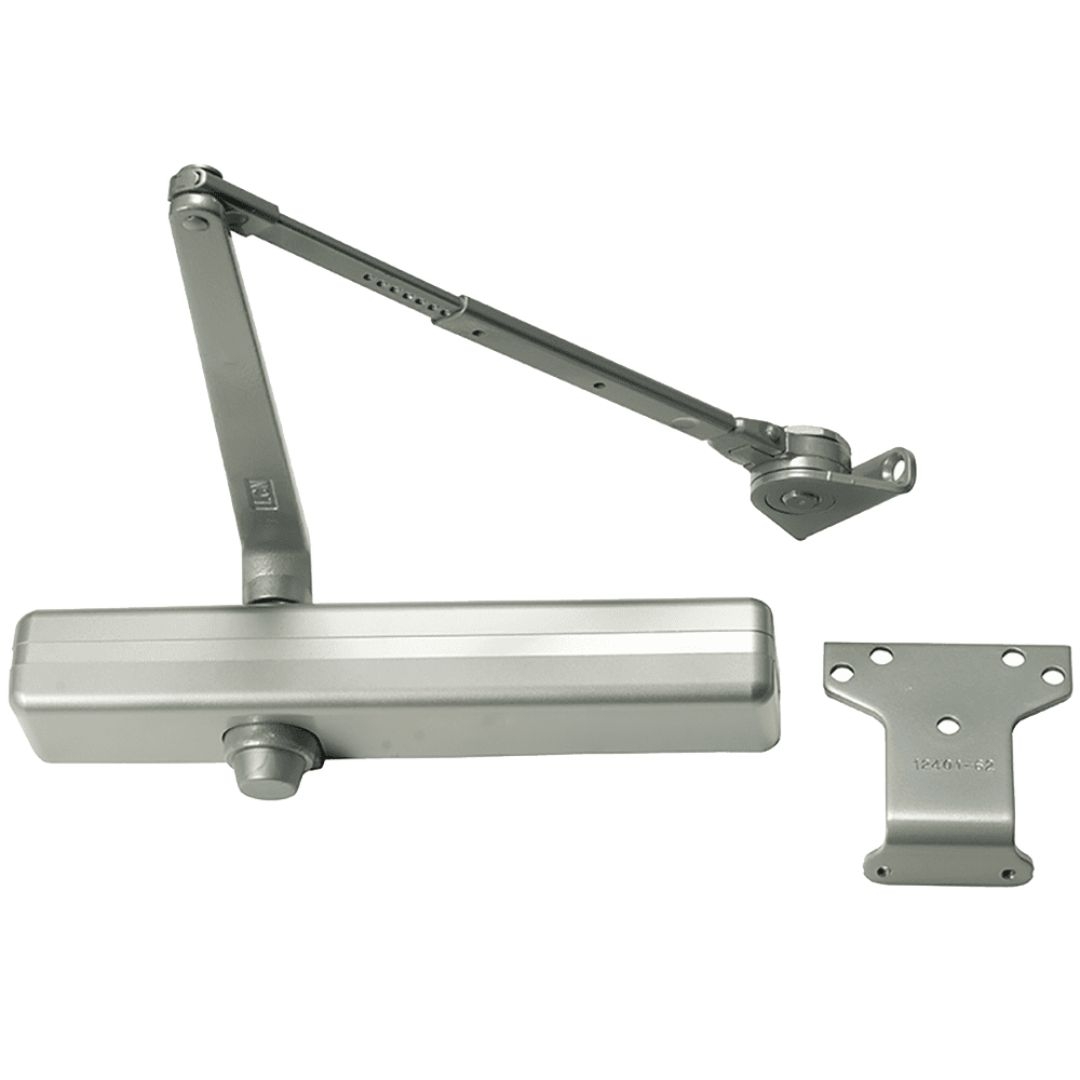

LCN 1461 Hw/PA Door Closer - Hold Open Arm

LCN 1461 Hw/PA- Door Closer - with Hold Open Arm

Finish: Powder Coat

**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

Power Size:The spring power of a 1461 cylinder is field adjustable from size 1 through size 6and is shipped adjusted to size 3.

LCN 1461:Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Handing:Non-Handed, Closer mounts on either right or left swinging doors.

UL:UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Warranty:10 year limited warranty.

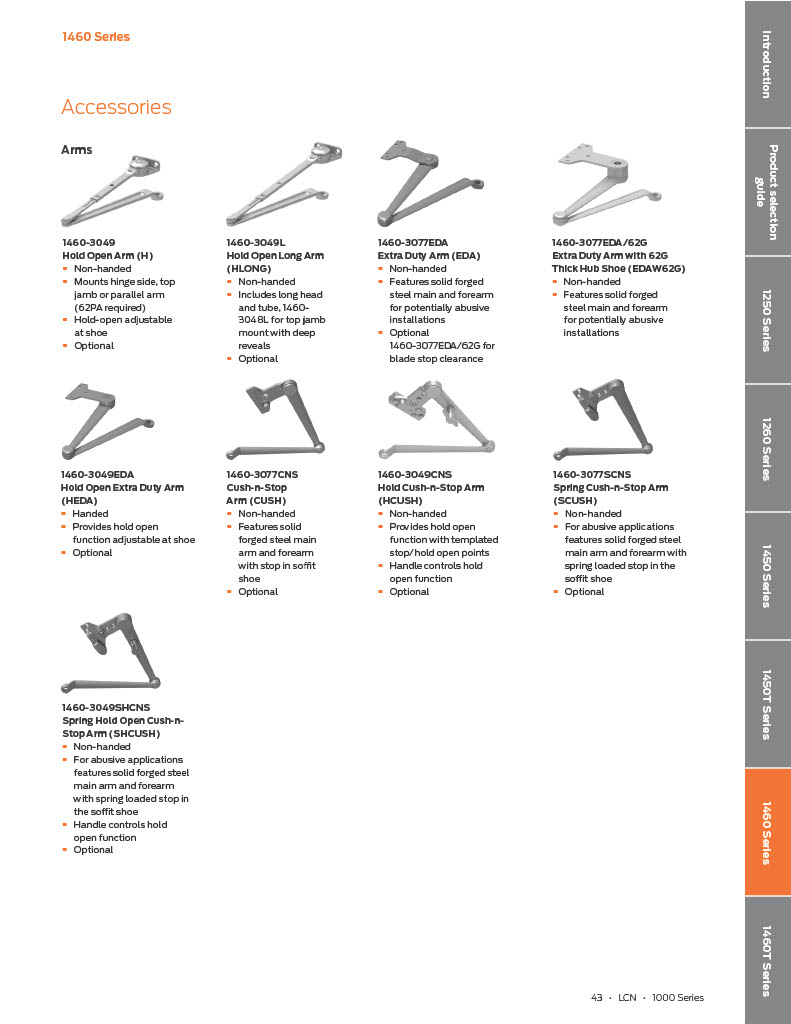

Arm:1460-3049 non-handed Hold Open arm mounts hinge side, top jamb or parallel arm, Hold-open adjustable at shoe.

PA shoe:1460-62PA shoe for parallel arm mounting.

Cover:1460-72Standard, non-handed, slim line plastic cover with feature strip.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model:LCN, 1461, 1461ALUM, 1461AL, 1461689, 1461Hw/PA, 1461Hw/PAALUM, 1461Hw/PAAL, 1461Hw/PA689, AL, ALUM, 689, Aluminum, 1461DKBRZ, 1461695, 1461Hw/PADKBRZ, 1461Hw/PA695, DKBRZ - DARK BRONZE, 695, 1461LTBRZ , 1461691, 1461Hw/PALTBRZ , 1461Hw/PA691, LTBRZ , LIGHT BRONZE, 691, 1461BRASS , 1461696, 1461Hw/PABRASS , 1461Hw/PA696, BRASS, 696
