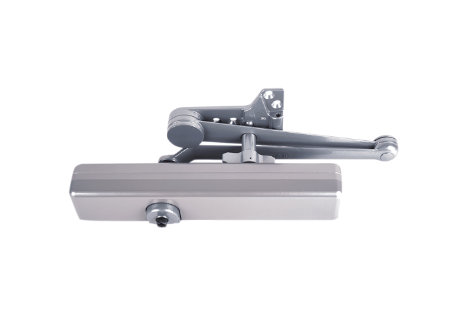

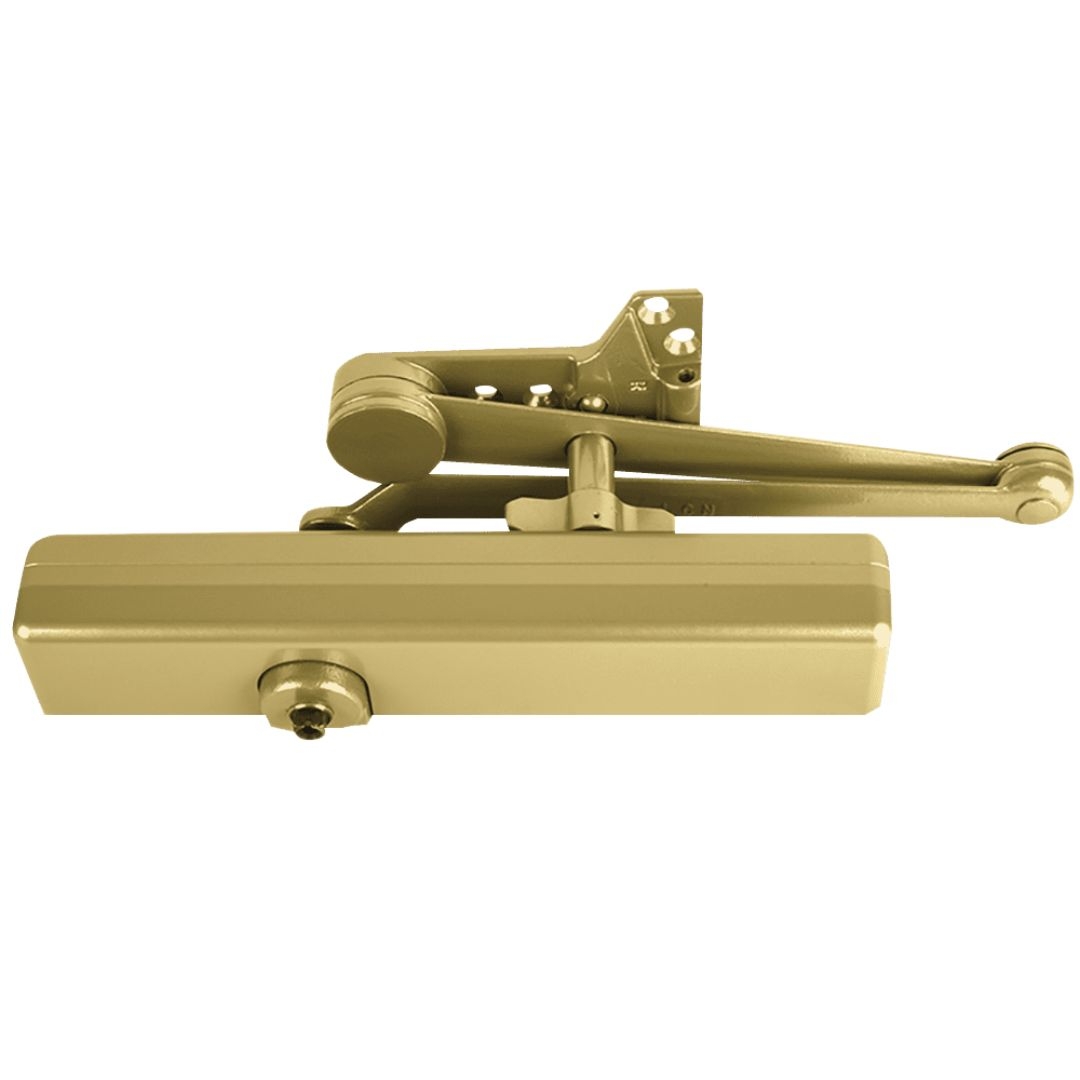

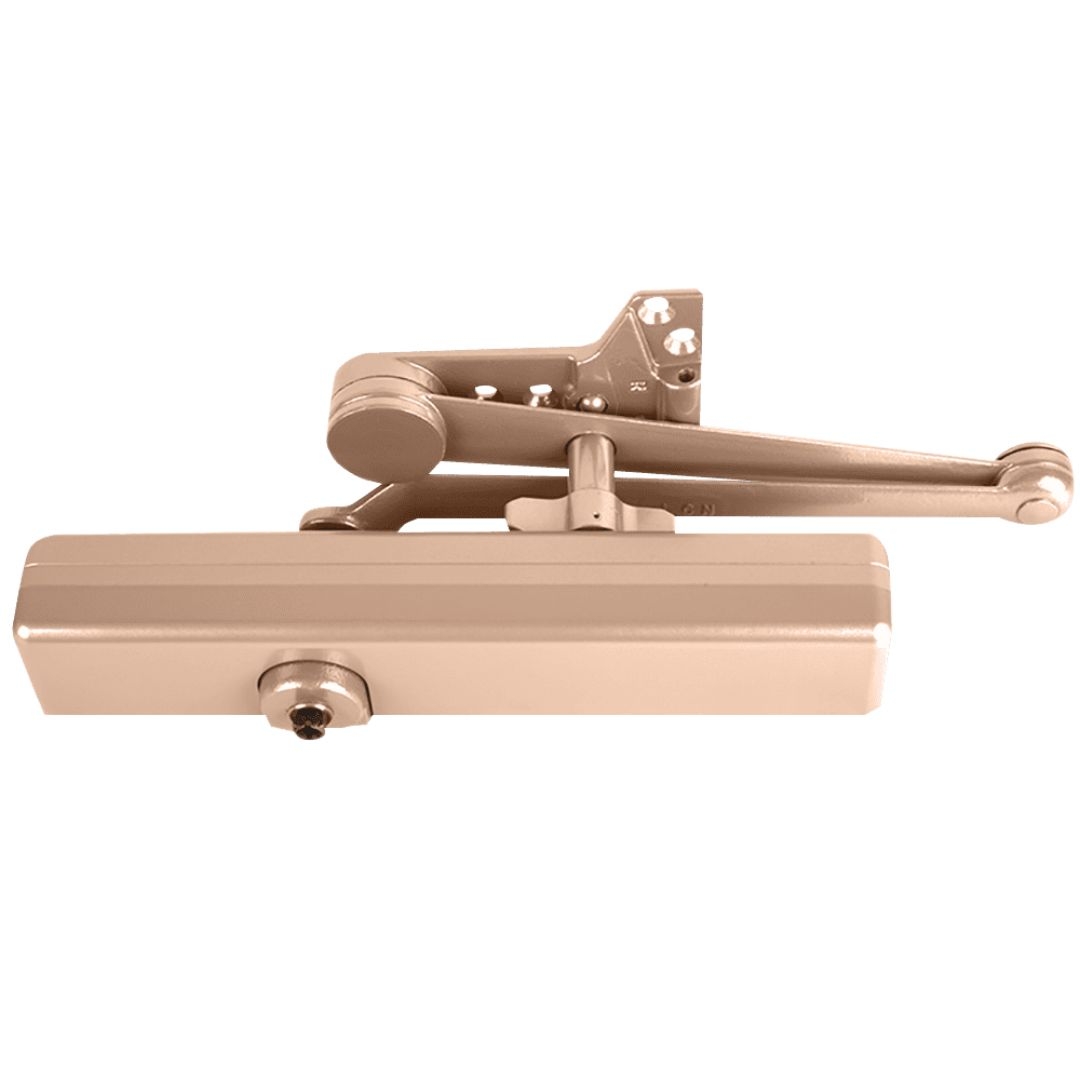

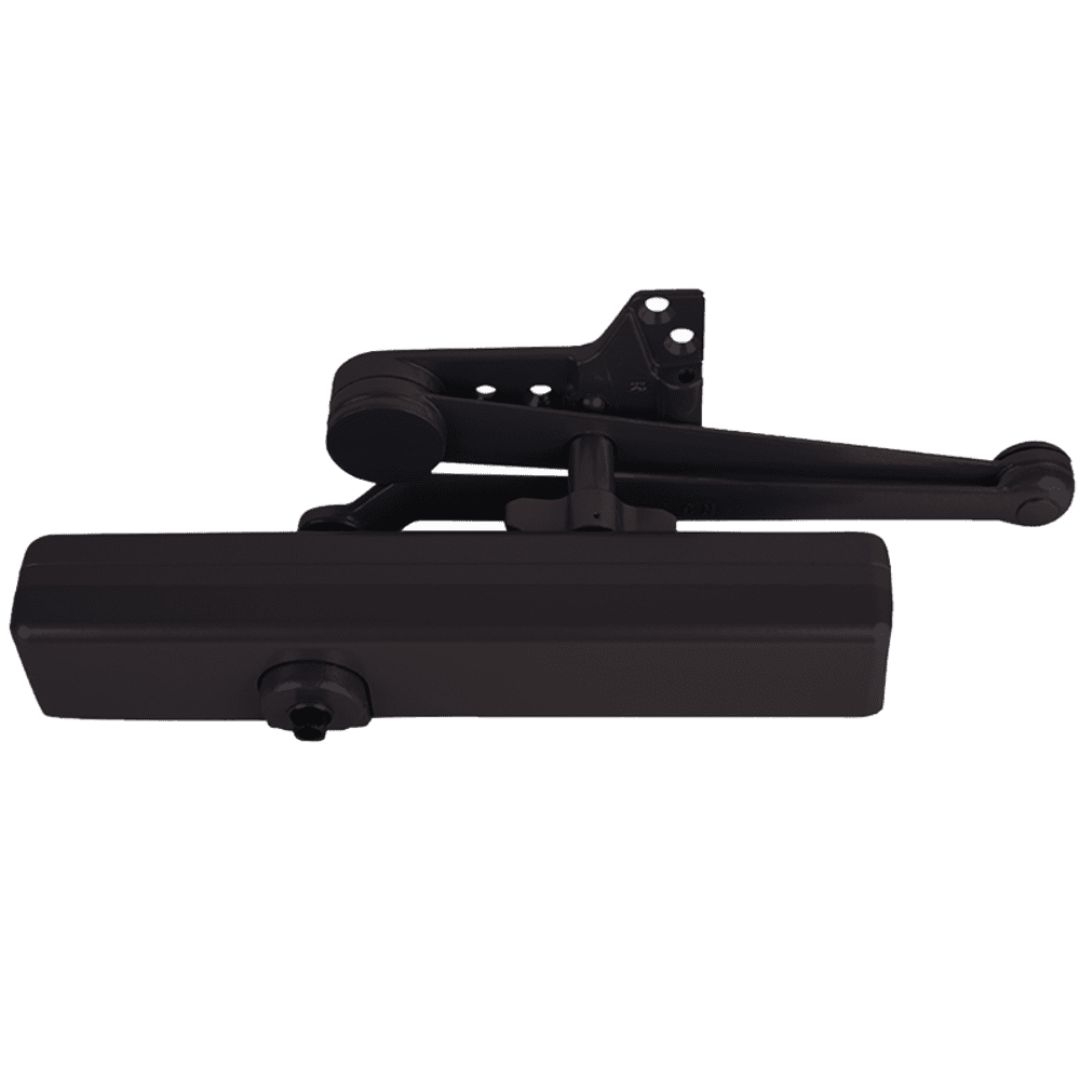

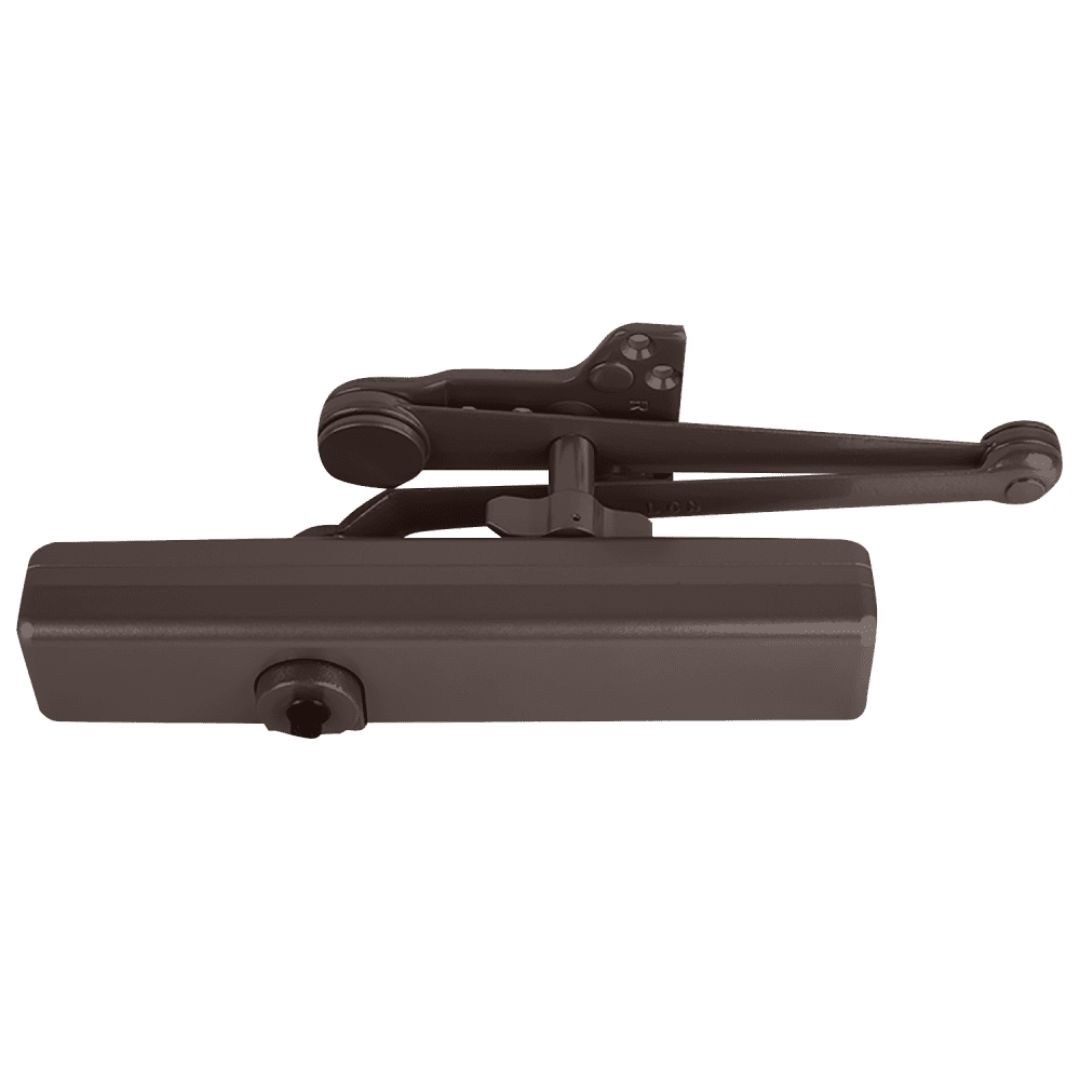

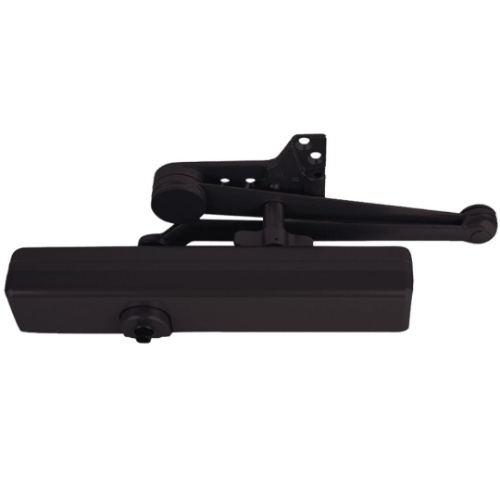

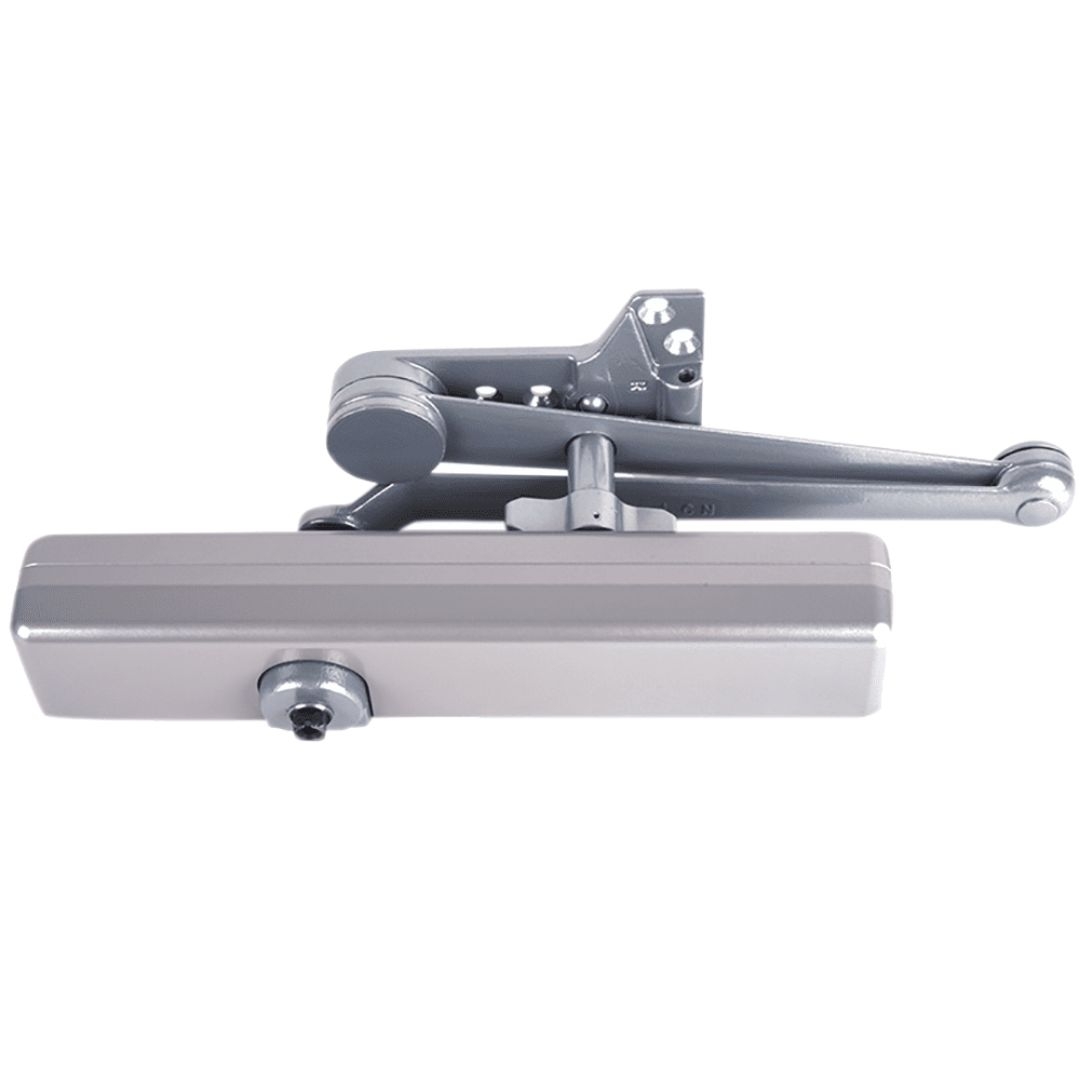

LCN 1461 SCUSH Door Closer - Spring CUSH-N-STOP Arm

LCN 1461 SCUSH- Heavy Duty Door Closer, Spring CUSH-N-STOP Arm

Finish: Powder Coat**

Closer Mounting:Parallel Arm (PUSH SIDE) mounting.

Power Size:The spring power of a 1461 cylinder is field adjustable from size 1 through size 6and is shipped adjusted to size 3.

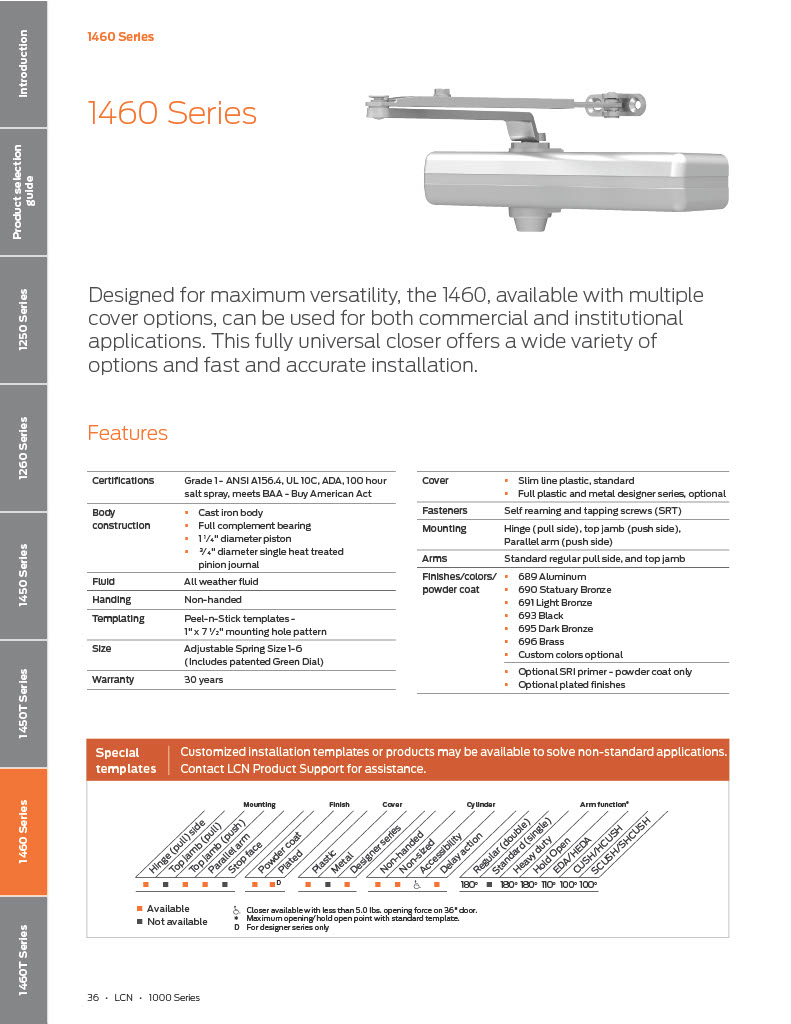

LCN 1461:Cast iron closer  -  Closer meets ADA requirements  -  Adjustable hydraulic backcheck cushions opeing swing prior to 90 degrees  -  Separate regulation of general closing speed and latching speed  -  Joints in arm and shoe adapt to uneven trim  - Reversible shoe to boost latching power on double lever arms

Handing:Non-Handed, Closer mounts on either right or left swinging doors.

UL:UL and cUL listed for self-closing doors without hold-open.

ANSI:Tested and certified under ANSI Standard A156.4, grade one.

Warranty:10 year limited warranty.

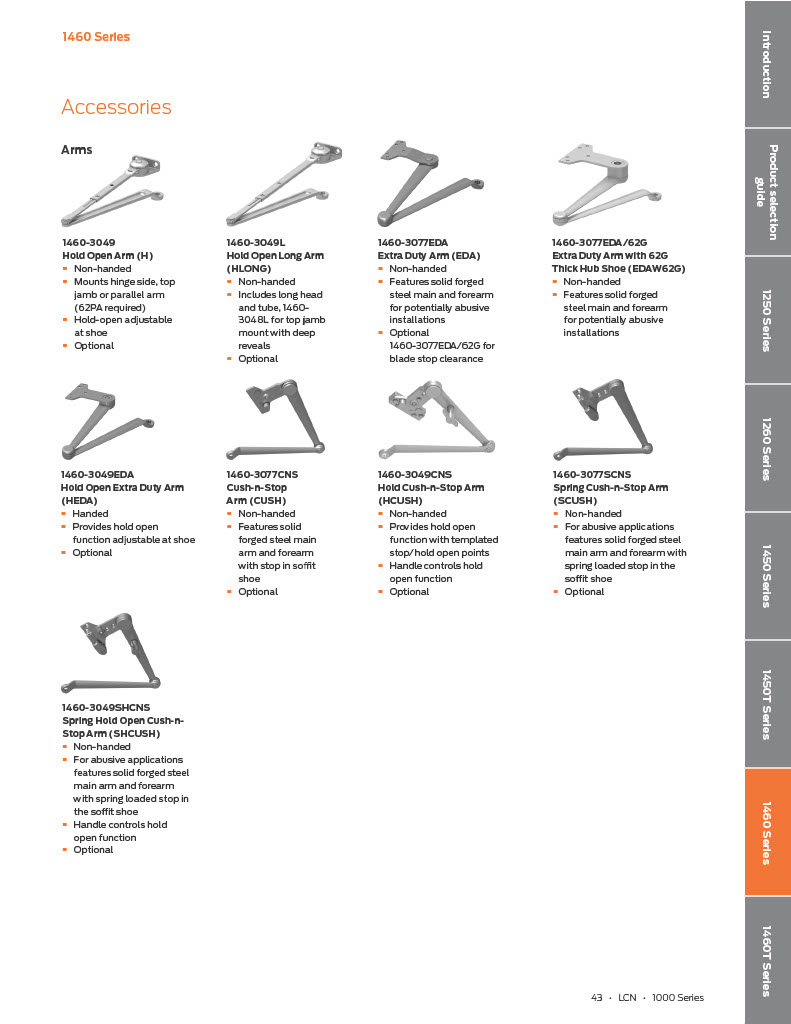

Arm:SPRING CUSH ARM, 1460-3077SCNS non-handed parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.

PA shoe:1460-62PA shoe for parallel arm mounting.

Cover:1460-72Standard, non-handed, slim line plastic cover with feature strip.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes:ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691)

Model:LCN, 1461SCUSHALUM, 1461DSCUSHAL, 1461SCUSH689, 1461SCUSHDKBRZ, 1461SCUSH695, 1461SCUSHLTBRZ, 1461SCUSH691
