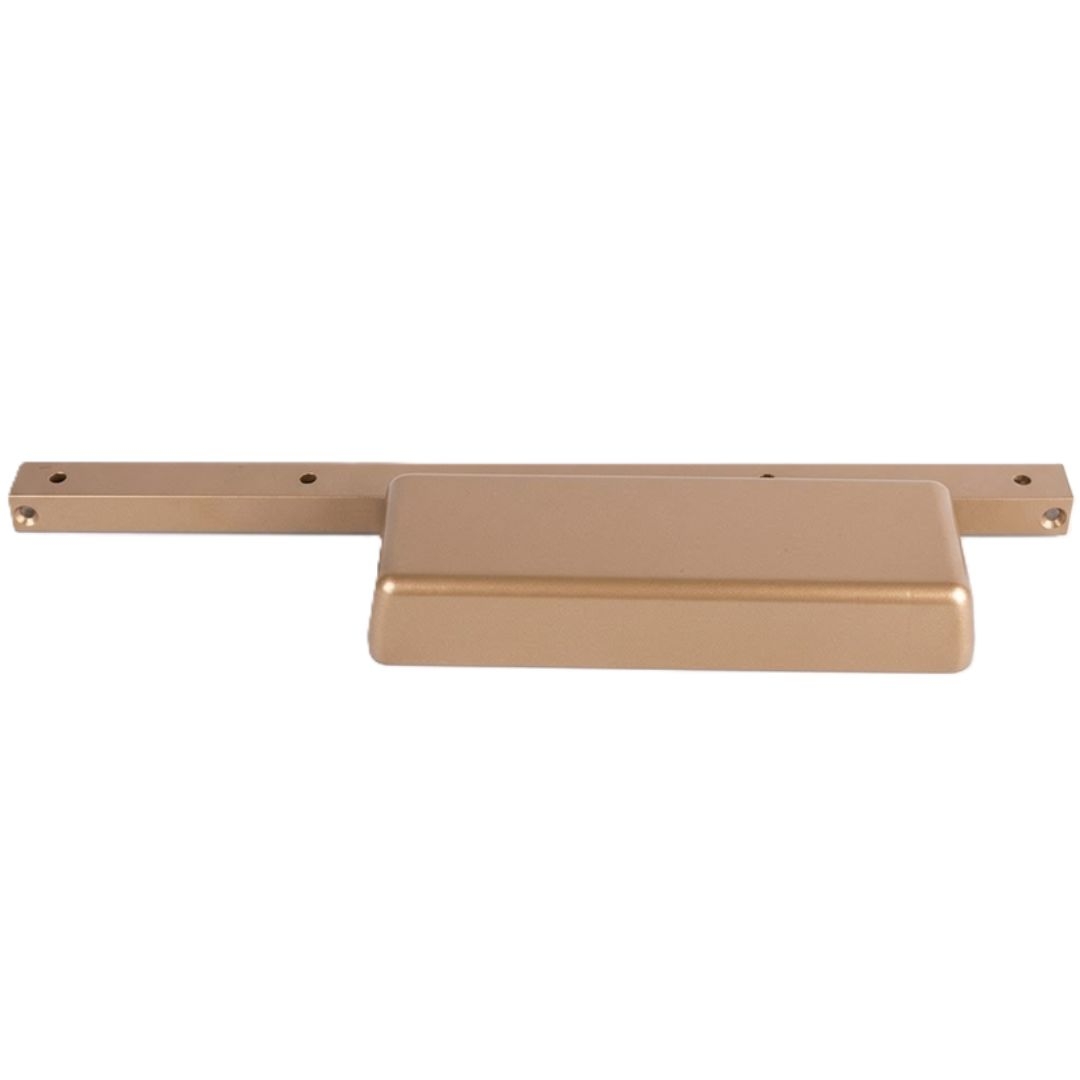

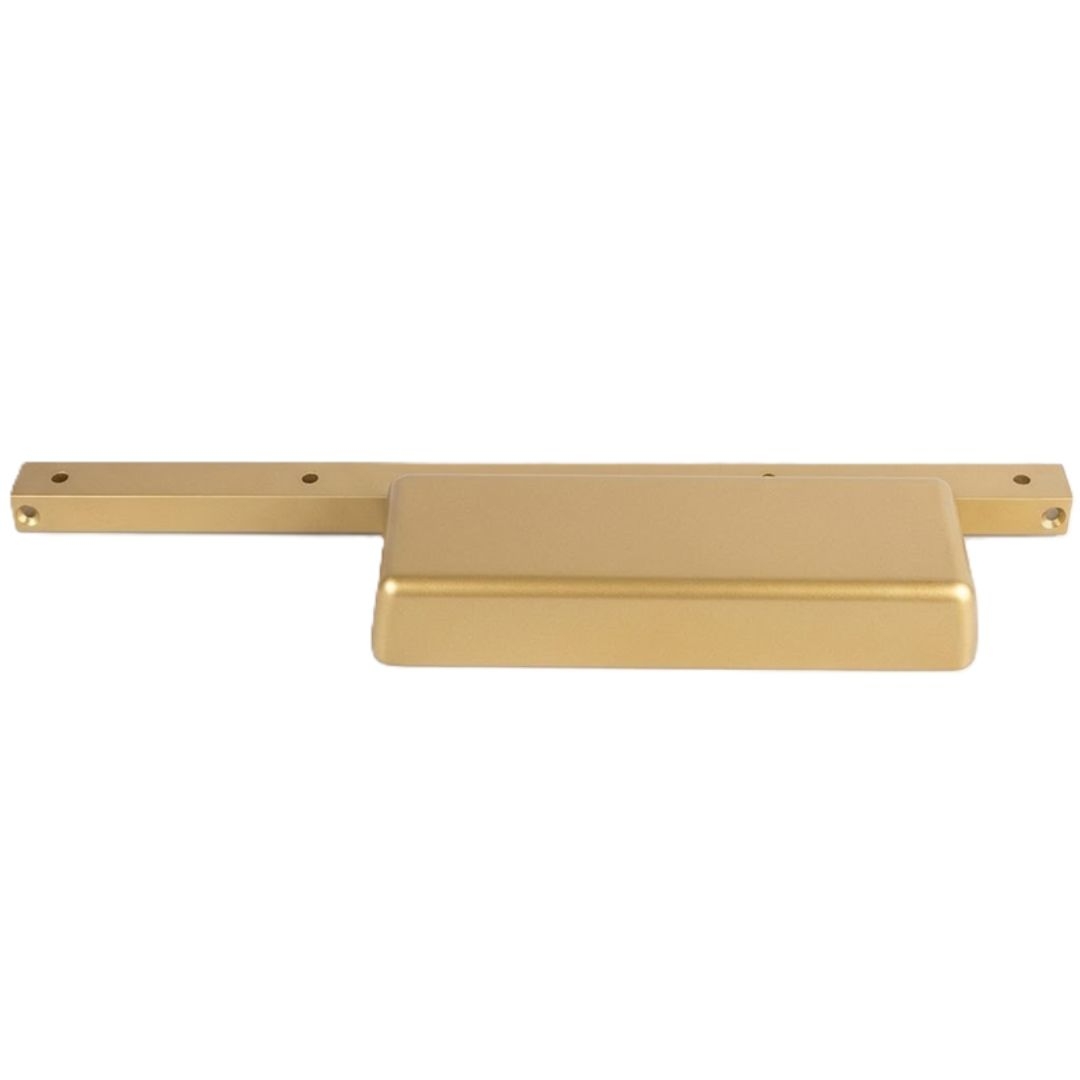

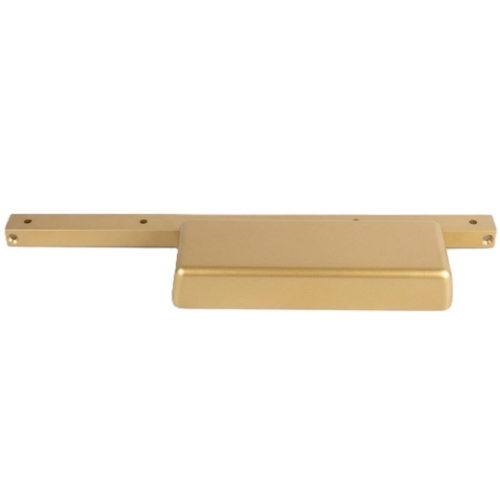

LCN 4004T Track Door Closer - Wall pocket mounting (hinge side) - Size 4

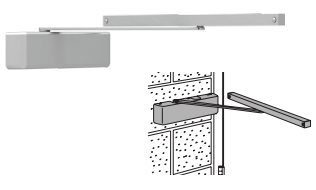

The LCN 4004T installs in a different location entirely: a wall pocket on the hinge side of the door opening. The closer body sits inside the wall adjacent to the door, concealed in a pocket frame. A track arm connects from the closer body in the wall to a rail mounted on the top of the door. As the door swings open, the roller on the arm slides along the door track. As the door swings closed, the closer mechanism drives it to the closed and latched position.

This installation method is used when the space above the door or on the door face isn't suitable for a conventional closer due to architectural constraints, when a cleaner above-door appearance is required, or when the wall pocket hardware schedule calls for the 4004T as the life safety closer on a fire or smoke barrier door. The 4004T is specifically built for fire and smoke barrier doors with a maximum swing of 90 degrees. It is designed for use with the SEM 7850 electromagnetic wall magnet (LCN SEM7800 Series, available separately), which holds the door in the open position until the fire alarm releases it. For all LCN and commercial door closers, browse our door closers catalog. For all standard surface door closers, view our standard door closers catalog.

90-Degree Maximum: Why Fire Doors Limit Opening Angle

Standard commercial door closers are often spec'd to allow 180-degree opening. Fire and smoke barrier doors are a different specification. The 4004T limits the door to 90 degrees maximum swing. This is intentional on fire corridor doors: a door propped fully open against a wall or held wide open provides no smoke barrier function. At 90 degrees, the door is sufficiently open for corridor traffic while maintaining its smoke compartmentalization geometry. When the fire alarm fires and the SEM 7850 wall magnet de-energizes, the door swings from its held-open position back to closed at the appropriate closer speed.

Buy American Act and 30-Year Warranty

The LCN 4004T meets Buy American Act (BAA) requirements, making it procurable under federal procurement specifications that require domestically manufactured products. For GSA, Department of Defense, VA, and other federal project specifications, BAA compliance is a hard requirement, and the 4004T satisfies it.

The warranty is 30 years. Most commercial door closers carry 1 to 2-year warranties. LCN's 4000T carries 30 years, which reflects the cast iron body and heavy-duty piston and pinion construction built for decades of institutional service.

LCN 4004T Specifications

• SKU: 4004T-STD 689

• Also known as: LCN 4004T, LCN 4000T, LCN 4004T-STD, wall mount door closer LCN, track door closer wall pocket, wall mounted door closer fire door

• Series: LCN 4000T

• Type: Track arm door closer, wall pocket mounting, hinge side

• Size: 4

• Door width: Interior 42" (1067mm) to 48" (1219mm)

• Max opening: 90 degrees

• Application: Fire and smoke barrier doors; designed for use with SEM 7850 wall magnet (sold separately)

• Body: Cast iron; full complement bearing; 1-1/2" diameter piston; 3/4" double heat-treated pinion journal

• Arm: Standard arm and track with roller

• Fluid: All-weather fluid

• Cover: Plastic standard

• Certifications: Grade 1 ANSI A156.4, UL 10C, ADA, 100-Hour Salt Spray, Buy American Act (BAA)

• Fasteners: Wood and machine screw pack

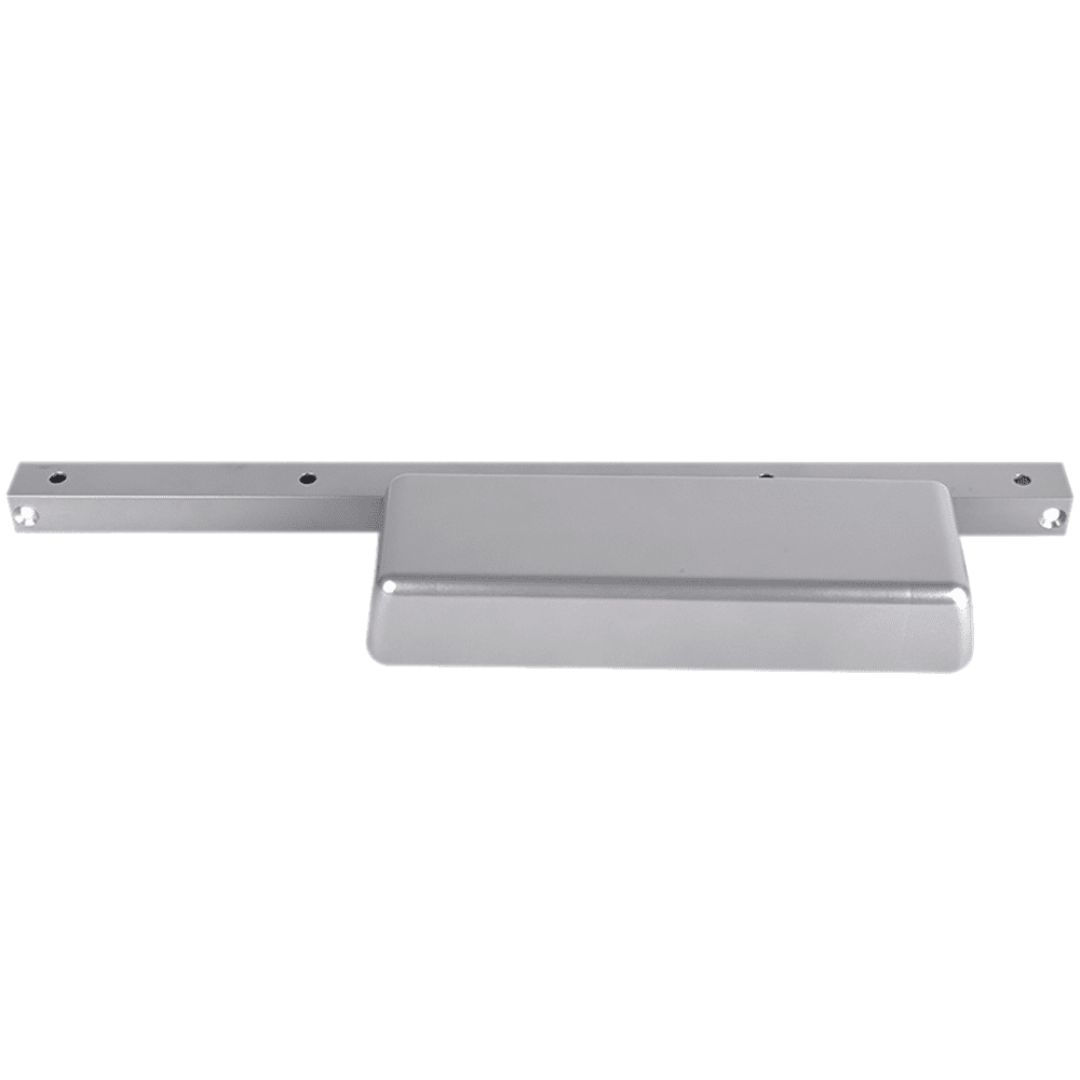

• Finish: 689 Silver Aluminum Painted

• Warranty: 30 years

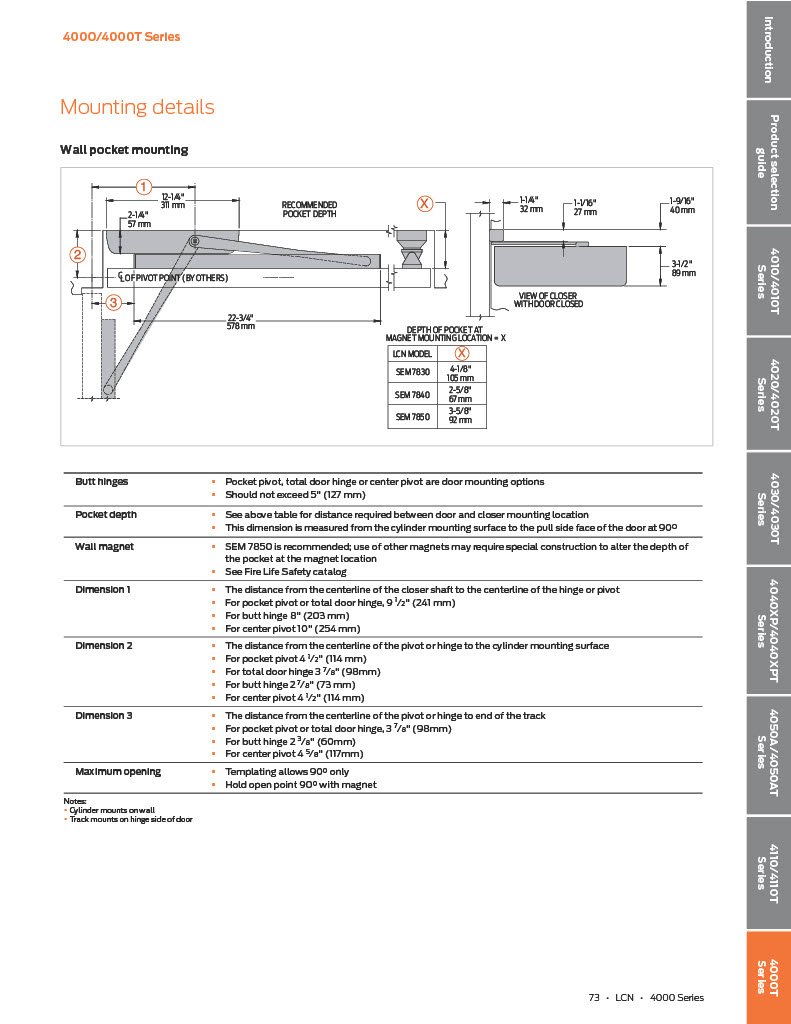

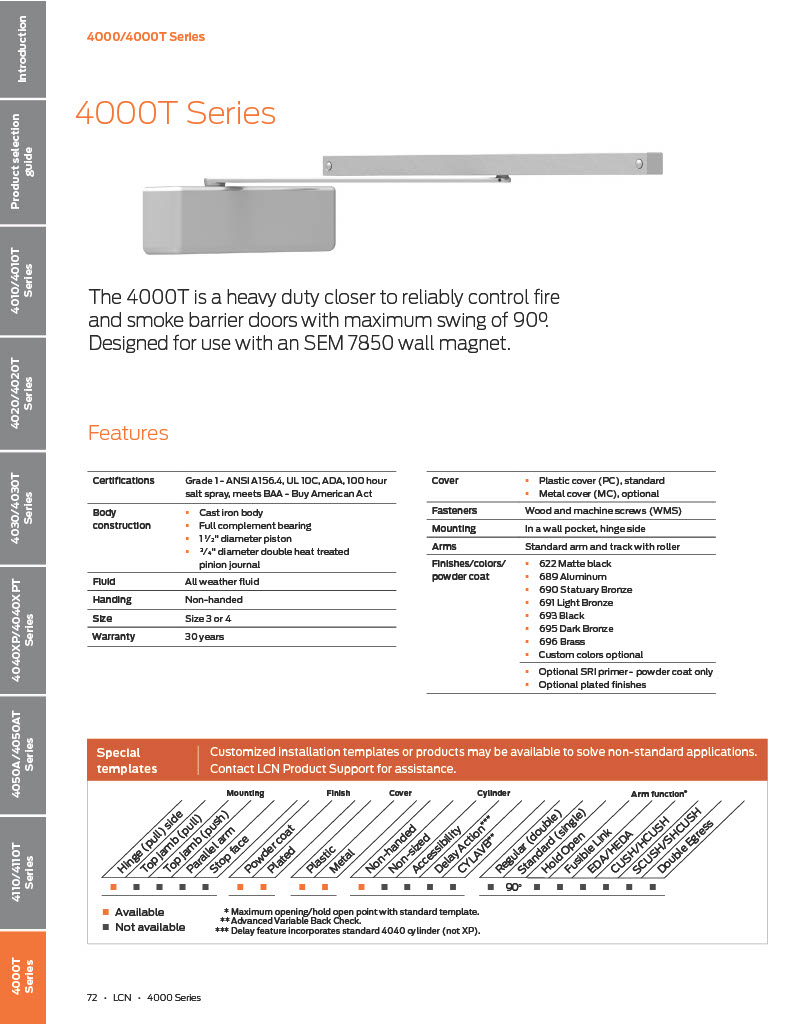

• Resources: LCN 4000 Series Catalog PDF in Resources section
