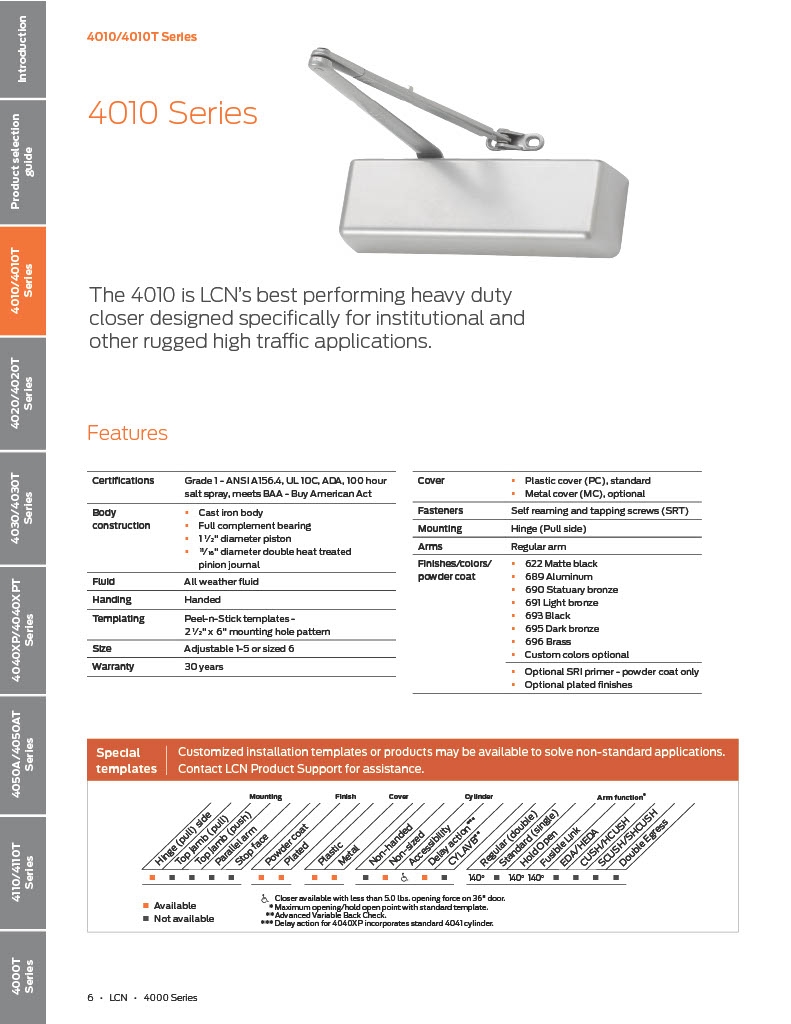

1-Page6-LCN-4000SERIES

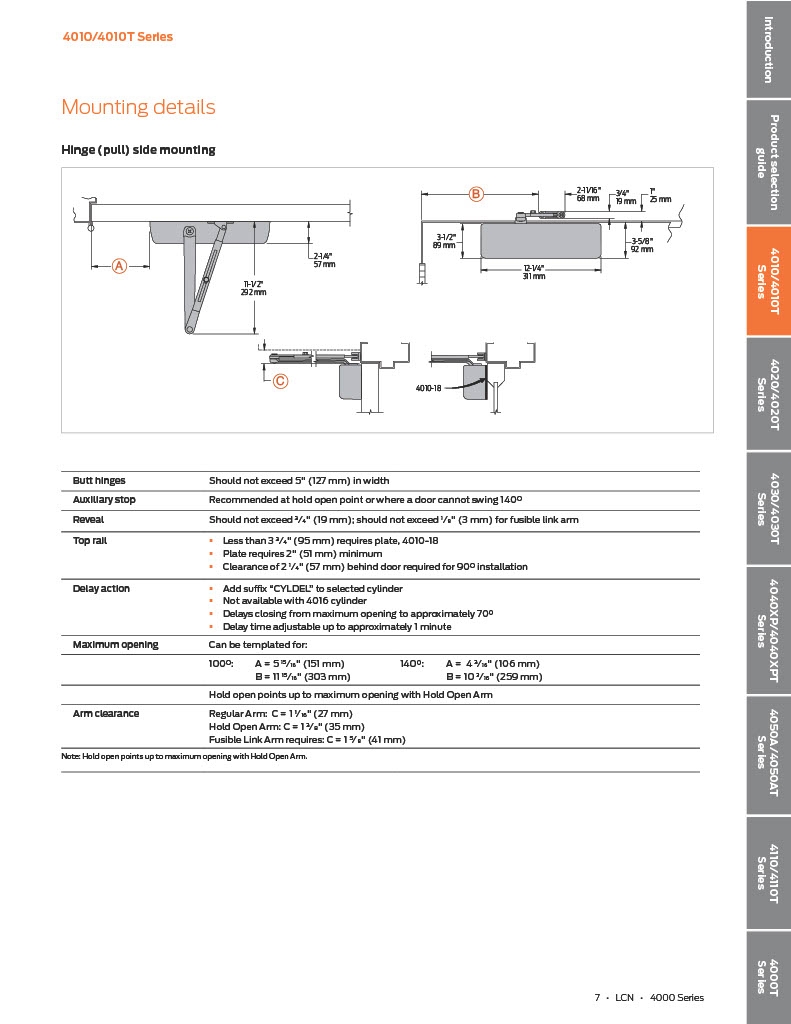

1-Page7-LCN-4000SERIES

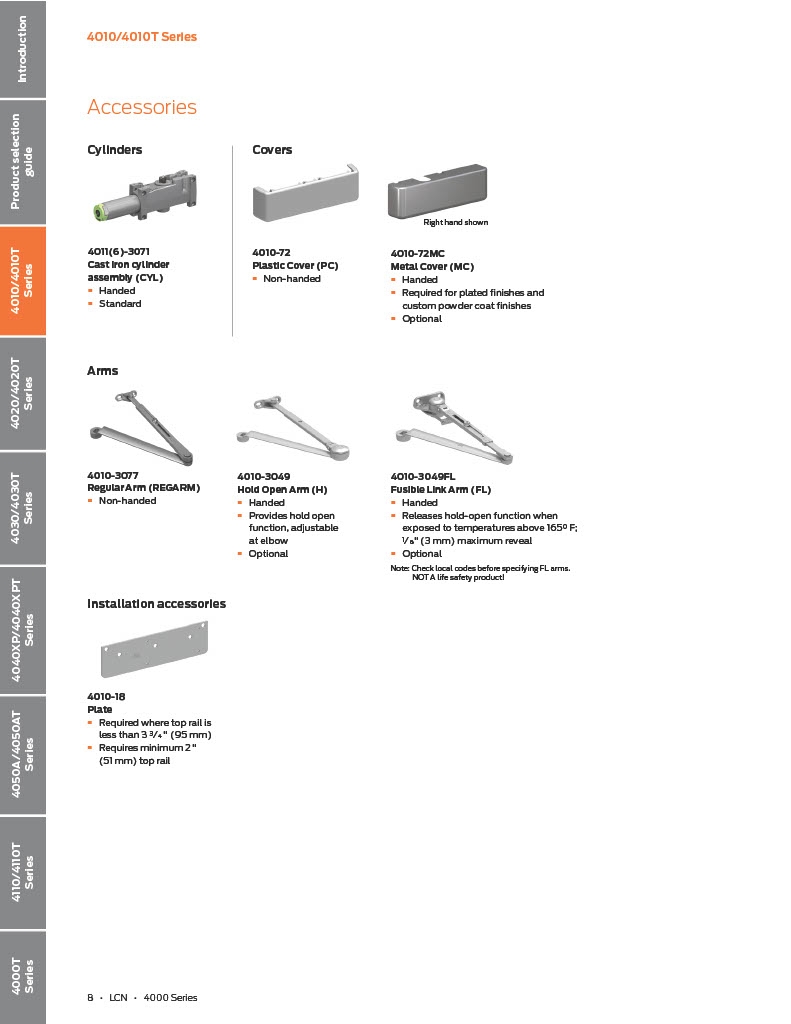

1-Page8-LCN-4000SERIES

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Product Details

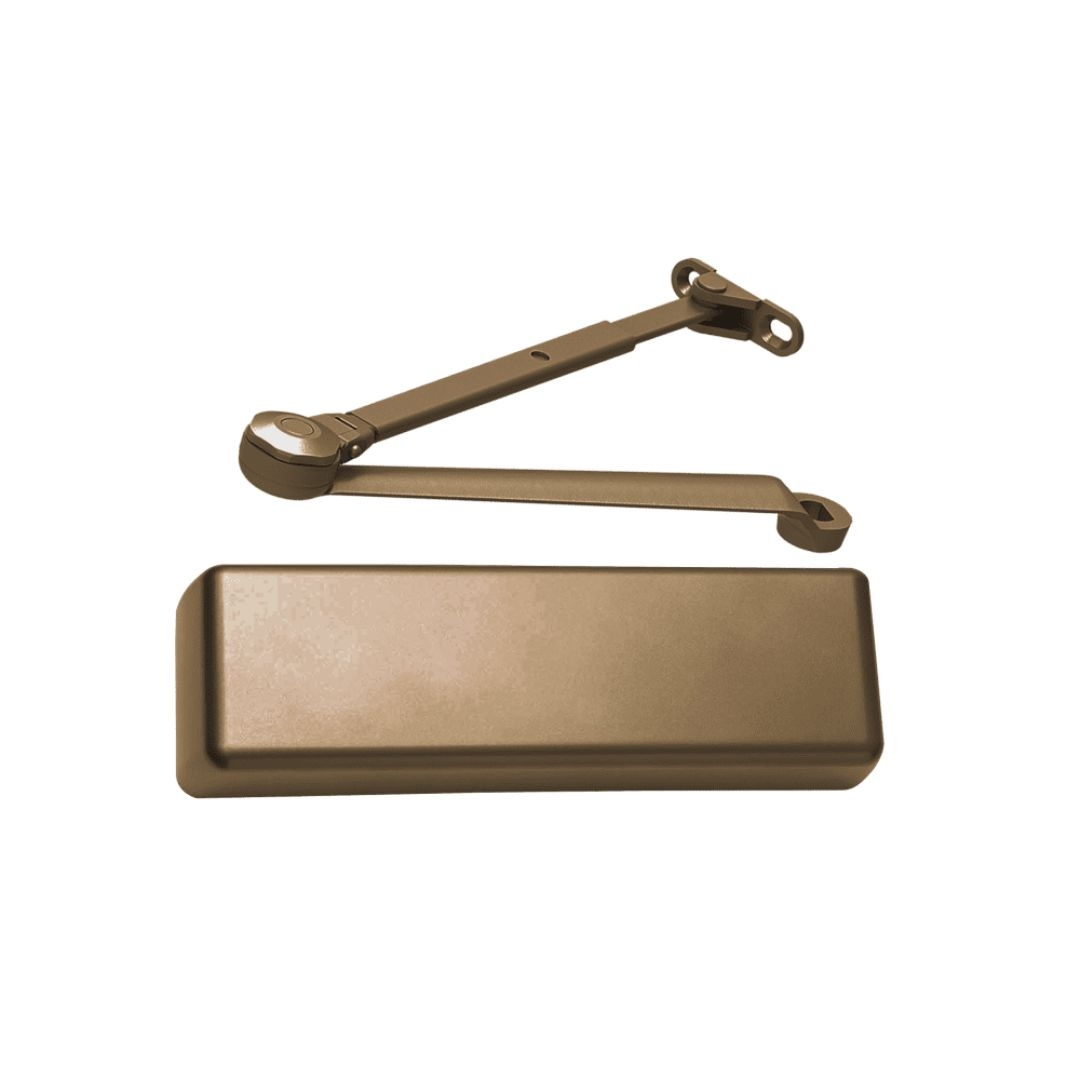

LCN 4011-FL - Heavy Duty Door Closer with Fusible Link Arm.

Finish: Powder Coat

Closer Mounting: Closer mounts hinge side (Pull Side) only.

LCN 4010 Series: Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Non-sized cylinder (4011) adjustable for interior doors 24 Degree" to 54 Degree " and exterior doors 24 Degree" to 42 Degree"

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: 4010- 3049FL Releases hold-open function whenexposed to temperatures above 165F.1/8" (3 mm) maximum reveal.

Cover: 4010-72 Standard, non-handed plastic cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 4011FL, 4011-FL, 4011FLALUM, 4011FLDKBRZ, RH, LH, 4011FLRHALUM, 4011FLLHALUM, Right Hand, Left Hand,Delayed Action (DEL).

LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

SKU: 4011-FL

In Stock

$669.50

About this item

The 4010 Smoothee is LCNs best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Resources

LCN 4000 SERIES CATALOG.pdf

LCN 4011-FL - Heavy Duty Door Closer with Fusible Link Arm.

Finish: Powder Coat

Closer Mounting: Closer mounts hinge side (Pull Side) only.

LCN 4010 Series: Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Non-sized cylinder (4011) adjustable for interior doors 24 Degree" to 54 Degree " and exterior doors 24 Degree" to 42 Degree"

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: 4010- 3049FL Releases hold-open function whenexposed to temperatures above 165F.1/8" (3 mm) maximum reveal.

Cover: 4010-72 Standard, non-handed plastic cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model: LCN, 4011FL, 4011-FL, 4011FLALUM, 4011FLDKBRZ, RH, LH, 4011FLRHALUM, 4011FLLHALUM, Right Hand, Left Hand,Delayed Action (DEL).

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Product code: 4011-FL

In Stock

$669.50

$669.50

Picture of LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

Product code: 4011-FL

In Stock

$669.50

$669.50

LCN 4011-FL Door Closer - Mounting Hinge Side (Pull Side) - Fusible Link Arm

SKU: 4011-FL
