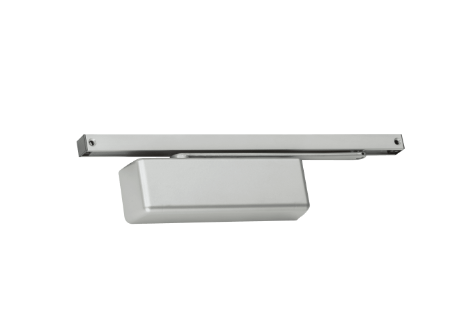

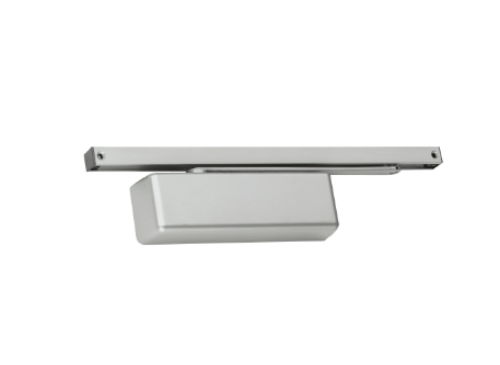

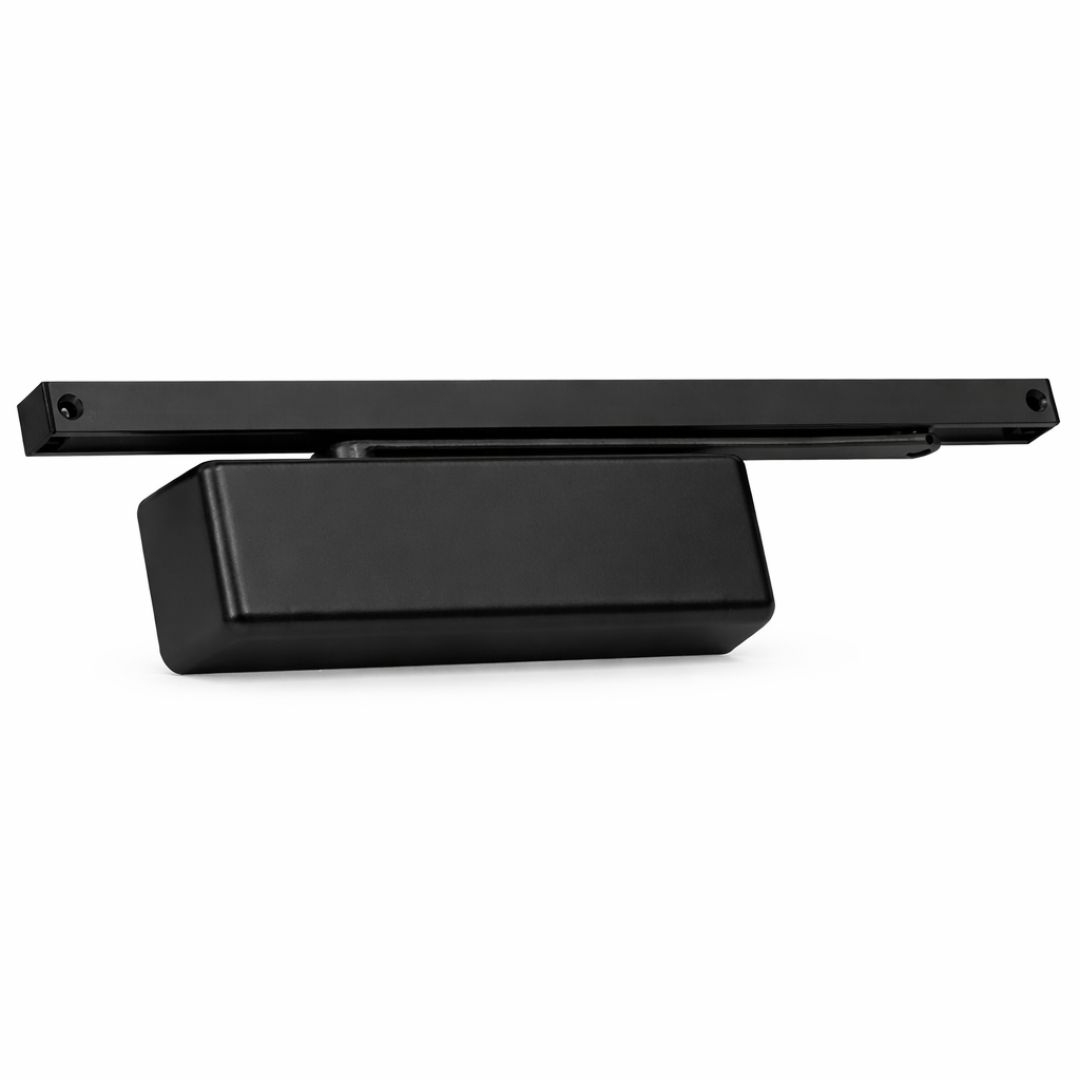

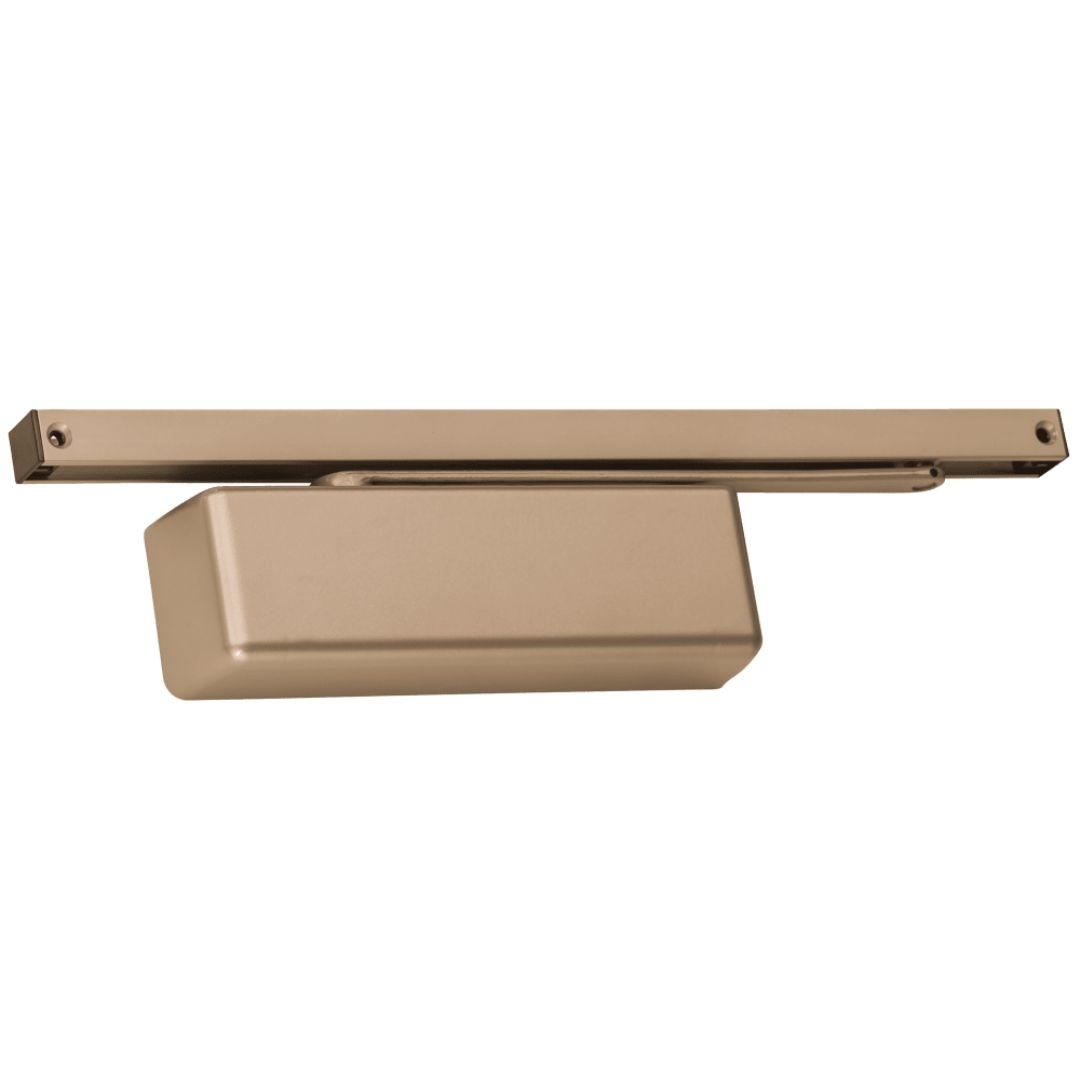

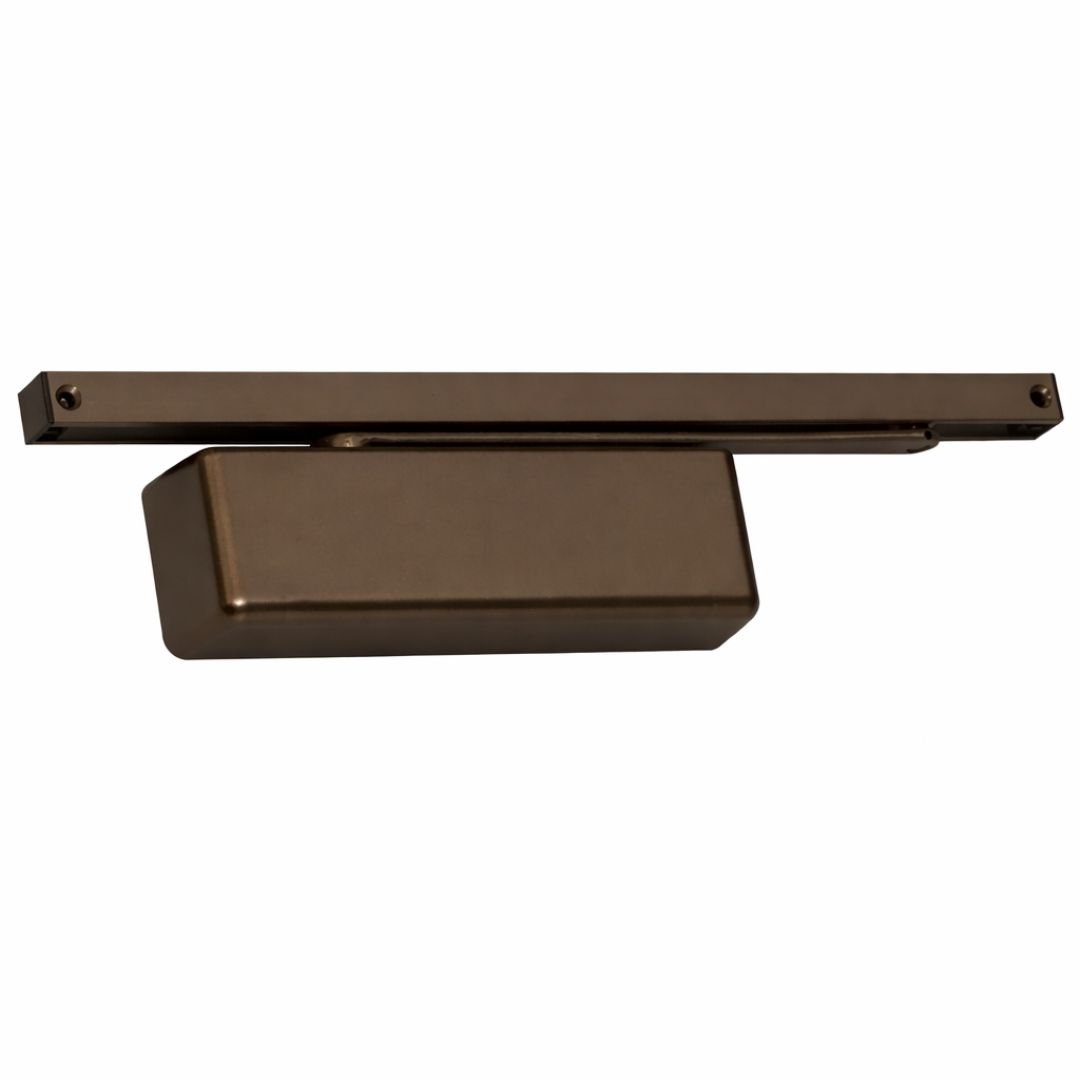

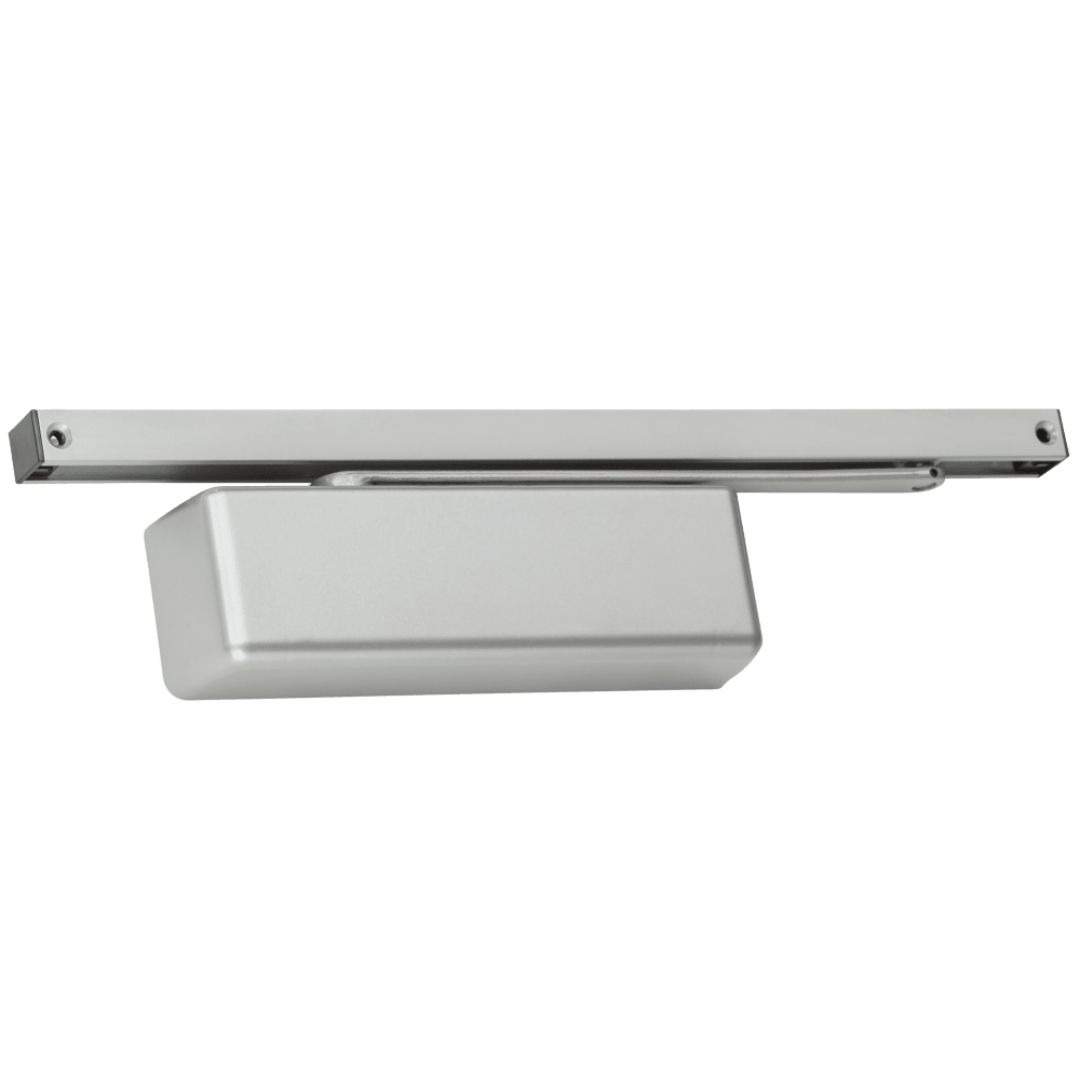

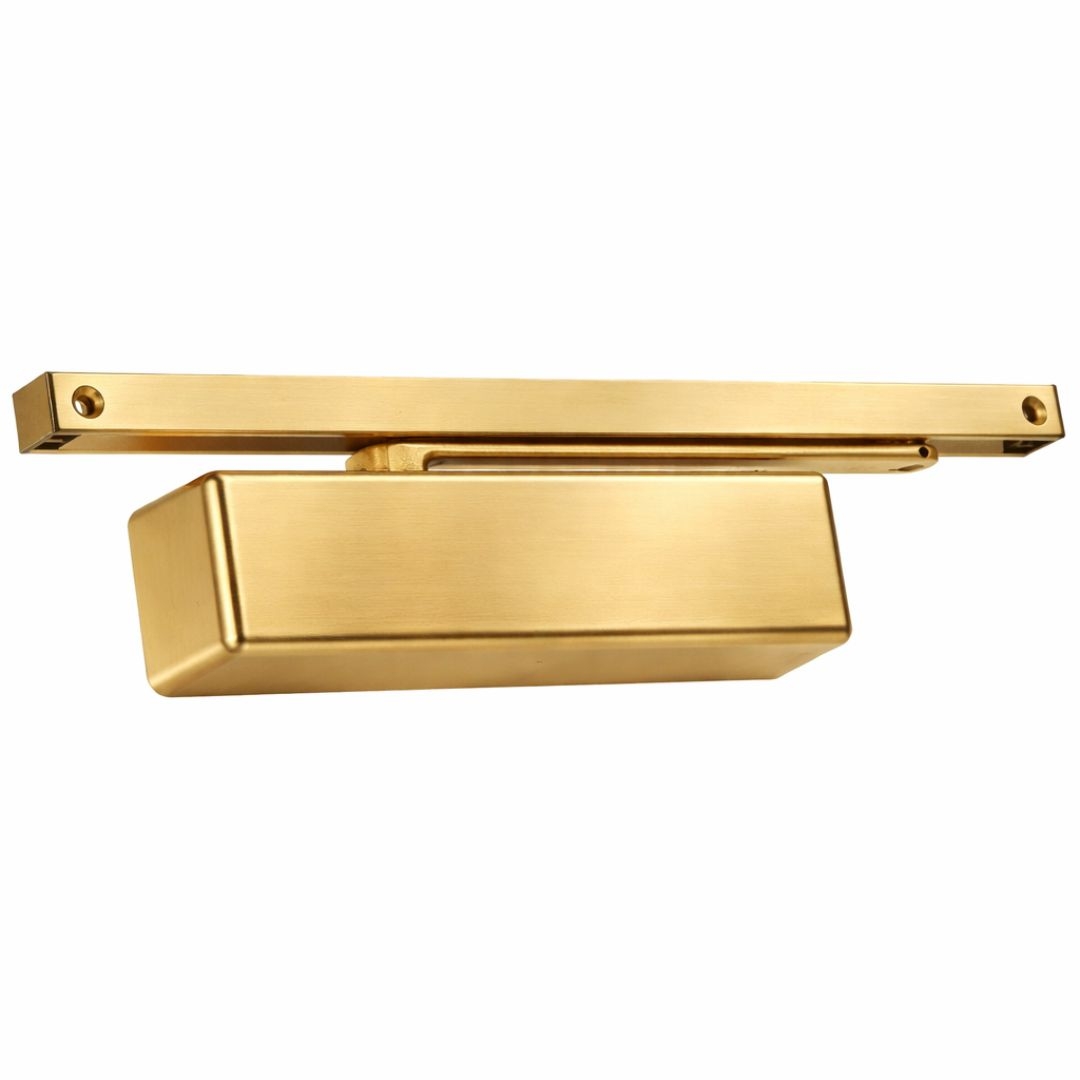

LCN 4011T - BUMPER Heavy Duty Track Closer with Bumper - Size 1

LCN 4011T - BUMPER  Heavy Duty Track Closer with Bumper - Size 1

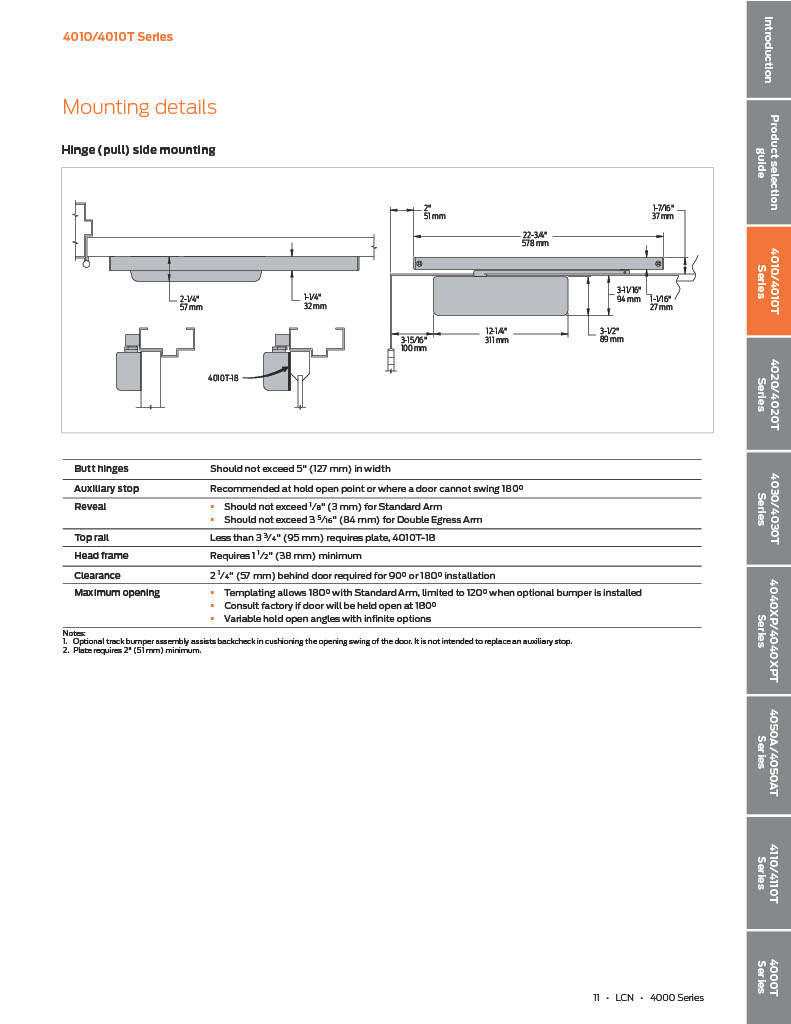

"Mounting Hinge (Pull Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm)

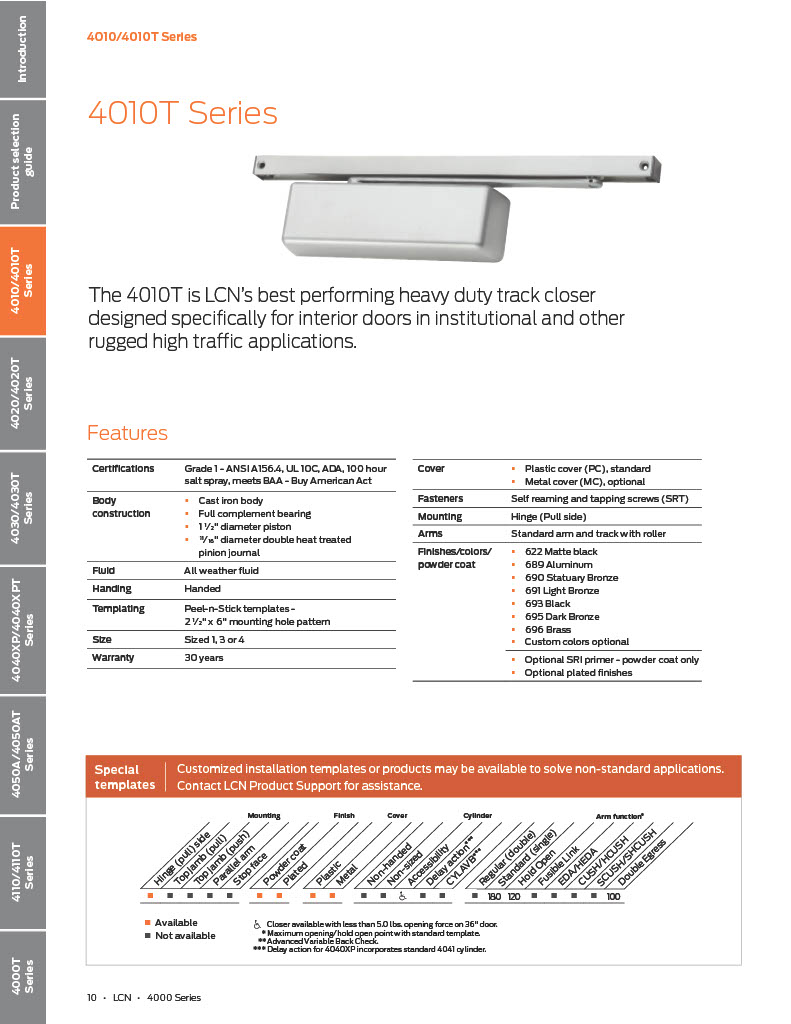

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Standard Arm and Track with Roller

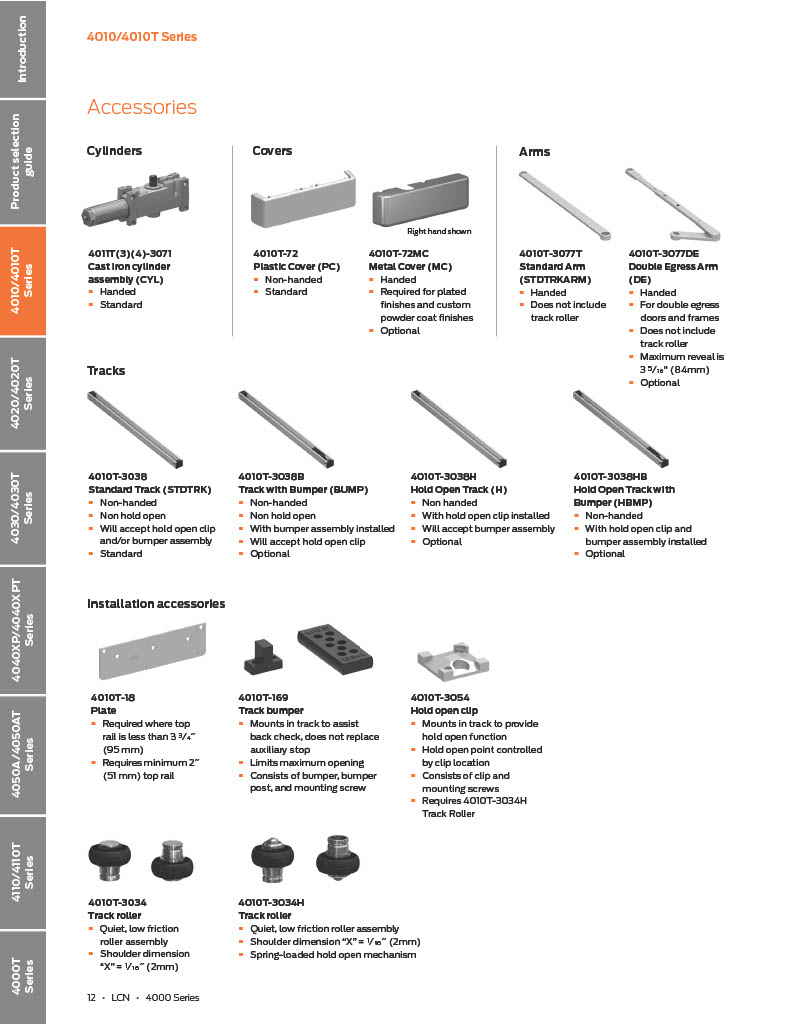

Track Bumper:Mounts in track to assist backcheck, does notreplace auxiliary stop, Limits maximum opening, Consists of bumper, bumper post, and mounting screw

Fluid:All Weather Fluid

Templating:Peel-n-Stick templates - 2-1/2˝ x 6˝ Mounting Hole Pattern

Cover:Plastic, Standard

Fasteners:Self Reaming and Tapping Screws (SRT)

Reveal:Should not exceed 1/8˝ (3 mm)for standard arm Should not exceed 3-5/16˝ (84 mm)for double egress arm

Top Rail:Less than 3-3/4˝ (95 mm)requires PLATE, 4010T-18 Note: Plate requires 2˝ (51 mm) minimum

Head Frame:Requires 1-1/2˝ (38 mm) minimum

Clearance:2-1/4˝ (57 mm) behind door required for 90  Degree or 180  Degree installation

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:30 years
