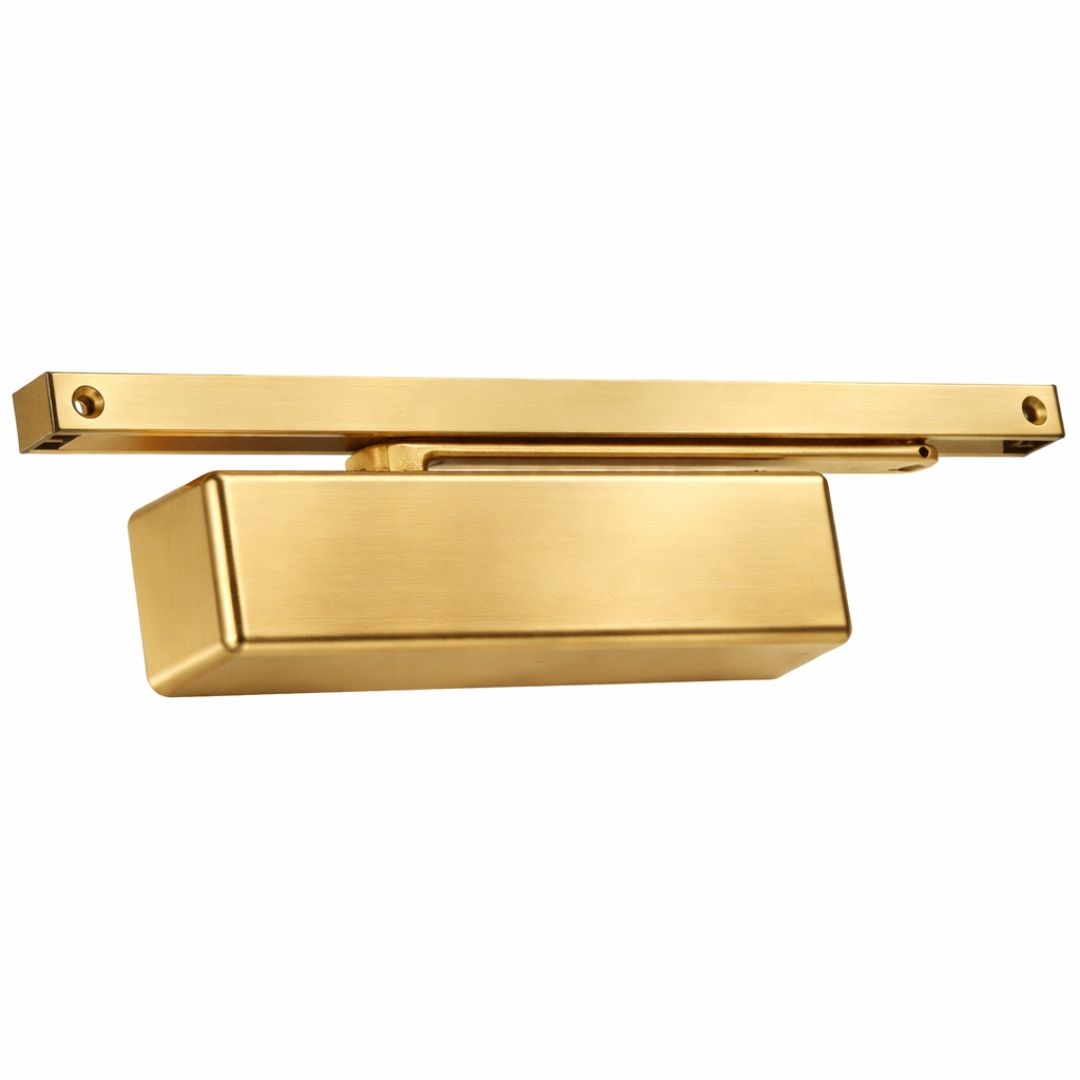

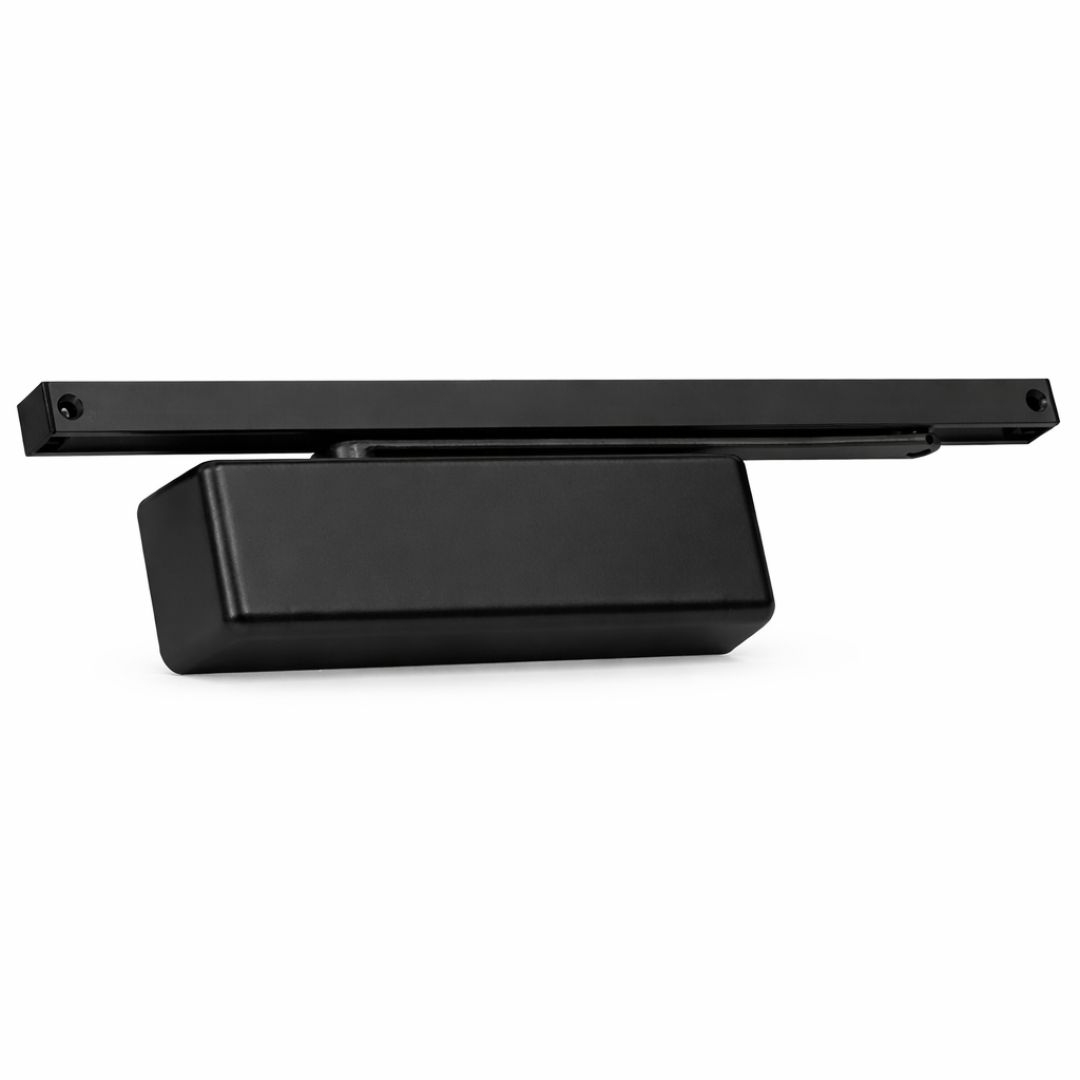

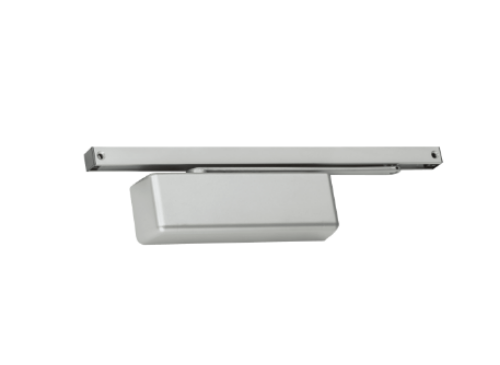

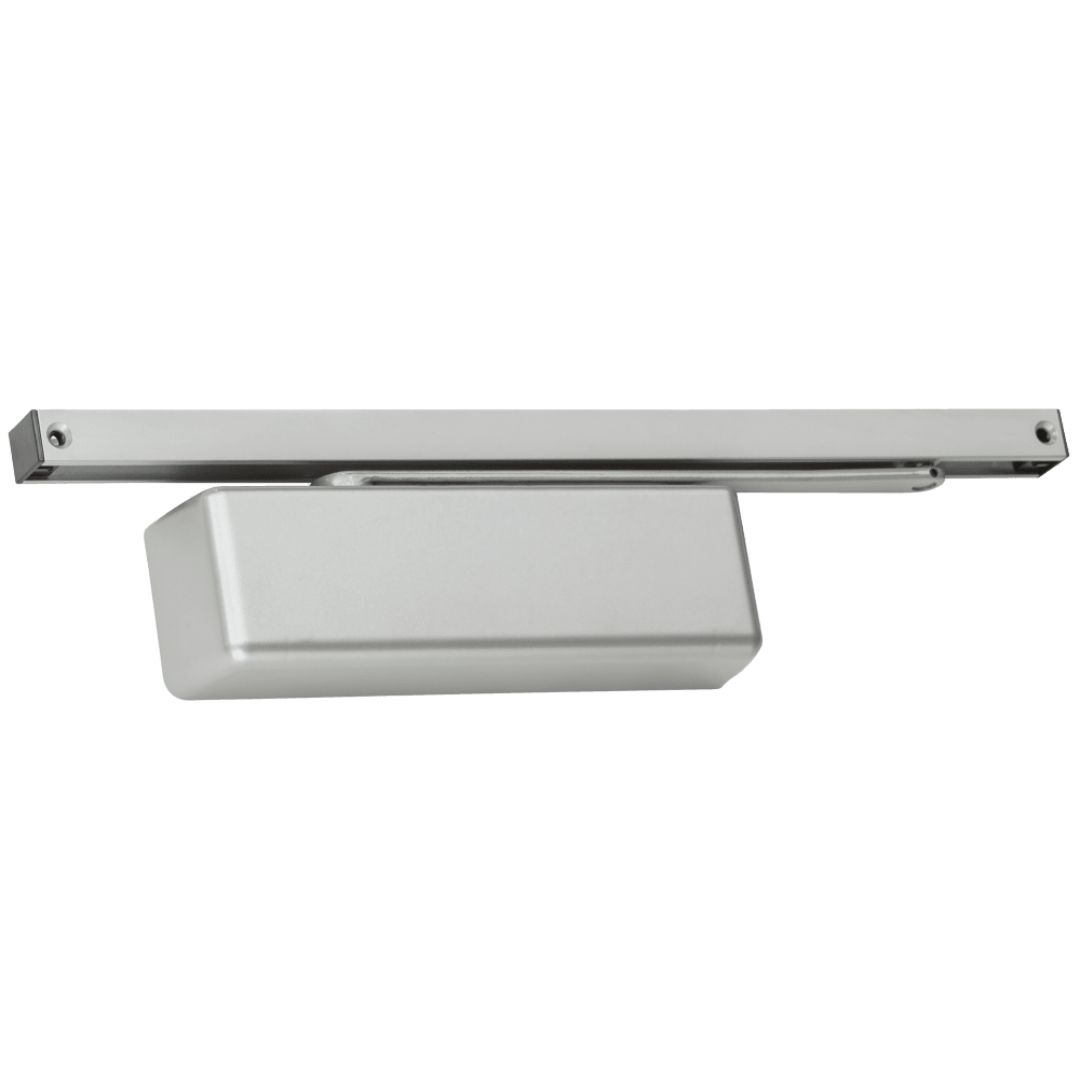

LCN 4013T Heavy Duty Track Closer - Mounting hinge side (Pull Side) - Size 3

LCN 4013T Heavy Duty Track Closer

"Mounting Hinge (Pull Side)"

Size 3 Interior door width 34˝ (864mm) - 38˝ (965mm)

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Standard Arm and Track with Roller

Fluid:All Weather Fluid

Templating:Peel-n-Stick templates - 2-1/2˝ x 6˝ Mounting Hole Pattern

Cover:Plastic, Standard

Fasteners:Self Reaming and Tapping Screws (SRT)

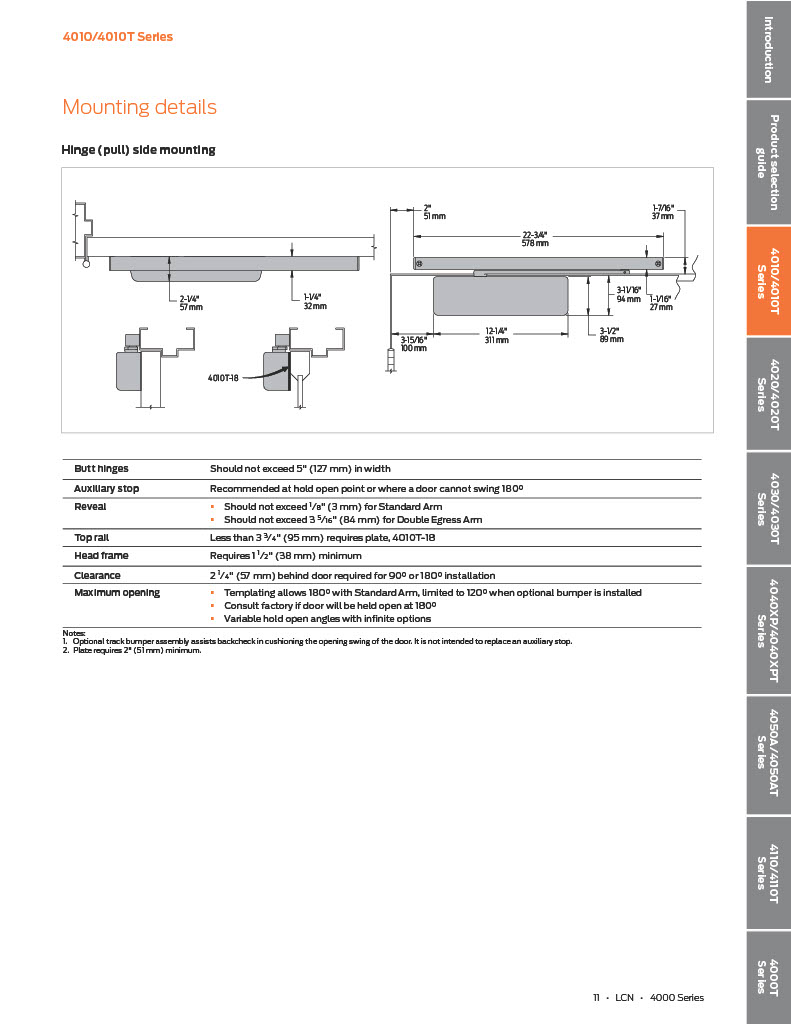

Reveal:Should not exceed 1/8˝ (3 mm)for standard arm Should not exceed 3-5/16˝ (84 mm)for double egress arm

Top Rail:Less than 3-3/4˝ (95 mm)requires PLATE, 4010T-18 Note: Plate requires 2˝ (51 mm) minimum

Head Frame:Requires 1-1/2˝ (38 mm) minimum

Clearance:2-1/4˝ (57 mm) behind door required for 90  Degree or 180  Degree installation

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:30 years
