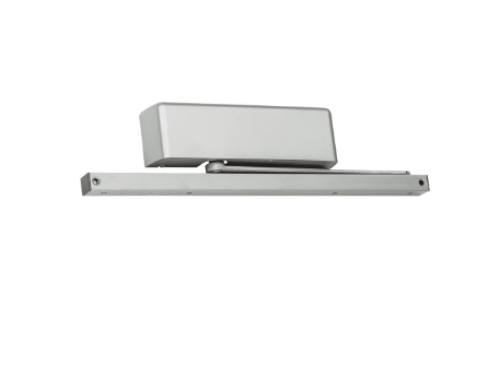

LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

The LCN 4021T is the top jamb mounted track closer from LCN's 4020 Series, sized for ADA-compliant interior doors from 26 to 34 inches wide. The body mounts on the head jamb: the horizontal frame member directly above the door opening. The track arm connects from the closer body down to a track rail on the door, and as the door opens toward you (pull side), the roller slides along the door track. This is the 4020T Series closer for top-of-frame installation. It shares the cast iron body, 30-year warranty, and Grade 1 certification of the broader LCN 4000 family, installed in a different position.

Top jamb mounting is specified when the door doesn't have enough space for a conventional hinge-side or push-side closer, when the architectural hardware schedule specifically calls for head mounting, or when door or frame conditions make hinge-side installation impractical. On narrow aluminum storefront doors and certain hollow metal frame configurations, the top jamb is the only viable surface for the closer body. Reveal must not exceed 1/8 inch. For all LCN and commercial door closers, browse our door closers catalog. For all standard surface door closers, view our standard door closers catalog.

Top Jamb vs Hinge Side: Choosing Between 4021T and 4011T

Both the 4021T and the 4011T are LCN heavy duty track closers in Size 1 ADA for the same 26 to 34-inch door width range. Both use a track arm and roller. Both are Grade 1 certified. The mounting location is the only difference.

The 4011T (LCN 4010 Series) mounts on the hinge side of the door: the door stile on the pull side where the hinges are visible. The closer body is on the door itself, and the arm track connects to the frame.

The 4021T (LCN 4020 Series, this product) mounts on the top jamb of the door frame: the horizontal head above the door. The closer body is on the frame head, and the arm track connects to the door.

Specify 4021T when the hardware schedule calls for top jamb mounting, when the door stile doesn't provide adequate mounting surface for the 4011T, or when a top-of-frame installation is preferred for architectural or clearance reasons. If the mounting location is not specified on the hardware schedule, confirm with the project architect or installer before ordering.

LCN 4021T Specifications

• SKU: 4021T-STD

• Also known as: LCN 4021T, LCN 4020T, 4021T-STD 689, top jamb door closer LCN, top jamb mounted door closer track, lcn 4021, top mount door closer Grade 1, top jamb track closer ADA

• Series: LCN 4020T

• Type: Heavy duty track closer, top jamb (pull side) mounting

• Arm: Standard arm and track with roller

• Size: 1 (ADA)

• Door width: Interior 26" (660mm) to 34" (864mm)

• ADA: Meets 5-lb maximum opening force for interior accessible doors

• Templating: Peel-n-Stick, 2-1/2" x 6" mounting hole pattern

• Fasteners: Self Reaming and Tapping Screws (SRT)

• Reveal: Max 1/8" (3mm)

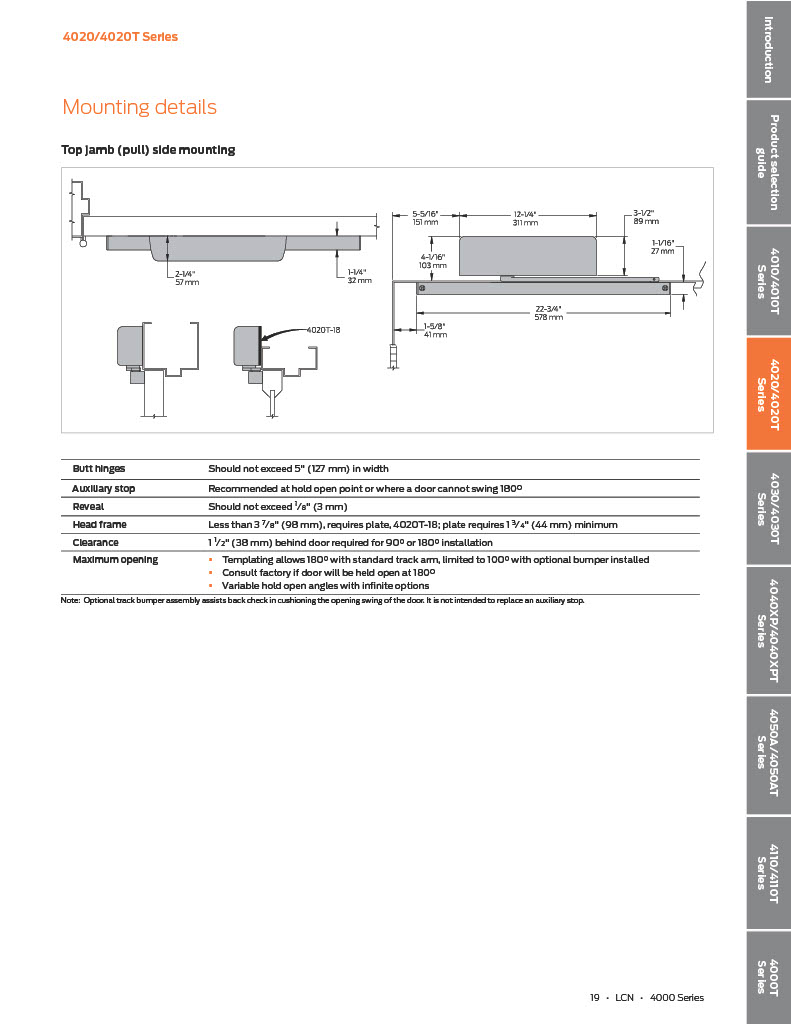

• Head frame: Less than 3-7/8" (98mm) requires plate 4020T-18 (plate requires 1-3/4" minimum)

• Handing: Must specify RH or LH at order

• Body: Cast iron; full complement bearing; 1-1/2" piston; 11/16" double heat-treated pinion journal

• Fluid: All-weather fluid

• Cover: Plastic standard

• Certifications: Grade 1 ANSI A156.4, UL 10C, ADA, 100-Hour Salt Spray, Buy American Act (BAA)

• Warranty: 30 years

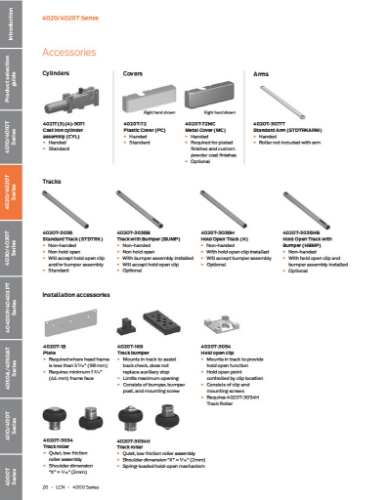

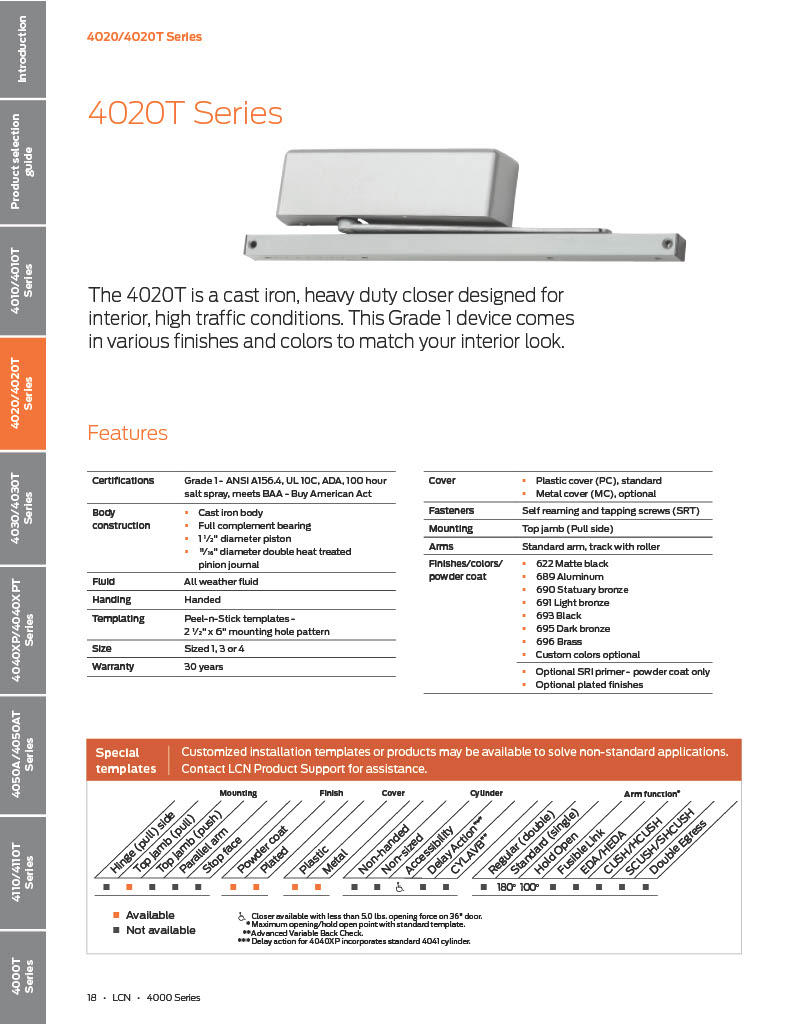

• Resources: LCN 4000 Series Catalog PDF in Resources section (includes top jamb mounting templates and installation instructions)

ADA Opening Force and Size 1

Size 1 is the ADA configuration. On interior accessible doors subject to a 5-pound maximum opening force requirement under ANSI A117.1 and ADA standards, Size 1 is the spring strength that meets that requirement on doors up to 34 inches wide. The 4021T Size 1 is the correct specification for top-jamb-mounted closers on accessible restroom doors, corridor doors, and office entries where ADA opening force compliance is required and the mounting location is the head frame.
