LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
1-Page18-LCN-4000SERIES
1-Page19-LCN-4000SERIES
1-Page20-LCN-4000SERIES
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
1-Page18-LCN-4000SERIES
1-Page19-LCN-4000SERIES
1-Page20-LCN-4000SERIES
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
naxt
prev

Product Details

LCN 4021T Heavy Duty Track Closer

"Mounting Top Jamb (Pull Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm) (ADA)

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Standard Arm and Track with Roller

Fluid: All Weather Fluid

Templating: Peel-n-Stick templates - 2-1/2˝ x 6˝ Mounting Hole Pattern

Cover: Plastic, Standard

Fasteners: Self Reaming and Tapping Screws (SRT)

Reveal: Should not exceed 1/8˝ (3 mm)

Head Frame: Less than 3-7/8˝ (98 mm), requires PLATE, 4020T-18, late requires 1-3/4˝ (44 mm) minimum

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 30 years



LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

SKU: 4021T-STD

In Stock
Picture for manufacturer LCN
icon Chat

$587.60

Finish *

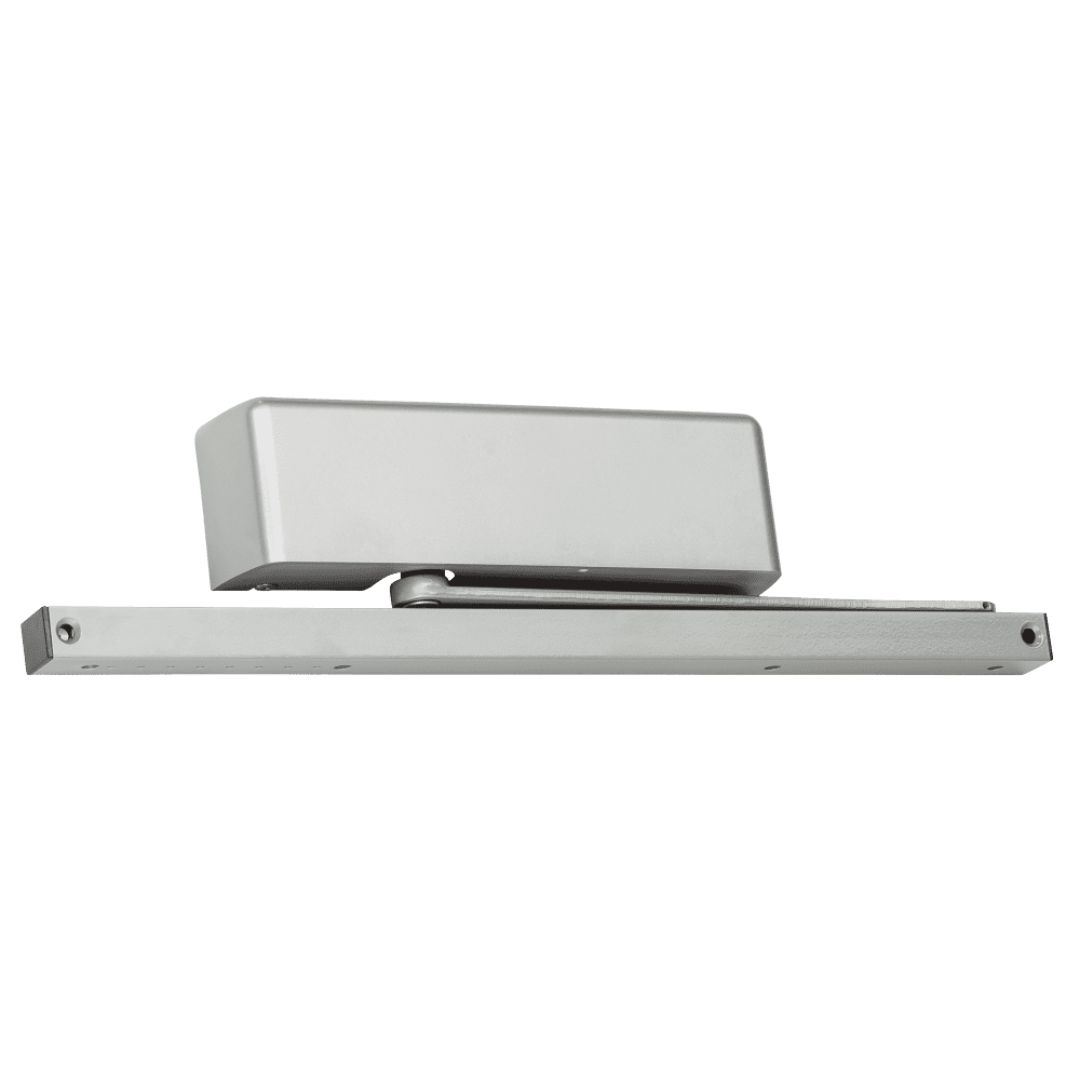

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted
695 - Dark Bronze Painted
695 - Dark Bronze Painted
691 - Light Bronze Painted
691 - Light Bronze Painted
696 - Satin Brass Painted
696 - Satin Brass Painted

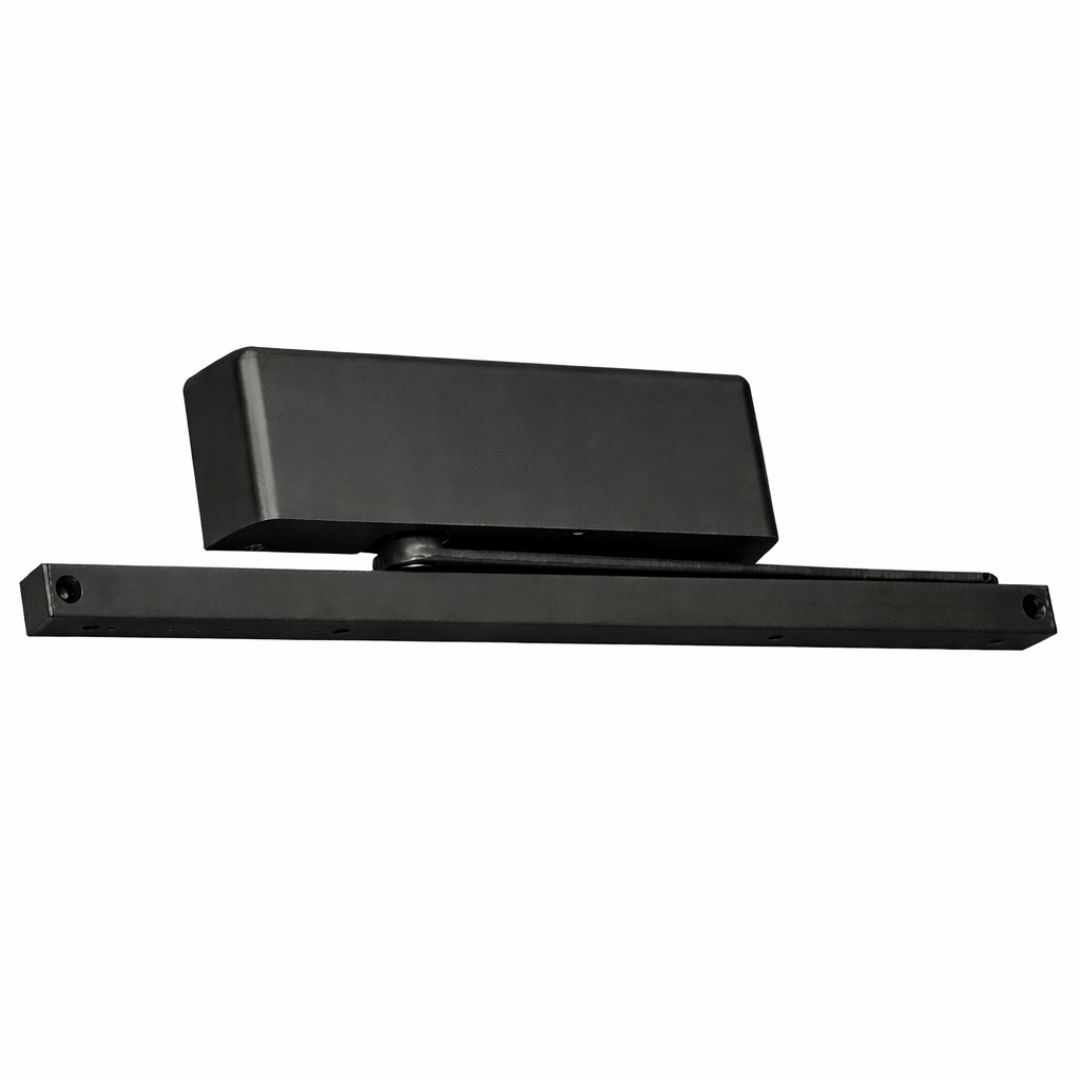

693 - Black Painted
693 - Black Painted

Handing *

About this item

The 4020T is LCN’s best performing heavy duty track closer designed specifically for interior doors in institutional and other rugged high traffic applications.

Resources

LCN 4021T Heavy Duty Track Closer

"Mounting Top Jamb (Pull Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm) (ADA)

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Standard Arm and Track with Roller

Fluid: All Weather Fluid

Templating: Peel-n-Stick templates - 2-1/2˝ x 6˝ Mounting Hole Pattern

Cover: Plastic, Standard

Fasteners: Self Reaming and Tapping Screws (SRT)

Reveal: Should not exceed 1/8˝ (3 mm)

Head Frame: Less than 3-7/8˝ (98 mm), requires PLATE, 4020T-18, late requires 1-3/4˝ (44 mm) minimum

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 30 years



Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

Product code: 4021T-STD

In Stock

$587.60

$587.60

Picture of LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)
LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

Product code: 4021T-STD

In Stock

$587.60

$587.60

LCN 4021T Heavy Duty Track Closer - Mounting Top Jamb (Pull Side) - Size 1 (ADA)

SKU: 4021T-STD
