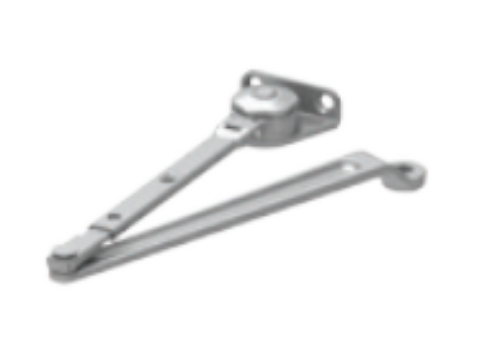

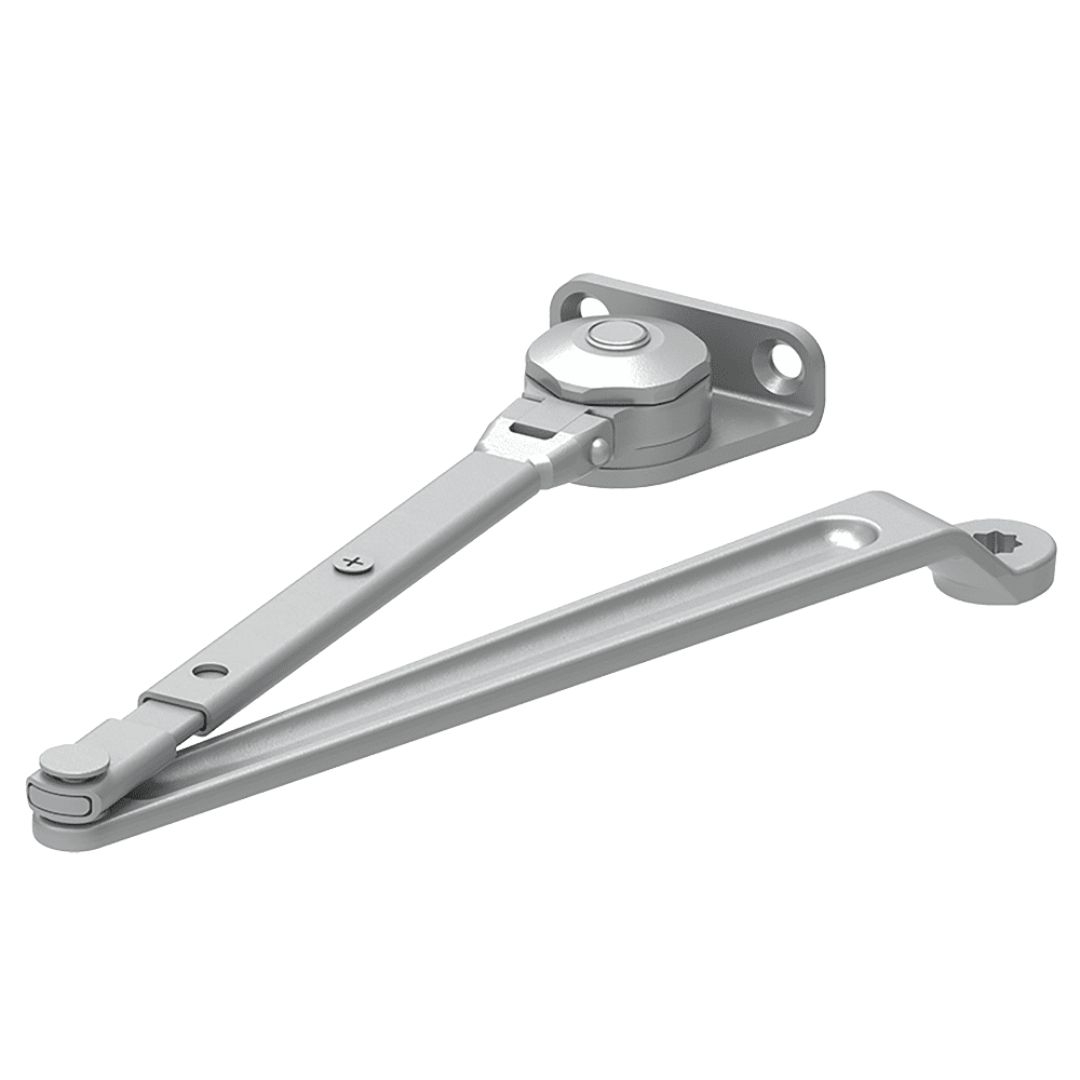

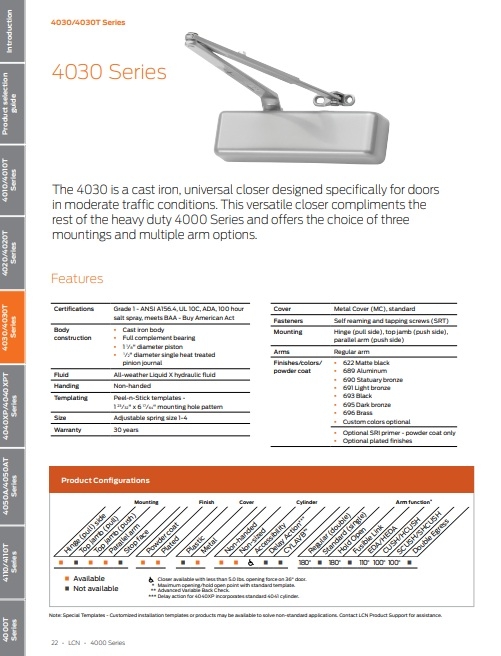

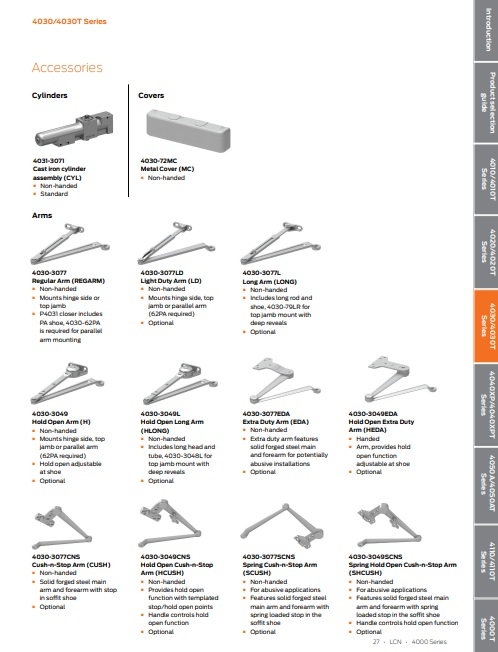

LCN 4030-3049 Hold-Open Arm

The LCN 4030-3049 is a replacement and upgrade hold-open arm for LCN 4030 Series surface-mounted door closers. It is a closer arm component, not a complete door closer unit. The arm holds the door open at a pre-set angle, with the hold-open position adjustable at the shoe on the closer body. It ships non-handed mounts to hinge side, top jamb, or in parallel arm configuration (a 62PA bracket is required for parallel arm installations). It belongs to LCN Door Closer Parts under LCN Door Closers within Standard Door Closers and Door Closers.

What is the LCN 4030-3049 and how is it different from the LCN 4030 door closer?

The LCN 4030 is a complete surface-mounted commercial door closer unit with both a body and an arm. The 4030-3049 is the arm only: one replaceable component of the 4030 system. Order the 4030-3049 when you already have an LCN 4030 body installed and need to add or replace the hold-open arm, or when upgrading from a standard regular arm to a hold-open arm that holds the door at a fixed open angle. Ordering this arm without a compatible 4030 body will not produce a functioning installation. If you need a complete new door closer with hold-open arm functionality, the LCN 4040XP HW/PA is a comparable complete unit in the LCN line.

How does the LCN 4030-3049 hold-open arm work?

A standard regular arm allows the door to swing freely and return to closed under the closer's spring tension when released. The 4030-3049 hold-open arm adds a mechanical detent at the shoe that catches and holds the door at a pre-set open angle. The door is manually closed by pushing it forward past the hold-open detent, or through an integrated release mechanism such as a magnetic hold-open device connected to a fire alarm relay. The hold-open angle is adjustable at the shoe without removing the arm from the door, so installers can fine-tune the hold position during or after installation. This makes the arm suitable for building entry vestibules, loading docks, corridor doors, and any opening where a controlled fixed hold-open position is required day-to-day.

Mounting options: hinge side, top jamb, and parallel arm for the 4030-3049

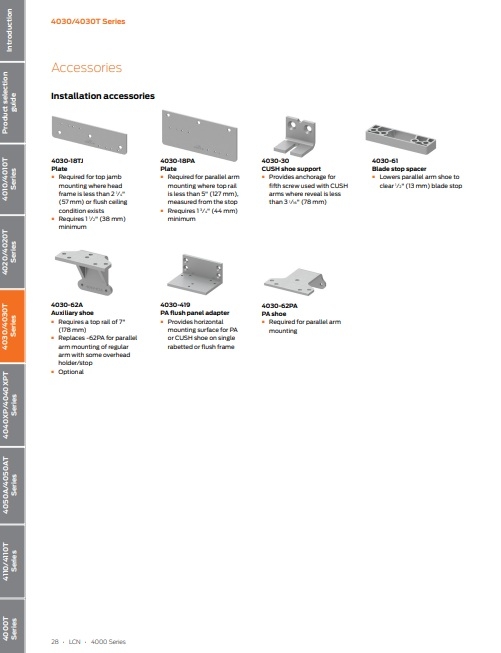

Non-handed installation means the 4030-3049 fits both right-hand and left-hand door configurations without any modification. Three mounting configurations are available. Hinge side is the standard configuration: the arm connects the closer body to the door frame on the hinge side of the opening. Top jamb mounts the closer and arm on the door frame header, extending down to the door face. Parallel arm runs the arm parallel to the door face when the door is closed, used on doors that swing away from the wall with no clear wall space for standard hinge-side mounting. Parallel arm configuration requires the LCN 62PA bracket in addition to the 4030-3049 arm. Confirm your mounting configuration and whether the 62PA is needed before placing the order.

Specifications

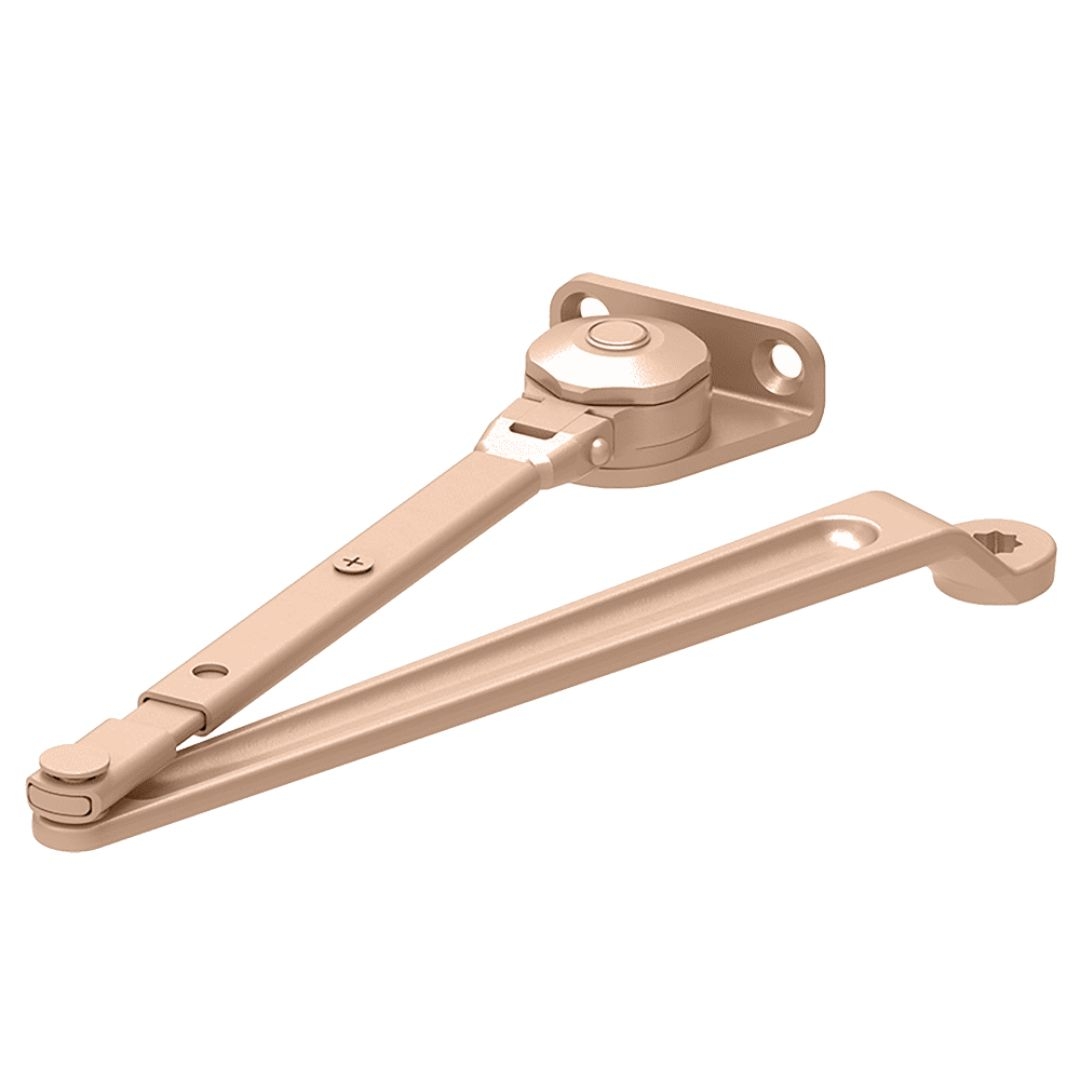

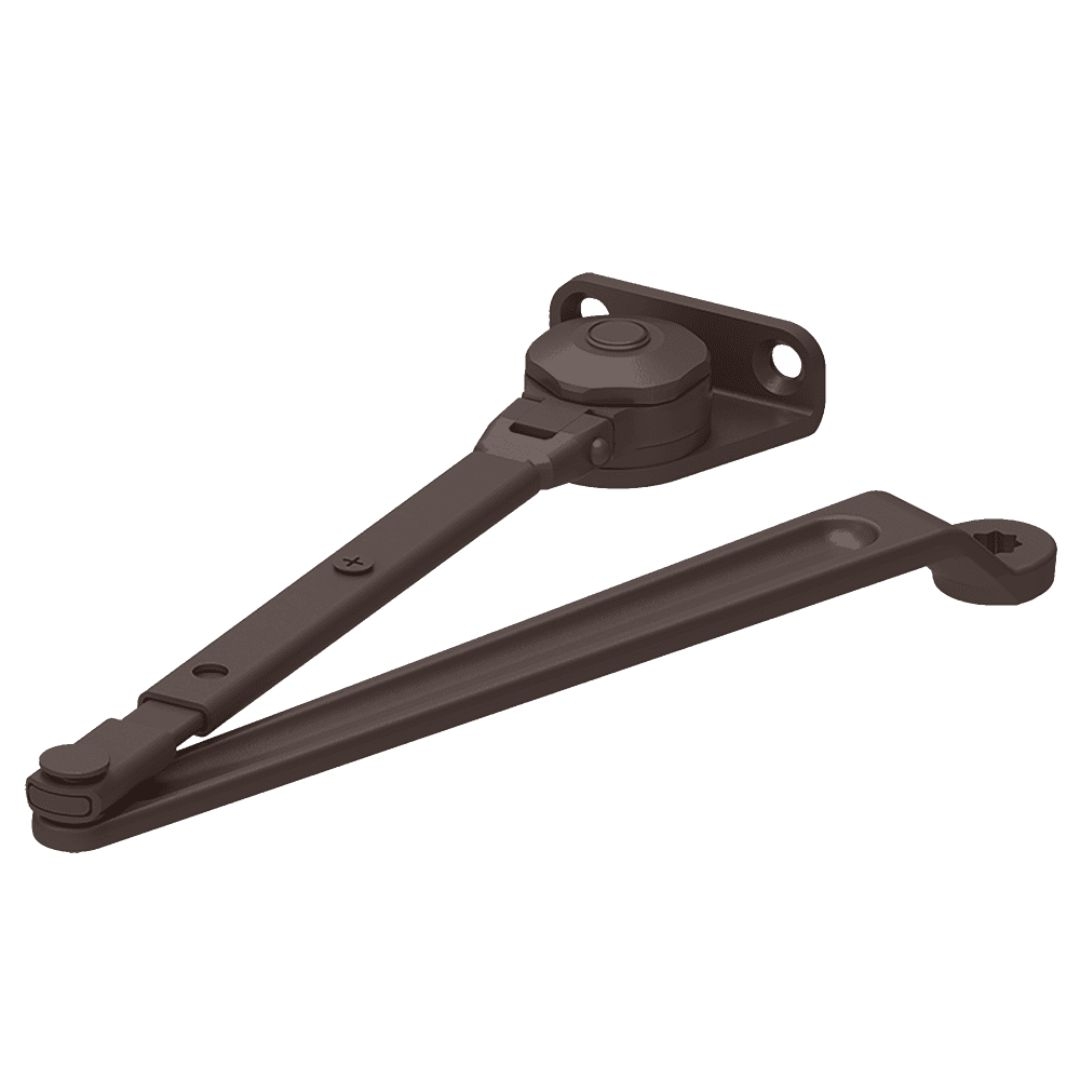

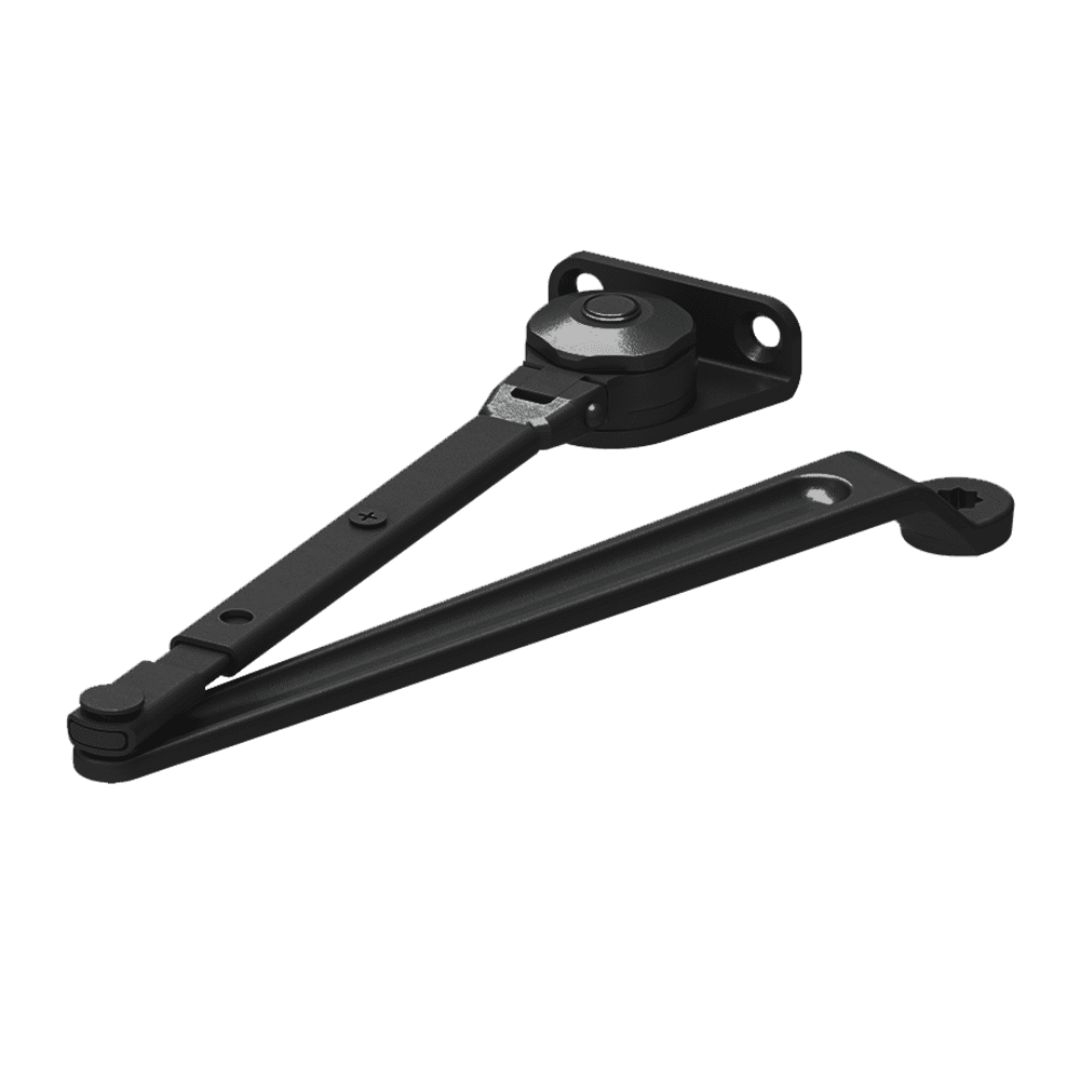

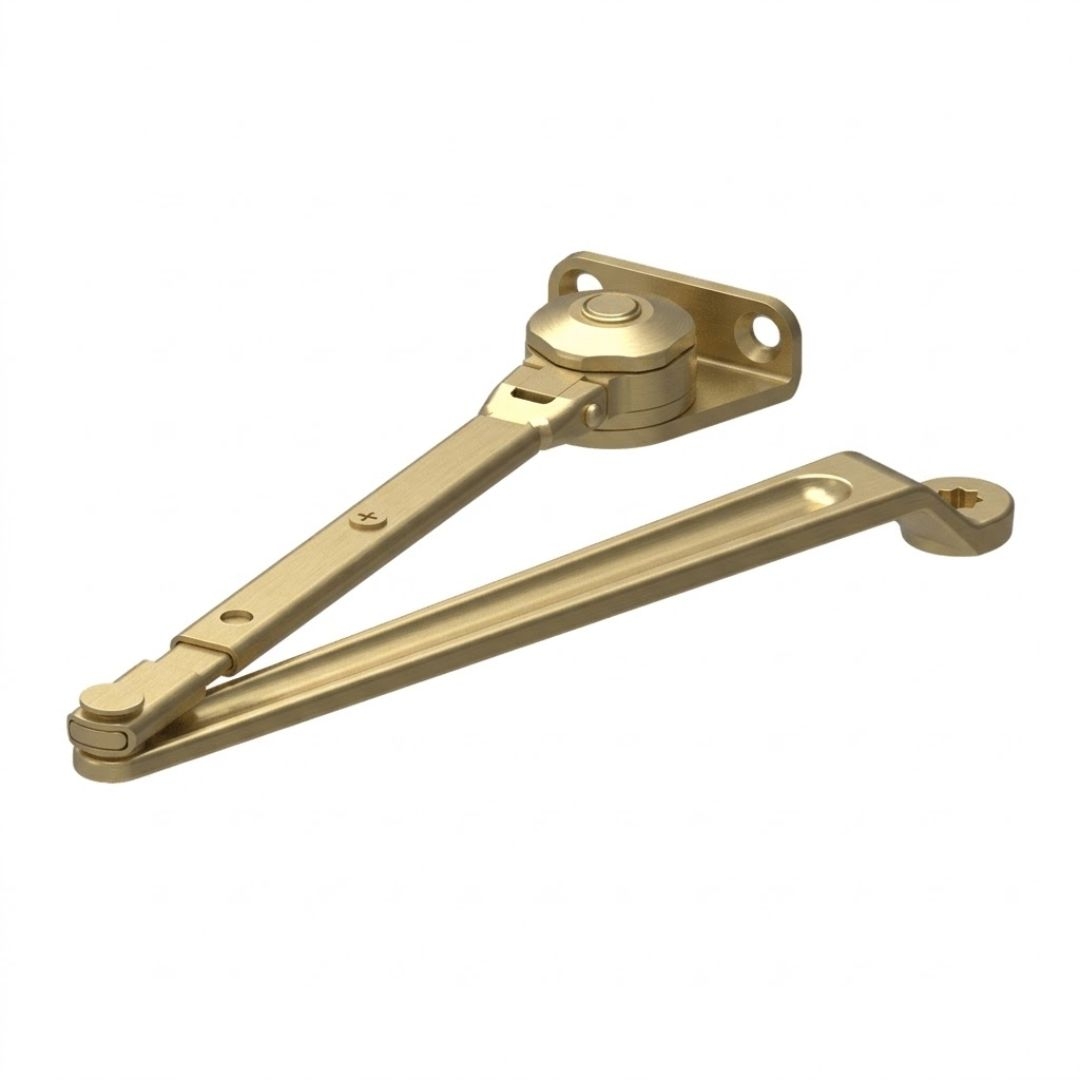

The LCN 4030-3049 holds open at any angle adjustable at the shoe, in a non-handed design that eliminates handling errors during installation. It is compatible with the LCN 4030 Series closer body and mounts in hinge side, top jamb, or parallel arm position. Parallel arm mounting requires the 62PA bracket ordered separately. Five painted finishes are available to match the closer body: 689 Silver Aluminum Painted, 695 Dark Bronze Painted, 691 Light Bronze Painted, 696 Satin Brass Painted, and 693 Black Painted. The arm is an individual component; the LCN 4030 closer body and any required brackets are sourced separately. Manufacturer: LCN (Allegion). SKU: 4030-3049.
