LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

1-Page36-LCN4000

1-Page41-LCN4000

1-Page42-LCN4000

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Picture of LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

Product Details

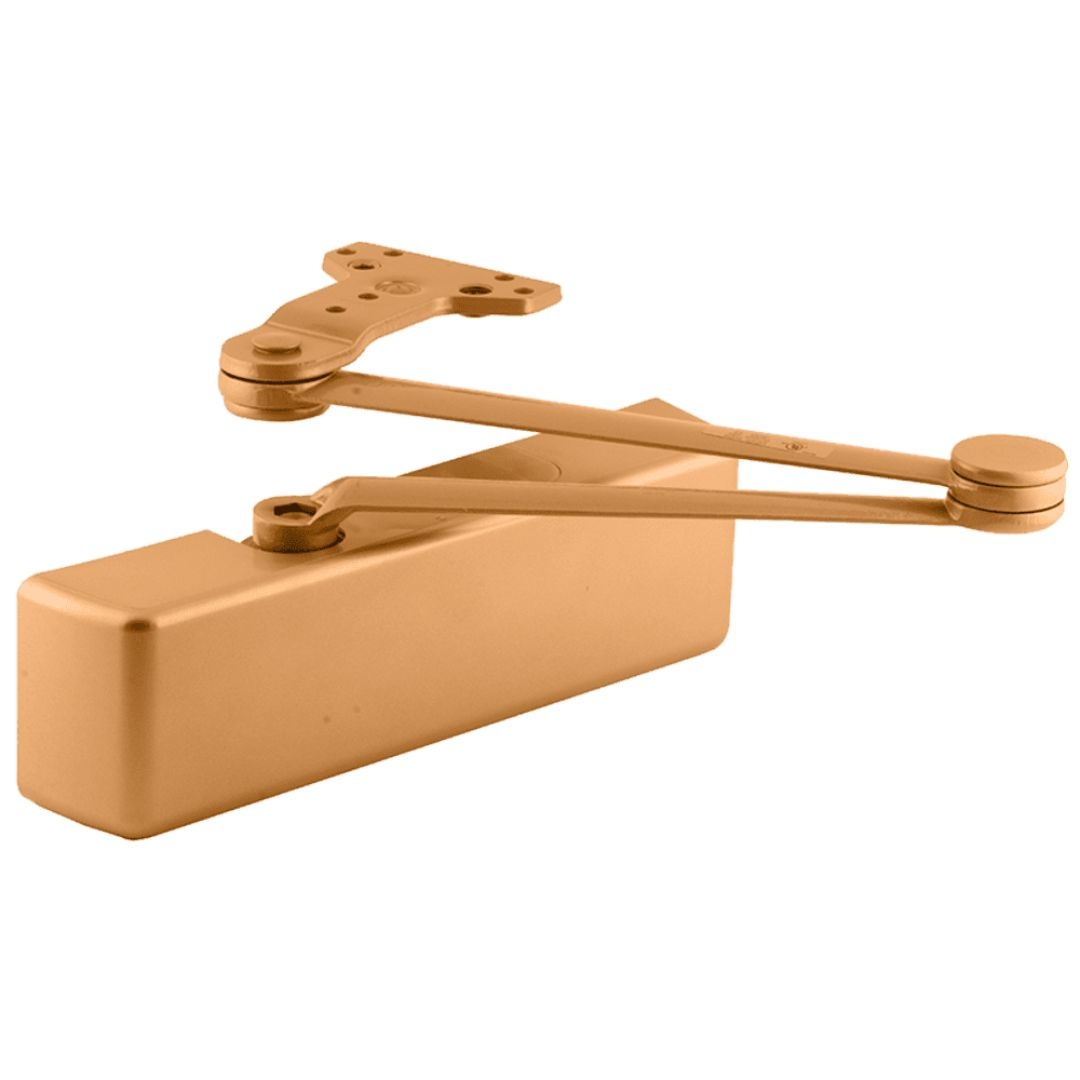

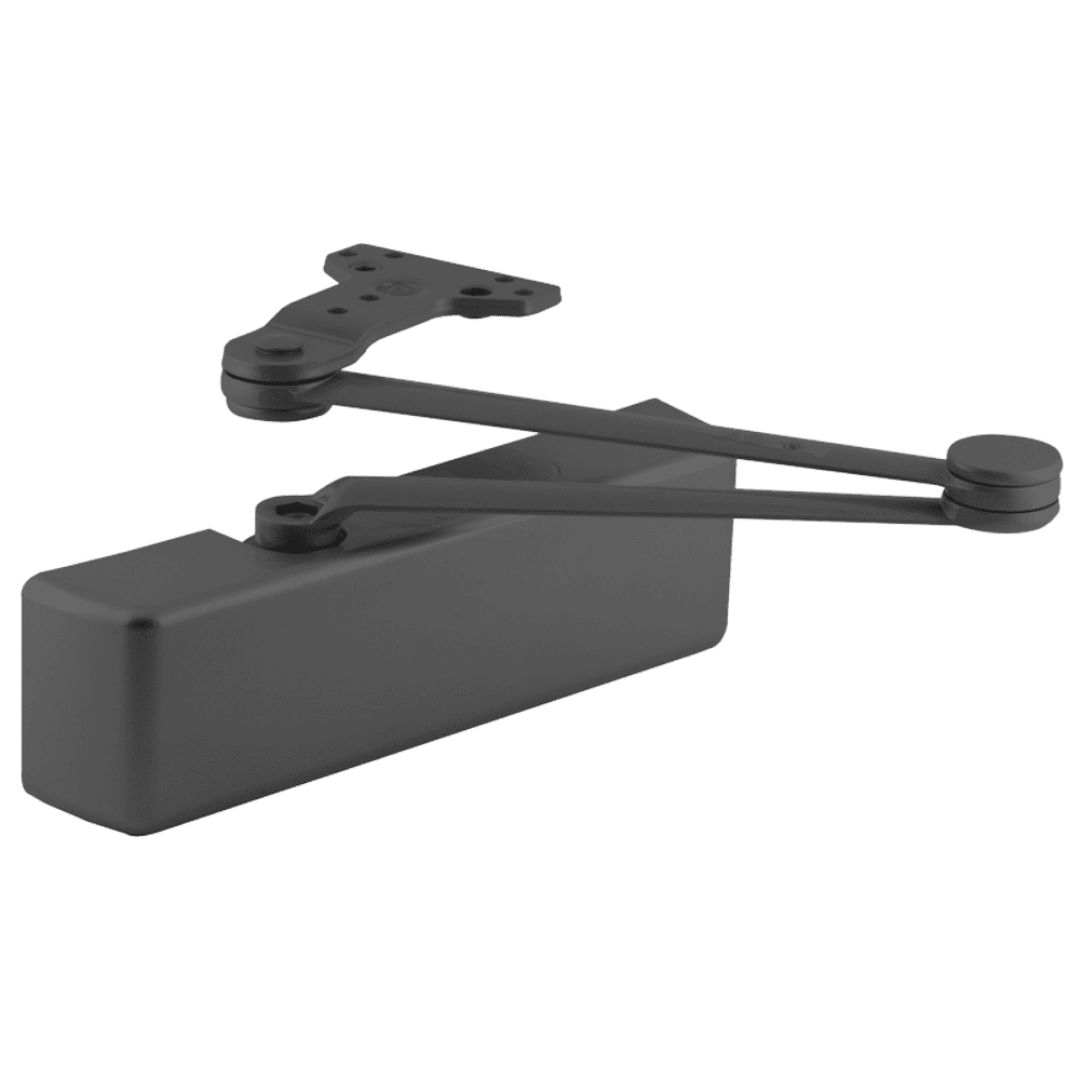

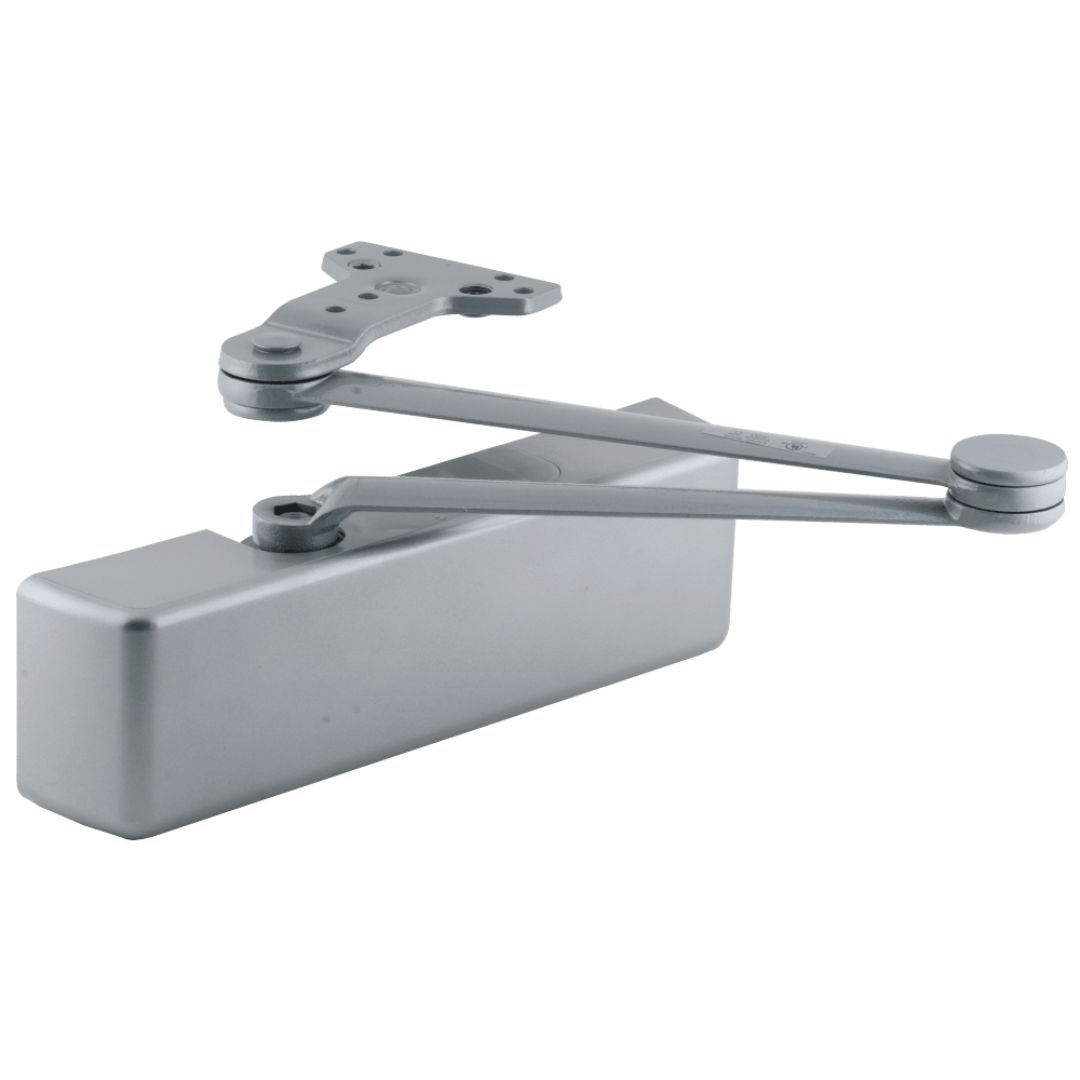

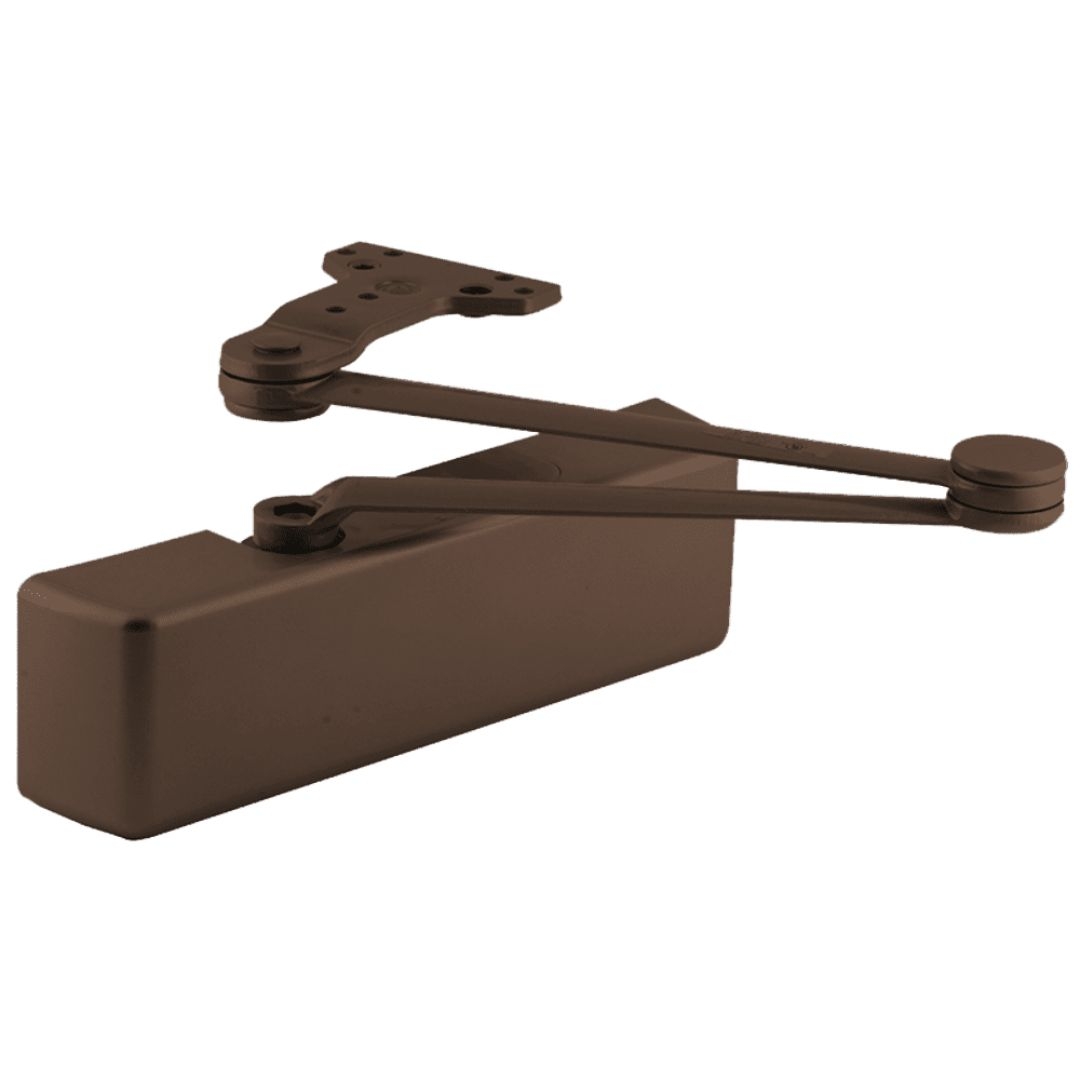

LCN 4040XP CUSH- Heavy Duty Door Closer, CUSH-N-STOP Arm

Finish: Powder Coat

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

LCN 4040XP: 44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: 4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.

Handing: Non-Handed

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: CUSH-N-STOPARM, 4040-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

Cover: 4040-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model:LCN, 4040XPCUSH, 4040XPCUSHALUM, 4040XPCUSHAL, 4040XPCUSH689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPCUSHDKBRZ, 4040XPCUSH695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPCUSHTAN, 4040XPCUSH692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPCUSHSTAT, 4040XPCUSH690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPCUSHLTBRZ , 4040XPCUSH691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPCUSHBLK , 4040XPCUSH693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPCUSHBRASS , 4040XPCUSH696, BRASS, 696

LCN 4040XP CUSH, Door Closer - CUSH-N-STOP Arm

SKU: 4040XP-CUSH

In Stock

$550.42

About this item

The new 4040XP is LCN's most durable heavy duty closer designed for the most demanding, high use and abuse applications.

Resources

LCN 4040XP CUSH- Heavy Duty Door Closer, CUSH-N-STOP Arm

Finish: Powder Coat

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

LCN 4040XP: 44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: 4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.

Handing: Non-Handed

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Arm: CUSH-N-STOPARM, 4040-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

Cover: 4040-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Model:LCN, 4040XPCUSH, 4040XPCUSHALUM, 4040XPCUSHAL, 4040XPCUSH689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPCUSHDKBRZ, 4040XPCUSH695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPCUSHTAN, 4040XPCUSH692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPCUSHSTAT, 4040XPCUSH690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPCUSHLTBRZ , 4040XPCUSH691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPCUSHBLK , 4040XPCUSH693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPCUSHBRASS , 4040XPCUSH696, BRASS, 696
