Product Details

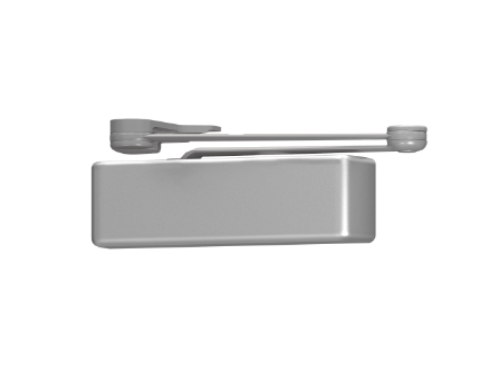

LCN 4040XP SCUSH- Heavy Duty Door Closer, Spring CUSH-N-STOP Arm
Finish:Powder Coat
**Closer Mounting:Parallel Arm (PUSH SIDE) mounting.
LCN 4040XP:44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.
Power size:4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.
Handing:Non-Handed
UL:UL & cUL Listed
ANSI:Tested and certified under ANSI Standard A156.4,
grade 1
Arm:SPRING CUSH ARM, 4040-3077SCNS non-handed parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.
Cover:4040-72 Standard, non-handed plastic cover.
Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)
Finishes:
ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), TAN - TAN (BHMA 692), STAT - STATUARY BRONZE (BHMA 690), LTBRZ - LIGHT BRONZE (BHMA 691), BLK- BLACK (BHMA 693), BRASS - BRASS (BHMA 696)
Model:LCN,4040XPSCUSH, 4040XPSCUSHALUM, 4040XPSCUSHAL, 4040XPSCUSH689, AL, ALUM, 689, Aluminum, 4040XPDKBRZ, 4040XP695, 4040XPSCUSHDKBRZ, 4040XPSCUSH695, DKBRZ - DARK BRONZE, 695, 4040XPTAN, 4040XP692, 4040XPSCUSHTAN, 4040XPSCUSH692, TAN, 692, 4040XPSTAT, 4040XP690, 4040XPSCUSHSTAT, 4040XPSCUSH690, STAT, STATUARY BRONZE, 690, 4040XPLTBRZ , 4040XP691, 4040XPSCUSHLTBRZ , 4040XPSCUSH691, LTBRZ , LIGHT BRONZE, 691, 4040XPBLK , 4040XP693, 4040XPSCUSHBLK , 4040XPSCUSH693, BLK ,BLACK, 693, 4040XPBRASS , 4040XP696, 4040XPSCUSHBRASS , 4040XPSCUSH696, BRASS, 696
