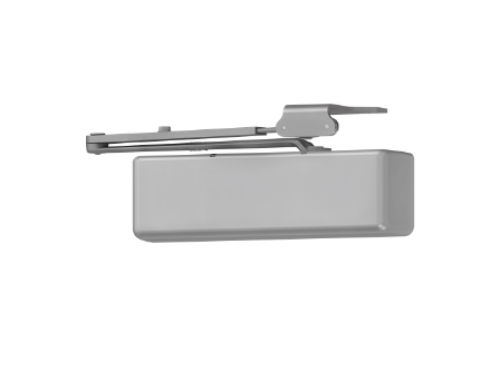

LCN 4040XP Rw/PA MC Door Closer - Metal Cover

LCN 4040XP Rw/PA- Heavy Duty Door Closer, regular arm with PA bracket - Metal Cover

Finish:Powder Coat  - ALUM - ALUMINUM (BHMA 689)

**Tri-Mount Closer:Hinge (PULL) side mounting, Top Jamb (PUSH SIDE) mounting, Parallel Arm (PUSH SIDE) mounting.

LCN 4040XP:44% increased bearing load capacity - Strongest pinion ever- at 3/4journal diameter  - Widest bearing ever- at 5/8- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size:4040XP cylinders are adjustable from size 1 through size 6 and is shipped set to size 3.

Handing:Handed

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

Arm:4040-3077 Regular arm, Non-handed arm mounts pull side or top jamb with shallow reveal.

PA shoe:4040-62PA shoe for parallel arm mounting.

Cover:METAL COVER, 4040-72MC handed cover

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)
