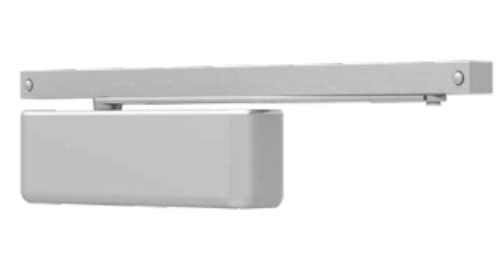

LCN 4040XPT DE Track Door Closer - Double Egress Arm

LCN 4040XPT DE Track Door Closer - Double Egress Arm to use on Double Egress Doors

Using this closer on double-egress doors and frames requires the closer to be ordered with a “DE" suffix, Standard “DE" option will accommodate pull side reveals up to 3-5/16˝.

Finish: Powder Coat - Aluminum:

Tri-Mount Closer: Pull side on door, pull side top jamb, push side on door

Closer will be shipped with: Standard cylinder - Standard cover - DE arm - Track roller - Standard track - Self-reaming and tapping screws.

Power size: 4040XPT cylinders are adjustable from size 1 through size 4 and is shipped set to size 3.

Handing:Handed

LCN 4040XP: 44% increased bearing load capacity - Strongest pinion ever- at 3/4" journal diameter  - Widest bearing ever- at 5/8"- Stronger pinion teeth - New V-shieldseal with 20% longer life - XP = eXtra Protection in real world applications - Cast Iron - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCN FastPower Adjust - Fast & Accurate Installation.

UL:UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

Cover: 4040XPT-72 non-handed plastic cover.

Screw Pack: Packed with Self Reaming and Tapping Screws (SRT)
