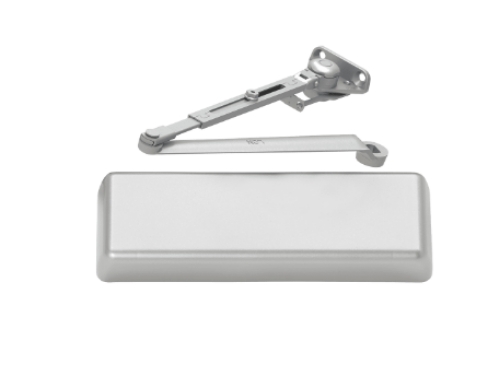

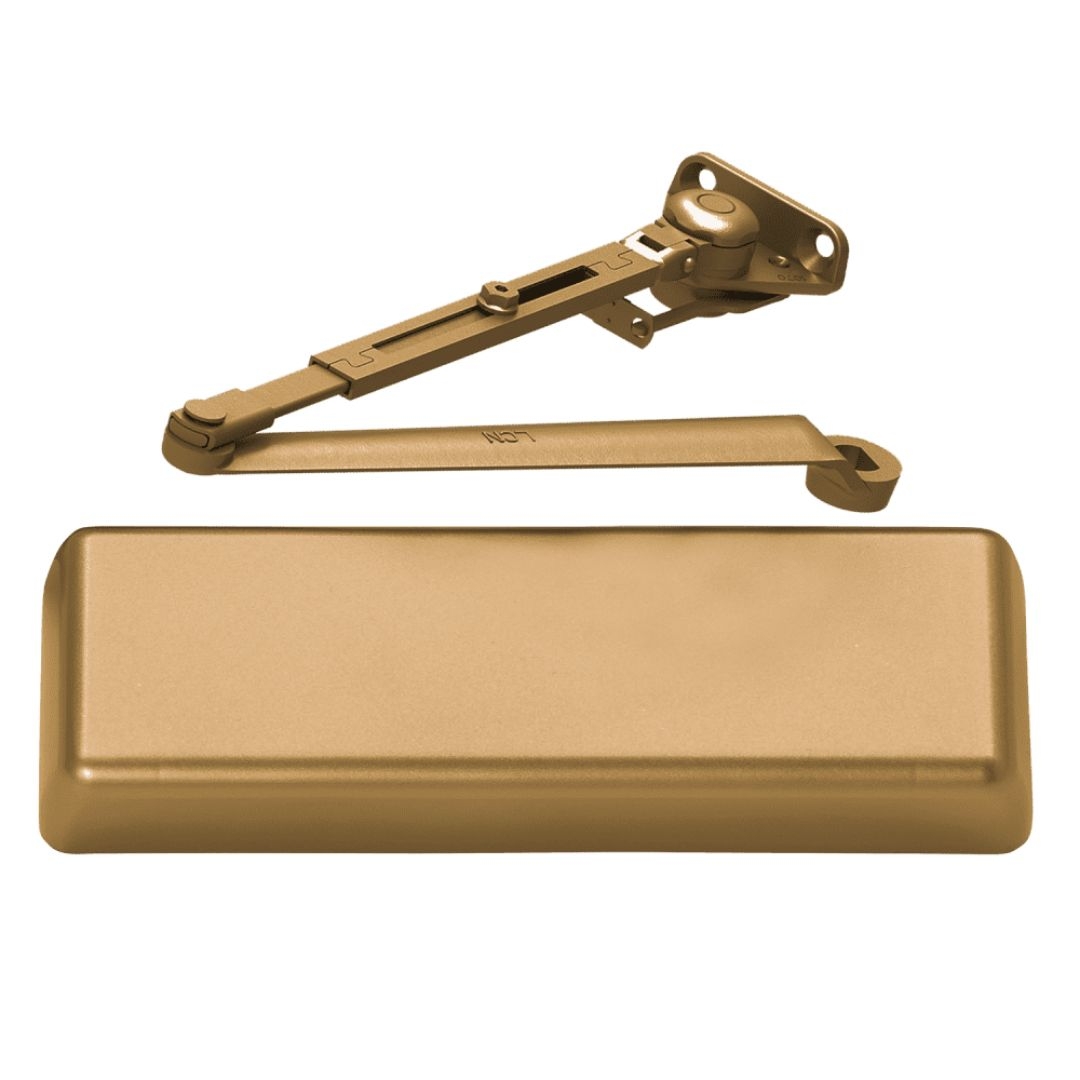

LCN 4111-FL Door Closer - Mounting Parallel Arm (Push Side) - Fusible Link Arm

LCN 4111-FL- Heavy Duty Door Closer - w/ Fusible Link Arm.

Finish: Powder Coat

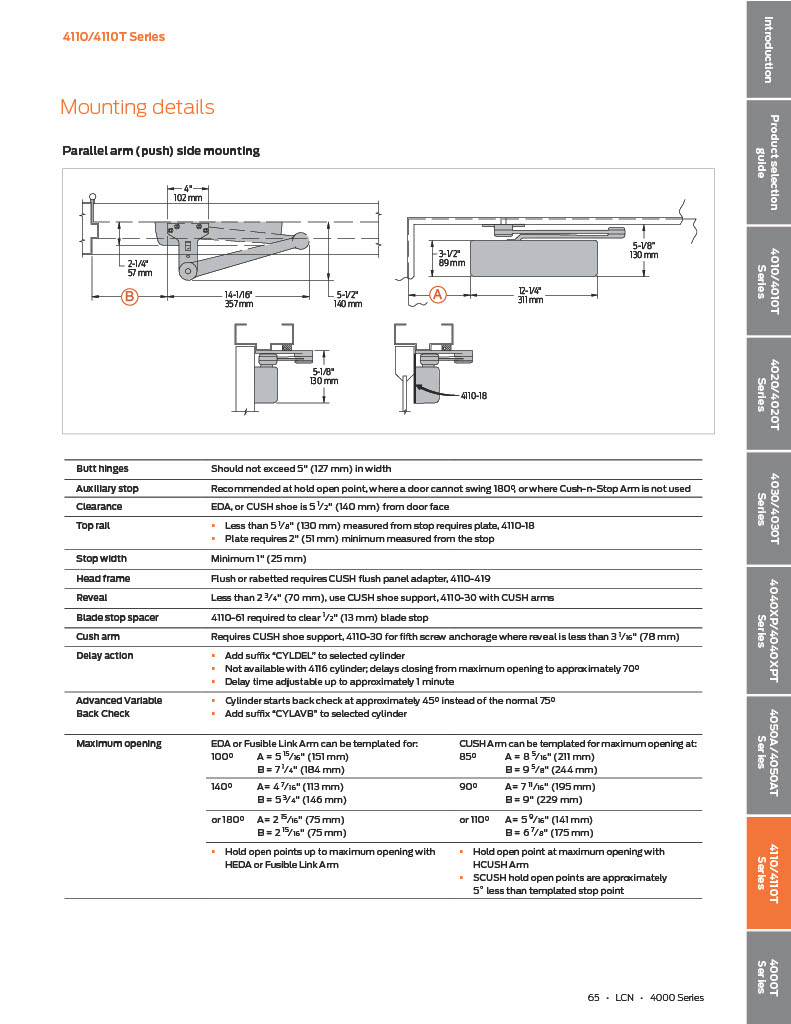

Closer Mounting: Closer mounts parallel arm(Push Side) only.

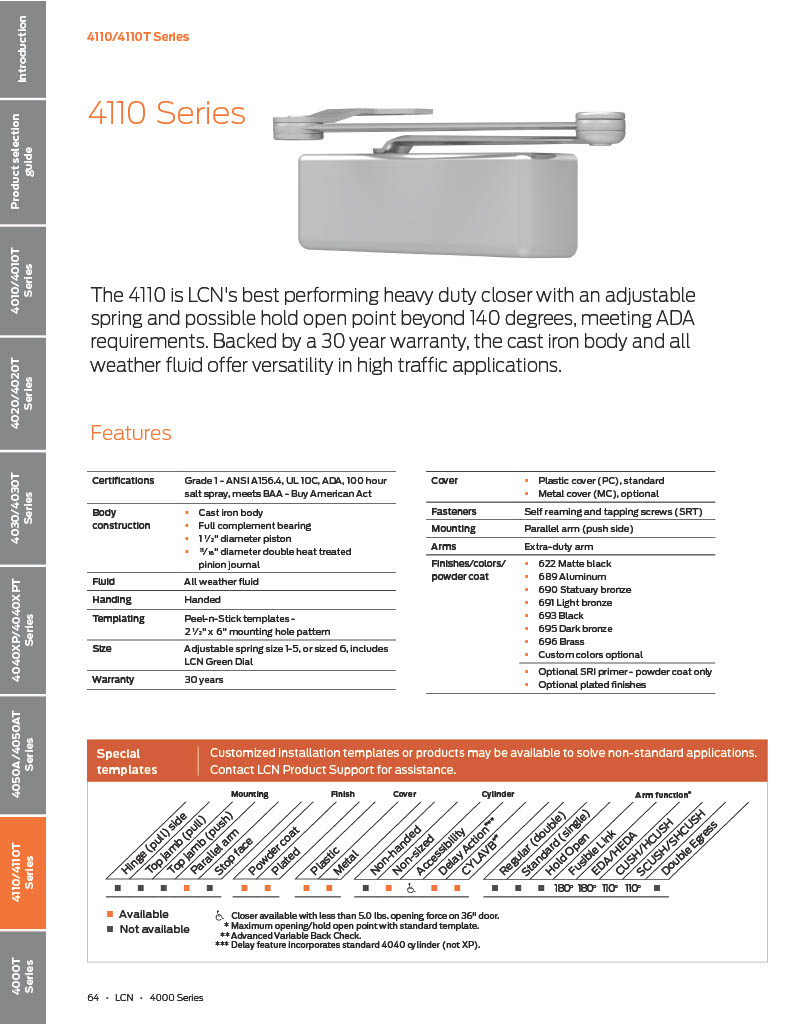

LCN 4110 Series:Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Non-sized cylinder (4111) adjustable for interior doors to 4'6" and exterior doors to 3'6".

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

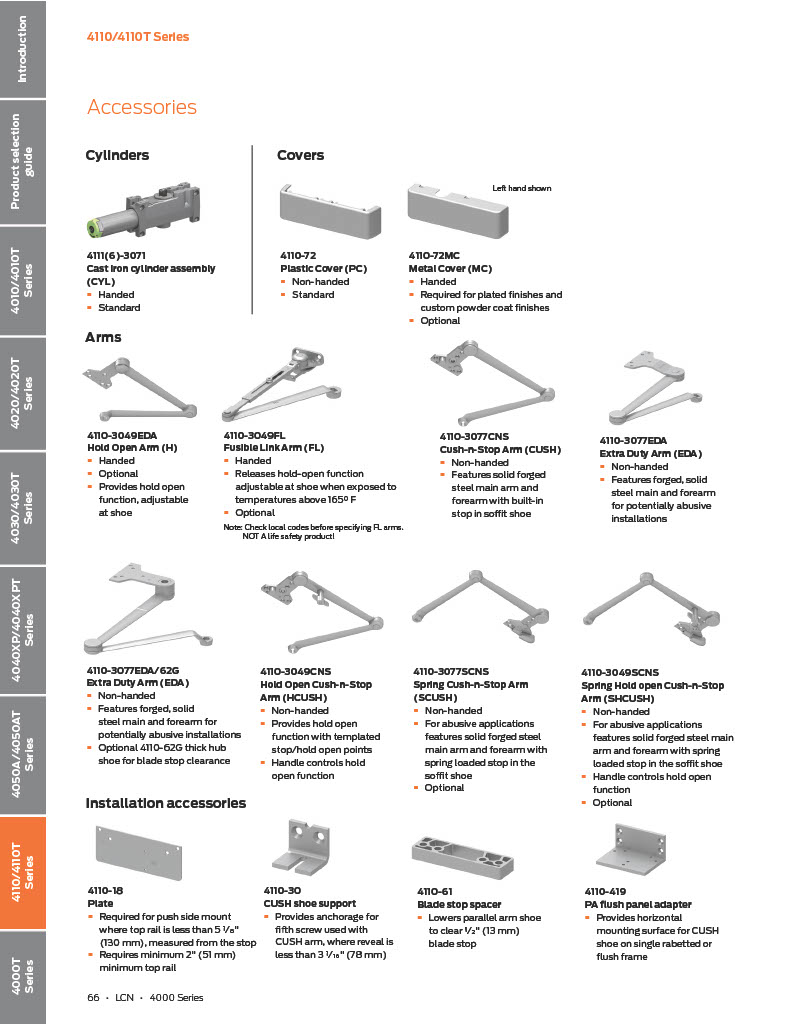

Arm:  4110- 3049FLReleaseshold-open function when exposed to temperatures above 165F. 1/8 (3 mm) maximum reveal.

Cover: 4110-72 Standard, non-handed plastic cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

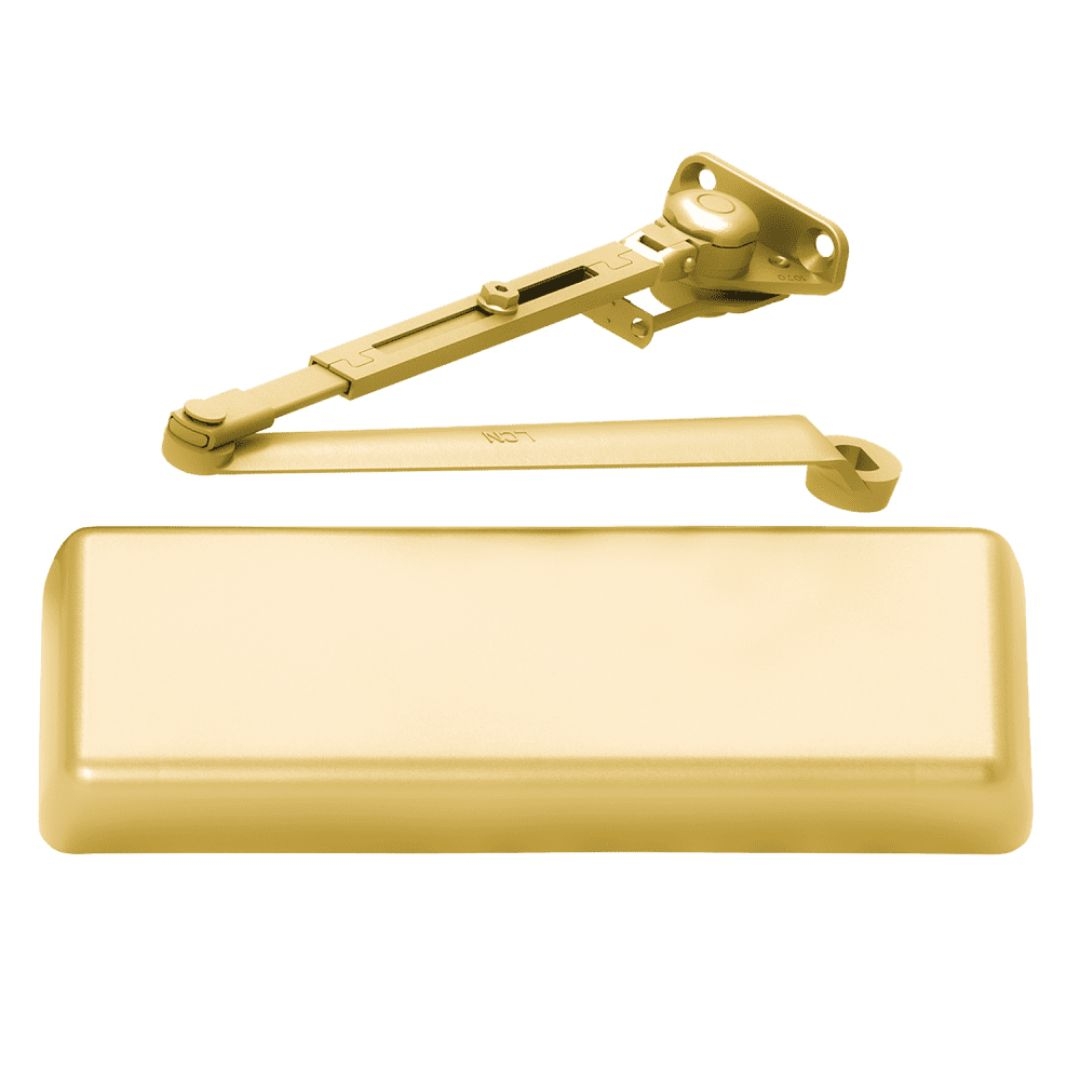

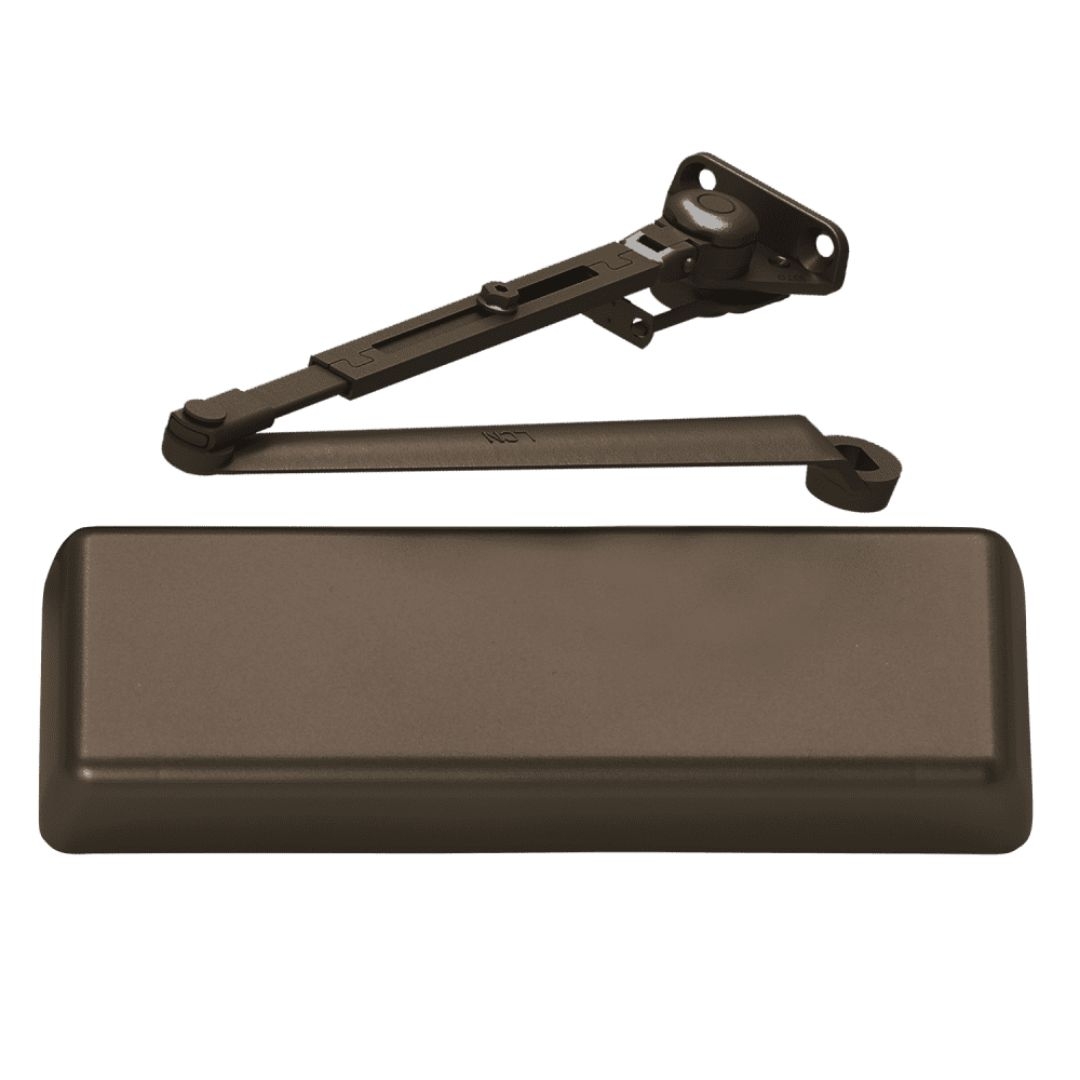

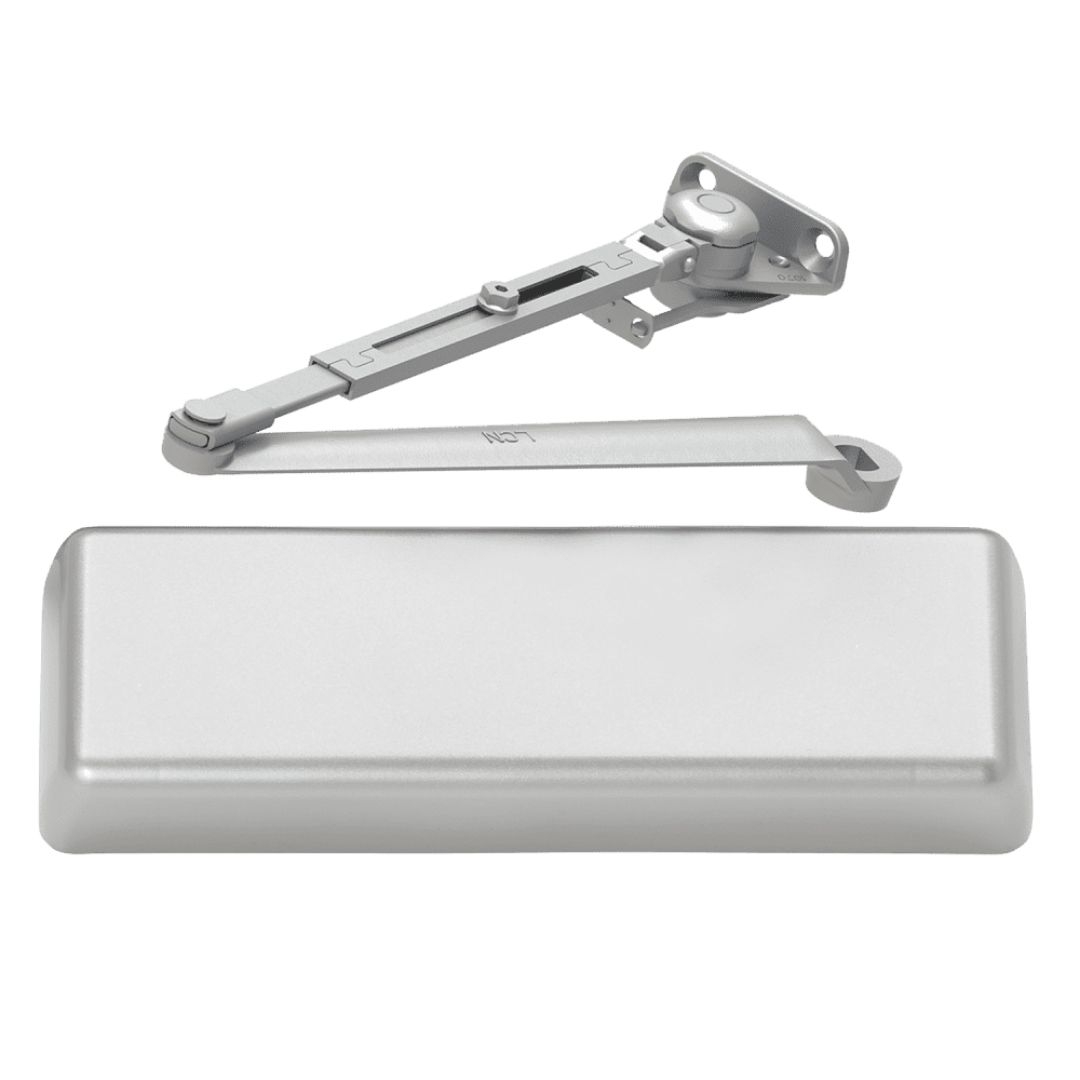

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model: LCN, 4111FL, 4111-FL, 4111FLALUM, 4111FLDKBRZ, RH, LH, 4111FLRHALUM, 4111FLLHALUM, Right Hand, Left Hand
