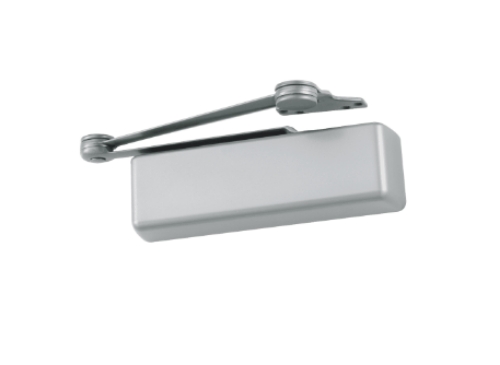

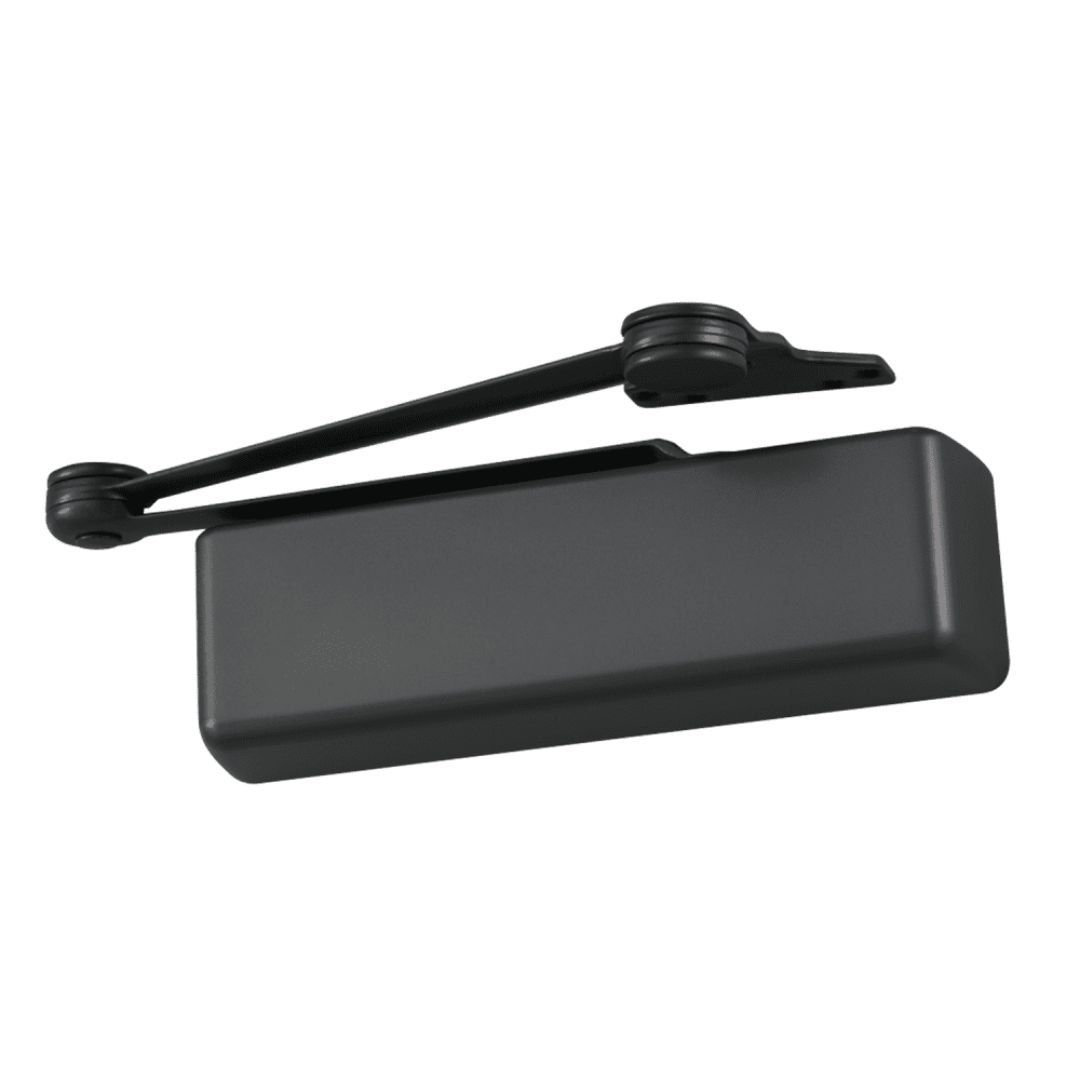

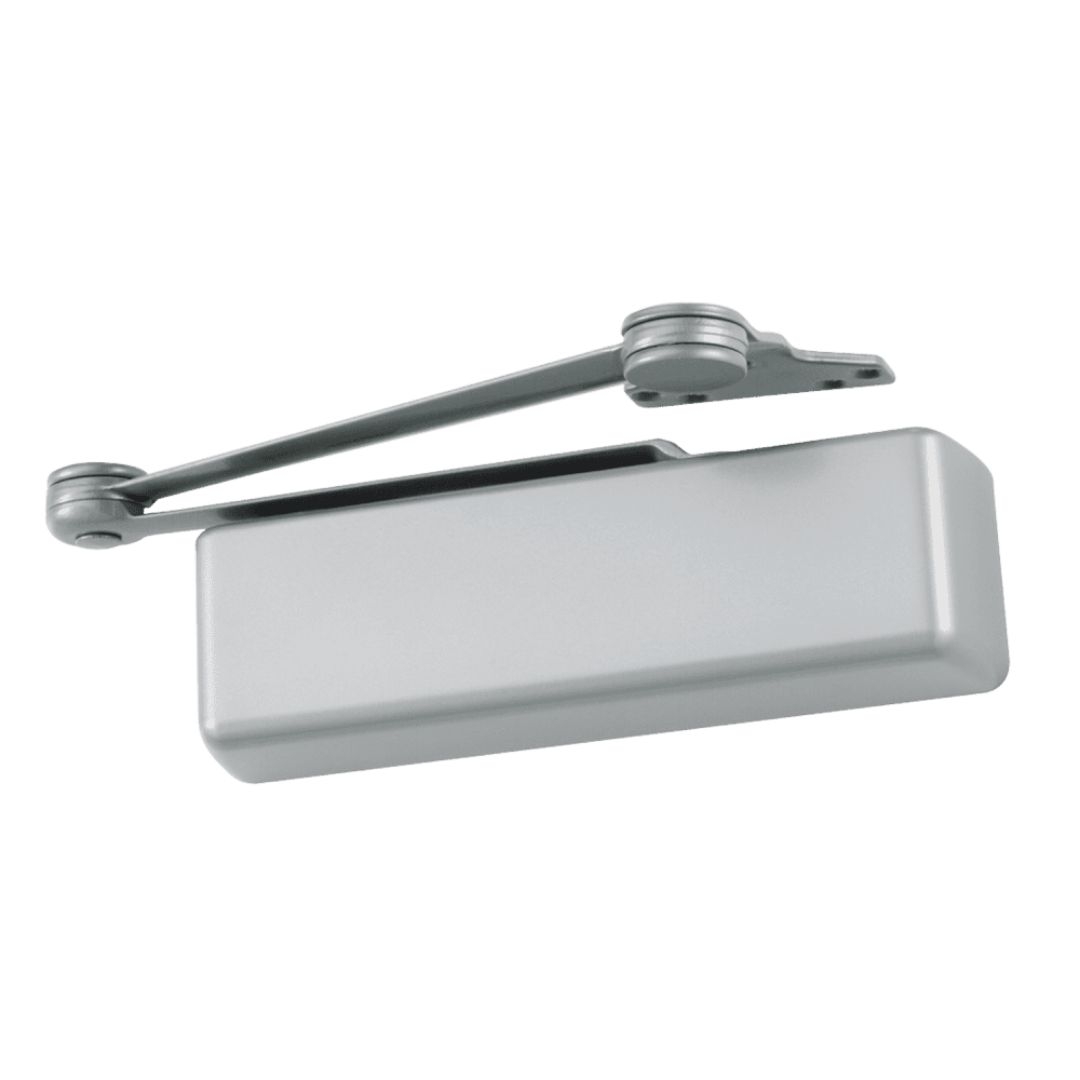

LCN 4111 HEDA, Door Closer - Mounting Parallel Arm (Push Side) - Extra Duty Hold Open Arm

LCN 4111 HEDA (4111-H)- Heavy Duty Door Closer, Extra Duty Hold Open Arm.

Finish: Powder Coat

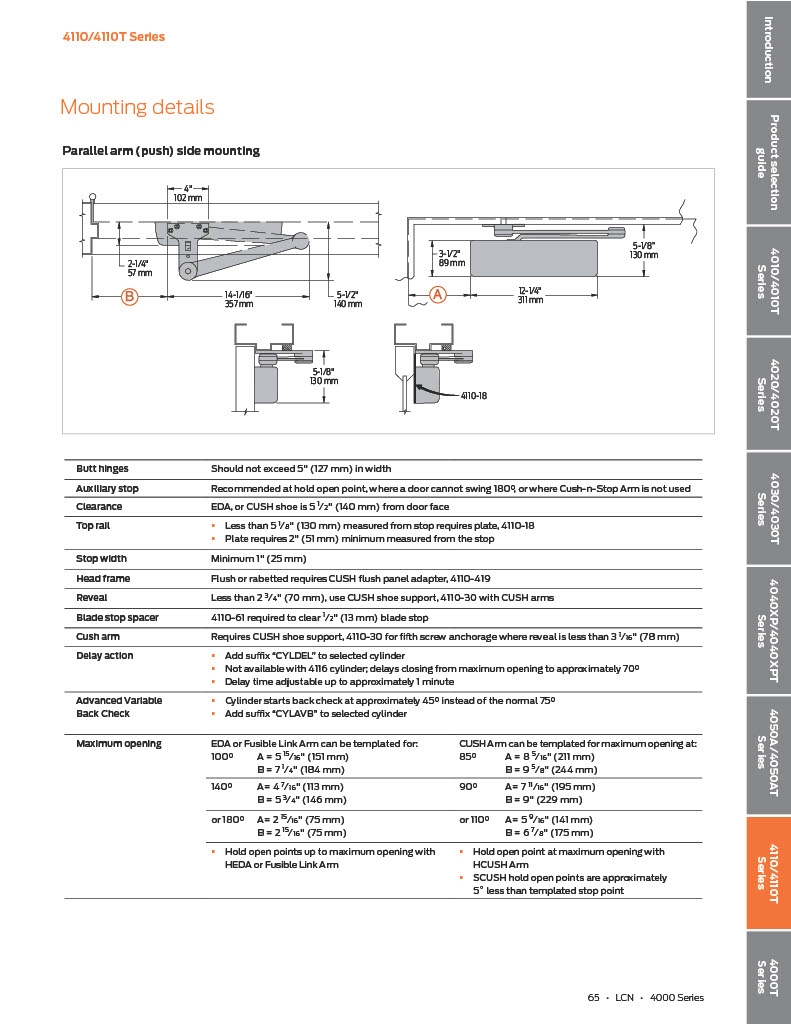

Closer Mounting: Closer mounts parallel arm(Push Side) only.

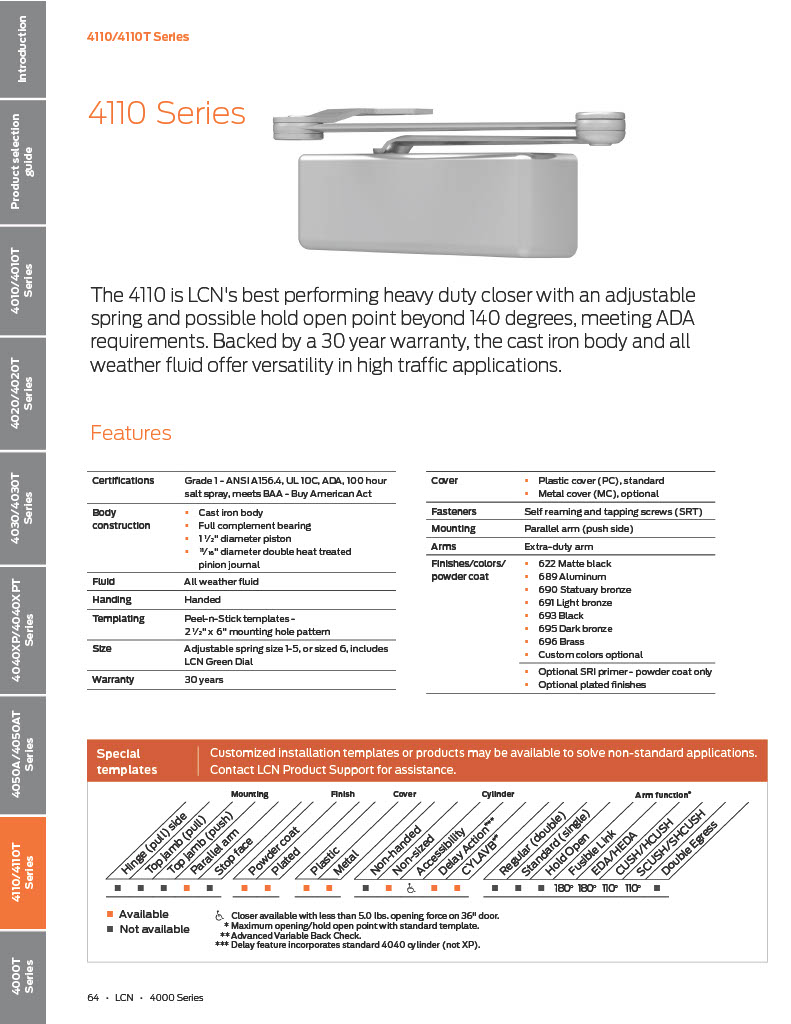

LCN 4110 Series: Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size: Non-sized cylinder (4111) adjustable for interior doors to 4'6" and exterior doors to 3'6".

Handing: Handed; specify right or left swinging door

UL: UL & cUL Listed

ANSI: Tested and certified under ANSI Standard A156.4, grade 1

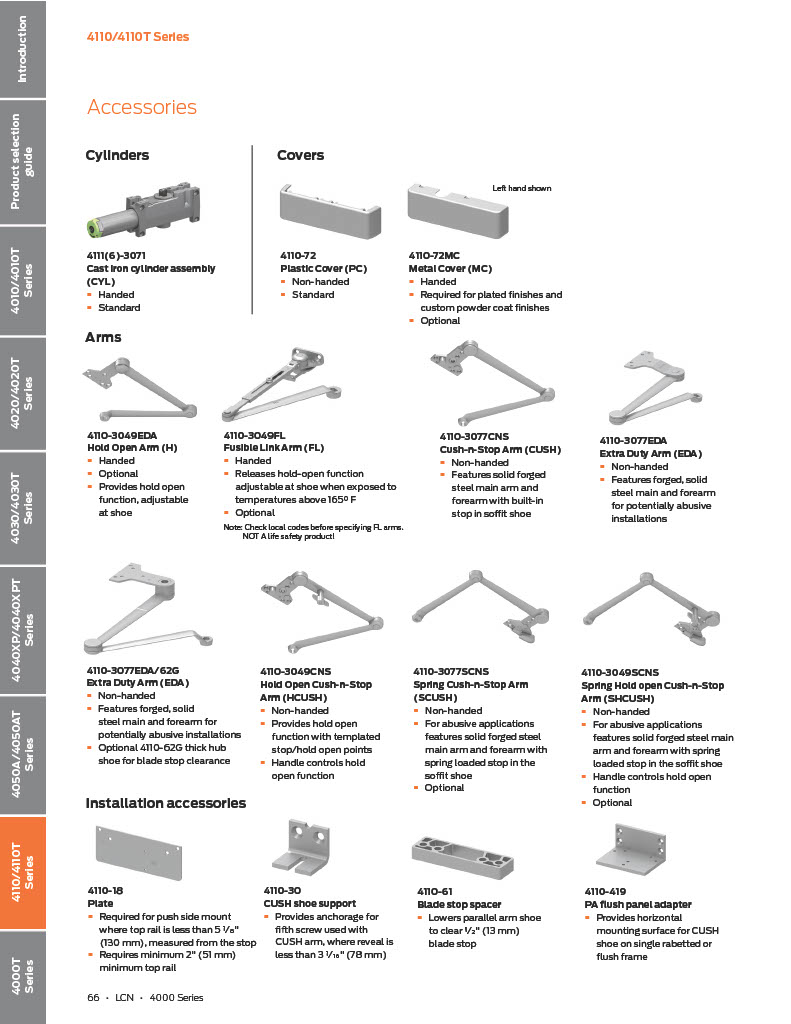

Arm: HOLD-OPEN EXTRA DUTY ARM, 4110-3049EDA Optional handed arm provides hold-open function, adjustable at the shoe.

Cover: 4110-72 Standard, non-handed plastic cover.

Screw Pack: Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

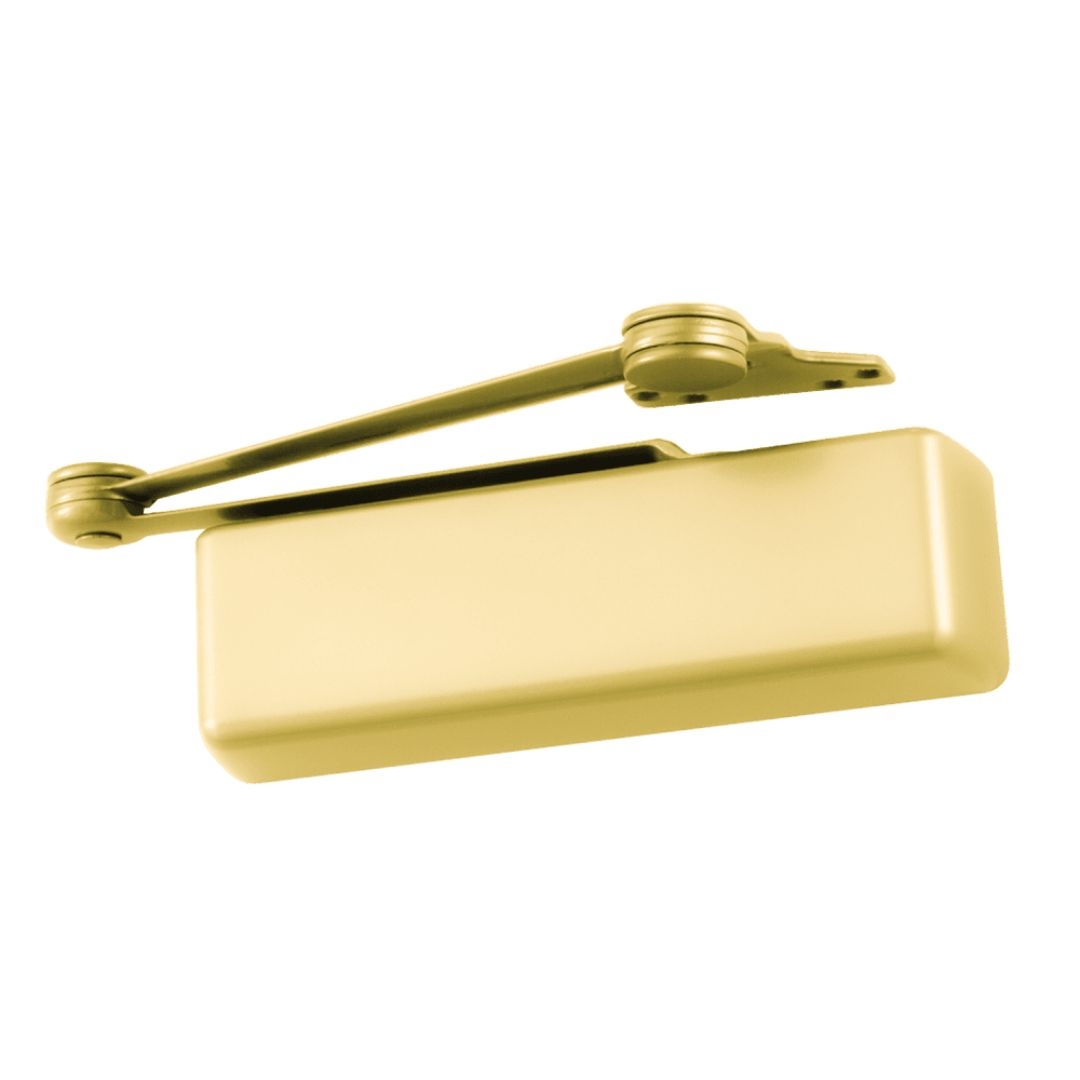

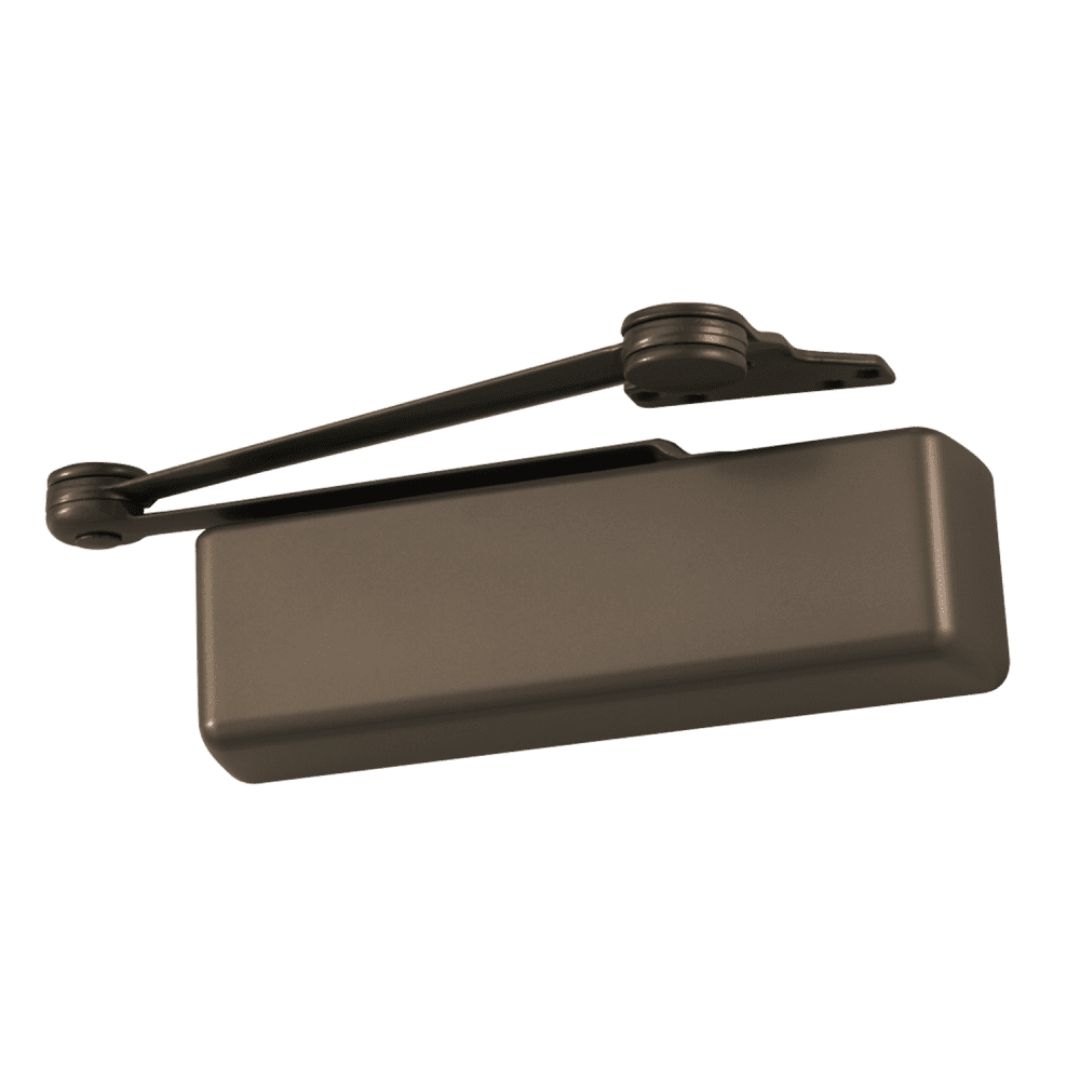

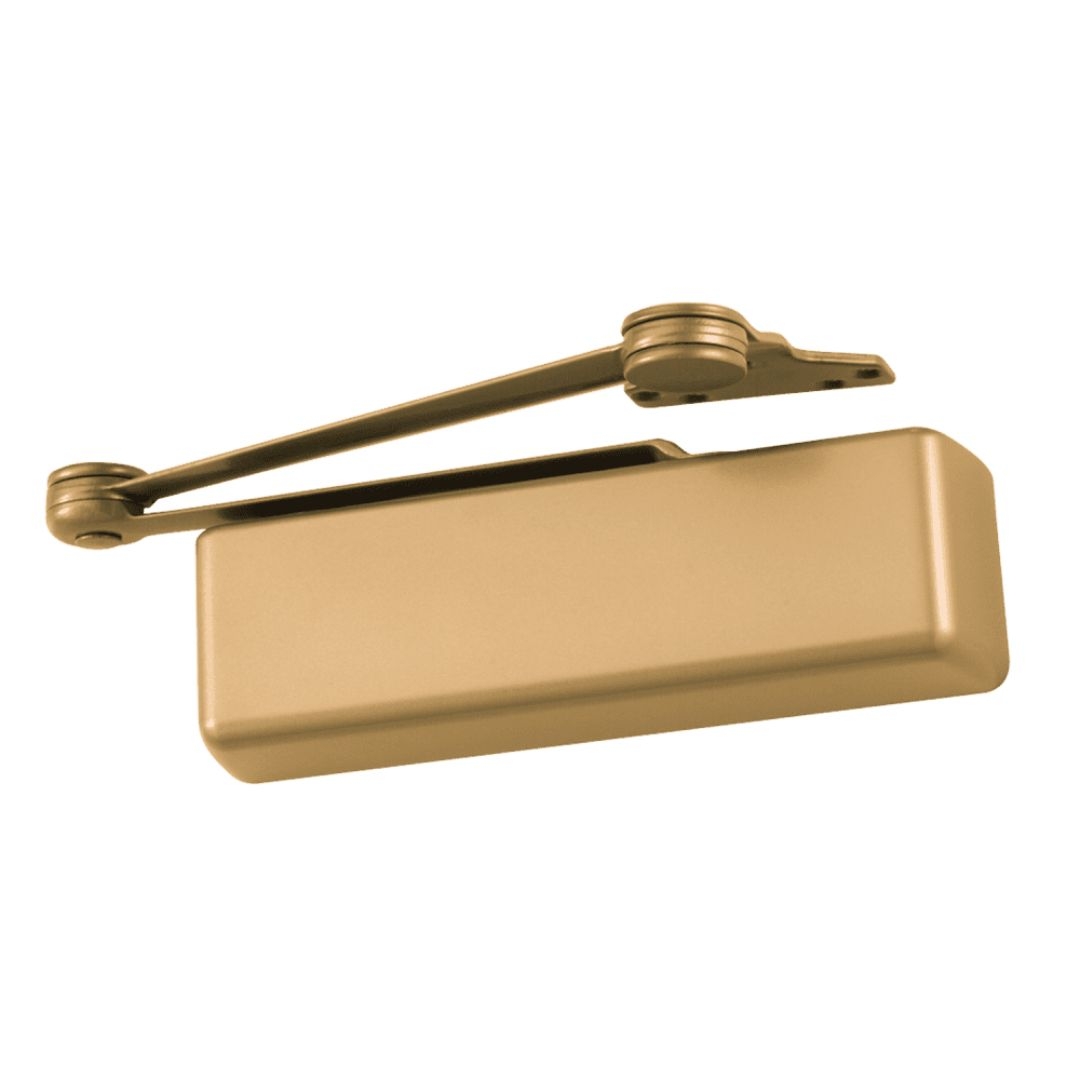

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model: LCN, 4010HEDA, 4111HEDA, 4111-HEDA, 4111H, 4111-H, 4111HALUM, 4111HEDAALUM, 4111HEDADKBRZ, 4111HEDALTBRZ, 4111HEDABRASS, 4111HEDA689, 4111HEDA695, 4111HEDA691, 4111HEDA696, 4111HEDADEL, 4111HEDAMC, 4111HEDADELALUM, RH, LH, 4111HEDARHALUM, 4111HEDALHALUM, Right Hand, Left Hand, Delayed Action (DEL).
