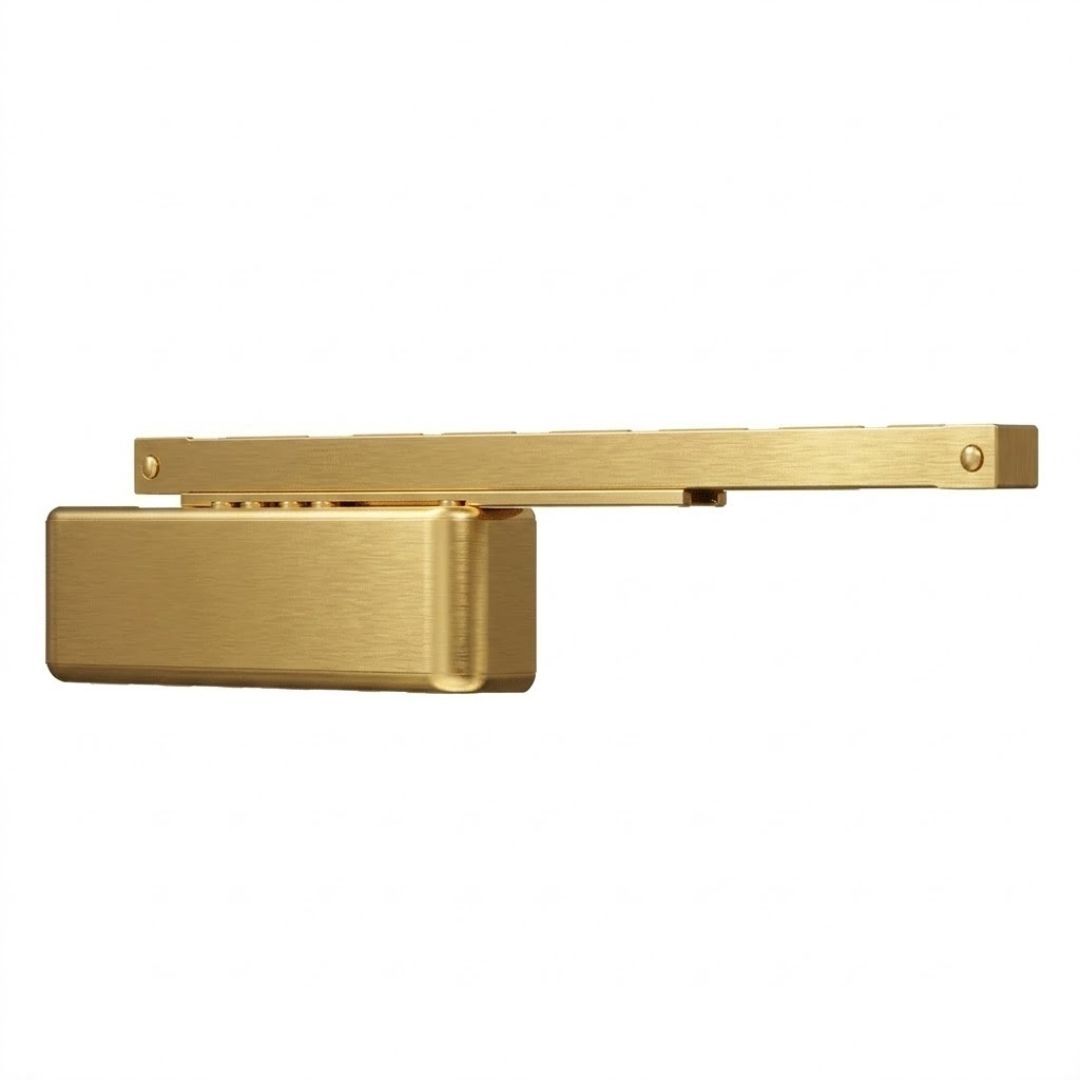

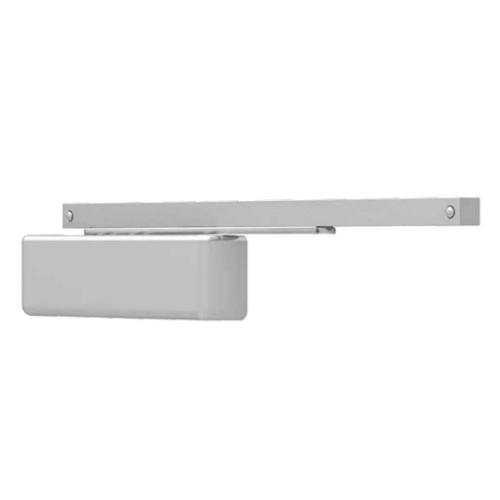

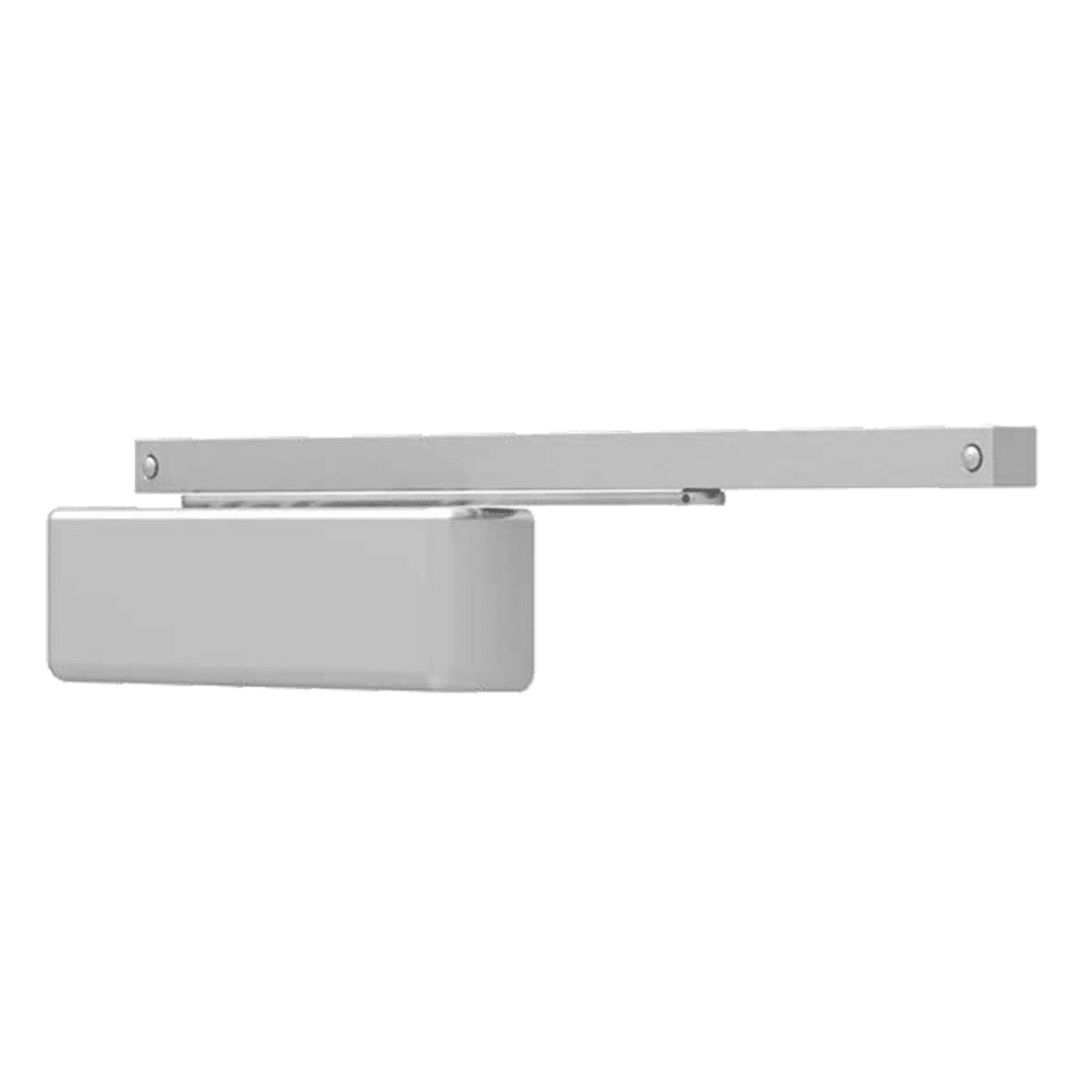

LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

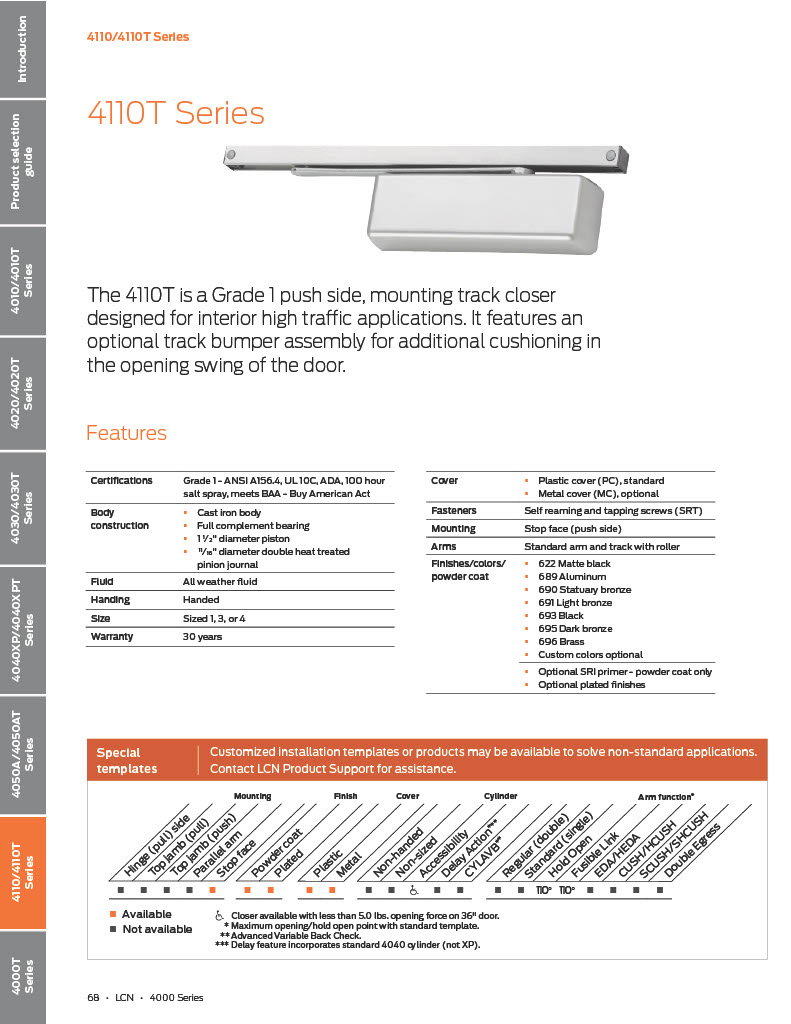

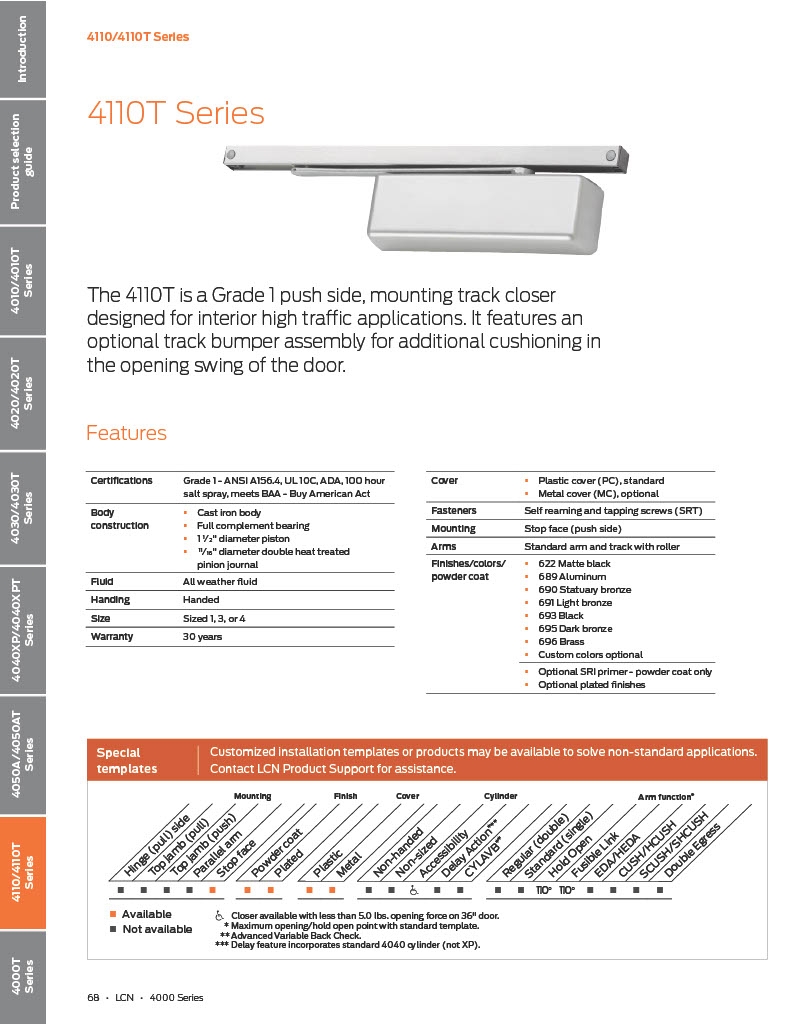

1-Page68-LCN4000

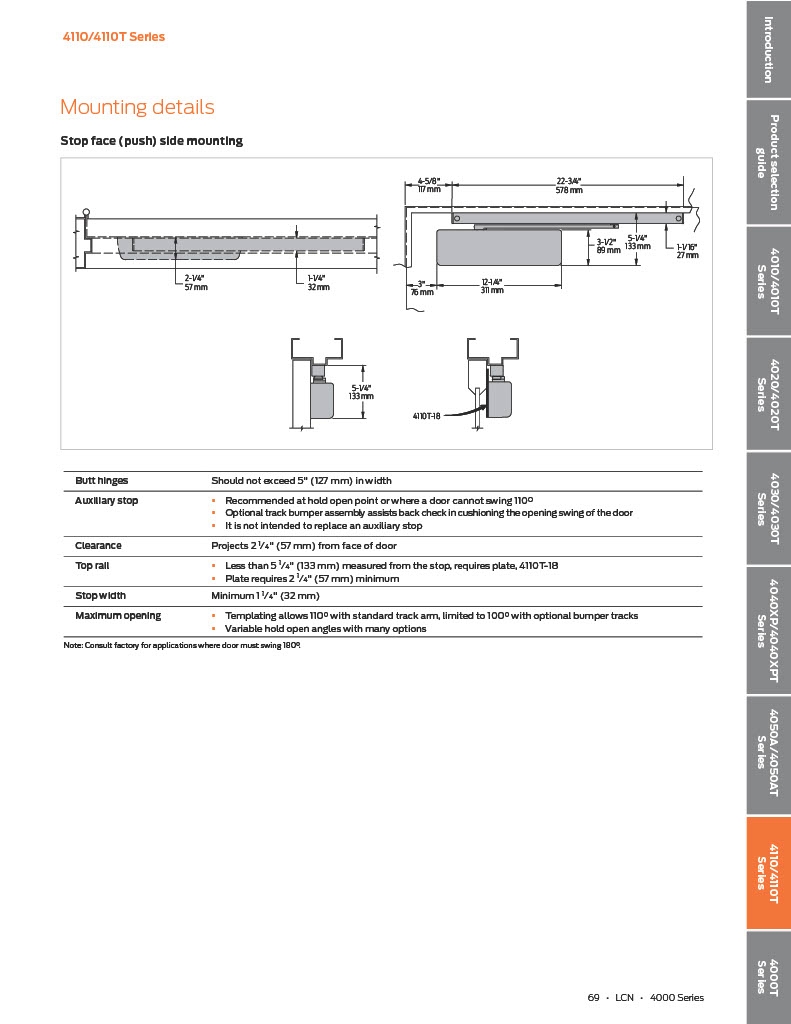

1-Page69-LCN4000
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
1-Page68-LCN4000
1-Page69-LCN4000
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
naxt
prev

Product Details

LCN 4111T H Heavy Duty Track Closer -Hold-Open Track

"Mounting Stop Face (Push Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm) (ADA)

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Hold-Open Arm and Track with Roller

Fluid: All Weather Fluid

Cover: Plastic, Standard

Fasteners: Self Reaming and Tapping Screws (SRT)

Stop Width: Minimum 1-1/4˝ (32 mm)

Top Rail: Less than 5-1/4˝ (133 mm) measured from the stop, requires PLATE, 4110T-18 n Plate requires 2-1/4˝ (57 mm) minimum

Clearance Projects: 2-1/4˝ (57 mm)from face of door

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 30 years



LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

SKU: 4111T-H

In Stock
Picture for manufacturer LCN
icon Chat

$586.95

Finish *

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

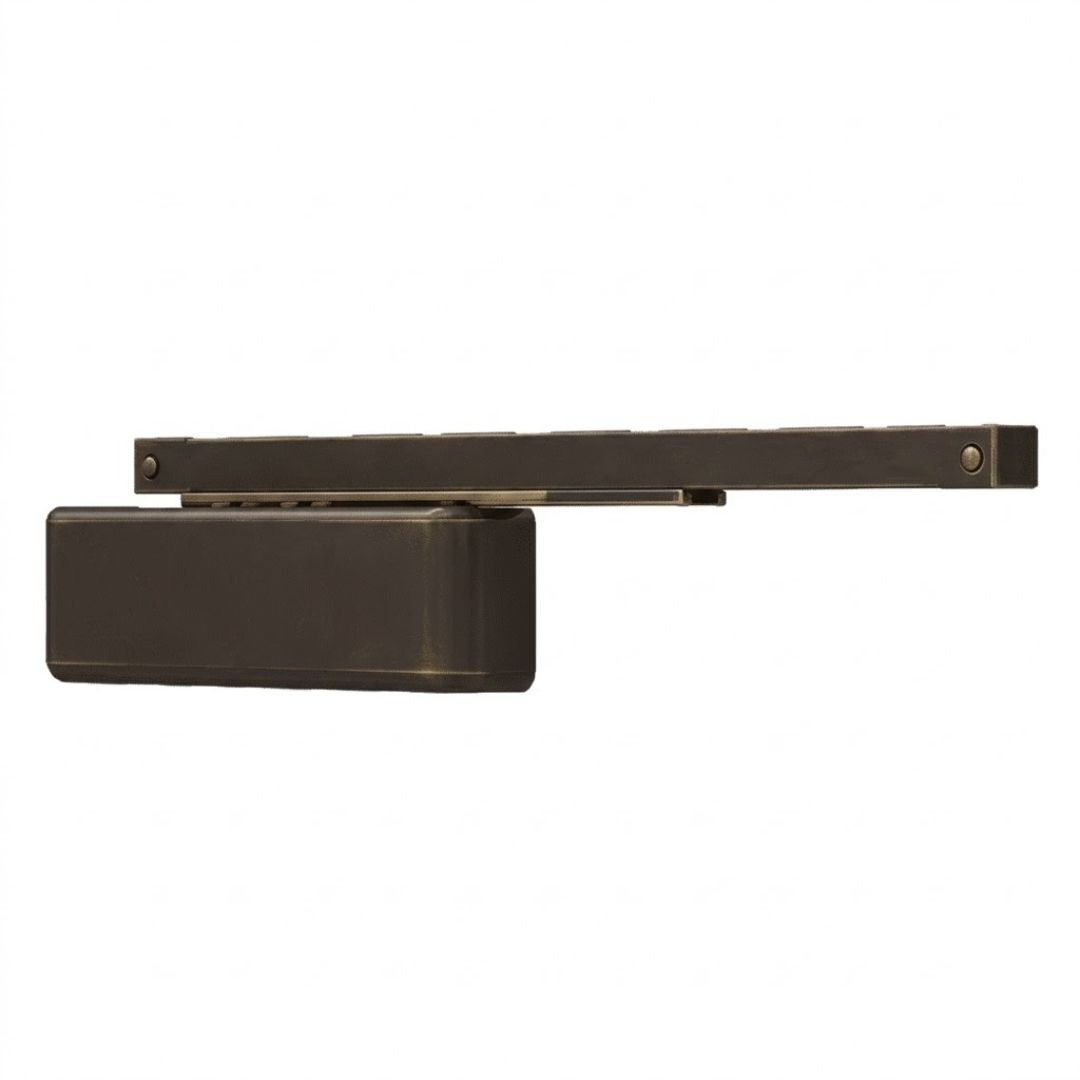

695 - Dark Bronze Painted
695 - Dark Bronze Painted

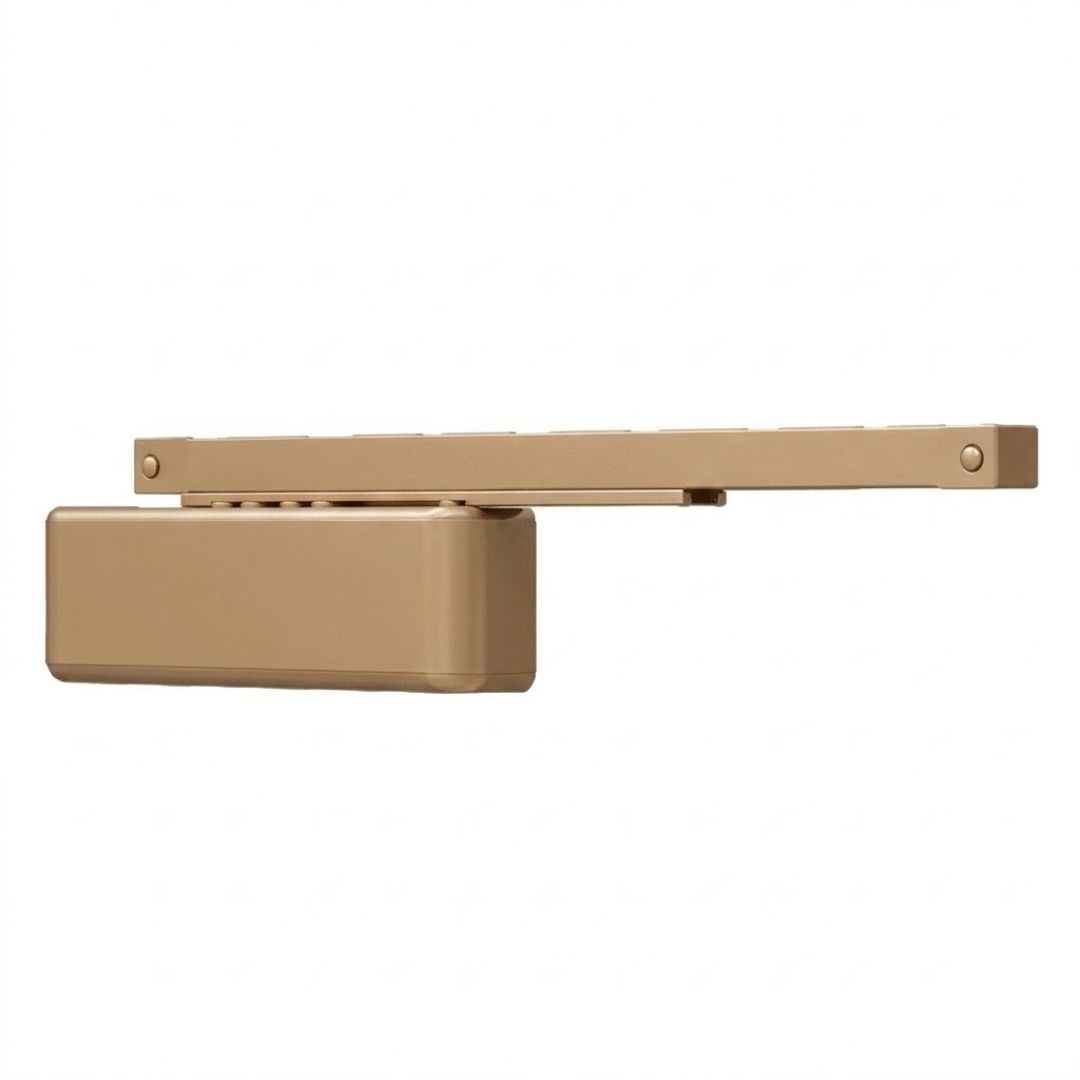

691 - Light Bronze Painted
691 - Light Bronze Painted
696 - Satin Brass Painted
696 - Satin Brass Painted

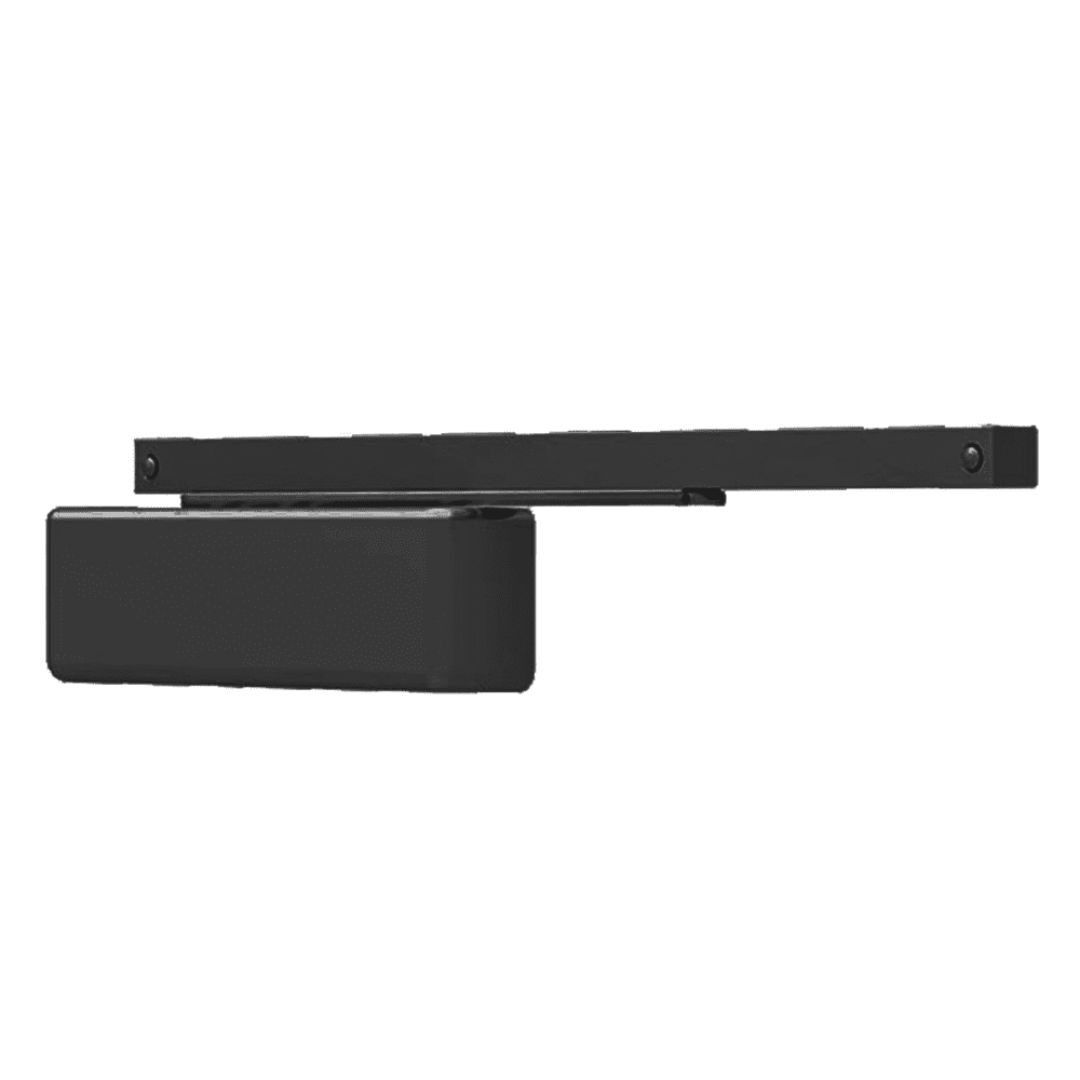

693 - Black Painted
693 - Black Painted

Handing *

About this item

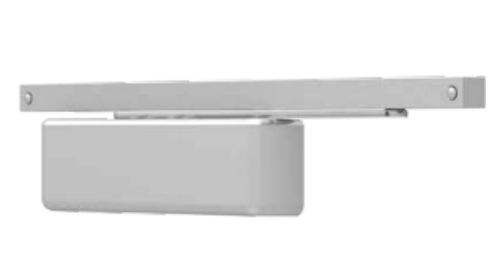

The 4010T is LCN’s best performing heavy duty track closer designed specifically for interior doors in institutional and other rugged high traffic applications.

Resources

LCN 4111T H Heavy Duty Track Closer -Hold-Open Track

"Mounting Stop Face (Push Side)"

Size 1 Interior door width 26˝ (660mm) - 34˝ (864mm) (ADA)

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Hold-Open Arm and Track with Roller

Fluid: All Weather Fluid

Cover: Plastic, Standard

Fasteners: Self Reaming and Tapping Screws (SRT)

Stop Width: Minimum 1-1/4˝ (32 mm)

Top Rail: Less than 5-1/4˝ (133 mm) measured from the stop, requires PLATE, 4110T-18 n Plate requires 2-1/4˝ (57 mm) minimum

Clearance Projects: 2-1/4˝ (57 mm)from face of door

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty: 30 years



Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

Product code: 4111T-H

In Stock

$586.95

$586.95

Picture of LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)
LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

Product code: 4111T-H

In Stock

$586.95

$586.95

LCN 4111T H Hold Open Track Closer - Mounting Stop Face (Push Side) - Size 1 (ADA)

SKU: 4111T-H
