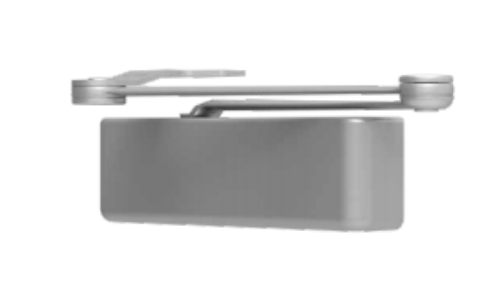

LCN 4211 EDA High Security Closer - Mounting Parallel (Push Side)

4210_LCN
4210_LCN
naxt
prev

Product Details

LCN 4211 EDA Heavy Duty, High Security Closer*- Mounting Parallel (Push Side)*

Size:Adjustable Size 2-5

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Extra duty

Fluid:All Weather Fluid

Cover:Metal Security

Fasteners:TORX machine screw pack

Clearance:For EDA or CUSH is 5-1/2˝ (140 mm)from push side of door

Top Rail:Less than 5-1/8˝ (130 mm) measured from stop, requires PLATE 4210-18. Plate requires 2˝ (51 mm) minimum top rail

Stop Width:2-3/4˝ (70 mm)recommended.

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4211 meeting ADA requirements

Warranty:15 years

Model:LCN 4211 EDA LH AL, 4211 EDA RH AL, LCN 4211 EDA LH DKBRZ, 4211 EDA RH DKBRZ

LCN 4211 EDA High Security Closer - Mounting Parallel (Push Side)

SKU: 4211 EDA

In Stock
Picture for manufacturer LCN
icon Chat

$567.80

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)
DKBRZ - DARK BRONZE (BHMA 695)
DKBRZ - DARK BRONZE (BHMA 695)

Handing *

About this item

The 4210 SMOOTHEE® Series is a heavy duty, high security closer with special components to minimize tampering and vandalism. Forged steel parallel arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Resources

LCN 4211 EDA Heavy Duty, High Security Closer*- Mounting Parallel (Push Side)*

Size:Adjustable Size 2-5

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm:Extra duty

Fluid:All Weather Fluid

Cover:Metal Security

Fasteners:TORX machine screw pack

Clearance:For EDA or CUSH is 5-1/2˝ (140 mm)from push side of door

Top Rail:Less than 5-1/8˝ (130 mm) measured from stop, requires PLATE 4210-18. Plate requires 2˝ (51 mm) minimum top rail

Stop Width:2-3/4˝ (70 mm)recommended.

Certifications:Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4211 meeting ADA requirements

Warranty:15 years

Model:LCN 4211 EDA LH AL, 4211 EDA RH AL, LCN 4211 EDA LH DKBRZ, 4211 EDA RH DKBRZ
