LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

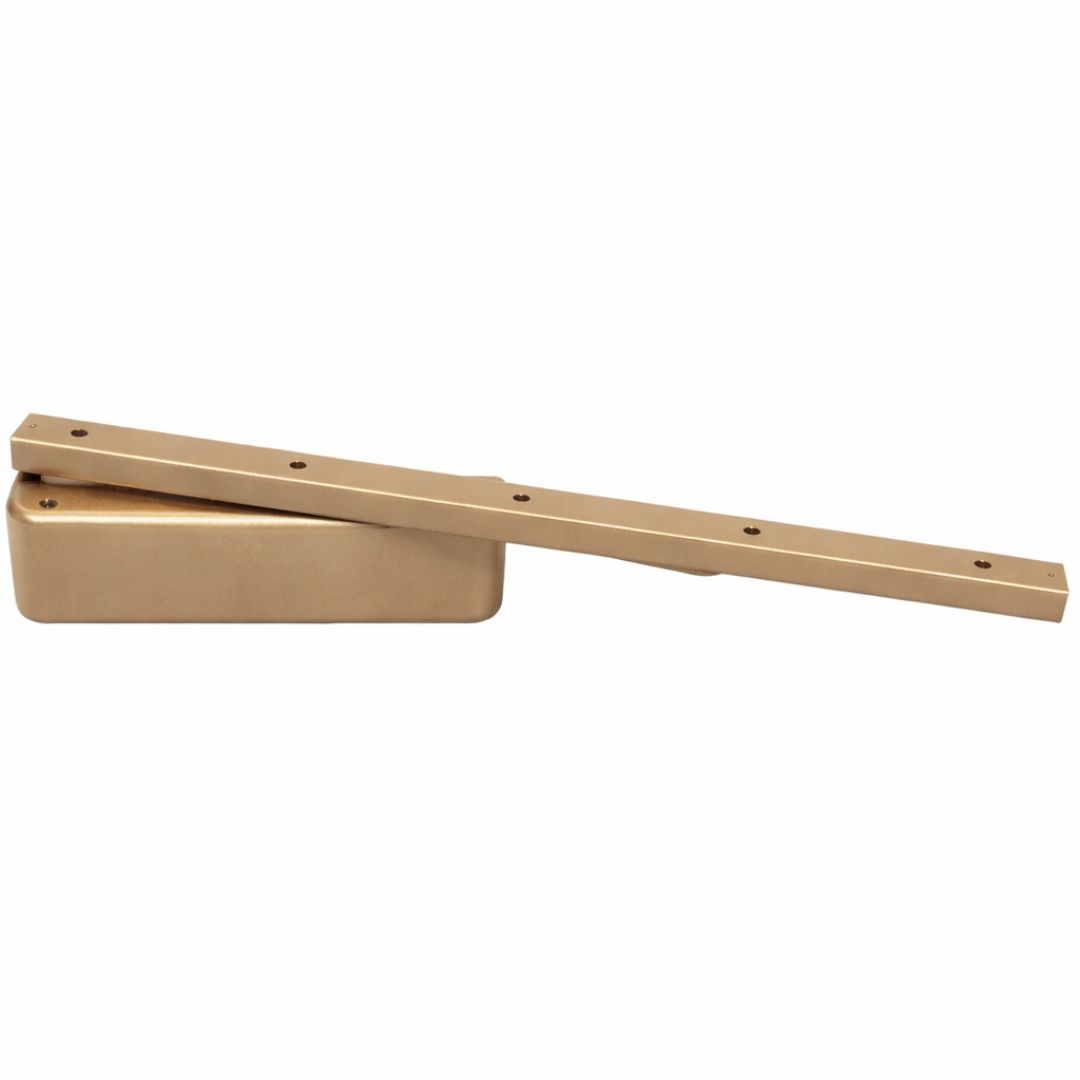

Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
naxt
prev

Product Details

LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Extra duty

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Reveal: Should not exceed 1/8˝ (3 mm)

Top Rail: Less than 3-3/4˝ (95 mm), requires PLATE 4510T-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame: Minimum 2-1/8˝ (54 mm)

Clearance: 2-1/4˝ (57 mm) behind door required for installation

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511T cylinder meets ADA requirements

Model: LCN 4511T STD LH AL, 4511T STD RH AL

LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

SKU: 4511T-STD

In Stock
Picture for manufacturer LCN
icon Chat

$730.30

Finish *

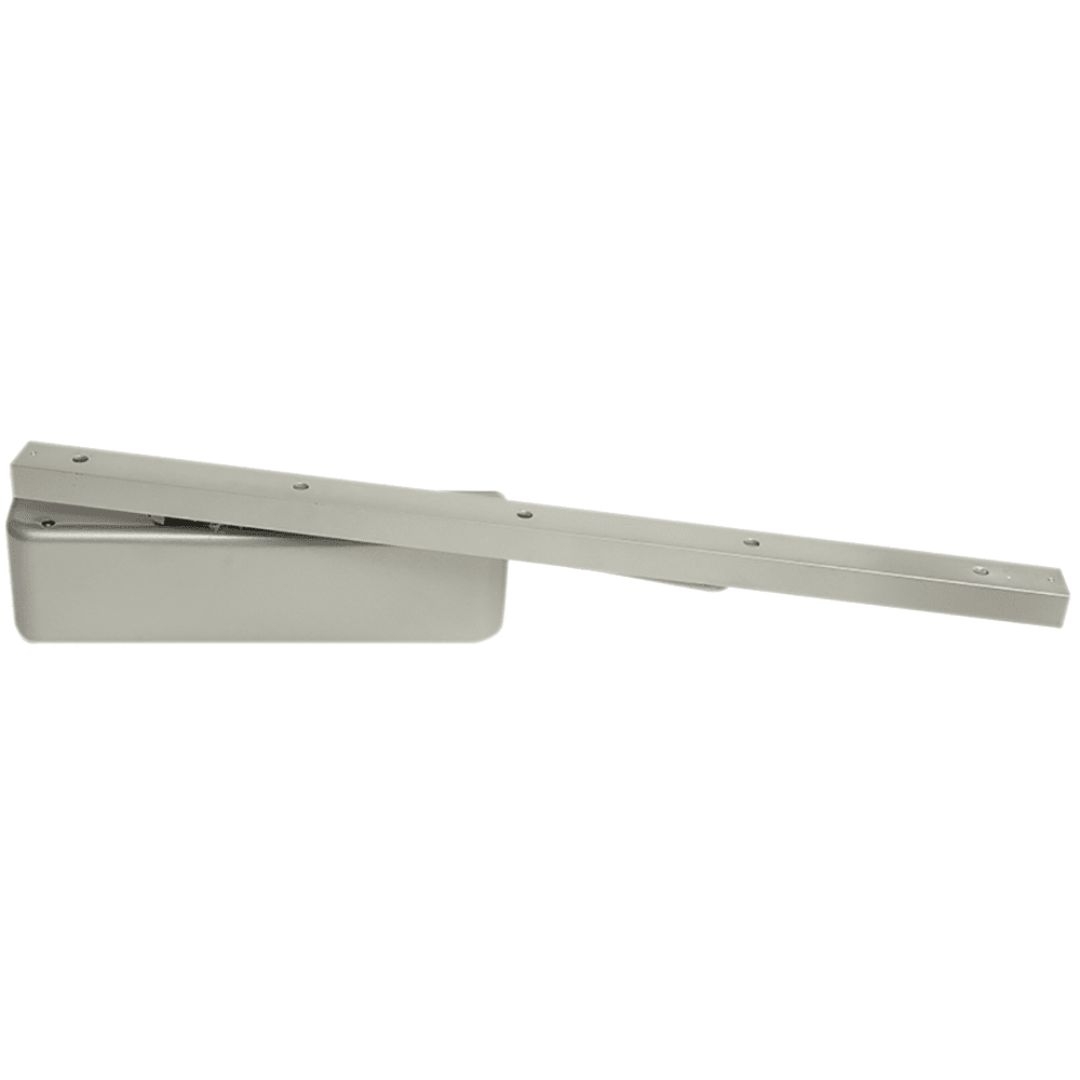

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted

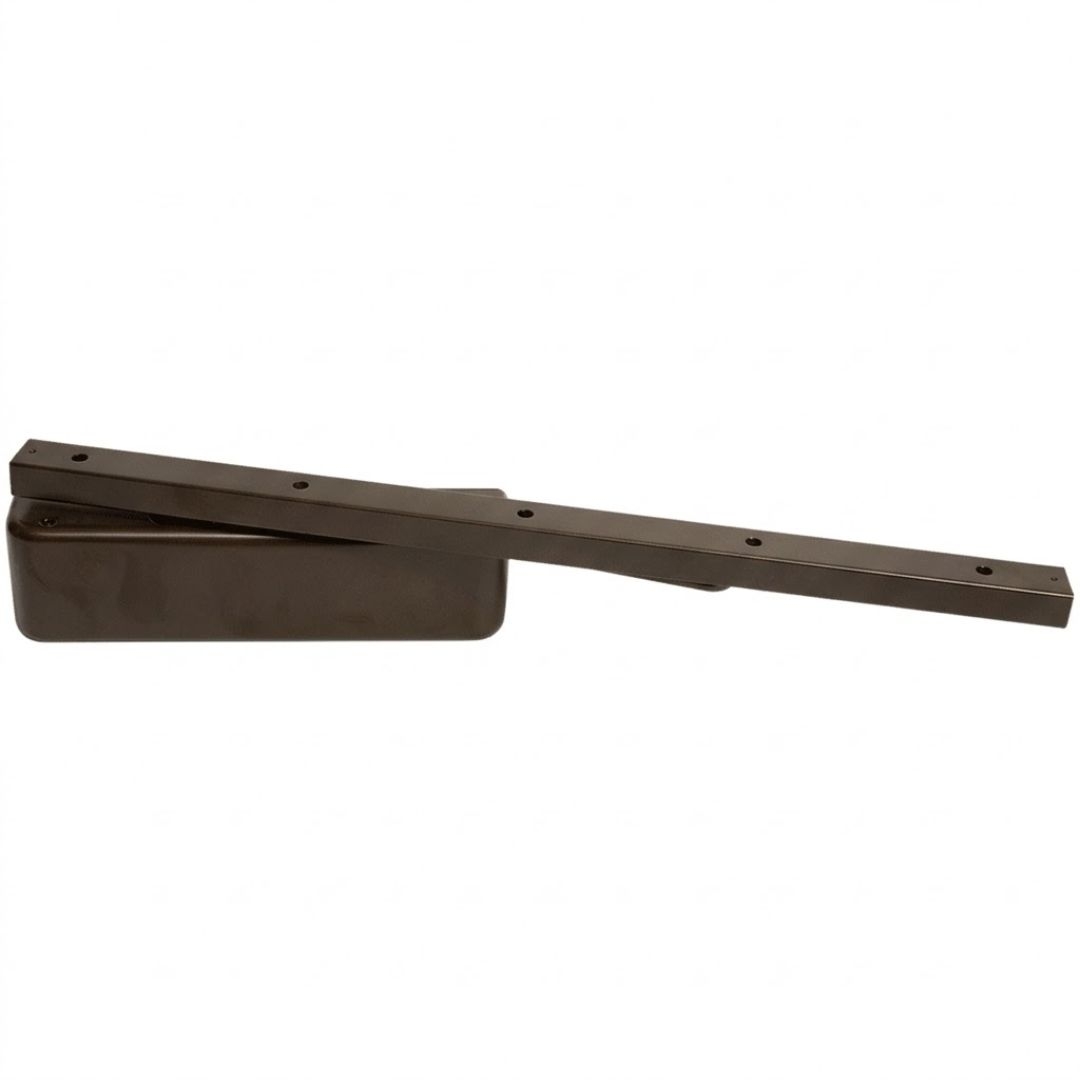

695 - Dark Bronze Painted
695 - Dark Bronze Painted
691 - Light Bronze Painted
691 - Light Bronze Painted

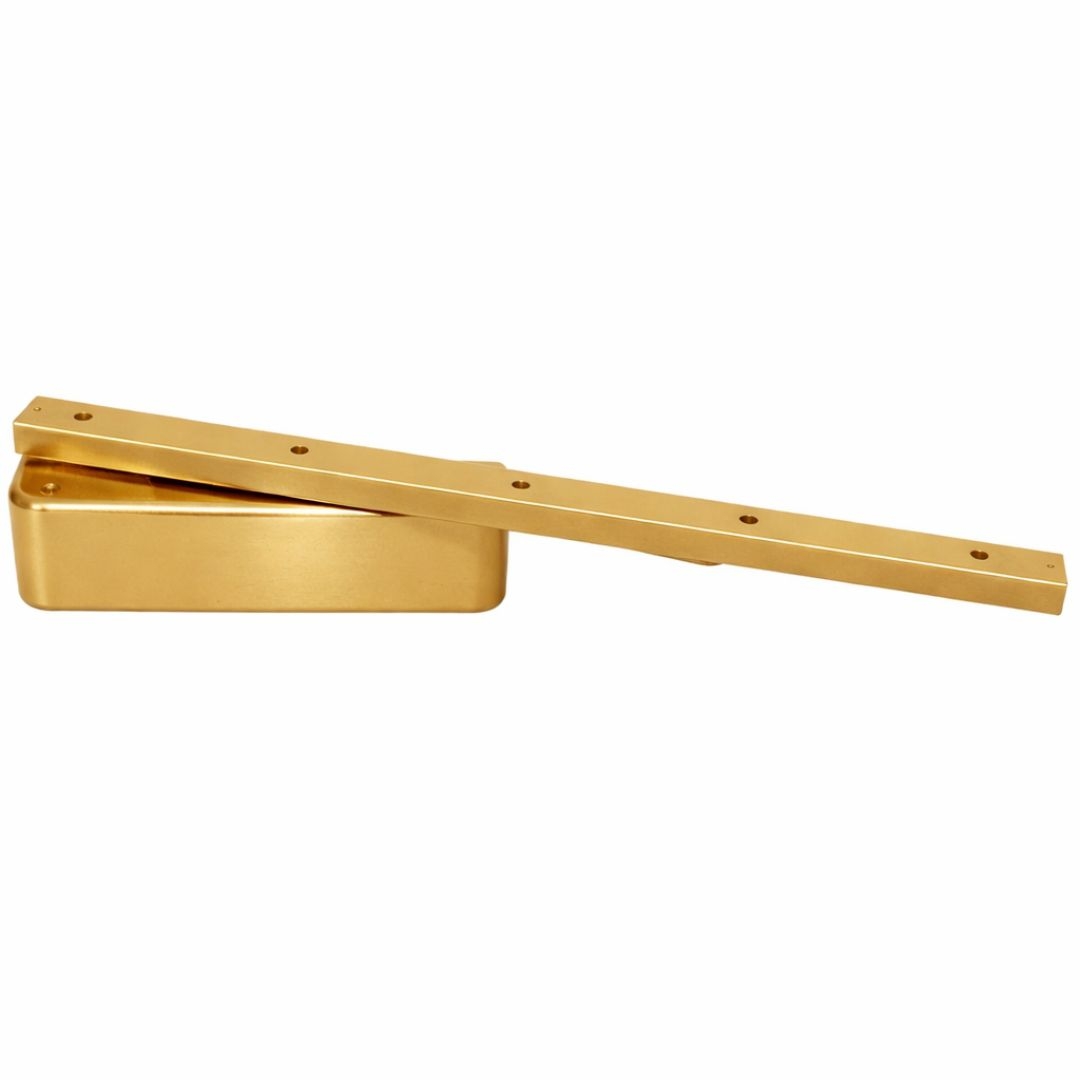

696 - Satin Brass Painted
696 - Satin Brass Painted

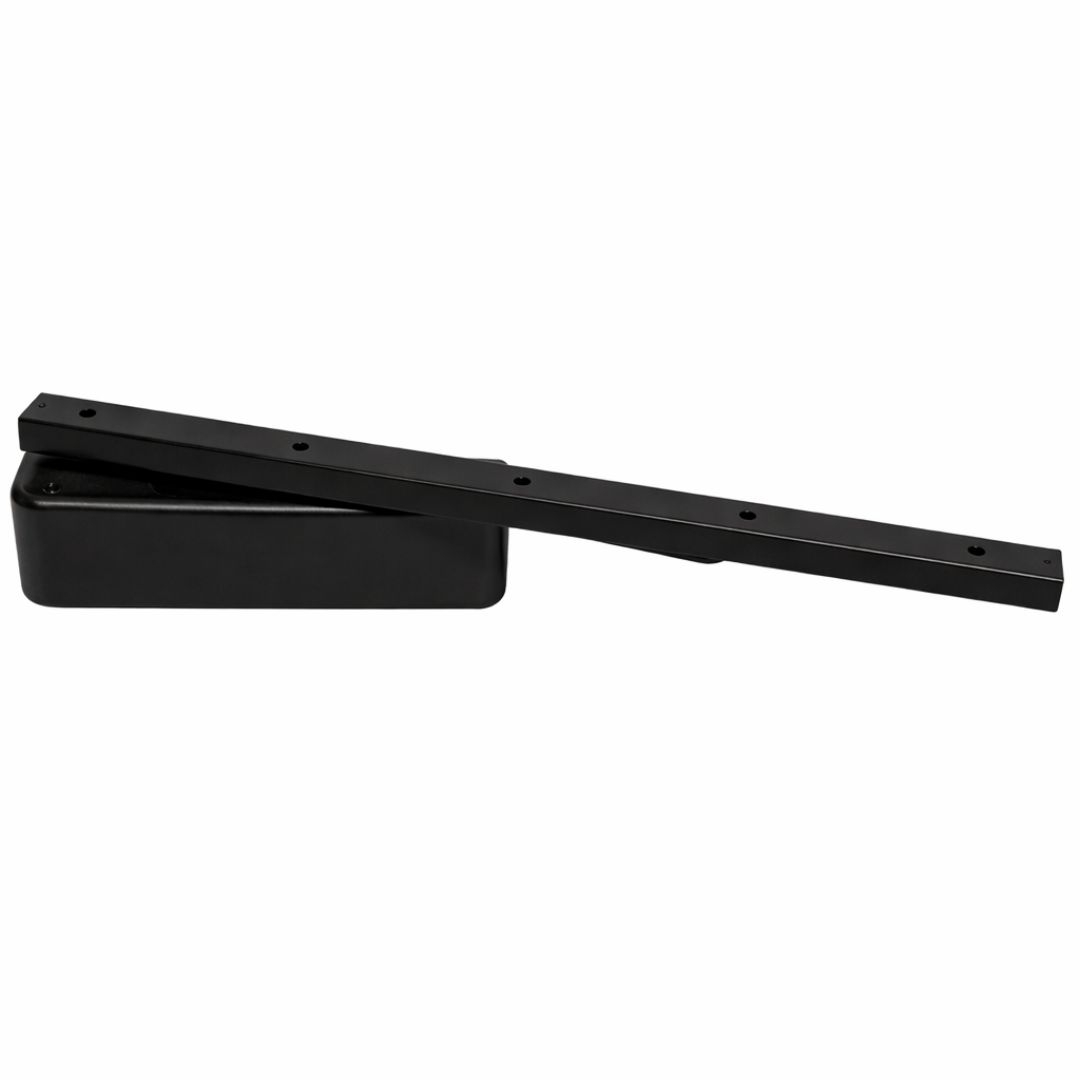

693 - Black Painted
693 - Black Painted

Handing *

About this item

The 4510T SMOOTHEE® Series is a heavy duty, high security track closer with special components to minimize tampering and vandalism. Forged steel single lever arm and heavy gauge metal security cover are designed for correctional, vandal prone, institutional and other high traffic interior applications. The closer has passed 10 million cycles in independent testing. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.

Resources

LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

Size: Adjustable Size 2-5

Body Construction: Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arm: Extra duty

Fluid: All Weather Fluid

Cover: Metal Security

Fasteners: TORX machine screw pack

Reveal: Should not exceed 1/8˝ (3 mm)

Top Rail: Less than 3-3/4˝ (95 mm), requires PLATE 4510T-18, Plate requires 2˝ (51mm) minimum top rail

Head Frame: Minimum 2-1/8˝ (54 mm)

Clearance: 2-1/4˝ (57 mm) behind door required for installation

Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA*, 100 Hour Salt Spray, Meets BAA - Buy American Act *4511T cylinder meets ADA requirements

Model: LCN 4511T STD LH AL, 4511T STD RH AL

Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

Product code: 4511T-STD

In Stock

$730.30

$730.30

Picture of LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)
LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

Product code: 4511T-STD

In Stock

$730.30

$730.30

LCN 4511T STD High Security Track Closer - Mounting Hinge (Pull Side)

SKU: 4511T-STD
