Norton Rixson 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome

117 LTP RH 626
1-Page9-AADSS1009094
117 LTP RH 626
1-Page9-AADSS1009094
naxt
prev

Product Details

Norton Rixson* 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome*

Application:


Interior Doors*Weight to 300 lbs.Door Width up to 3'6"  (1067mm)*HandedLight-Duty/Light Weight Pivot Set*Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

119 intermediate pivot recommended (order separately)Bottom pivot mortised into floorNon-ferrous base materialDoors up to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: Rixon 117LTPLH605, 117-LTP-LH-606, 117LTPRH626, 117-LTP-RH-626, 117 LTP RH 626,

Norton Rixson 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome

SKU: 117 LTP 626

In Stock

$222.72

Handing *

About this item

Pivots & Pivot Sets are designed to work with the laws of physics, pivots provide the perfect means of hanging a door.

Resources

Norton Rixson* 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome*

Application:


Interior Doors*Weight to 300 lbs.Door Width up to 3'6"  (1067mm)*HandedLight-Duty/Light Weight Pivot Set*Door size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

119 intermediate pivot recommended (order separately)Bottom pivot mortised into floorNon-ferrous base materialDoors up to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: Rixon 117LTPLH605, 117-LTP-LH-606, 117LTPRH626, 117-LTP-RH-626, 117 LTP RH 626,

117 LTP RH 626
Norton Rixson 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome

Product code: 117 LTP 626

In Stock

$222.72

$222.72

117 LTP RH 626
Norton Rixson 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome

Product code: 117 LTP 626

In Stock

$222.72

$222.72

Norton Rixson 117 LTP 626 Pivot Hinge less Top Pivot, 3/4 Offset, Satin chrome

SKU: 117 LTP 626

Related products

Screenshot 2024-05-13 130137

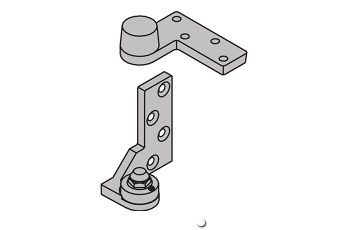

Ives 7212-BTM 3/4" Offset Bottom Pivot

Product code: W561BD

In Stock
$293.90

$160.18

Screenshot 2024-05-13 130410
Ives 7215-BTM 3/4" Offset Bottom Pivot

Product code: W561BD

In Stock
$461.60

$251.57

I7215-BTM
Ives 7215F-BTM, 3/4" Offset Fire Rated Bottom Pivot

Product code: W561BD

In Stock
$581.40

$316.86

Screenshot 2024-05-13 130520
Ives 7222-BTM, 3/4" Offset Bottom Pivot

Product code: W561BD

In Stock
$347.60

$189.44

Screenshot 2024-05-13 130655

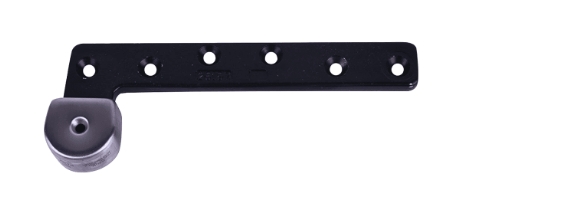

Ives 7226-BTM 3/4" Offset Bottom Pivot
