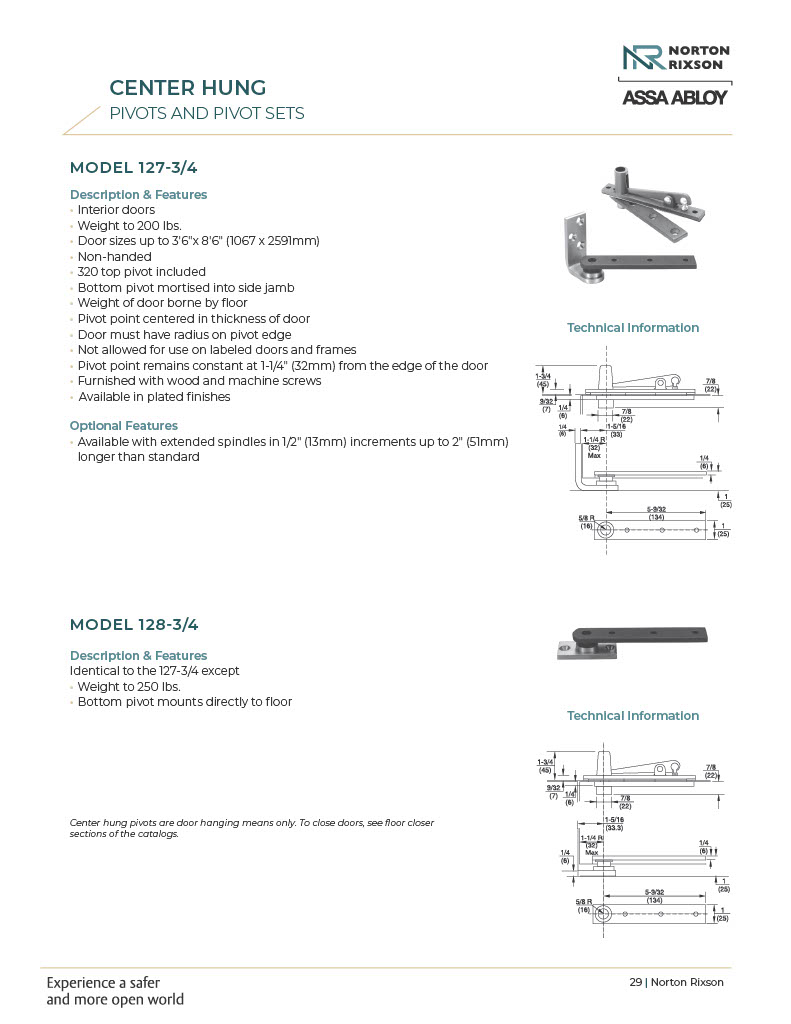

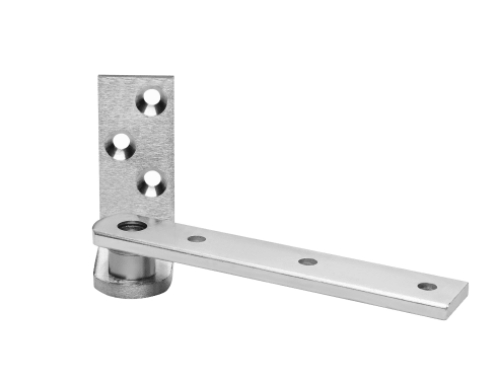

Norton Rixson 127-3/4 LTP 626 Center hung Less Top Pivot - Satin Chrome ( 200 lbs.)

Norton Rixson *127-3/4 LTP 626 Center hung Less Top Pivot - Satin Chrome ( 200 lbs.)*

Application:

Interior Doors*Weight to 200 lbs.Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)Non-handedLight-Duty/Light Weight Jamb Attached PivotCenter hung pivots are door hanging means only. To close doors, see floor closer sections.*

Description/Features:

Bottom pivot mortised into side jambWeight of door borne by floorPivot point centered in thickness of doorDoor must have radius on pivot edgeNot allowed for use on labeled doors and framesPivot point remains constant at 1-1/4 from the edge of the doorFurnished with wood and machine screws
