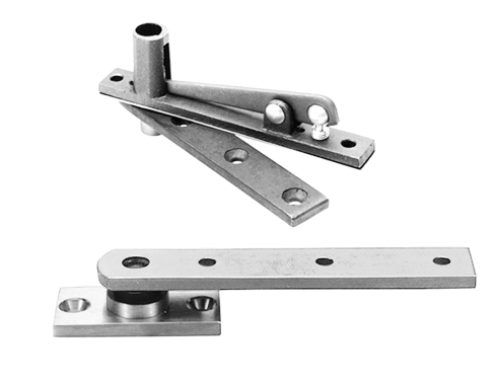

Norton Rixson 128-3/4 Center hung pivot Set ( 250 lbs.)

Norton Rixson *128-3/4 Center Hung Pivot Set ( 250 lbs.)*

Application:

Interior DoorsWeight to 250 lbs.Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)Non-handedLight-Duty/Light Weight Pivot SetCenter hung pivots are door hanging means only. To close doors, see floor closer sections.

Description/Features:

Standard top pivot 320 includedBottom pivot mounts directly to floorWeight of door borne by floorPivot point centered in thickness of doorDoor must have radius on pivot edgeNot allowed for use on labeled doors and framesPivot point remains constant at 1-1/4 from the edge of the doorFurnished with wood and machine screws

Model:128-3/4-626, 128-3/4-613, 127-3/4-619, 128-3/4-625, 128-3/4-612, 1283/4626, 128 3/4 613, 1283/4619, 1283/4-625, 128 3/4 612, 128-3/4-605, 128-3/4-606
