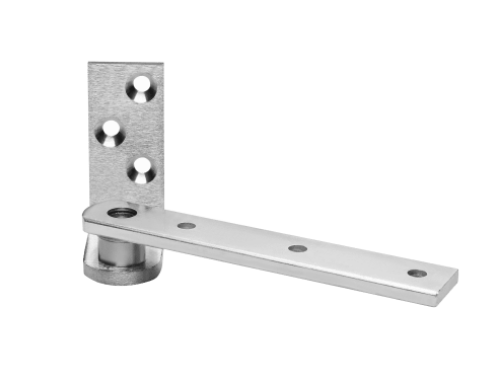

Norton Rixson 128-3/4 LTP Center hung Less Top pivot ( 250 lbs.)

Norton Rixson *128-3/4 LTP Center hung Less Top pivot  ( 250 lbs.)*

Application:

Interior DoorsWeight to 250 lbs.Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)Non-handedLight-Duty/Light Weight PivotCenter hung pivots are door hanging means only. To close doors, see floor closer sections.

Description/Features:

Bottom pivot mounts directly to floorWeight of door borne by floorPivot point centered in thickness of doorDoor must have radius on pivot edgeNot allowed for use on labeled doors and framesPivot point remains constant at 1-1/4 from the edge of the doorFurnished with wood and machine screws

Model:128-3/4-LTP-626, 128-3/4-LTP-613, 128-3/4-LTP-625, 128-3/4-LTP-612, 1283/4LTP626, 128 3/4 LTP 613, 1283/4LTP-625, 128 3/4 LTP 612, 128-3/4-LTP-605, 128-3/4-LTP-606
