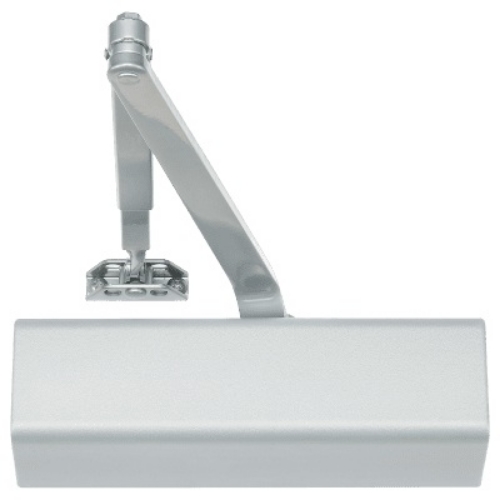

Norton Rixson 1601SS Multi-Sized Corrosion Resistant Door Closer

Norton Rixson *1601SS Multi-Sized Corrosion Resistant Door Closer - Size 1 - 6*

Features

Non-handed

*Corrosion Resistant Door Closer:The series 1601SS door closers are available for use where corrosive conditions exist. This series is provided with zinc diecast adjustment valves, a 440 grade stainless steel pinion shaft, an all-aluminum body and bronze closer arm bushings; all other components and fasteners are of 302/303 grade stainless steel. This product is available for standard regular arm, top jamb and parallel arm, non-hold open, applications only. NotTri-Style*packed.

1601SSfor Regular arm & top jamb (up to 3" reveal) mounting

P1601SSfor Parallel armmounting

Power Size:Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6 Degree.

Separate and independent, latch, sweep and backcheck intensity valves

*Sweep Speed:*Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

*Latch Speed:*Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

*Backcheck:*Provides control of the door in the opening cycle, beginning at approximately 75 of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

All standard arm applications allow doors to swing 180 Degree , conditions permitting

15-year limited warranty

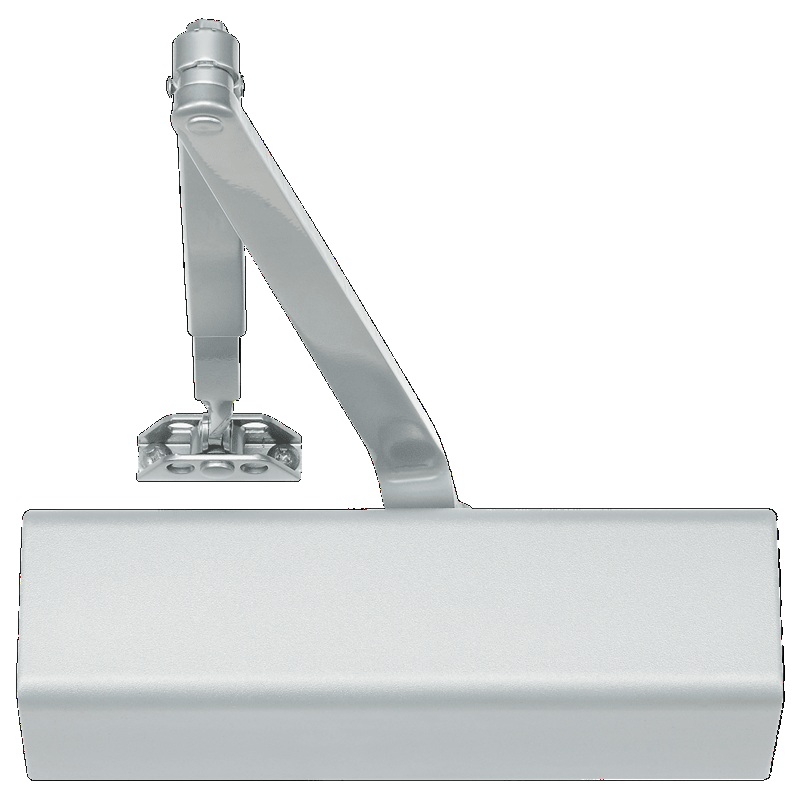

Model: Norton Rixson  Door Closer, 1601SS, P1601SS, 689, Silver Aluminum Painted

Aluminum Alloy Housing:Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interaction with steelcomponents and operating conditions.

*Rack & Pinion Operation:*Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not limit door swing.

2-7/8" (73mm) projection

1-3/8" (35mm) diameter piston

5/8" (16mm) diameter pinion journals

Complicance Standards

ANSI/BHMA A156.4, Grade 1 certified

UL listed

UL10C compliant for positive pressure

A.D.A. compliant
