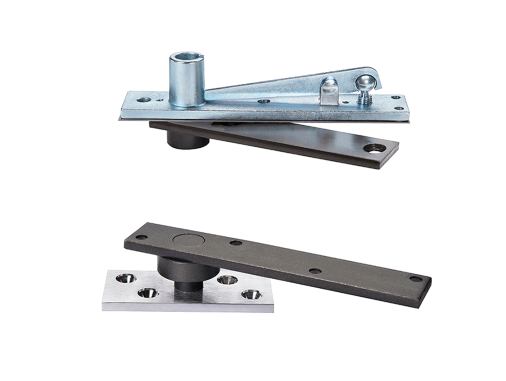

Norton Rixson 370 Center Hung Pivot Set (500 lbs.)

Norton Rixson *370 Center Hung Pivot Set (500 lbs.)*

Application:

Exterior or Interior DoorsWeight to 500 lbs.Door Sizes up to 3'8"x 8'6"* (1118 x 2591mm)Non-handedCenter hung pivots are door hanging means only. To close doors, see floor closer sections.For doors taller than 8'6" use top pivot 345 in lieu of 340

Description/Features:

Standard top pivot 340 includedBottom pivot mounts directly to floorPivot point centered in thickness of doorDoor must have radius on pivot edgePivot set features sealed bearings for protection against weather and debrisNot allowed for use on labeled doors and framesFurnished with wood and machine screws

Model: Norton Rixson 370-612, 370-613, 370-619, 370-625, 370-626, 370612, 370613, 370619, 370625, 370626

Related Categories

• Pivot Sets, Top & Bottom
