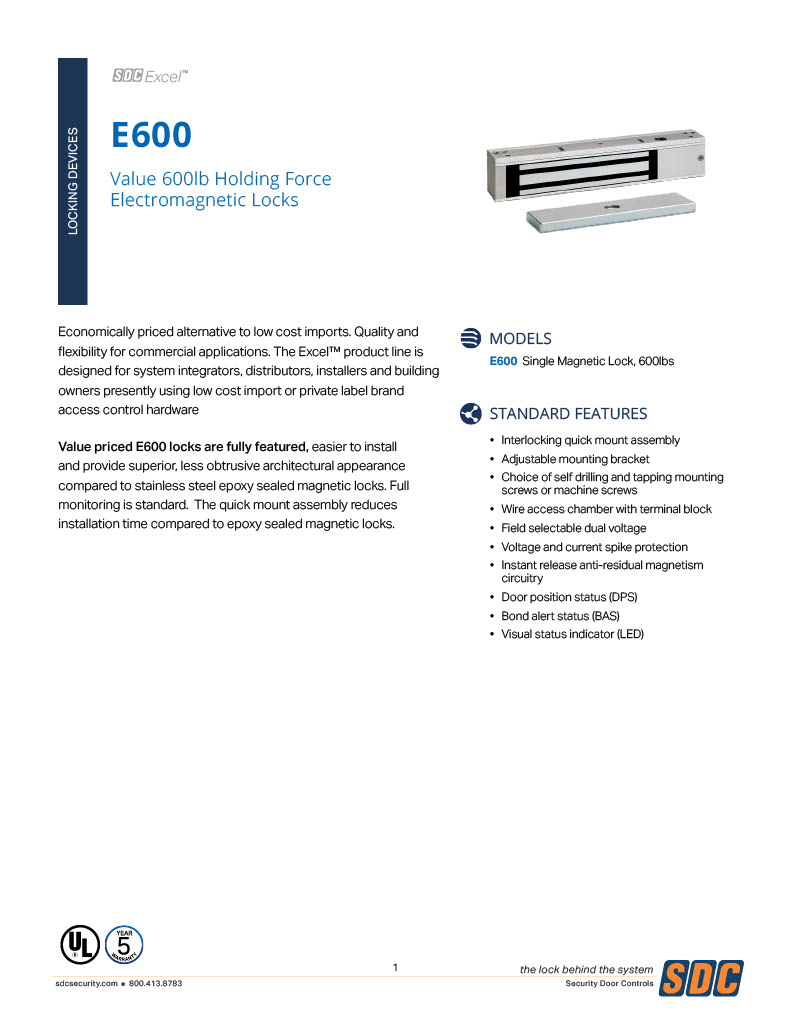

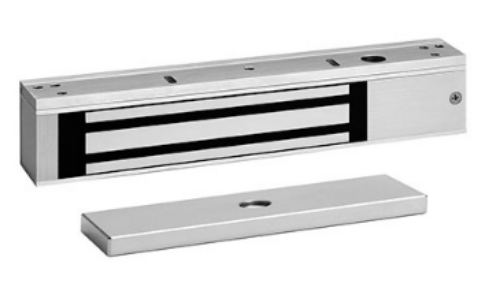

SDC EXCEL™ E600 Electromagnetic Lock, Traffic Control, Air-Locks & Communicating Bathrooms, 600 lbs

SDC EXCEL™ E600 Electromagnetic Lock, Traffic Control, Air-Locks & Communicating Bathrooms, 600 lbs Holding Force

APPLICATION:

Traffic Control, Air-Locks & Communicating Bathrooms 600 lb / 272 kg holding force magnetic lock for interior door traffic control where physical attack is not a concern. Door and lock status outputs included for remote monitoring, mantraps and system application needs.

STANDARD FEATURES:

• Door status, lock status and Bi-color LED

• Interlocking quick mount assembly

• Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws

• Wire access chamber with terminal block

• Dual voltage 12/24VDC

• 628 Clear anodized aluminum

Specifications:

Mechanical:

Holding Force: 600 lbs / 272 kg

Lock: 9-7/8" L x 2-7/8" H x 1" D; (250 L x 51 H x 26 D mm)

Armature: 7-5/16" L x 1-1/2" H x 1/2" D; (186L x 38H x 13D mm)

Electrical:   Circuitry & Wiring: PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs Circuitry Voltage and current spike protection and instant release anti-residual magnetism circuitry

Voltage: 12/24VDC, field selectable

Current: 500 mA @ 12VDC; 250 mA @ 24VDC

Lock Status Contact: SPDT, 2 Amp @ 30VDC

Door Status Contact: SPDT, 250 mA @ 30VDC
