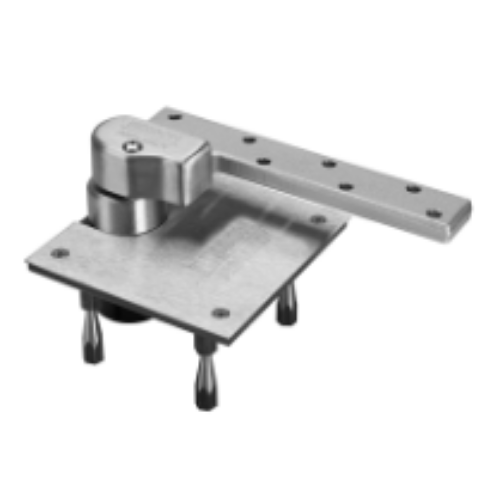

Norton Rixson L117 X 1-3/4 LTP Pivot Hinge Less Top Pivot, 1-3/4" Lead Lined Door, 3/4 Offset, (1,750 lbs)

Norton Rixson* L117 X 1-3/4 LTP Pivot Hinge Less Top Pivot, 1-3/4" Lead Lined Door, 3/4 Offset, (1,750 lbs)*

Application:

Exterior or Interior DoorsLead-Lined/Heavy/High Traffic DoorsWeight to 1,750 lbs.*Door Width up to 4'0" (1219mm)HandedDoor size & weight guidelines are determined using the appropriate number of intermediate pivots

Description/Features:

ML19 intermediate pivot required (order separately)Bottom pivot mortised into floorDoor thicknesses: 1-3/4" (44mm)Additional thrust bearing for greater load capacityDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivotNon-ferrous base material for top pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled in 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: L117 X 1-3/4 Door LTP RH 626, L117X1-3/4DoorLTPRH626, L117X1-3/4LTPLH  L117X1-3/4DoorLTPRH626, L117X1-3/4LTPRH626, L117RHLTP626
