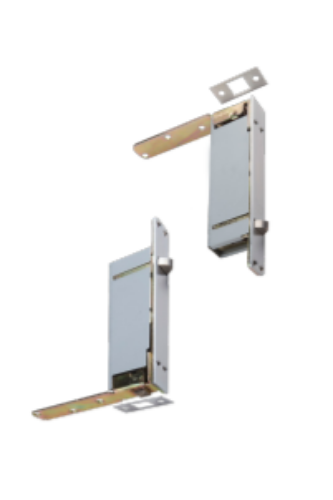

PDQ 93201 Series Automatic Flush Bolt For Composite Wood Doors

*PDQ 93201 Series Automatic Flush Bolt For Composite Wood Doors * ANSI Type 25

FEATURES: - Easy closing force. -  Non-handed. -  Fully automatic-opening active door retracts top and bottom bolts. - Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes.  - Rods are adjustable up to 1-1⁄2". - Fusible link automatically locks the inactive door under high heat conditions due to fire. - PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately).

SPECIFICATIONS: BASE MATERIAL:  - Brass and Steel. FASTENERS: - 12 ea. #8 x 3⁄4" FH combo screws. - 6 ea. #10 x 1" FH WS. - 4 ea. #8 - 32 x 1⁄4" FH undercut FH MS. FINISHES: - 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES: - UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4' x 8', 1-1/2 hrs. -  Complies with ANSI/BHMA A156.16 Type 27 (Formerly included in A156.3). - Meets requirements of Buy American Act.

93201, PDQ 93201, PDQ93201, 93201PDQ, PDQ 93201, 93201 PDQ, PDQ Automatic Flush Bolt
