PDQ 93202 Series Self-latching Automatic Flush Bolt ForComposite Wood Doors

PDQ 93202 Series Self-latching Automatic Flush Bolt ForComposite Wood Doors

Product Details

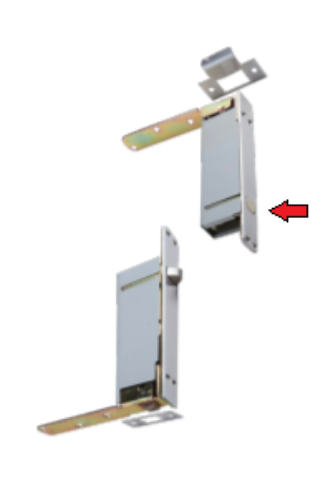

PDQ 93202 Series Self-latching Automatic Flush Bolt For Composite Wood Doors - Push Button Release

ANSI Type 27

FEATURES: - Easy closing force. - Top bolt automatically engages when the inactive door closes. Bottom latch on the inactive door automatically engages when the active door is closed. When the active door is opened, the bottom latch on the inactive door automatically retracts. The inactive door stays latched at the top until the top bolt is retracted by depressing the release button on the bolt face. - Non-handed. - Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes. - Bolt head rod is adjustable up to 1-1⁄2". - Fusible link automatically locks the inactive door under high heat conditions due to fire. - PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately) .

SPECIFICATIONS: BASE MATERIAL: - Brass and Steel. FASTENERS: - 12 ea. #8 x 3⁄4" FH combo screws. - 6 ea. #10 x 1" FH WS. - 4 ea. #8 - 32 x 1⁄4" FH undercut FH MS. FINISHES: - 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES: - UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4' x 8', 1-1/2 hrs. - Complies with ANSI/BHMA A156.16 Type 27 (Formerly included in A156.3). - Meets requirements of Buy American Act. 93201, PDQ 93202, PDQ93202, 93202PDQ, PDQ 93202, 93202 PDQ, PDQ Automatic Flush Bolt
