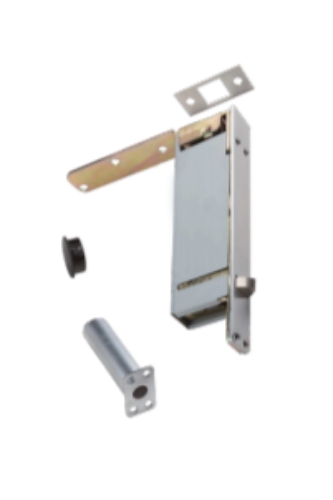

PDQ 93203 Series Automatic Flush Bolt with Bottom Fire Bolt For Wood Composite Doors

About this item

PDQ 93203 Series Automatic Flush Bolt with Bottom Fire Bolt For Wood Composite Doors

ANSI Type L04021

FEATURES:
- Low (5 lbs. maximum) closing force.
-Fully automatic-opening active door retracts top bolt.
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike.
- Bolt head rod is adjustable up to 1⁄2".
- Includes PDQ #629030 Fire Bolt automatically locks the inactive door under high heat conditions due to fire.
- Bottom fire bolt eliminates need for floor prep.
- Oversize fire bolt strike hole allows for slight door misalignment.

SPECIFICATIONS:
BASE MATERIAL:
- Brass and Steel .
FASTENERS:
- 6 ea. #8 x 3⁄4" FH combo screws, 2 ea. 8-32 x 1/4" FH MS, 3 ea. #10 x 1" FH WS, 4 ea. #8 x 3/4" WS (for Fire Bolt).
FINISHES:
- 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome.
CERTIFICATIONS, LISTINGS, COMPLIANCES:
-  UL/CUL 10C listed for hollow labeled composite wood swing doors, 4' x 8', 20 min.
- Complies with ANSI/BHMA156.3, Type 25.
-  Meets requirements of Buy American Act.
